WWSD Vehicle and Axle Weighing System (900mm x 500mm)

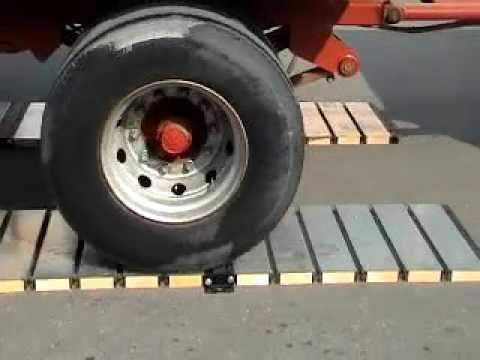

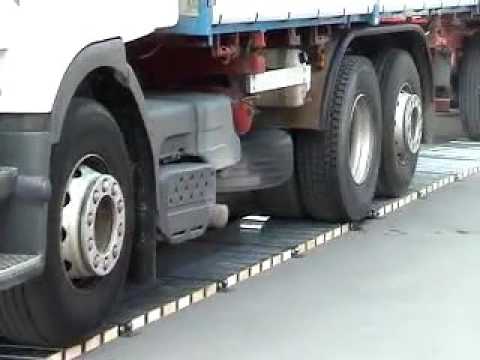

The WWSD Vehicle and Axle Weighing System efficiently and accurately determines vehicle and axle weights. Choose from 2 - 8 wired or wireless portable weighing pads and view results on the standard or dynamic indicator. Ideal for large vehicles with twin wheels, this system enhances weighing efficiency and ensures compliance through rapid, precise measurements.

Product Information

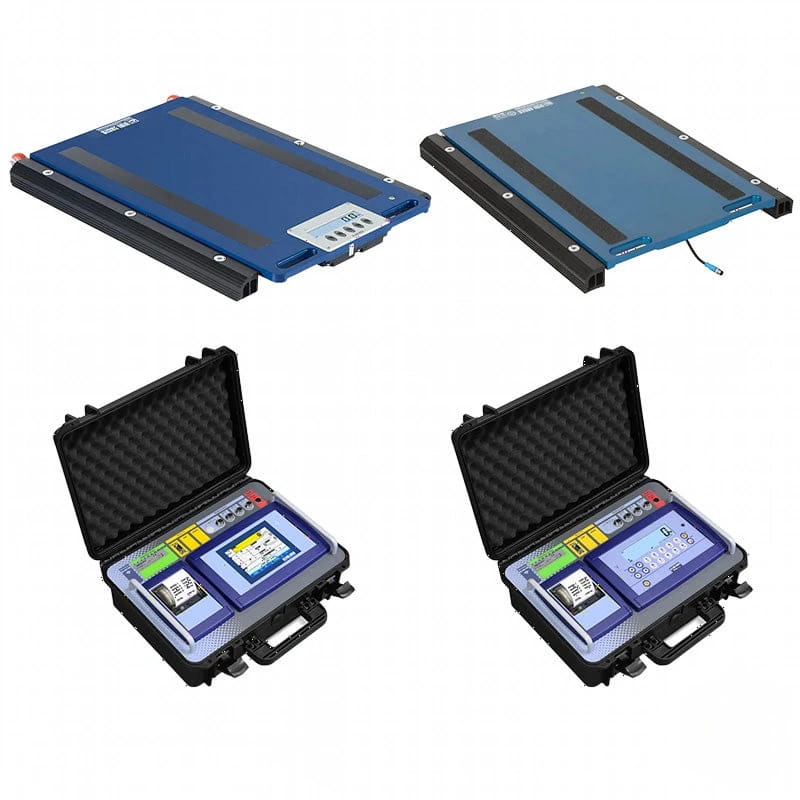

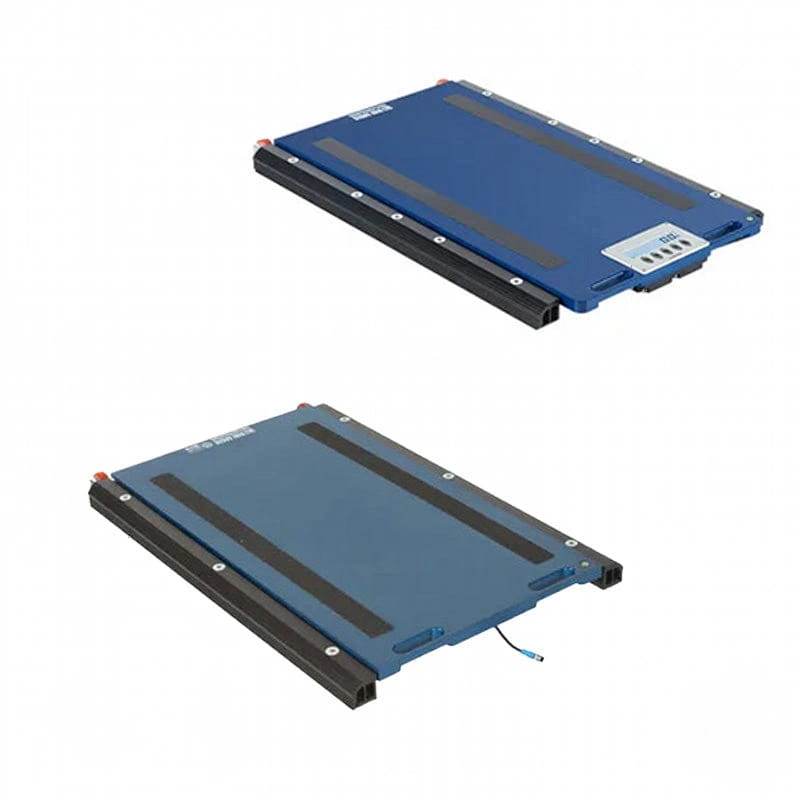

WWSD Weighing Platform

General Features:

  • Wheels for easy transport
  • Non-slip rubber surface
  • IP68 waterproof load cells and junction box
  • Patented design (1.342.302)
  • Available in legal for trade and high resolution versions

Standard Weight Indicator

General Features

Robust design: Waterproof keyboard, metallic case, and rechargeable battery. High precision: Up to 10,000e accuracy, 3,000,000 internal resolution.
Versatile: Connects up to 8 load cells, handles multiple platforms and axles.
User-friendly: Configurable settings, clear display, and intuitive keyboard.
Portable: Compact size, lightweight, and includes a carrying case. Weighing Functions
Comprehensive: Weighs individual wheels, axles, and total vehicle weight.
Efficient: Calculates and prints barycenter (center of gravity).
Flexible: Handles various weighing scenarios (simple, totalization, input/output).
Accurate: Provides static axle totalization for precise measurements.
Printing: Built-in thermal printer for detailed weight records.

Main Certifications

  • EC Type Approval (EN45501)
  • OIML R76

Dynamic Touch Screen Weight Indicator

General Features

Touchscreen Display: Intuitive navigation and customisation for user-friendly operation.
Multilingual Support: Accommodates diverse user bases.
Customisable Screens: Tailored interfaces for specific weighing needs.
High Accuracy: Precise weight measurements with advanced A/D converter.
Data Management: Built-in memory, alibi memory, and SD card slot for data storage and retrieval.
Connectivity: Multiple serial ports for integration with printers, computers, and other devices.
Battery Powered: Portable operation for on-site applications.
Customisable Applications: Flexibility to adapt to specific weighing requirements.
Printing: Built-in thermal printer for detailed weight records.

Main Certifications

  • EC Type Approval (EN45501)
  • OIML R76
  • OIML R51 - MID
  • OIML R134 (AF09)

Comparison

Feature Standard Dynamic
Display LCD with keypad
Touchscreen
Customisation Less customisable  Highly customisable screens and software
Connectivity Fewer connectivity options Multiple serial ports, optional I/O
Additional Features Simpler feature set Alibi memory, SD card slot, optional I/O



Notes About The Legal For Trade Approved Versions

  • The platforms are for legal for trade use:
    • In the single-platform systems, not used to weigh vehicles.
    • In the wheel weighing systems in which the number of platforms is equal to the number of vehicle wheels.
    • In the axle weighing systems composed of one or more multiples of WWS platforms, except possible limitations of use for some European States.
  • The axle weighing systems with 2 WWS platforms and a 3590E "AF09" weight indicator are OIML R134 certified for the dynamic vehicle weighing, according to the legal standards in force in the Country of use.
  • The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade platform of the system.
  • Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division:
    Example for a 4 pads system
    Single CE-M Platform: Max=1500kg and e=0,5kg
    CE-M SUM: Max=6000kg and e=2kg

Need help finding the right product for you? Contact us here

Specification
  • Dimensions: 900x611mm, Height 58mm
  • Loading surface: 900x500mm
  • Weight: Approx. 41.5kg
  • Material: Lightweight, durable aluminum
Downloads

Please click here for the WWSD weigh pad data sheet.

Please click here for the WWSDRF weigh pad data sheet.

Please click here for the Standard indicator data sheet

Please click here for the Dynamic indicator data sheet

Please click here for the WWS Series weigh pad catalogue


£2,770.00
