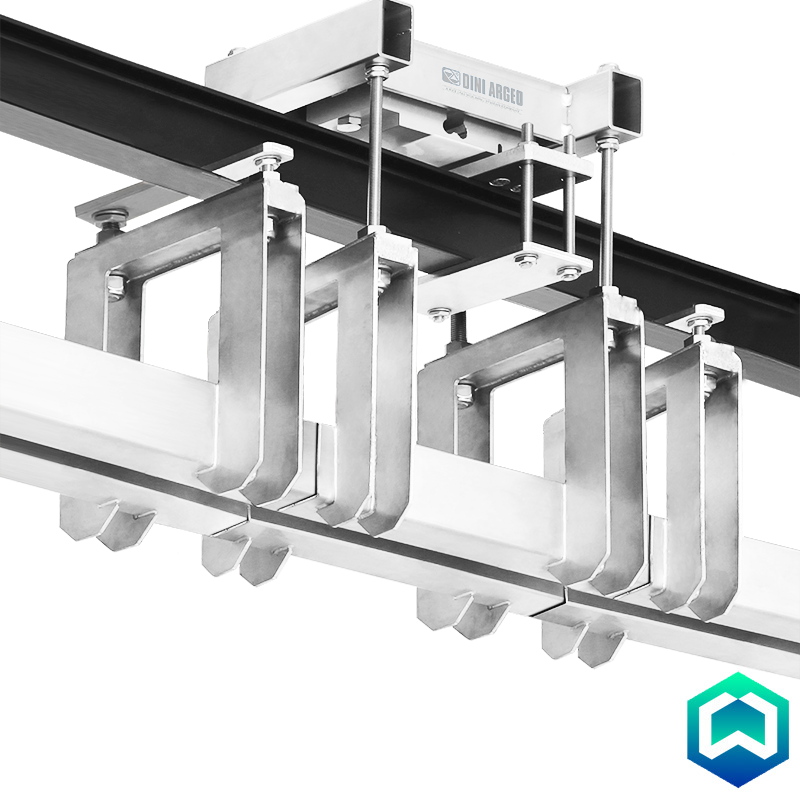

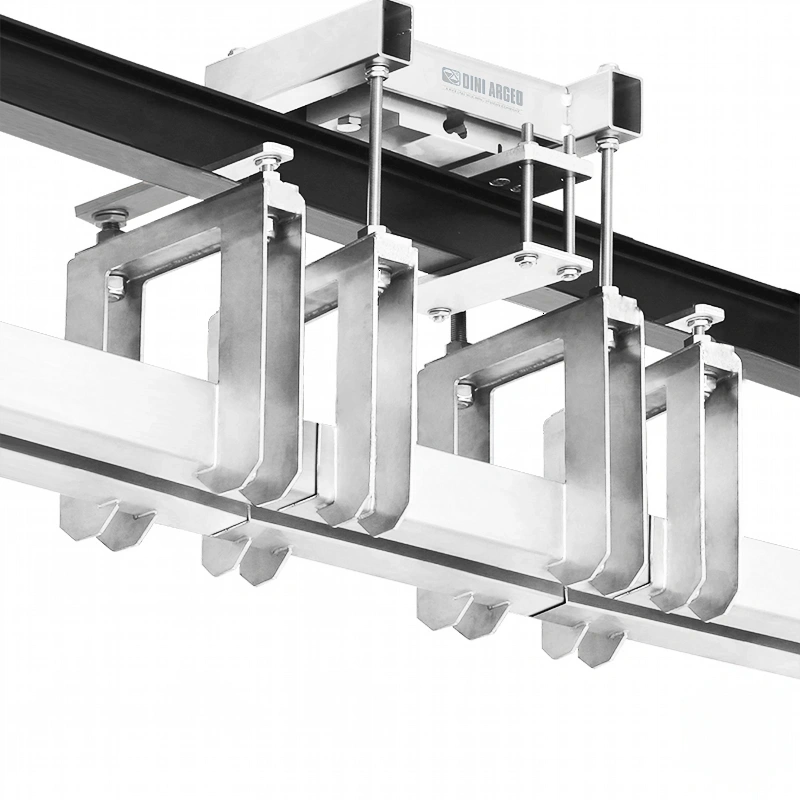

TWL Series Overhead Monorail Weighing Scales

By Dini Argeo

The TWL Series provides precision weighing for overhead monorail systems, designed for seamless integration into both new and existing handling configurations. Built around an OIML R60 C3 approved load cell and housed in AISI 304 stainless steel, the TWL is suited to demanding industrial and food-processing environments where hygiene, accuracy, and flexibility are essential.

Each unit features a single aluminium IP66-rated load cell, electropolished stainless steel construction for easy cleaning, and mounting accessories for simple installation onto customer track sections. The system supports weighing lengths up to 300 mm and operates on up to 15 Vdc with a 6-wire shielded connection for stable performance.

Available in 150 kg and 300 kg capacities, the TWL Series can be configured with different divisions and optional features including CE-M approved calibration, custom sizes, and stainless steel load cell upgrades, allowing full adaptation to specific application needs.

Model
£650.00
Product Information

The TWL Series delivers precision weighing for overhead monorail systems, engineered to integrate seamlessly with virtually any handling configuration — including existing installations. Built around an OIML-approved load cell and constructed in AISI 304 stainless steel, these modules are designed for demanding industrial and food-processing environments where hygiene, accuracy, and adaptability are non-negotiable.

Key Specifications

  • Load cell: Single aluminium load cell with IP66 ingress protection, OIML R60 C3 approved
  • Structure: AISI 304 stainless steel with electropolished finish — smooth surfaces minimise dirt accumulation and inhibit microbial growth, simplifying cleaning regimes
  • Mounting: Supplied with beam-fastening accessories and threaded rods for attachment to customer track sections
  • Max weighing section length: 300 mm
  • Power supply: Up to 15 Vdc
  • Cable: 6-wire shielded, 3 m length, 5 mm diameter

Available Models

Model Dimensions L×W×H (mm) Max Capacity (kg) Division (g)
TWL15 310 × 200 × 125 150 kg 50 g (20–50 g with options*)
TWL30 310 × 200 × 125 300 kg 100 g (50–100 g with options*)

* Finer divisions obtainable only with the relative options, in combination with a Dini Argeo weight indicator.

Options (Available at Time of Order)

  • Indicator connection and calibration with CE-M approval — single range 3000e or dual range 3000e+3000e (with compatible Dini Argeo indicator)
  • Special capacities and non-standard sizes — available on request
  • Adaptation to customer-supplied track sections — costed on a job-by-job basis
  • Stainless steel load cell upgrade

Important Notes

  • The track section and its fastening to the threaded rods must be fabricated
  • Orders are only accepted following technical verification by WOMAG engineers. Please complete and submit the DataRequest_TWL form prior to ordering.
  • Required capacity and division must be specified in the data request form to confirm feasibility.
Downloads

Please click here for the Dini Argeo TWL overhead track scale datasheet
