TWG Series Overhead Rail Scales

By Dini Argeo

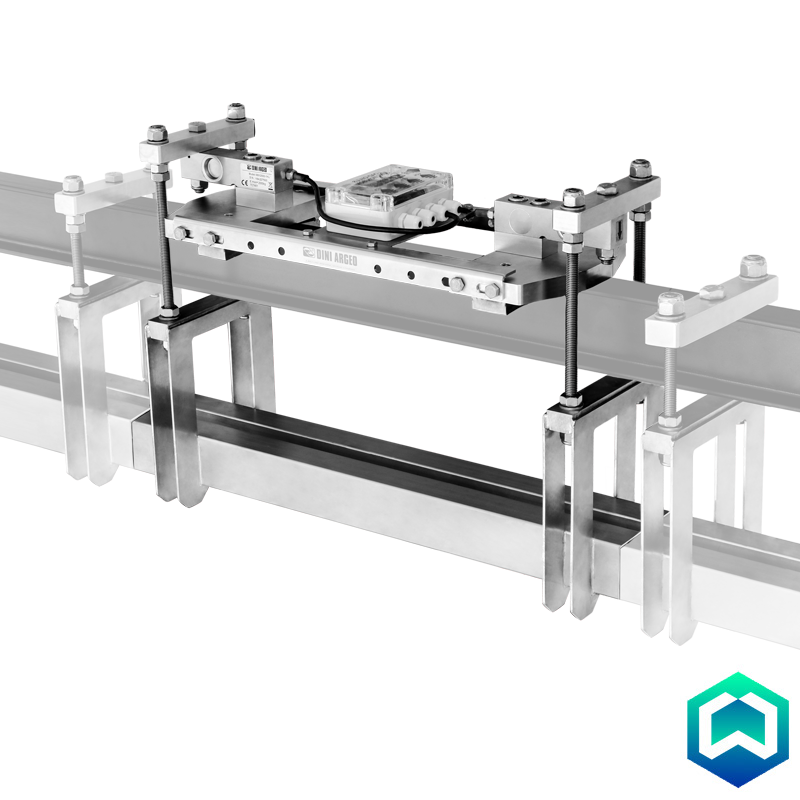

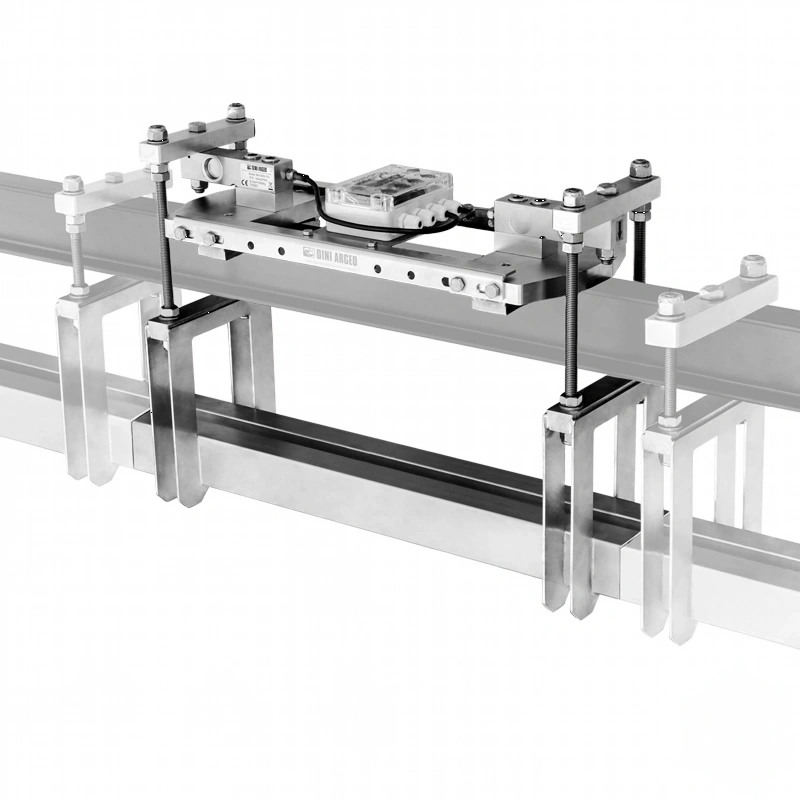

The TWG Series Overhead Rail Scales are precision weighing modules designed for monorail systems, fully adaptable to both new and existing handling installations. Built with OIML-approved load cells as standard, the TWG Series delivers accurate, hygienic, and reliable performance in demanding industrial environments.

Each unit features dual IP68-rated stainless steel load cells approved to OIML R60 C3, mounted within a robust AISI 304 stainless steel structure with electropolished surfaces for easy cleaning and reduced contamination risk. Designed for integration with customer track sections, the system includes beam fastening accessories and threaded rods for straightforward installation.

The TWG Series supports weighing sections up to 600 mm and is available in capacities up to 600 kg, offering flexible configurations to suit a range of applications. It includes a hermetic junction box with a 10 m shielded cable for secure connection to weight indicators and operates on up to 15 Vdc.

Optional features include CE-M approved calibration, custom sizes and capacities, IP69K protection, and tailored adaptations for specific track systems. All orders are subject to technical verification and require submission of the TWG data request form to confirm suitability.

Model
£1,050.00
Product Information

TWG Series Overhead Rail Scales

Precision weighing modules designed for overhead monorails, easily adaptable to new or existing handling systems. Fitted with OIML-approved load cells as standard, the TWG Series delivers reliable, hygienic, and accurate weighing in demanding industrial environments.

Main Features

  • Dual stainless steel load cells with IP68 protection rating, approved to OIML R60 C3
  • AISI 304 stainless steel structure with beam-fastening accessories and threaded rods for integration with customer track sections
  • Electropolished finish for easy cleaning — smooth surfaces minimise dirt accumulation and microbial growth
  • Maximum overhead rail weighing section length: 600 mm
  • Power supply: up to 15 Vdc
  • Hermetic junction box with shielded 10 m, 6-pin cable and connectors for weight indicator connection

Options (Available at Time of Order Only)

  • CE-M approval: 3000e single range or 3000e + 3000e dual range (with Dini Argeo indicators)
  • Models with special sizes and capacities (enquire for quotation)
  • Adaptations for customer-supplied track sections (costed per job card)
  • IP69K version available

Available Models

Code Dimensions L×W×H (mm) No. of Cells Max (kg) d (g) e (g)* 2R (g)*
TWG30 550 × 220 × 110 2 × 500 kg 300 100 100 —
TWG60 550 × 220 × 110 2 × 1000 kg 600 200 200 100–200

* Divisions obtainable only with relative options, in combination with a Dini Argeo weight indicator.

Important Notes

  • The track section and fastening to threaded rods must be supplied and fitted by the customer or WOMAG engineers.
  • Orders are only accepted following technical verification by our engineers — please complete and submit the DataRequest_TWG_ENG form prior to ordering.
  • Capacity and division must be specified in the DataRequest form for feasibility assessment.
Downloads

Please click here for the Dini Argeo TWG overhead track scale datasheet
