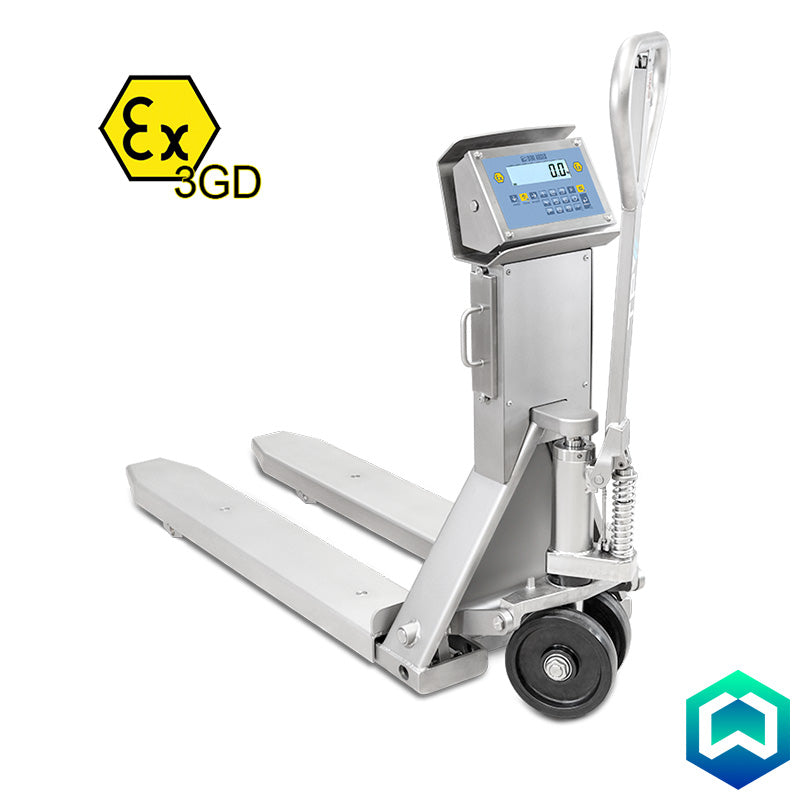

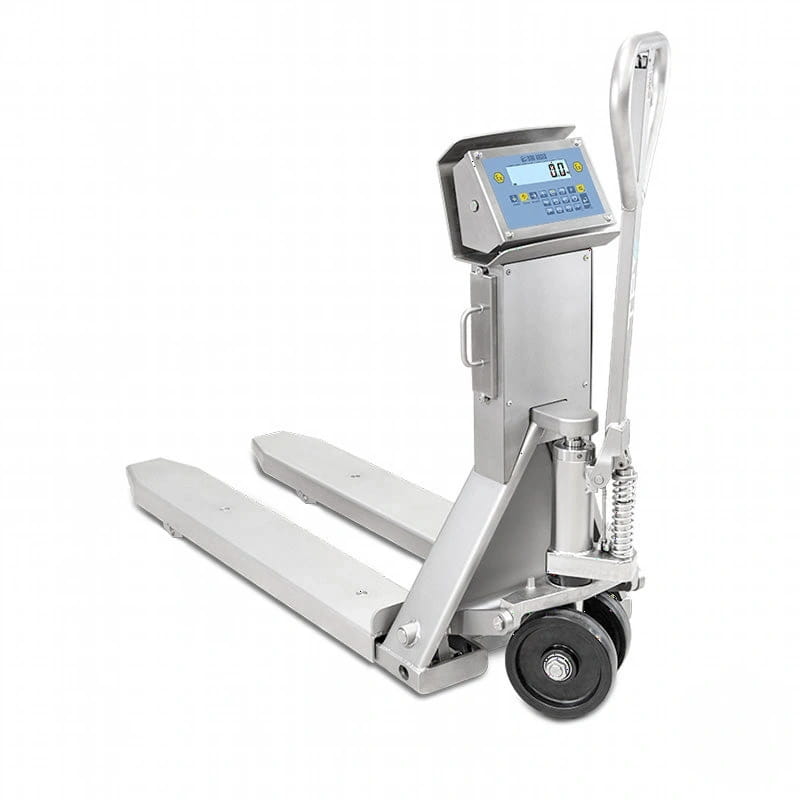

Dini Argeo TPWI PRO EX 3GD ATEX Stainless Steel Pallet Truck Scale - Zones 2/22‏‏‎

The Dini Argeo TPWI PRO EX 3GD ATEX Pallet Truck is built for hazardous areas, this robust pallet truck scale is constructed of extra-thick AISI 304 stainless steel. It features a durable Italian-made lifting pump (up to 3,000 kg capacity), ATEX certified Dini Argeo components, and a waterproof IP68 indicator with a large LCD display.

Product Information

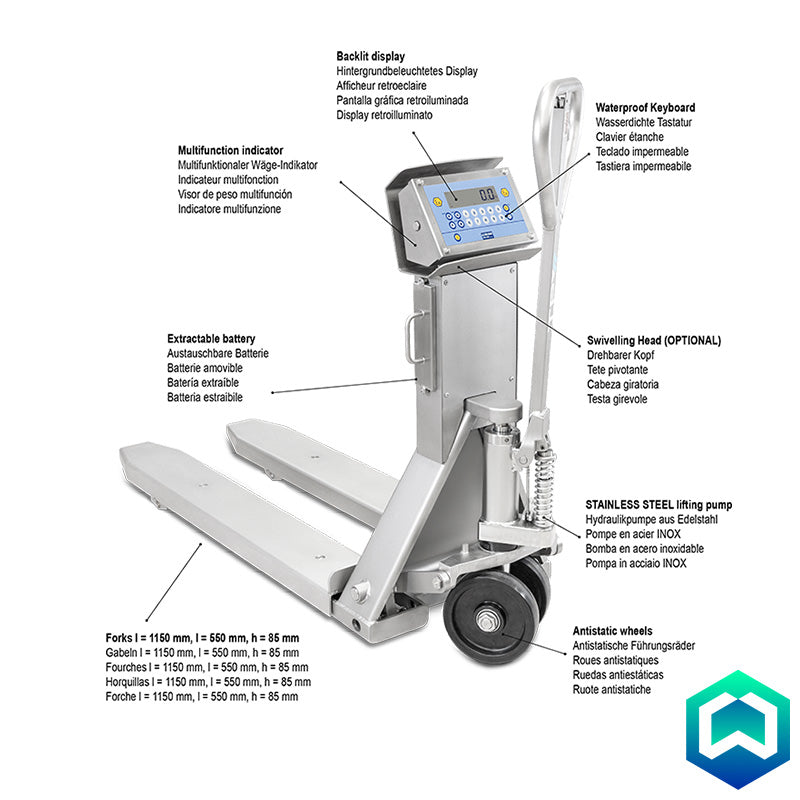

Features:

  • Robust Stainless Steel Construction: Features a thick stainless steel structure for maximum durability and corrosion resistance.
  • Italian-Made Lifting Pump: Equipped with a high-quality lifting pump, also manufactured in Italy, available on request for lifting capacities up to 3,000 kg.
  • ATEX Certified Components: Built with ATEX certified Dini Argeo components for use in potentially explosive atmospheres.
  • Wireless Transmission: Can send weight data to devices in a safe area thanks to wireless transmission options.
  • Waterproof and Durable Indicator: Features a waterproof IP68 stainless steel indicator casing that is easy to clean and resistant to harsh and corrosive environments.
  • Large, Clear Display: Equipped with a large 25mm LCD display for easy reading, even in low-light conditions.
  • Legal for Trade Option: Available in an approved version for legal-for-trade applications.
  • Extended Battery Life: Provides approximately 150 hours of autonomy, or continuous 24/7 operation with an optional second rechargeable battery.
  • ATEX Certified Load Cells: Fitted with four Dini Argeo ATEX certified IP68 stainless steel load cells for accurate and reliable weighing.
  • Custom Dimensions Available: Special non-standard dimensions are available upon request.
  • Low-Profile Forks: 85 mm low-profile forks for easy pallet entry.
  • AISI 304 Stainless Steel Construction: Supporting structure and forks made entirely of extra-thick AISI 304 stainless steel.
  • Closed Fork Covers: Closed fork covers provide increased protection for the double load wheels.
  • Antistatic Guide Wheels: Antistatic guide wheels with polyurethane coating for smooth running and a 200 mm diameter for optimal smoothness and maneuverability.
  • Antistatic Loading Rollers: Antistatic loading rollers.
  • Stainless Steel Lifting Pump: Lifting pump made of AISI 304 stainless steel, allowing controlled lowering of the forks.
  • Waterproof Keyboard: Waterproof membrane keyboard with 17 numeric/functional keys.
  • ATEX Certified Electronics: Dini Argeo electronics, ATEX certified, intrinsically safe.
  • Battery Charger: Standard 110/230Vac 50Hz battery charger with EU, UK, US, and AU plugs (recharge time 8 hours).

Easy to Recalibrate

  • The only one without junction box: the adjustment of each single load cell is conveniently carried out from the keyboard.
  • Spare parts and wearing parts always available and ready for delivery.

Main Functions

  • Zeroing, Tare, Printing (only in safe zone).
  • High resolution display x 10.
  • Net/Gross or lb/kg conversion.
  • Weights totalisation, Formulation.
  • +/- control.
  • Percentage weighing.
  • Counting (Max. counting resolution 1.500.000 divisions).
  • Set Point Control (with optional interface).
Specification

Display: Large 25mm LCD display allows viewing even in low light conditions.

Technical Features:

  • Fork dimensions 1150 x 550 x 85 mm.
  • Lifting range: from 85 to 205 mm.
  • Pallet truck weight: 135 kg approx.
  • Maximum lifting capacity: 2,000 kg.
  • Resolution:
    > internal use: 0,2 / 0,5 / 1 kg
    > approved: 0,5 / 1 kg
  • Accuracy (weighing of goods on Euro pallet with distributed load):
    > internal use: +/- 1 kg

Construction: 304 Stainless steel structure

Operating Temperature Range: -10°C to +40°C.

Power Requirement: Extractable battery, rechargeable in safe area, connectable and disconnect able to the weighing system even in hazardous area. 150 hours autonomy

Downloads

Please click here for the TPWI PRO EX 3GD ATEX Stainless Steel Pallet Truck Datasheet

Model
Calibration Certificate:

£6,323.00
