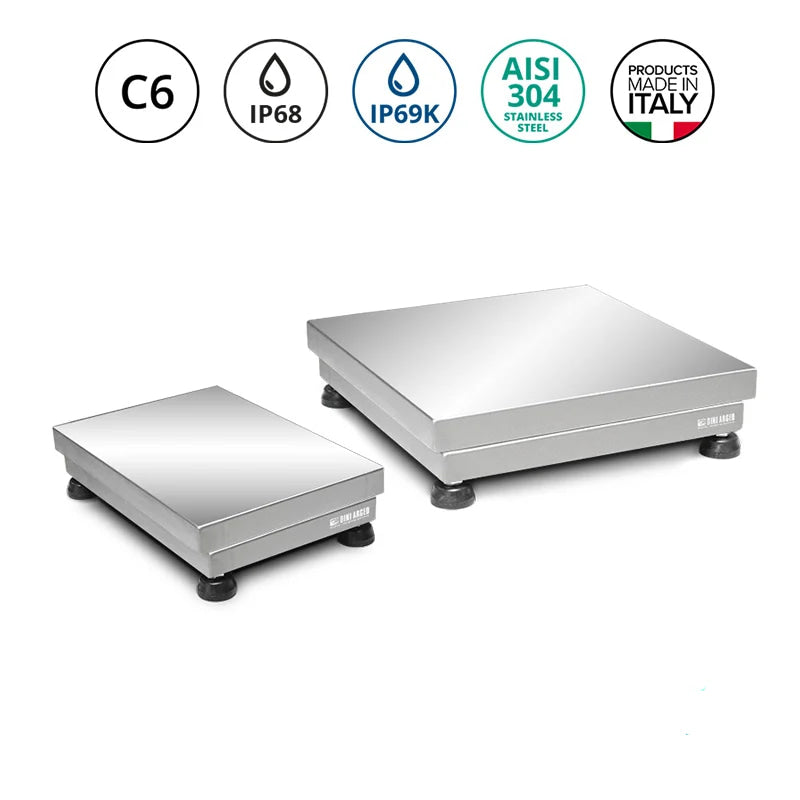

Dini Argeo TE 69K Series Stainless Steel Single Cell Platform

The Dini Argeo TE 69K Series represents the pinnacle of single cell platform scales, renowned for its exceptional accuracy and unparalleled robustness. Crafted entirely from AISI 304 stainless steel and featuring an approved single-point load cell with an impressive IP68 and IP69K protection rating, these platforms are the ideal choice for demanding industrial and commercial applications in harsh, wet, and corrosive environments with high humidity and significant water exposure.

Model

£843.00
Product Information

Features:

  • Ultimate Environmental Protection: Functions with an approved "single point" STAINLESS STEEL C6 load cell meticulously designed to OIML R60 standards, offering industry-leading IP68 and IP69K protection. This ensures complete resilience against dust, continuous immersion in water, and high-pressure, high-temperature water jets, making it perfect for rigorous washdown procedures.
  • Superior Accuracy (C6 Class): The C6 accuracy class approved load cell delivers highly precise weighing results, crucial for improving production quality, optimising raw material consumption, and ensuring compliance in critical processes.
  • Full AISI 304 Stainless Steel Construction: The entire structure, including tubulars, mechanics, small components, and the loading surface, is made from AISI 304 satin finish stainless steel. This guarantees outstanding corrosion resistance, maximum hygiene, and long-term durability in even the most challenging conditions.
  • Adjustable Stability: Equipped with adjustable stainless steel feet featuring a plastic resting surface and a built-in level, allowing for precise and stable positioning on any surface, which is vital for maintaining weighing accuracy.
  • Flexible Power Supply: Supports an input voltage of up to 15 Vdc, ensuring stable and efficient operation.
  • Secure Connection: Includes a 3m shielded connection cable with robust connectors for reliable and interference-free signal transmission to a compatible weighing indicator.
  • Advanced Approval Options:
    • Available in approved multi-range 3000+3000e or 6000+6000e versions, offering adaptable weighing capabilities for diverse product ranges.
    • Also available in multi-interval 2x3000e, which provides ADAPTIVE measurement resolution that automatically adjusts to the weight being measured, optimising precision across the entire weighing range. This offers a superior combination of accuracy and ease of use for a Class C3 approved weighing instrument.
Specification

Material: AISI 304 stainless steel construction and IP68 and IP69K load cell protection

Dimensions:

  • 230mm x 330mm
  • 330mm x 330mm
  • 400mm x 400mm
  • 400mm x 500mm
Downloads

Please click here for the Dini Argeo TE 69K Series Stainless Steel Single Cell Platform datasheet
