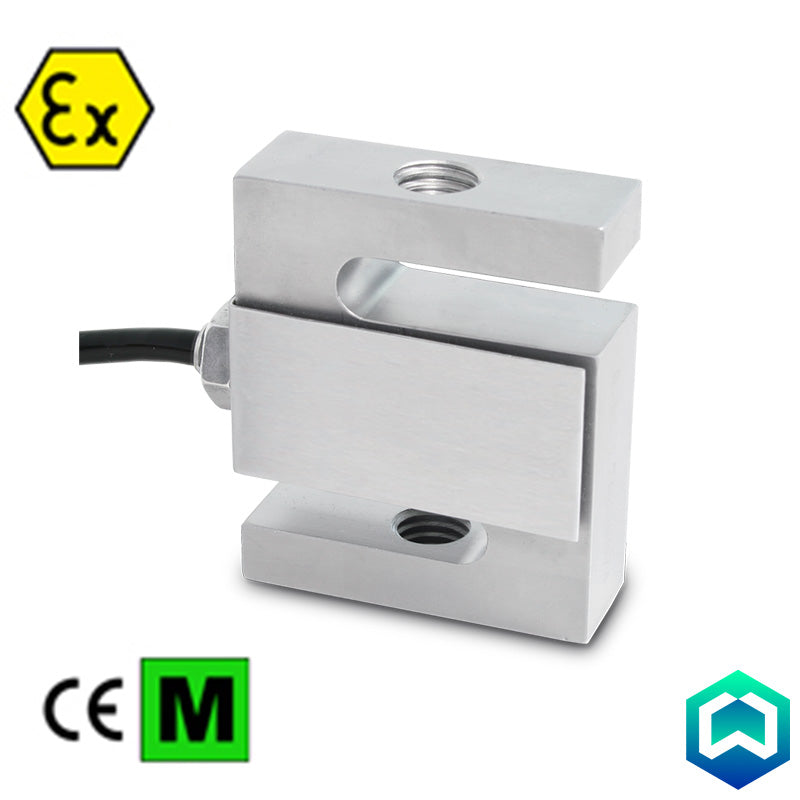

Dini Argeo ATEX STG Tension Load Cell - Tension

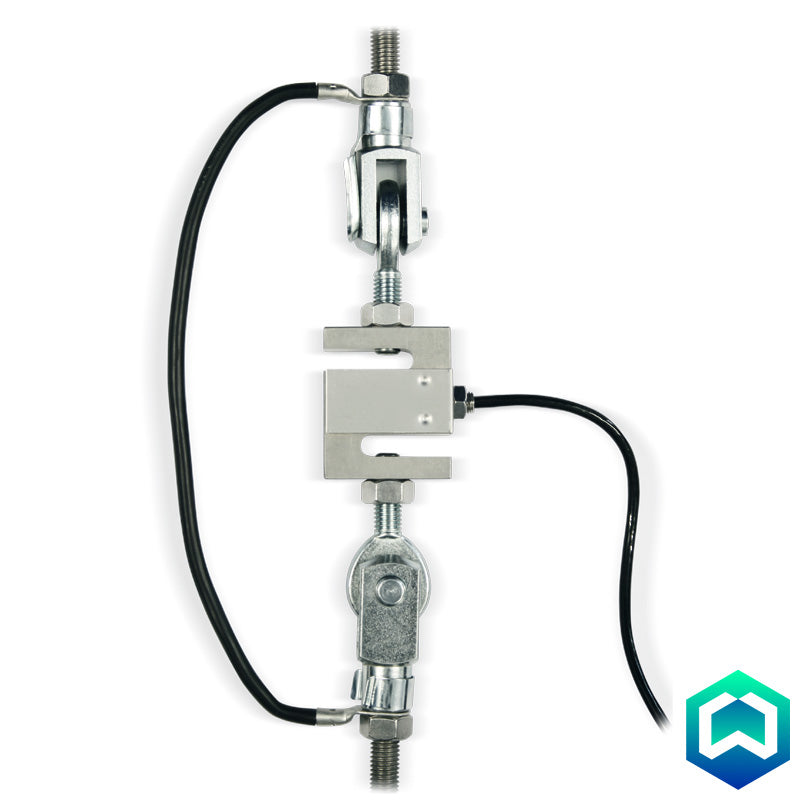

Dini Argeo STG Tension Load Cell - Tension

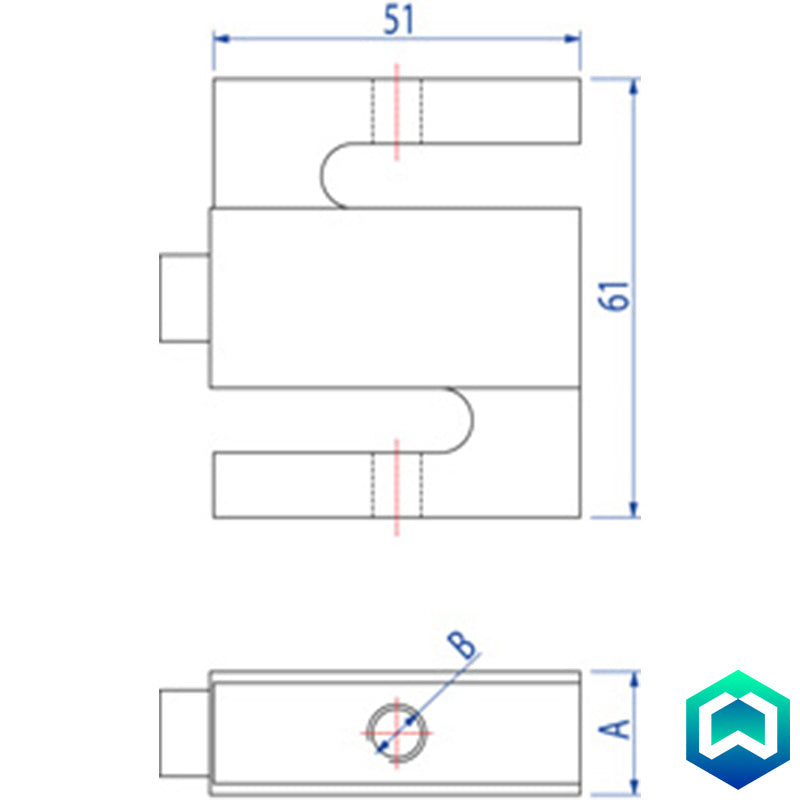

Dini Argeo STG Tension Load Cell - Diagram

Dini Argeo ATEX STG Series Tension Load Cells

By Dini Argeo

The Dini Argeo ATEX STG series load cell is a highly accurate and robust solution designed for both tension and compression weighing applications within potentially explosive atmospheres. Its construction from 17-4 PH stainless steel and IP67 protection, coupled with ATEX certification, ensure reliable performance in hazardous industrial environments. This load cell is ideal for weighing hoppers, tanks, lever scales, and other weighing devices in ATEX zones.

Model
£311.00
Product Information

Features:

  • C3 Precision Class: Ensures accurate and reliable weighing performance for approved applications.
  • 17-4 PH Stainless Steel Construction: Offers exceptional strength, durability, and corrosion resistance, making it suitable for demanding industrial environments.
  • IP67 Protection: Provides excellent protection against dust and temporary immersion in water, ensuring reliable operation in challenging conditions.
  • Wide Capacity Range: Available in capacities of 100kg, 500kg, and 1000kg, catering to various tension and compression weighing needs.
  • Versatile Application: Suitable for weighing hoppers, tanks, lever scales, and other weighing devices in both tension and compression.
  • Long Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 6-meter length.
  • Test Certificate Available Upon Request: Compliance with performance specifications can be verified with a test certificate.

ATEX Version:

This model of the Dini Argeo STG load cell is an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) Ga
  • ATEX II 1G Ex ia IIC TX (Ta -20÷+65°C) Ga
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) Da IP65
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+65°C) Da IP65

IMPORTANT NOTE: The ATEX certificate applies to the single load cell unit. For weighing systems utilising multiple load cells, it is necessary to order an individual ATEX certificate for each load cell within the system.
Specification

Minimum load cell verification interval:
Vmin = EMax / 10.000 (for STG500 and STG1000 model);
Vmin = EMax / 7.000 (for STG100 model)

Maximum number of verification intervals: nLC = 3000

Combined error 0,03% of Full Scale Output (F.S.)

Non-Repeatability: 0,01% F.S.

Full Scale Output: 3mV/V +/- 0,08%

Temperature effect on zero: 0,017% /°C

Temperature effect on full scale output: 0,014% /°C

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -35°C/+65°C

Creep error after 30 minutes: 0,02% F.S.

Maximum tolerated excitation voltage: 18 VDC

Input Resistance: 430 ± 60 Ohm

Output Resistance: 350 ± 3.5 Ohm

Zero balance: +/-1% F.S.

Insulation Resistance: >5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 300% F.S.

4-wire shielded cable, 6m long, 5 mm diameter
