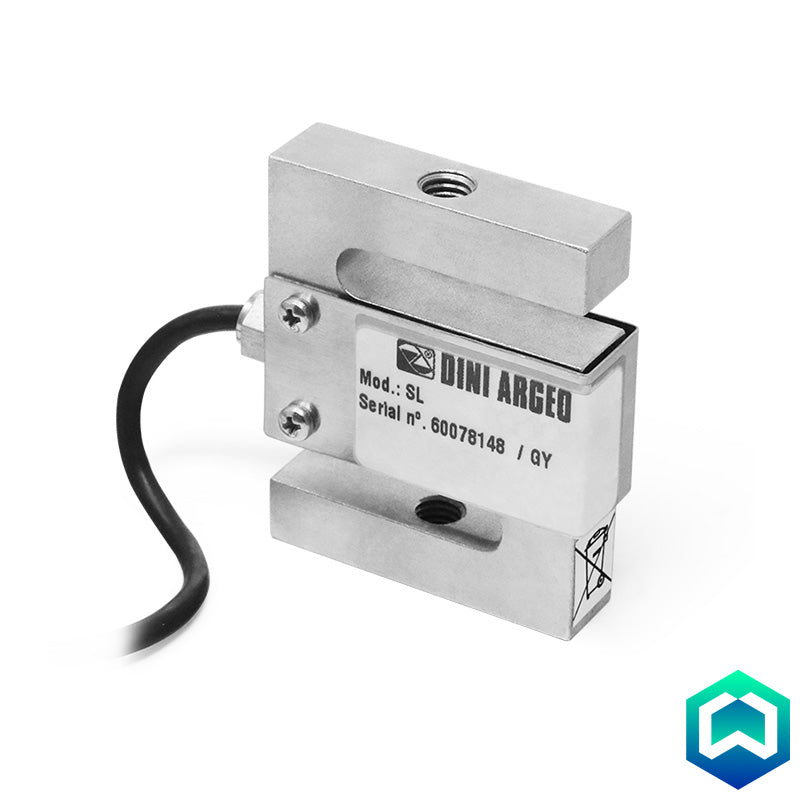

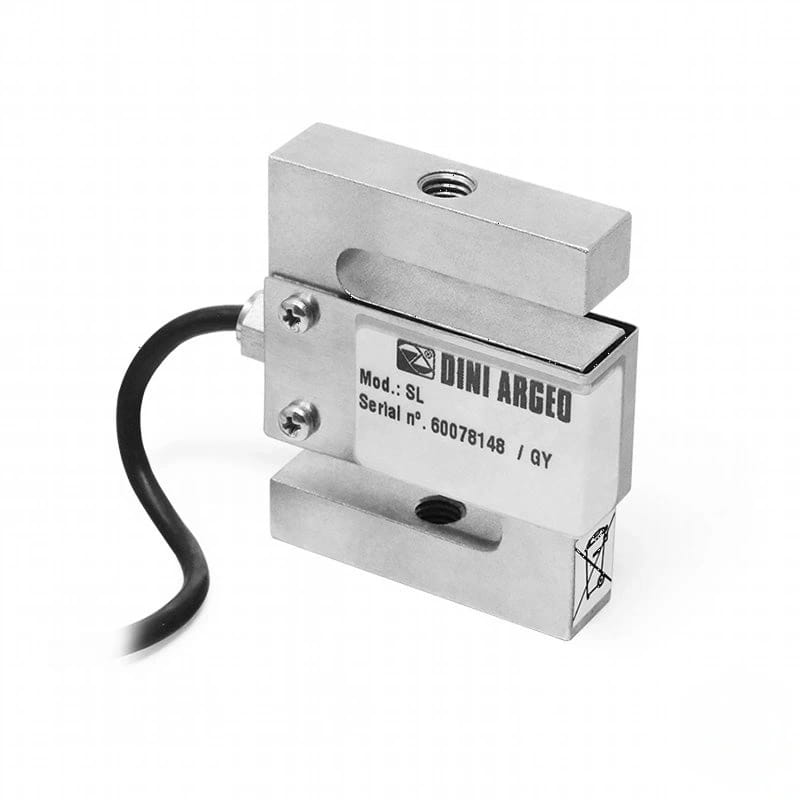

Dini Argeo SL Tension Load Cell

Dini Argeo SL Tension Load Cell

By Dini Argeo

The Dini Argeo SL series load cell is a reliable and versatile solution designed for both tension and compression weighing applications. Constructed from alloy steel with an IP67 protection rating, it offers durability and dependable performance for weighing hoppers, tanks, and other weighing devices.

Model
£206.00
Product Information

Features:

  • Alloy Steel Construction: Provides a robust and cost-effective solution for various industrial weighing needs.
  • IP67 Protection Rating: Offers good protection against dust and temporary immersion in water, ensuring reliable operation in many industrial environments.
  • Wide Capacity Range: Available in capacities from 15kg to 1000kg, catering to a variety of tension and compression weighing requirements.
  • Versatile Application: Suitable for weighing hoppers, tanks, and other weighing devices in both tension and compression modes.
Specification

Non-Repeatability: 0,01% F.S.

Full Scale Output: 2mV/V +/- 10%

Temperature effect on zero: 0,02% /°C

Temperature effect on full scale output: 0,02% /°C

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -30°C/+85°C

Creep error after 4 hours: 0,03% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 381 ± 10 Ohm

Output Resistance: 350 ± 3 Ohm

Zero balance: +/- 2% F.S.

Insulation Resistance: >5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 300% F.S.

4-wire shielded cable, 5m long, 5,5 mm diameter
Downloads

Please click here for the SL Tension Load Cell datasheet
