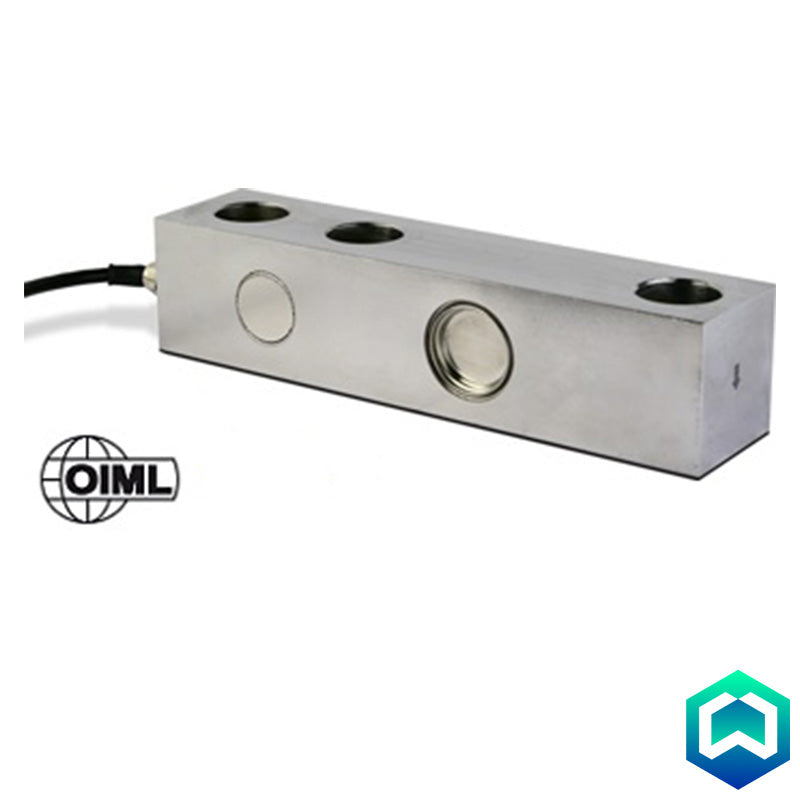

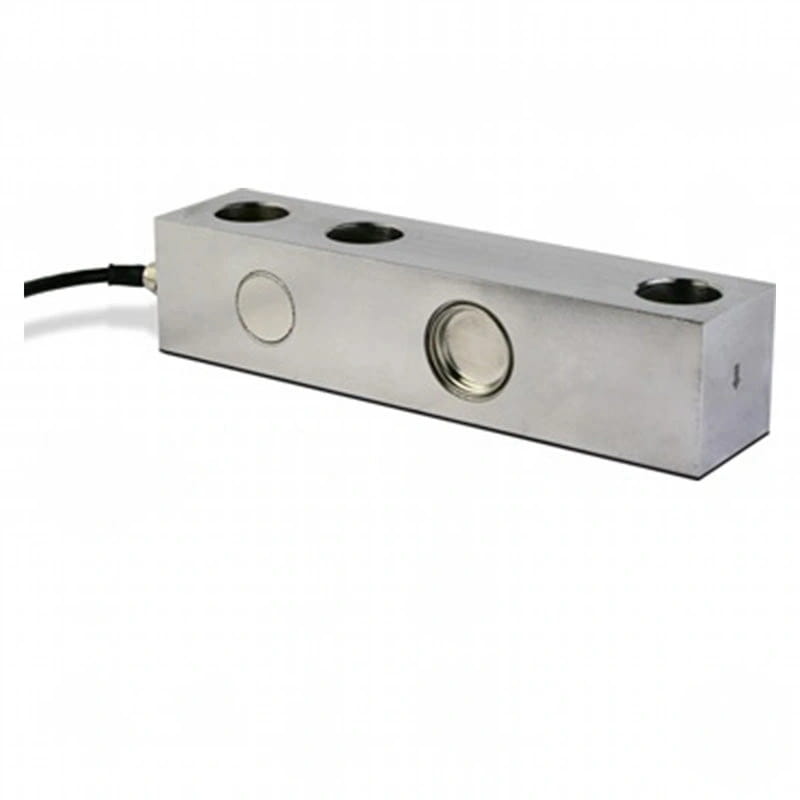

Dini Argeo SBX-1KL Stainless Steel Shear Beam Load Cell

Dini Argeo SBX-1KL Stainless Steel Shear Beam Load Cell (500kg - 10000kg)

By Dini Argeo

The Dini Argeo SBX-1KL series load cells are high-quality, OIML R60 C3 approved, stainless steel shear beam load cells featuring a low-power 1000 Ohm output resistance, making them ideal for mobile and battery-powered applications. These load cells are suitable for creating CE-M approved scales when used in sets of four, as well as for weighing tanks and hoppers with the appropriate mounting accessories. Their robust stainless steel construction with laser welding and IP68 protection ensure reliable performance in demanding industrial environments.

Model
£131.00
Product Information

Features:

  • C3 Precision Class: Ensures accurate and reliable weighing results.
  • Stainless Steel Construction with Laser Welding: Provides excellent durability and resistance to corrosion.
  • IP68 Protection: Offers superior protection against dust and prolonged immersion in water; IP69K available for high-pressure, high-temperature washdown environments.
  • Low-Power 1000 Ohm Output Resistance: Optimised for mobile and battery-powered applications, reducing power consumption.
  • Suitable for CE-M Approved Scales: Ideal for creating legal-for-trade weighing systems when used in sets of four.
  • Versatile Applications: Suitable for weighing tanks, hoppers, platforms, and other structures with appropriate mounting kits.
  • Shielded Connection Cable: Ensures reliable signal transmission and reduces electromagnetic interference.
  • Test Certificate Provided as Standard: Guarantees the load cell's performance and traceability.
  • ATEX Version Available: Can be supplied in an ATEX certified version suitable for use in hazardous areas classified as zones 1&21 and 2&22.
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC = 3000

Combined error 0,017% of Full Scale Output (F.S.)

Full Scale Output: 2mV/V +/- 0.5%

Temperature effect on zero: 0,002% / °C

Temperature effect on full scale output: 0,002% / °C

Compensated Temperature Range: -10°C/+50°C

Operating Temperature Range: -20°C/+60°C

Creep error after 30 minutes 0,02% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 1100 ± 20 Ohm

Output Resistance: 1000 ± 20 Ohm

Insulation Resistance: >5000 MOhm

Safe Overload: 120% F.S.

Ultimate Overload: 300% F.S.

6-wire shielded cable, 5m long, 5 mm diameter
