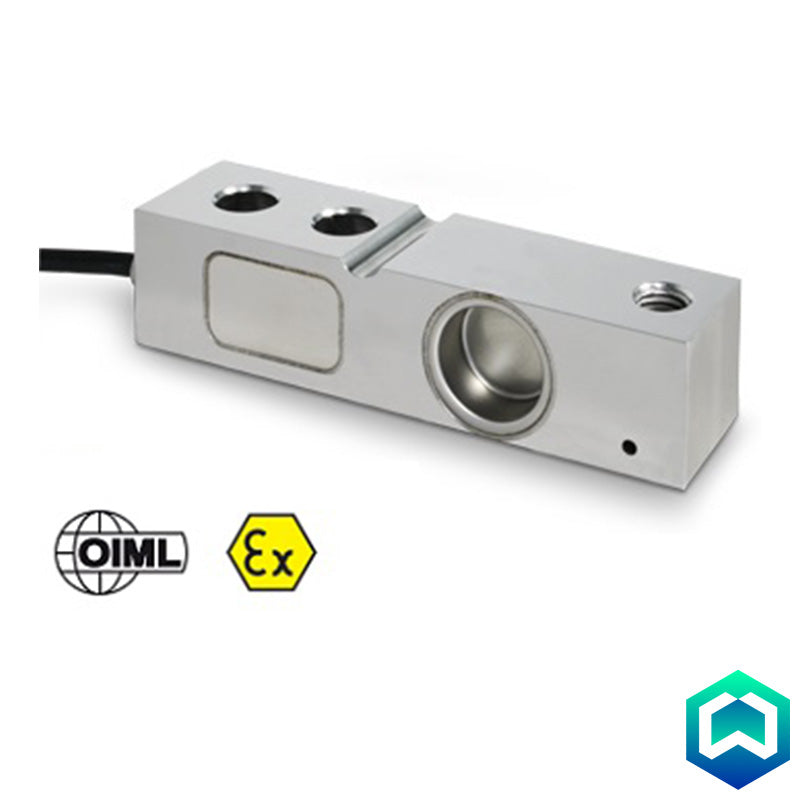

Dini Argeo SBK-1KL IP68 Stainless Steel Shear Beam Load Cell

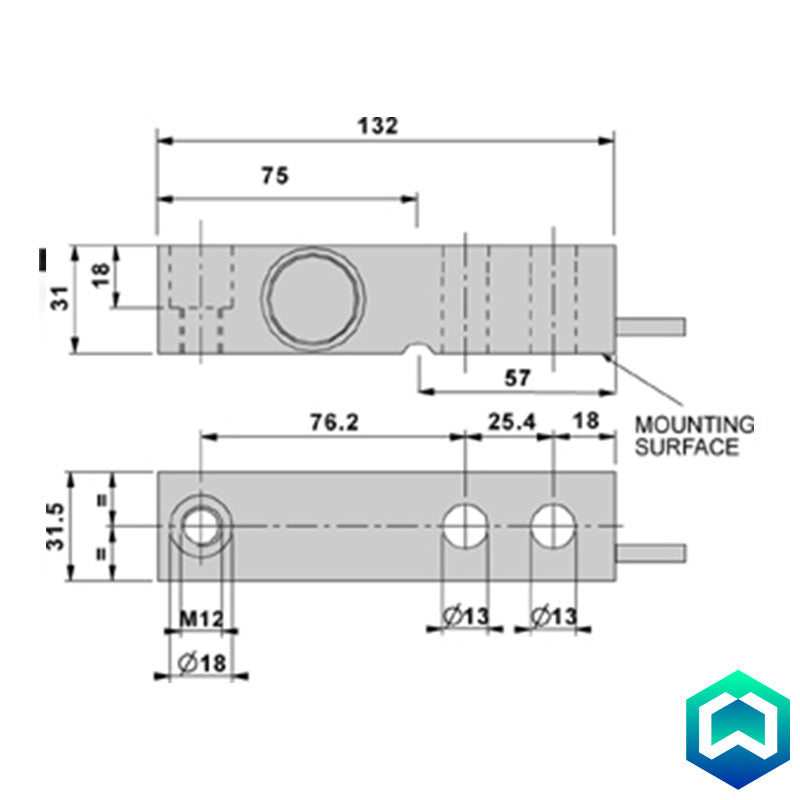

Dini Argeo SBK-1KL IP68 Stainless Steel Shear Beam Load Cell - Diagram

Dini Argeo SBK-1KL IP68 Stainless Steel Shear Beam Load Cell (300kg - 2000kg)

By Dini Argeo

The Dini Argeo SBK-1KL series shear beam load cell is a robust and accurate solution crafted from stainless steel for reliable performance in various weighing applications, particularly those requiring low power consumption for mobile and battery-operated systems due to its 1000 Ohm output resistance. Its C3 precision class ensures dependable accuracy, making it ideal for building CE-M approved scales with 4 load cells and for weighing tanks and hoppers when used with appropriate mounting accessories.

Model
£190.00
Product Information

Features:

  • OIML R60 C3 Precision Class: Provides accurate and reliable weighing performance for approved applications.
  • Stainless Steel Construction: Offers excellent durability and resistance to corrosion, making it suitable for demanding industrial environments.
  • IP68 Protection: Provides complete protection against dust and prolonged immersion in water, ensuring reliable operation in harsh and washdown-prone environments.
  • Low Power Consumption: Features a 1000 Ohm output resistance, making it ideal for battery-powered mobile weighing applications by minimising power draw.
  • Wide Capacity Range: Available in capacities of 300 kg, 500 kg, 1000 kg, and 2000 kg, catering to a broad range of medium to heavy-duty weighing needs in mobile and low-power setups.
  • Ideal for Mobile Multi-Cell Systems: Specifically designed for building CE-M approved scales utilising 4 load cells in battery-powered applications.
  • Versatile Applications: Suitable for weighing tanks, hoppers, and other industrial structures in mobile or low-power scenarios with the use of relevant accessories.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 5-meter length.
  • OIML and Test Certificates Available: Compliance with metrology standards can be verified with certificates available upon request.

Alternatively, for ATEX environments, shop the SBK-1KL ATEX Shear Beam Load Cell
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC = 3000

Combined error: 0,017% of Full Scale Output (F.S.)

Full Scale Output: 2mV/V +/- 0.1%

Temperature effect on zero: 0,0014% /°C

Temperature effect on full scale output: 0,0014% /°C

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -20°C/+60°C

Creep error after 30 minutes: 0,024% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 1100 ± 50 Ohm

Output Resistance: 1000 ± 10 Ohm

Insulation Resistance: >5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 200% F.S.

6-wire shielded cable, 5m long, 5 mm diameter
Downloads

Please click here for the Dini Argeo SBK-1KL IP68 Stainless Steel Shear Beam Load Cell datasheet
