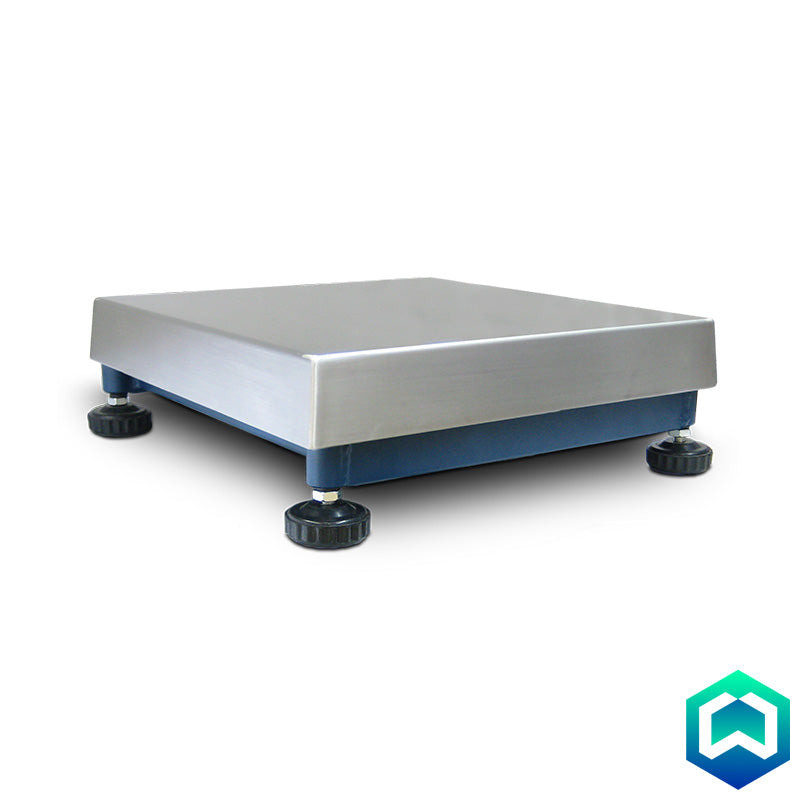

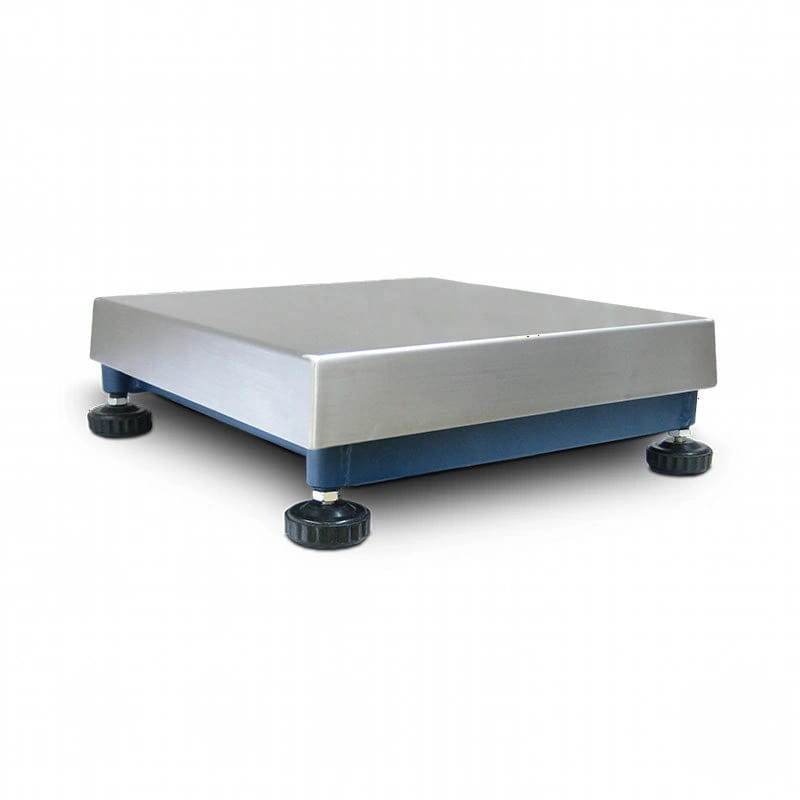

Dini Argeo PB Series Single Cell Platform

The Dini Argeo PB Series offers small to medium capacity electronic platforms with a precise and sturdy structure, ideal for a wide range of industrial and commercial weighing applications. This series features a painted steel frame combined with a stainless steel loading surface, ensuring durability and hygiene.

Model

£128.00
Product Information

Features:

  • High Resolution Capability: Provides weighing resolutions of up to 15,000 divisions (15000d) for internal factory use, allowing for highly detailed measurements.

  • OIML R60 C3 Approved Load Cell: Functions with a high-quality "single point" 350 Ohm aluminium load cell that is OIML R60 C3 approved, guaranteeing accurate and reliable weighing results.

  • IP65 Protection Rating: The load cell, and overall platform, feature IP65 protection against dust and water splashes, making it suitable for use in environments where these elements are present.

  • Robust Steel Structure: Built with a steel tubular structure, oven-fire painted blue, ensuring long-lasting durability and resistance to wear.

  • Adjustable Stability: Equipped with adjustable resting feet and a built-in level, allowing for easy and precise leveling on uneven surfaces, which is crucial for weighing accuracy.

  • Stainless Steel Loading Surface: Provides a hygienic, corrosion-resistant, and easy-to-clean weighing platform.

  • Flexible Power Supply: Supports an input voltage of up to 15 Vdc.

  • Shielded Connection Cable: Includes a 3m shielded cable for reliable and interference-free connection to a weighing indicator.

Optional Enhancements (Upon Request):

  • CE-M 3000e Approval: The platform can be supplied with 3000e CE-M approval for legal-for-trade applications, ensuring compliance with metrological regulations.

  • Support Column for Indicator: A support column is available for convenient mounting of a weighing indicator directly with the platform.

Specification

Material: Stainless steel platform, Aluminium load cell

IP Rating: IP65

Dimensions:

  • 300mm x 300mm
  • 300mm x 400mm
  • 400mm x 400mm
  • 400mm x 500mm
  • 600mm x 600mm
  • 600mm x 800mm
  • 800mm x 800mm
Downloads

Please click here for the Dini Argeo PB Series Single Cell Platform datasheet
