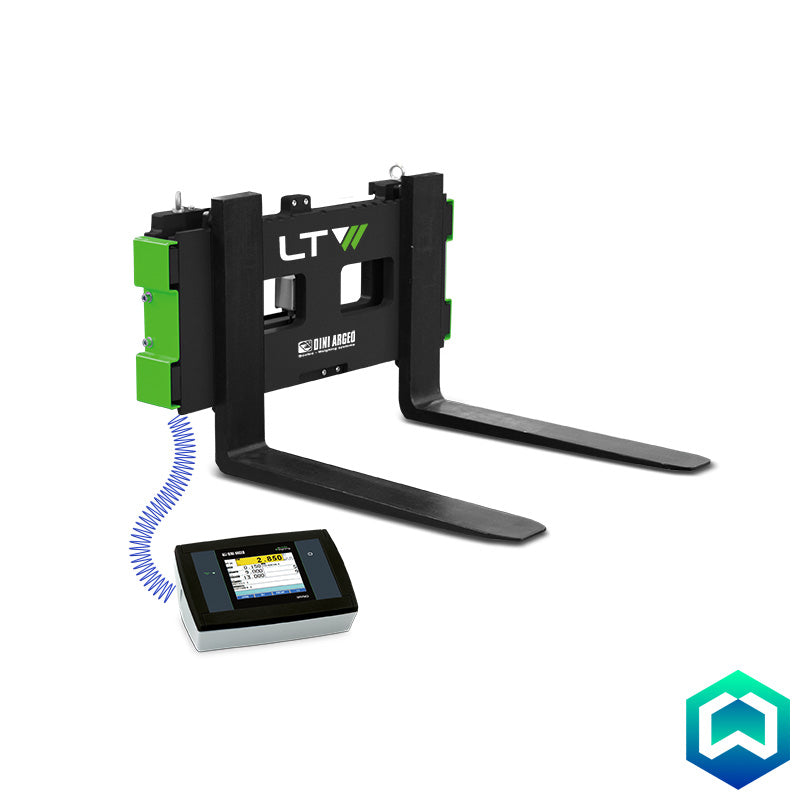

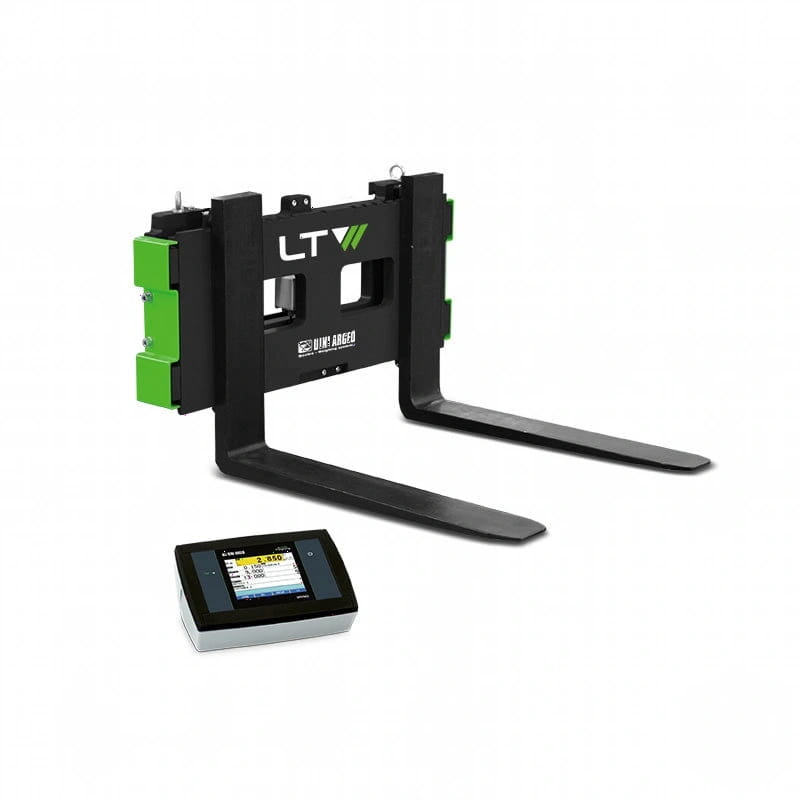

Dini Argeo LTW Compact Forklift Weighing System with Touch Screen Display

Elevate your forklift's functionality with the Dini Argeo LTW Touch Screen Forklift Weighing System. Engineered to DIN15173 standards and FEM class II specifications, this system, combined with a user-friendly touchscreen indicator, enables accurate weighing operations on the go. For applications requiring legal-for-trade precision, our approved version is the ideal choice.

Product Information

Why Choose LTW Touch Screen Forklift Weighing Kit?

  • The weighing plate is useful to integrate in a permanent way the weighing on the forklift, allowing to use forks of different lengths depending on the load to be handled.
  • Strong and sturdy, it is equipped with an integrated protection system against overloads and accidental impacts.
  • The standard TOUCH SCREEN indicator allows you to set up fully customisable displays.
  • Suitable for standard FEM2A and FEM2B forks.
  • Built with 2 STAINLESS STEEL load cells, with IP68 protection.
  • Available in approved version for legal-for-trade use.
  • Available in wired or Bluetooth version, completely wireless.

Touch Screen Weight Indicator Features

  • Backlit touch screen display, complete with fixing bracket for mounting in the cabin. Fully customisable displays.
  • Multilanguage software.
  • ABS IP65 enclosure, easy to clean and resistant to harsh and corrosive environments.
  • Visual and acoustic overload indication.
  • Power supply directly from the forklift (optional power supply available).

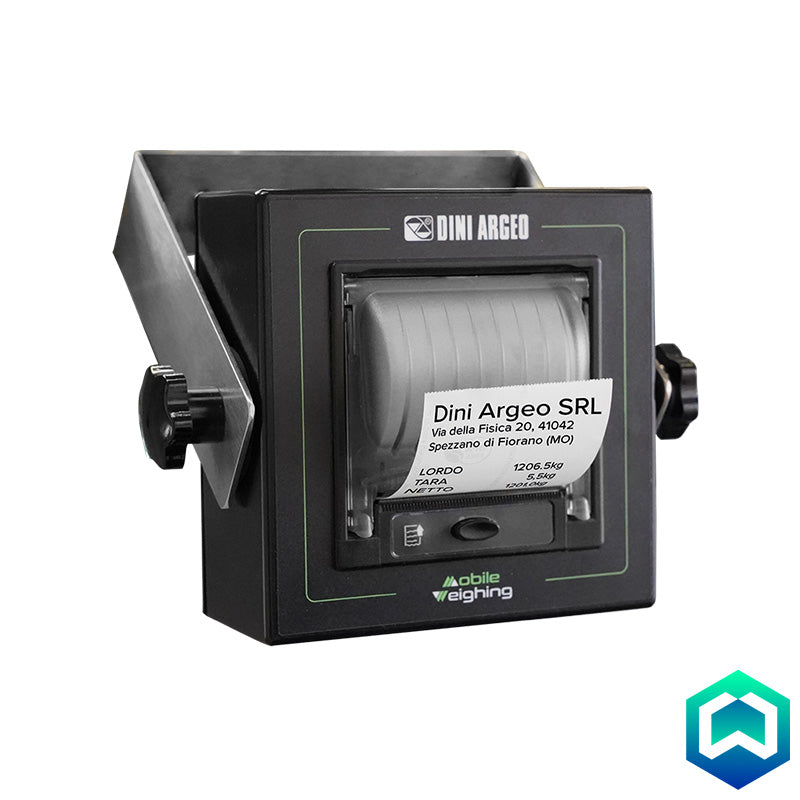

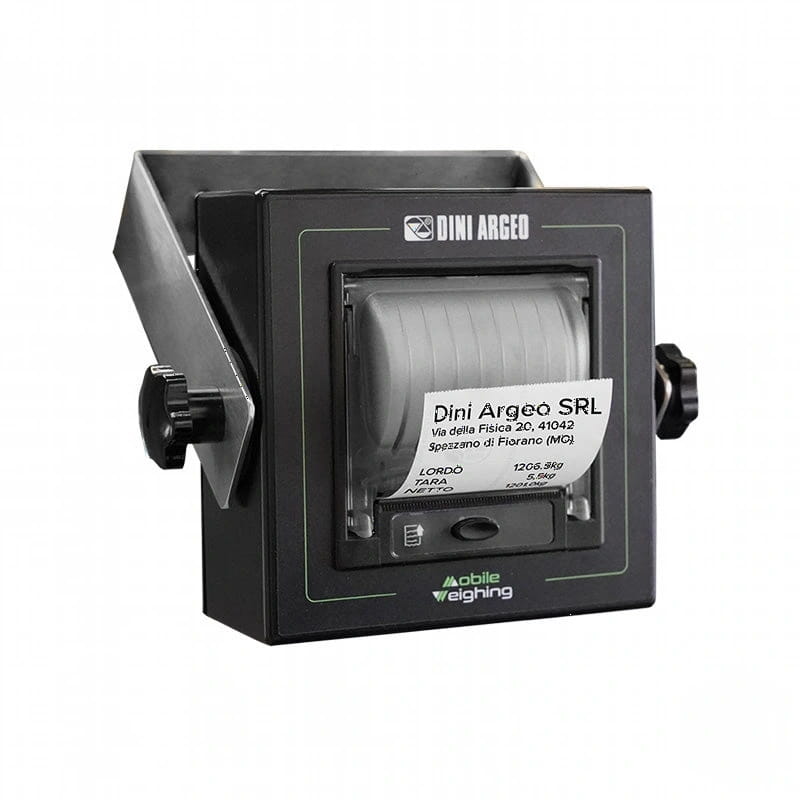

  • Optional printer complete with fixing bracket for mounting in the cabin.

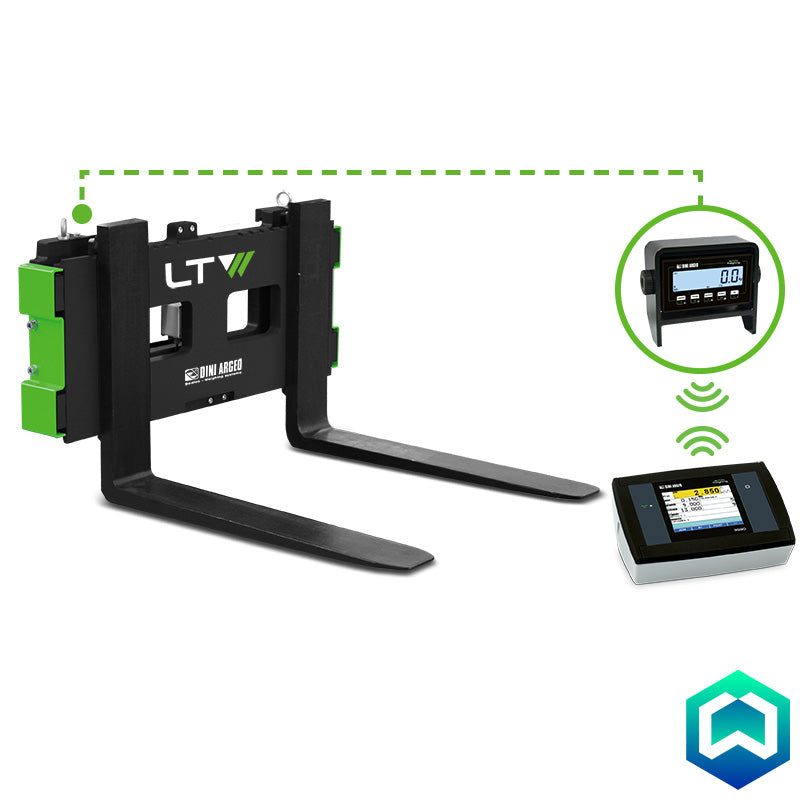

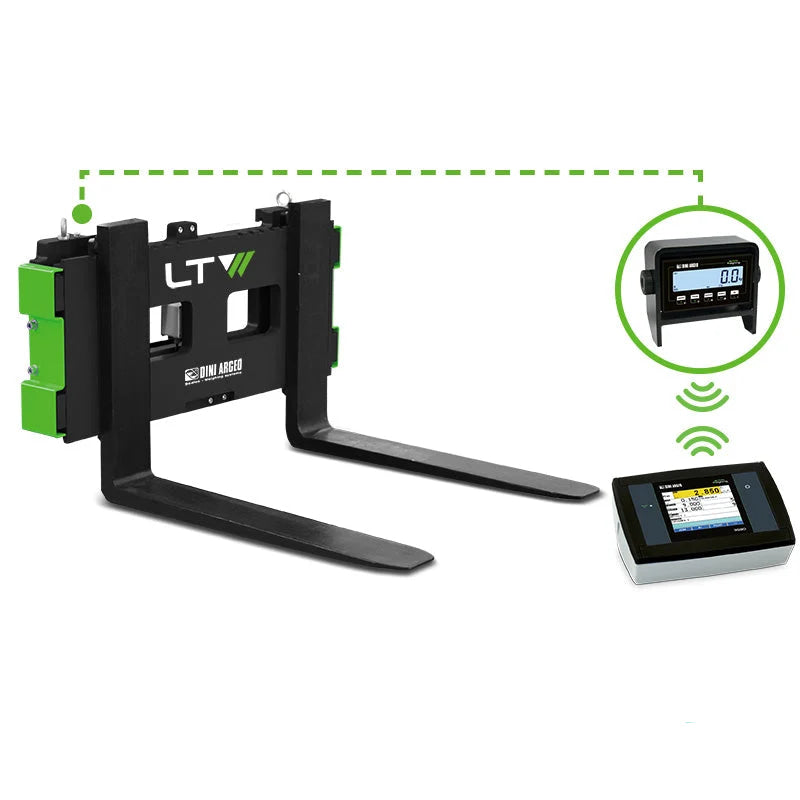

Display on Weighing Plate (Bluetooth version)

  • Backlit 25mm LCD display with 6 high-contrast digits and icons for indicating active functions.
  • ABS IP68 case, easy to clean and resistant in harsh and corrosive environments.
  • Communication with the weight indicator in the cabin through Bluetooth.
  • Power supply through internal rechargeable battery, with 60h working autonomy and external battery charger provided as standard.

Power Supply Options
Depending on the voltage present on the forklift, it is possible to choose the most suitable optional ALxxV5 power supply unit, with input from 18 to 72Vdc or from 40 to 160Vdc. The ALxxV5 power supply units can be installed inside the weight indicator (by ordering the S1 service) and can simultaneously power the OBTPRLT printer, optimising the wiring of the various components.

Specification

Display: Backlit touch screen display. ABS IP65 enclosure, easy to clean and resistant to harsh and corrosive environments.

Weighing Features

  • Max. permissible overload: over 300% of the maximum capacity, with overload protection nuts in case of hinge breaking.
  • Accuracy:
    > internal use: +/- 0.05% of the capacity
    > approved: according to CE certification (Directive 2014/31/EU)
  • Max. horizontal inclination (tilting): +/- 2° with the same accuracy characteristics.
  • Digital calibration and set-up from keyboard or PC with DINITOOLS.

Technical Features

  • Plate dimensions 910 x 407 x 110 mm
  • Weight 184 kg
  • Max. fork length: 1100 mm
  • Max. center of gravity displacement: 55 mm
  • Bearing structure of the plate made of thick steel
  • Stainless steel load cells, sensitivity 2 mV/V, maximum power supply 15 Vdc
  • Hermetic junction box
  • Standard extensible cable (length 5 m)
Downloads

Please click here for the LTW Touch Screen Forklift Weighing System datasheet
