Dini Argeo LTP Hydraulic Weighing Kit for Forklift Trucks

£749.00 £839.00

Model
Add a Thermal Printer?
Add a Power Supply?

The Dini Argeo LTP is the kit that allows you to integrate weighing on the forklifts in a simple and cost-effective way. It meets the need to weigh material handled directly on the spot, thus saving time and reducing the traffic in the warehouse. The compact display can be installed inside the cabin to ensure a clear weight display.

Increase Safety
It alerts the operator to forklift overloads and helps to monitor the weight loaded on the racking, thus preventing overturning and failure.

Weigh Goods Being Lifted
Ideal to know the weight of the packages loaded on the truck and of incoming and outgoing goods.

LTP Extends the Life of the Forklift
Moving to a traditional scale is no longer needed and this reduces significantly the daily travels.

Weighting Features

  • Maximum lifting capacity: up to 4,000 PSI / 280 BAR
  • Resolution: from 5 kg
  • Accuracy: ±0.5% to ±5% of capacity, min. ±20 kg*
    (*)This value may be affected by several factors, consult your manual for more information.

Why Choose Dini Argeo LTP Forklift Kit?

  • Easy to install, connects to the hydraulic system via a tee fitting.
  • It does not reduce the load capacity of the forklift and does not affect the original manufacturer's certification.
  • It is indestructible because it is not subject to shock.
  • Direct power from the truck's battery makes the system always ready to weigh when you need it.
  • The weight indicator is compact and comes with a bracket for easy in-cab installation.
  • Thanks to the LTP Tool PC program, which can be downloaded free of charge from the download area, it is possible to optimize the weighing performance of the system.

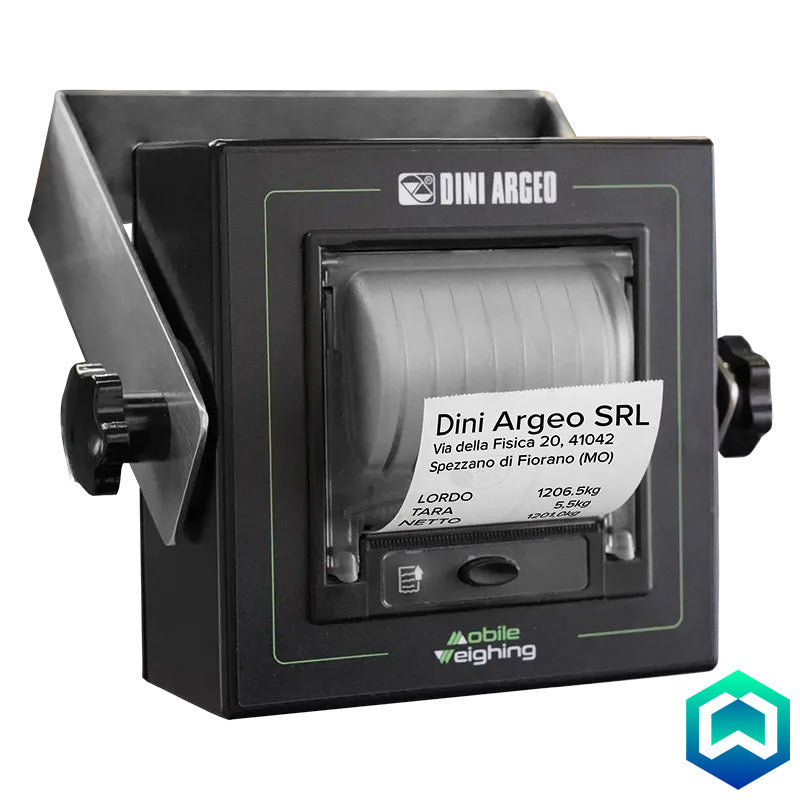

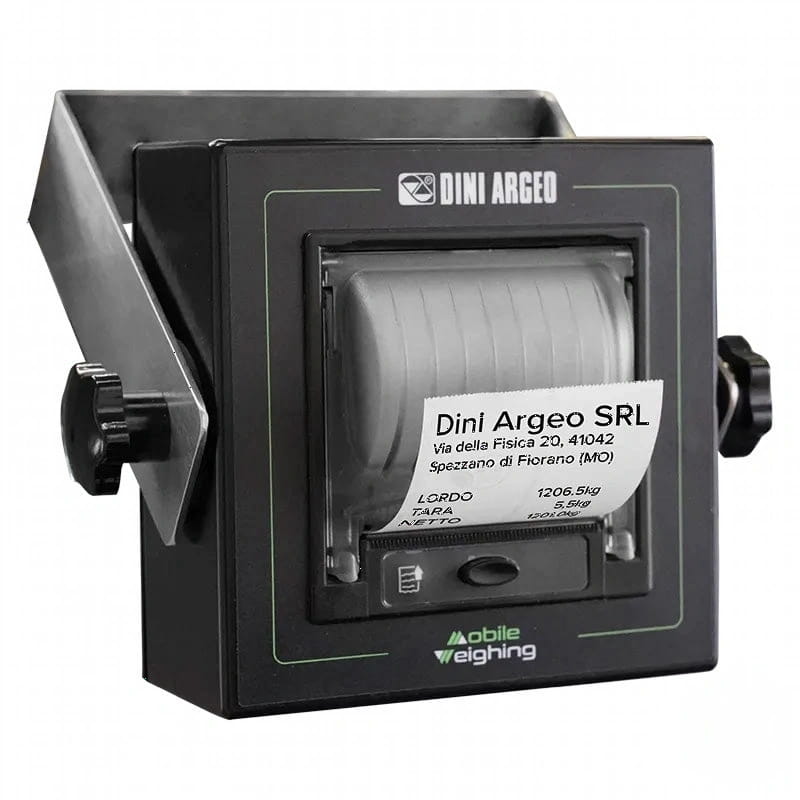

  • The optional printer allows you to trace the weighs made.

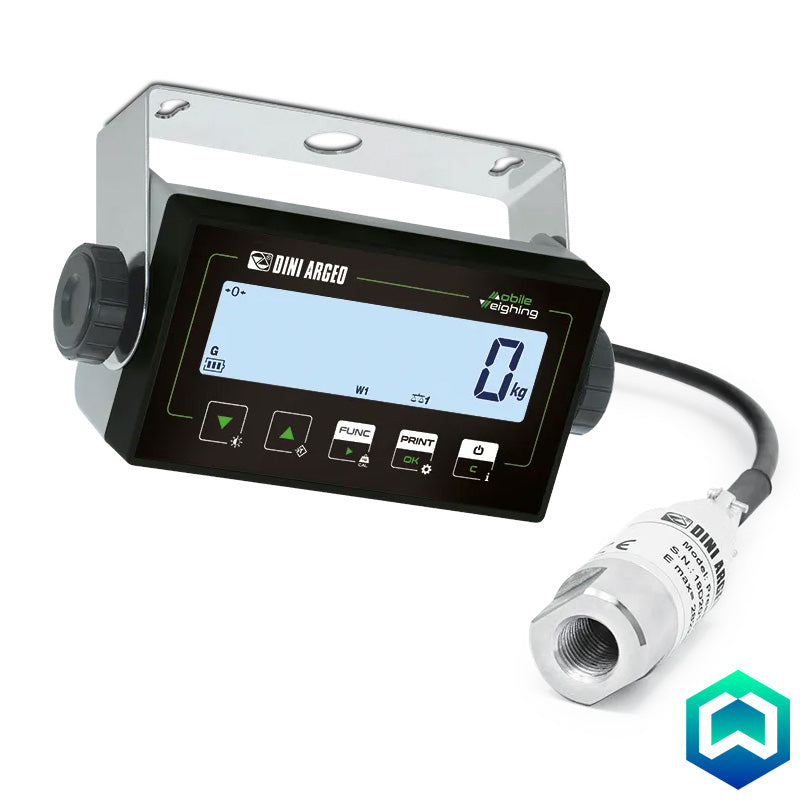

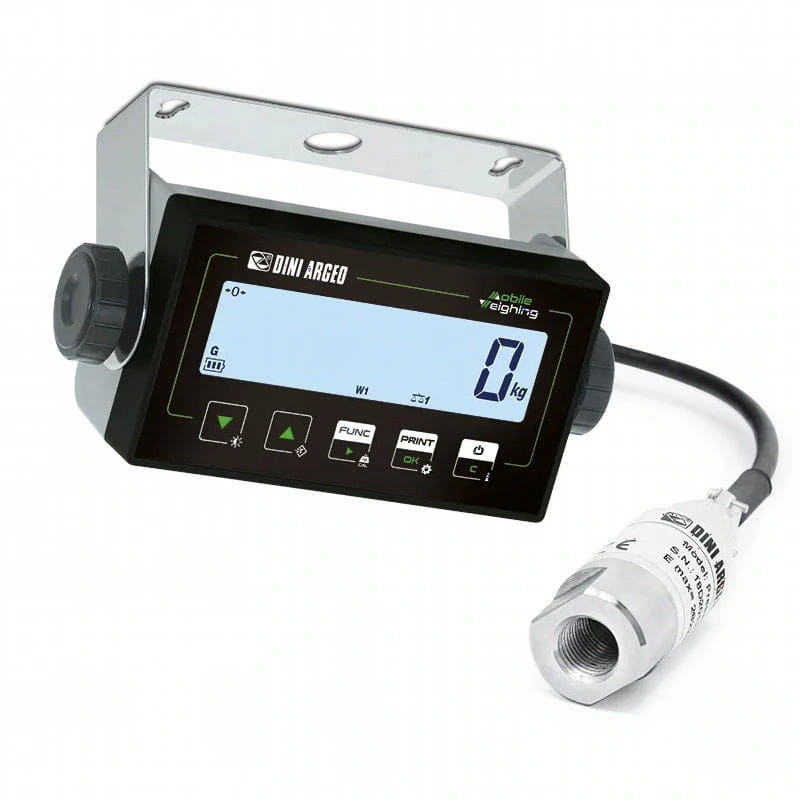

Compact Weight Indicator

  • Specific digital weight indicator for weighing through hydraulic pressure sensor.
  • ABS IP68 case with 25 mm backlit LCD display with 6 high contrast digits and icons for showing the active functions.
  • Functional waterproof keypad with 5 keys.
  • Date and time board provided as standard.
  • Direct power supply from the forklift (voltage at choice, depending on the battery of the forklift).

Hydraulic Pressure Sensor

  • 6 m shielded connection cable, with removable waterproof connector.
  • Protection sheath, specific for contact with oils and lubricants.
  • Nickel-plated steel structure.
  • IP65 protection rating.
  • Hydraulic connector: 1/4" BSP parallel.
  • Temperature of use: -10° / +50° C

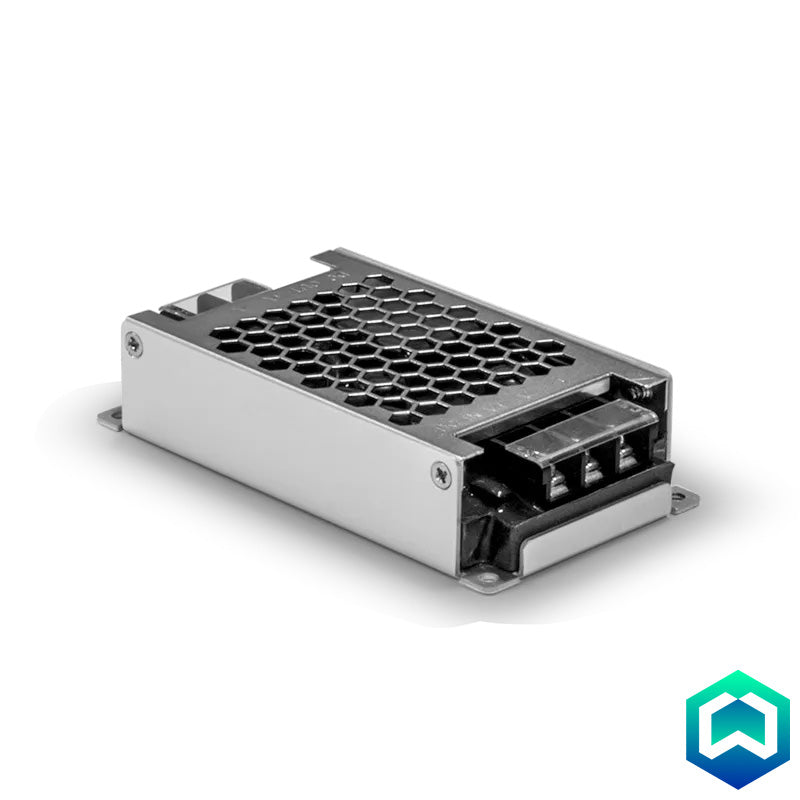

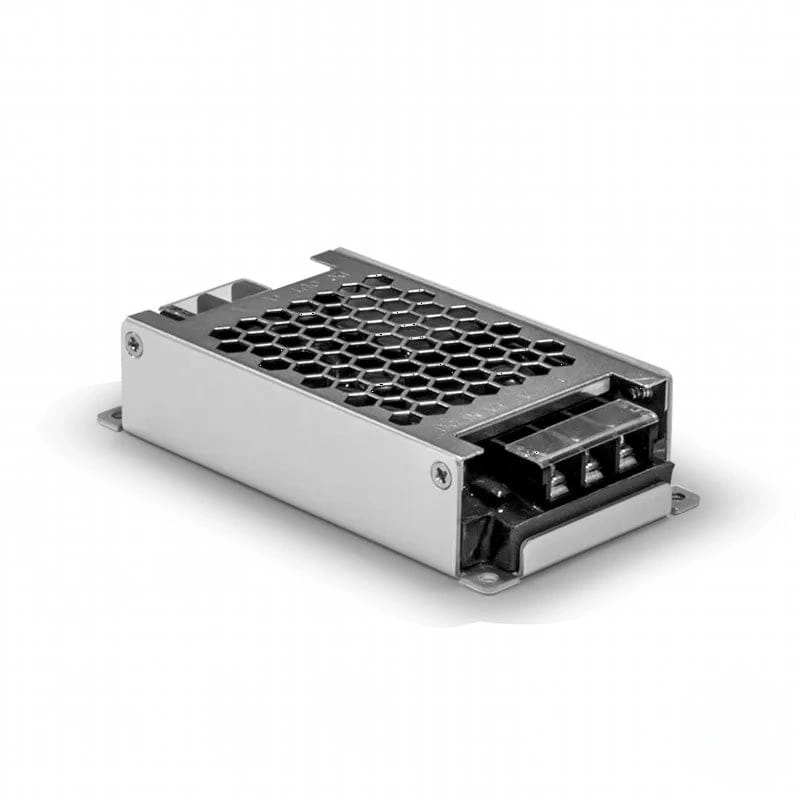

Power Supply Options

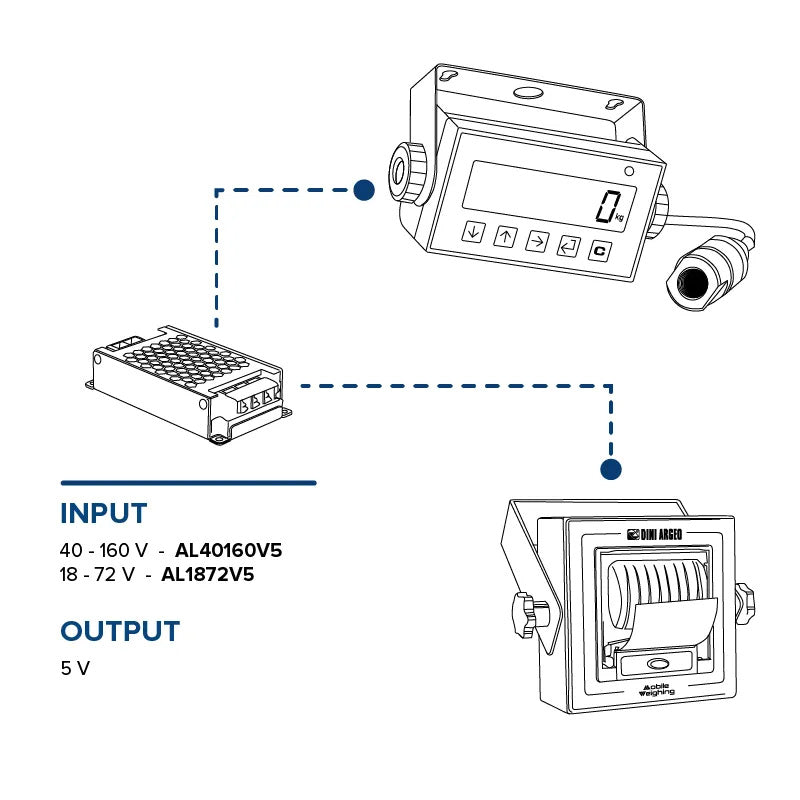

Depending on the voltage present on the forklift, it is possible to choose the most suitable optional ALxxV5 power supply unit, with input from 18 to 72Vdc or from 40 to 160Vdc. The ALxxV5 power supply units can be installed inside the weight indicator (by ordering the S1 service) and can simultaneously power the OBTPRLT printer, optimising the wiring of the various components.

Fixing Bracket for Display
Equipped with fixing bracket on forklift, vertically tilting and swivelling. Universal compatibility with most forklifts.

Display Fixing Bracket
Equipped with universal mounting bracket, vertically tilting and swivelling.

LTP Tool Software
Configuration of the LTP kit is easily carried out through the programming menu of the weight indicator. In addition, when additional optimization or system analysis is required, you can download LTP TOOL, the free PC program that improves the response speed and accuracy of the weighing system according to the conditions and characteristics of the forklift.

Minimum PC Requirements
Operating System: Windows 10
Processor: 1.6 Ghz
Ram: 4 Gb
Free hard disk space: 250 Mb
Compatible with LTP-1 version only.

Please click here for the Dini Argeo LTP forklift weighing kit datasheet .....
