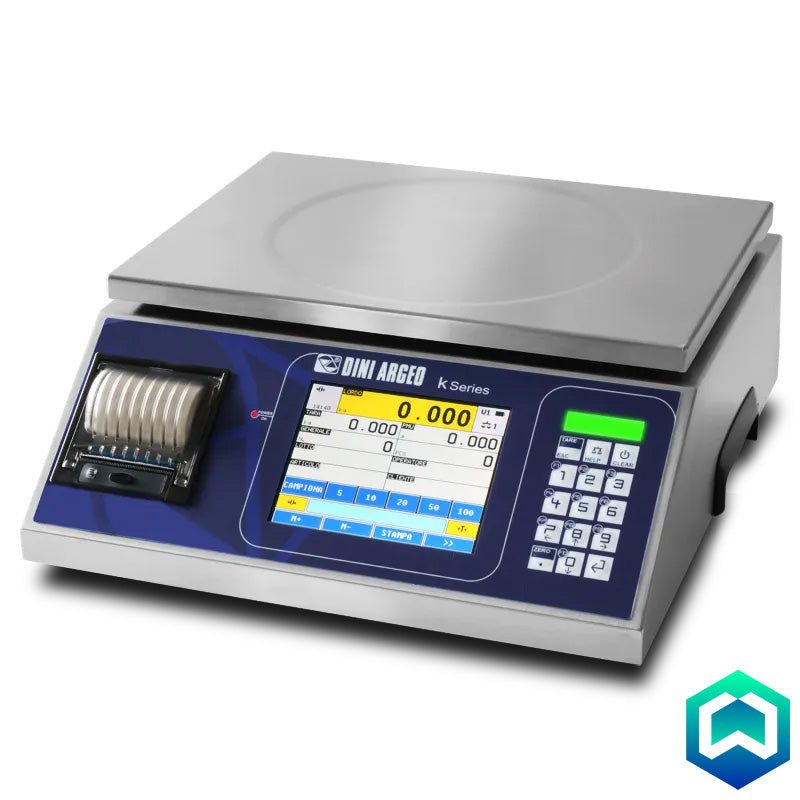

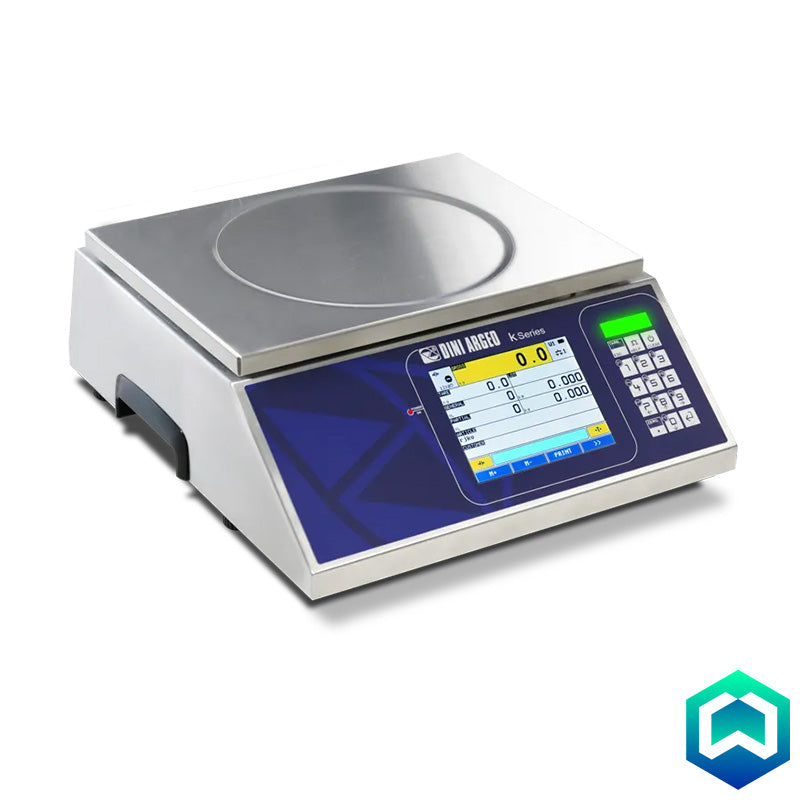

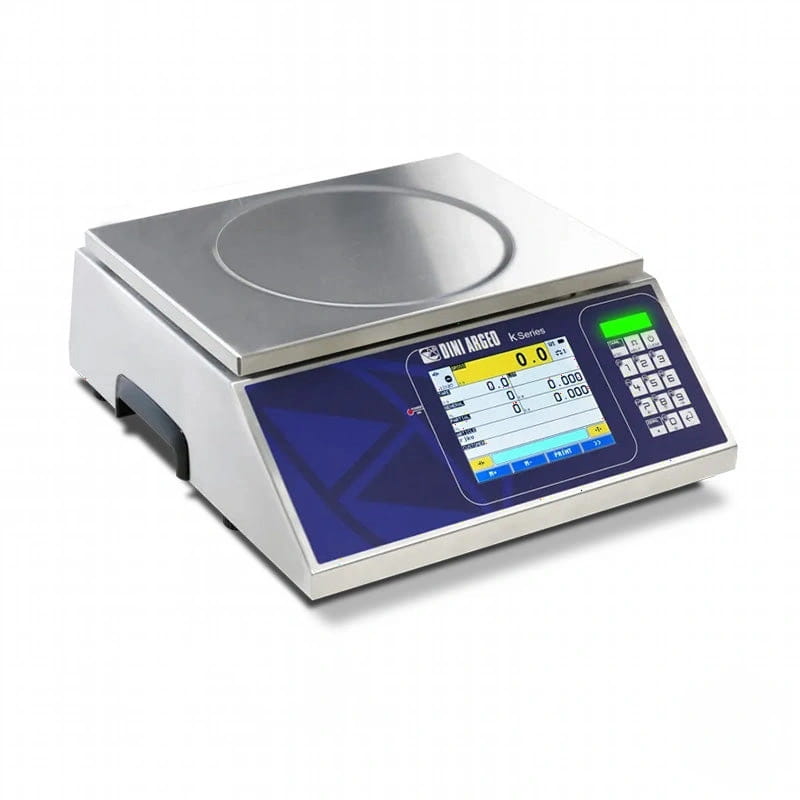

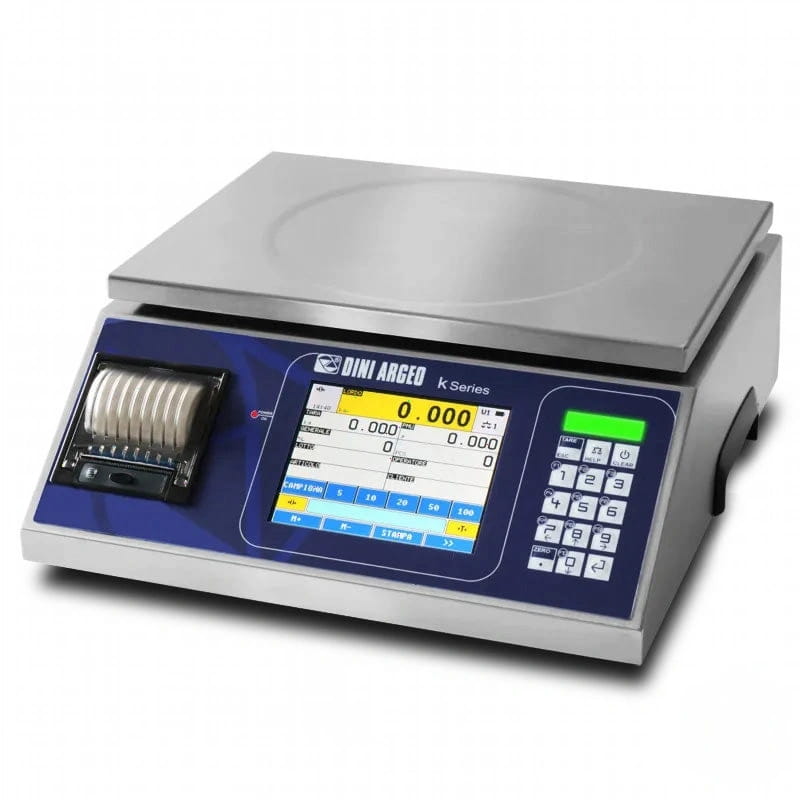

Dini Argeo KST Series Stainless Steel Scales with Touch Screen Display

The Dini Argeo KST Digital Bench Scales feature a robust stainless steel body and advanced C6 OIML load cells. The colour touchscreen interface is easy to navigate, and the versatile application programs cater to diverse weighing needs. Lightweight and portable, these scales are the ideal solution for all environments.

Product Information

Features:

  • OIML Certified Accuracy: Equipped with OIML R60 C6 approved aluminum load cells, ensuring precise and consistent measurements.
  • Robust Construction: The stainless steel body and load plate are designed to withstand harsh environments, making them easy to clean and maintain.
  • Intuitive User Interface: The large, backlit touchscreen display provides clear visibility and customizable settings.
  • Advanced Connectivity: Seamlessly integrate with your operations through multiple connectivity options, including serial ports, Bluetooth, and optional interfaces like Profibus and Modbus RTU.
  • Data Security and Efficiency: The integrated alibi memory ensures data integrity, while the optional remote scale connectivity and programmable functions streamline workflows.
  • Durable Design: IP44 protection rating safeguards against dust and water, ensuring long-lasting performance.
  • Flexible Power Options: Choose between the internal rechargeable battery or external power supply for uninterrupted operation.
  • EU Compliance: The KST series is certified to the EU Type Examination Certificate (45501:2015), ensuring adherence to stringent quality and safety standards.

Available Application Programs

  • The application programme of the KST digital scales series can be chosen according to the function to carry out:
    - AF01: Totalization and formulation (standard)
    - AF02: Piece counting/quantity (optional)
    - AF04: Statistic control of pre-packaged goods (optional)
    - AF05: Weight / price industrial labelling (optional)
    - BATCH: Multicomponent manual dosage with archive of formulas (optional)

I/O Section

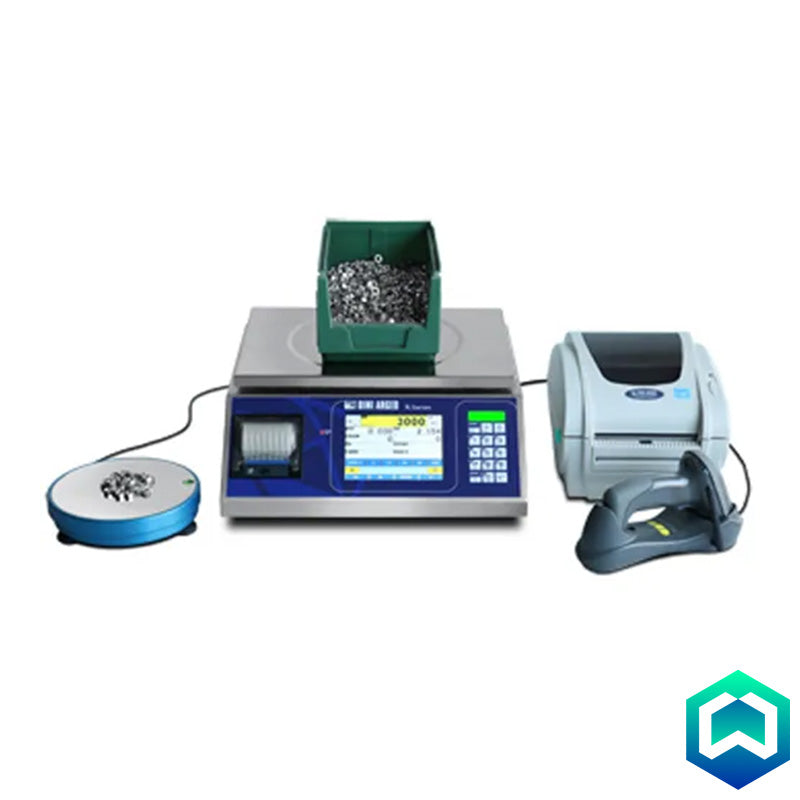

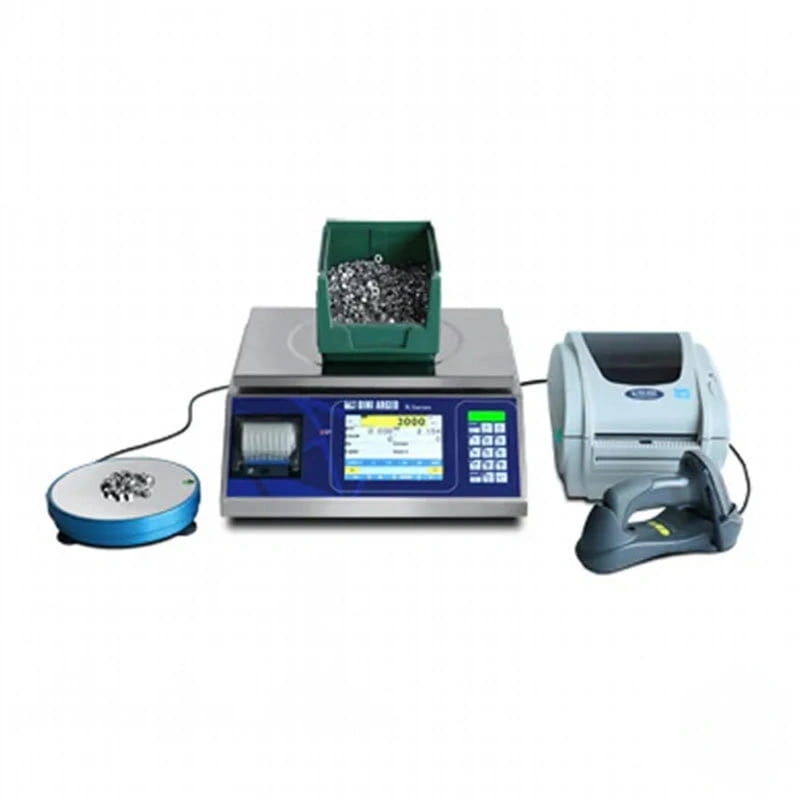

  • 2 Serial ports RS232, for connection to printer, PC or PLC, radio module and optional interfaces.

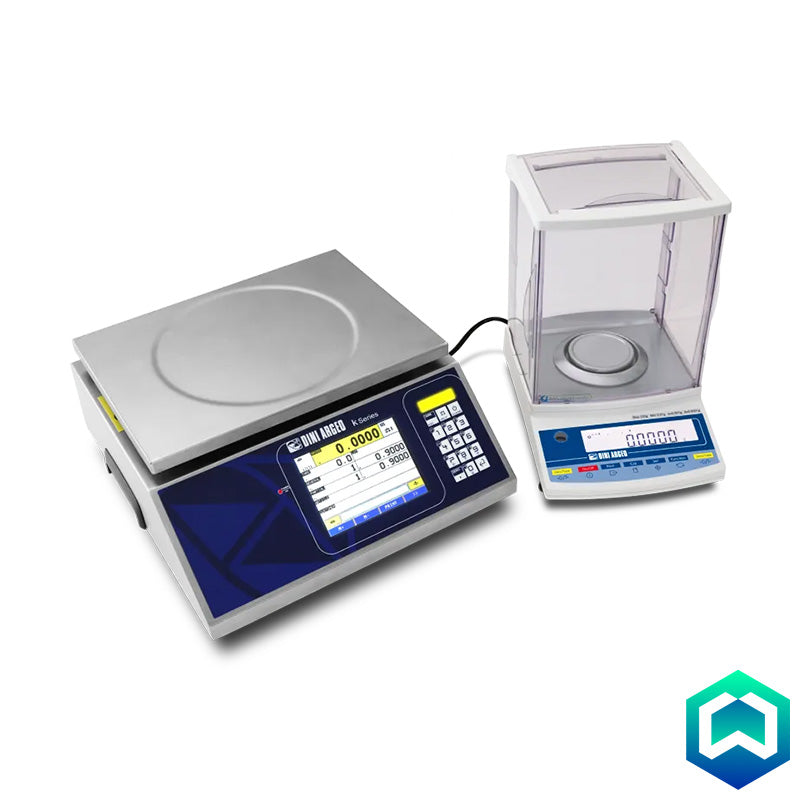

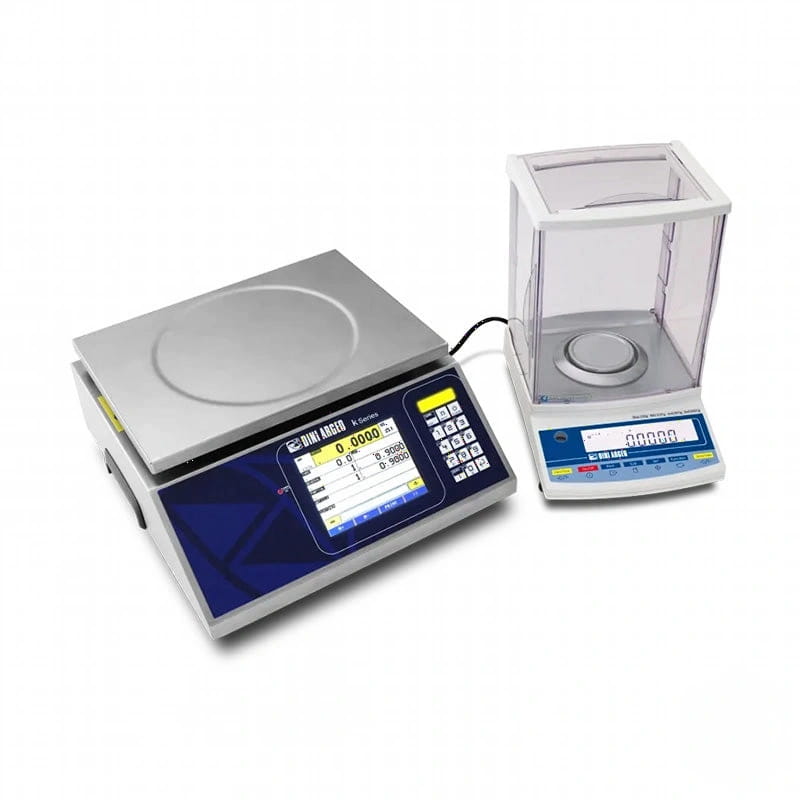

  • 1 Serial ports RS232 (RS485 optional), for connection to repeater, remote scale, badge reader or digital load cell.
  • Fitted with keyboard emulation input, for connection to barcode/badge reader or PC external keyboard, through cable with mini DIN connector (optional).
  • 4 opto-isolated outputs (optional).
  • 2 opto-isolated inputs (optional).
  • External Profibus interface (optional), for automation management.
  • Modbus RTU interface.
  • Optional Bluetooth connection, for wireless rapid archive configuration by PC, tablet or smartphone.
Specification

Display: Backlit graphic display with touch screen technology, 120x90mm size. Screens completely customisable.

Construction: Stainless steel body and load plate

Platform Dimensions: 250x340mm

Power Requirement: Internal rechargeable battery (operating time 40h approximately) or external power supply/battery charger.

Downloads

Please click here for the Dini Argeo KST Stainless Steel Bench Scales Datasheet

Model
Calibration Certificate:

£1,287.00
