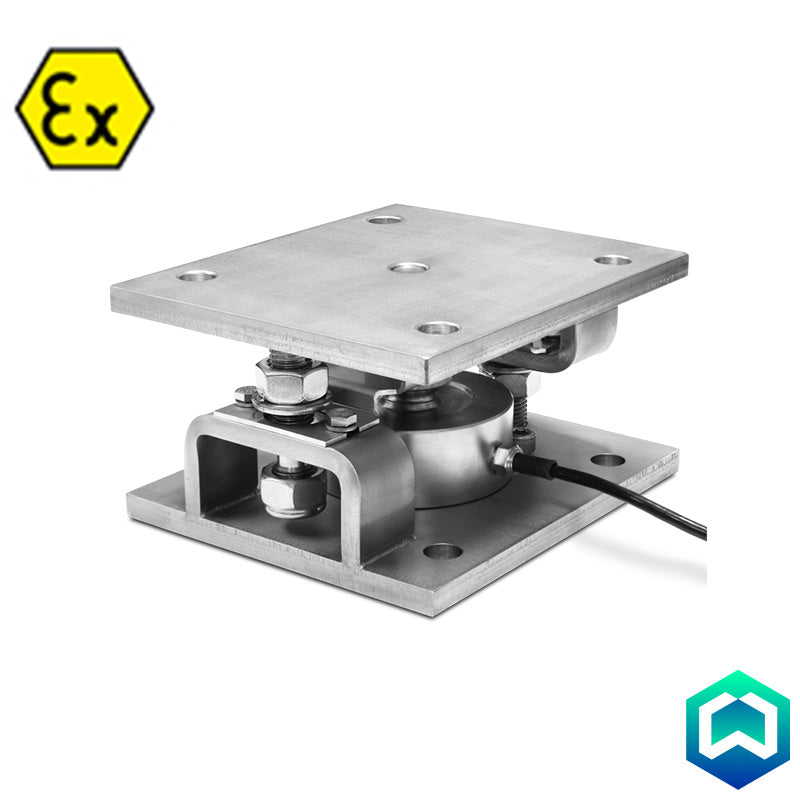

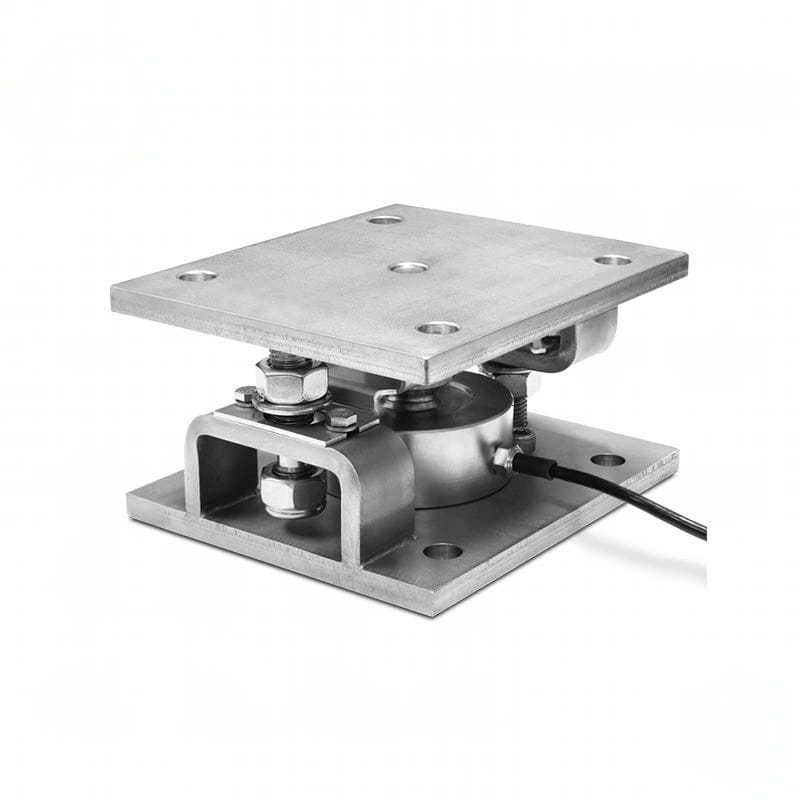

Dini Argeo ATEX KCPN Stainless Steel Mounting Kit for CPX Compression Load Cells

Features:

• AISI 304 Stainless Steel Body: Offers superior resistance to corrosion and ensures long-lasting performance in heavy-duty applications.
• Great Resistance to Lateral Forces: The robust design effectively withstands lateral forces, ensuring accurate weighing even with potential side loads in large structures.
• Nut for Maintaining the Raised Position: Integrated nut allows the weighing structure to be held in a raised position, simplifying the installation and/or substitution of the load cell.
• Limit-Switch Nuts for Overload Protection: Protect the load cells from damage due to accidental overloads, ensuring the longevity of your weighing system.
• Self-Centering Connection Segment: The connection segment between the lower and upper plates is self-centering, ensuring correct load transmission and optimal weighing accuracy for large capacity weighing.
• Dummy Load Cells Functioning: Enables the weighing of liquid materials by simulating the load cell during filling or emptying processes in large tanks and silos.
• Centering Plate: Ensures correct positioning of the load cell for optimal performance.
• Protection Against Electrostatic Discharges: Integrated features help to protect the load cell from electrostatic discharges, enhancing safety and measurement stability in industrial settings.
• Anti-Overturn System: Enhances the safety and stability of the high-capacity weighing system.
• Locking/Bypass System: Facilitates the safe transport and simplifies maintenance procedures by allowing the load cell to be securely locked in place.
• ATEX Version: ATEX certified version suitable for use in hazardous areas classified as zones 1&21 and 2&22.
