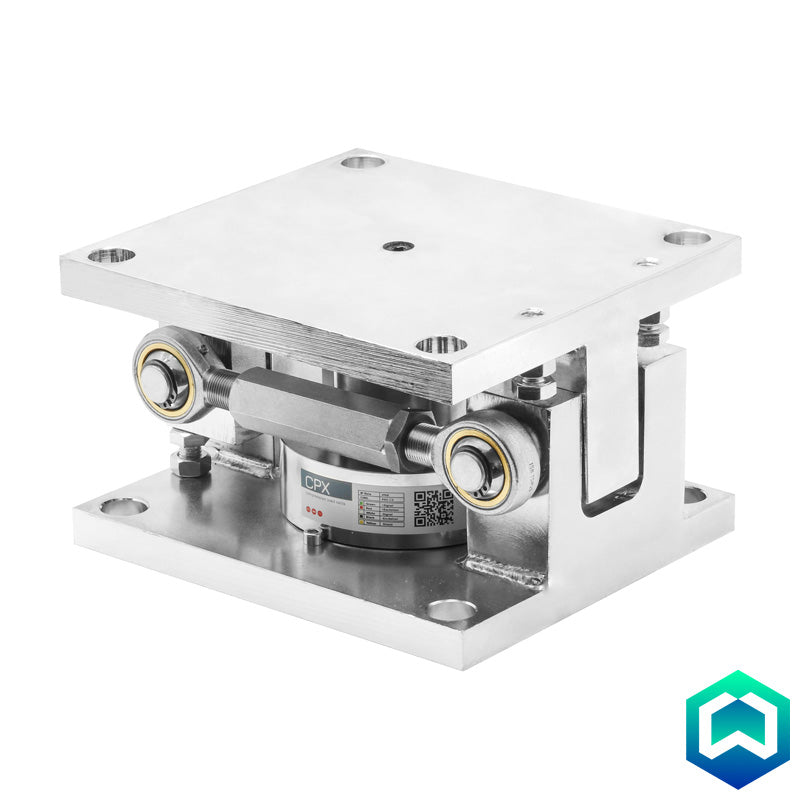

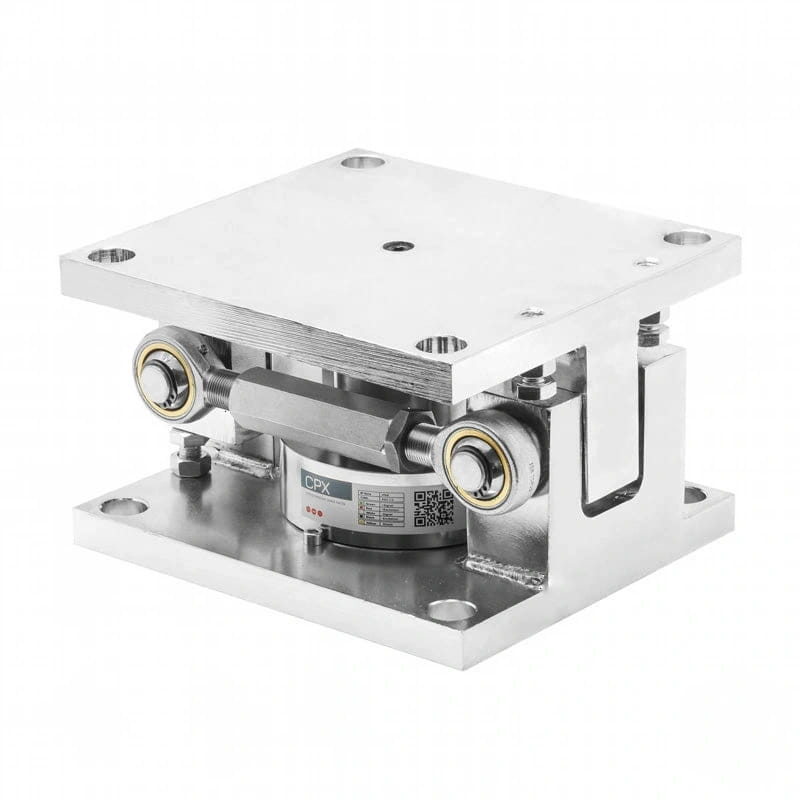

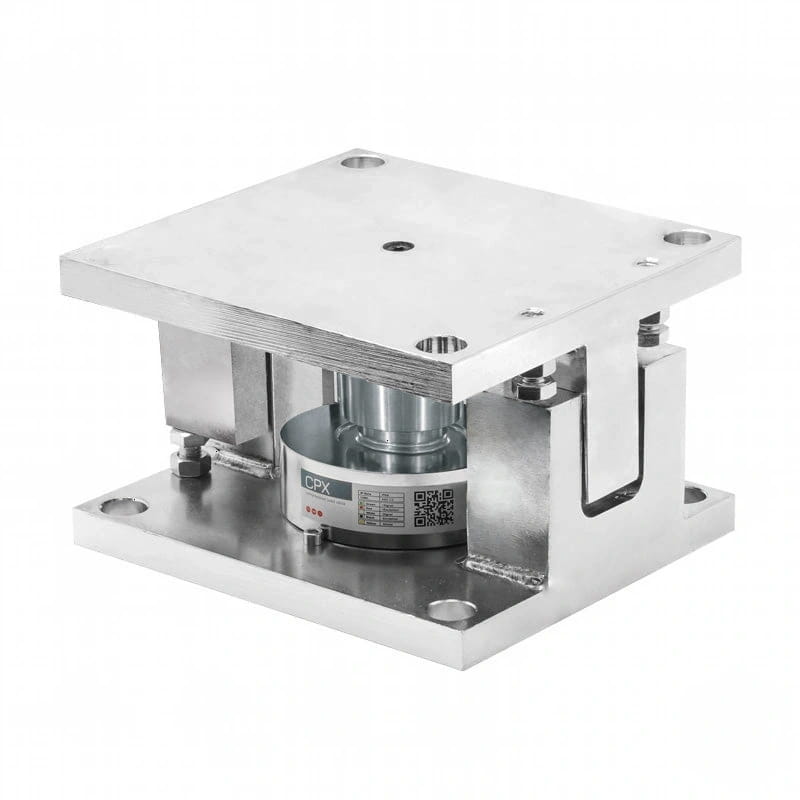

Dini Argeo KCP50 Glavanised Steel Mounting Kit for CPX/CPA Compression Load Cells

By Dini Argeo

The Dini Argeo KCP50 mounting kit is a robust accessory engineered for the correct and safe mounting of CPA (20 to 50t) and CPX (up to 30t) series compression load cells beneath silos, hoppers, and tanks. This kit provides crucial protection against overloads and side forces, actively contributing to the prevention of accidental tipping of the silo structure.

Model
£1,027.00
Product Information

Features:

  • Designed for High Capacity: Specifically engineered for mounting 30t CPX and 20 to 50t CPA compression load cells.
  • Zinc-Plated Steel Construction: Offers durable and reliable support for heavy-duty weighing applications (stainless steel version available upon request).
  • Effective Tipping Protection: Provides robust protection against tipping, capable of withstanding forces up to 130 kN.
  • Self-Aligning System: Incorporates a self-aligning mechanism designed to accommodate mechanical expansion of the structure while maintaining optimal weighing precision.
  • Safe Load Cell Maintenance: Features locking screws and a bypass system, ensuring completely safe load cell maintenance procedures.
  • Available in ATEX Version: Can be supplied in an ATEX certified version suitable for use in hazardous areas classified as zones 1&21 and 2&22.
  • Available in EN 1090 Certified Version: Can be supplied in a version certified according to EN 1090 standards.
Specification

Material: Zinc plated, galvanised steel

Load Cell Compatibility: CPX/CPA Compression load cells up to 50t per support point
Downloads

Please click here for the DIni Argeo KCP50 Galvansed Steel Mounting Kit datasheet
