Dini Argeo JBQI Stainless Steel Equalised 4/6 Load Cell Junction Box

The Dini Argeo JBQI is a robust stainless steel junction box with IP65 protection against water and dust ingress. It is equipped with an electronic board designed for the junction and precise equalisation of either 4 or 6 load cells, offering flexibility for various weighing system configurations.

Model

£91.00
Product Information

Features:

  • Stainless Steel Case: Offers excellent corrosion resistance and durability.
  • IP65 Protection Degree: Provides reliable protection against dust and water jets.
  • Versatile Connection: Suitable for connecting and equalising either 4 or 6 load cells (depending on the model).
  • Easy Wiring: Features a terminal board with screws for simple and secure load cell connections.
  • Accurate Equalisation: Integrated signal adjustment trimmer allows for precise and reliable load cell balancing.
  • Protection Diodes: Safeguards against surcharges and electrostatic discharges.
  • Flexible Input Options: Cell inputs available on screw connectors or soldering squares.

Available Models:

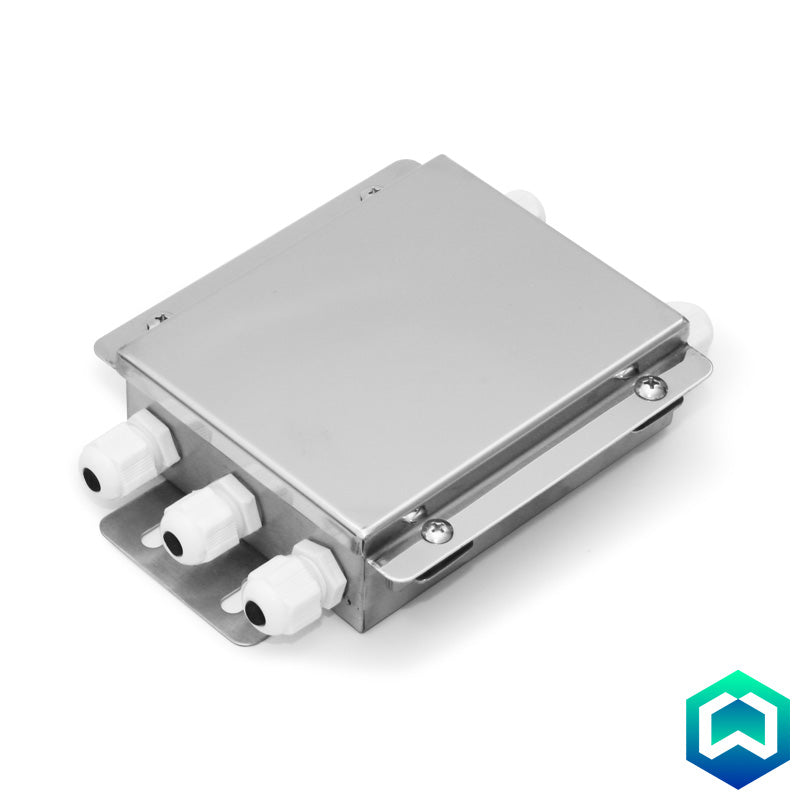

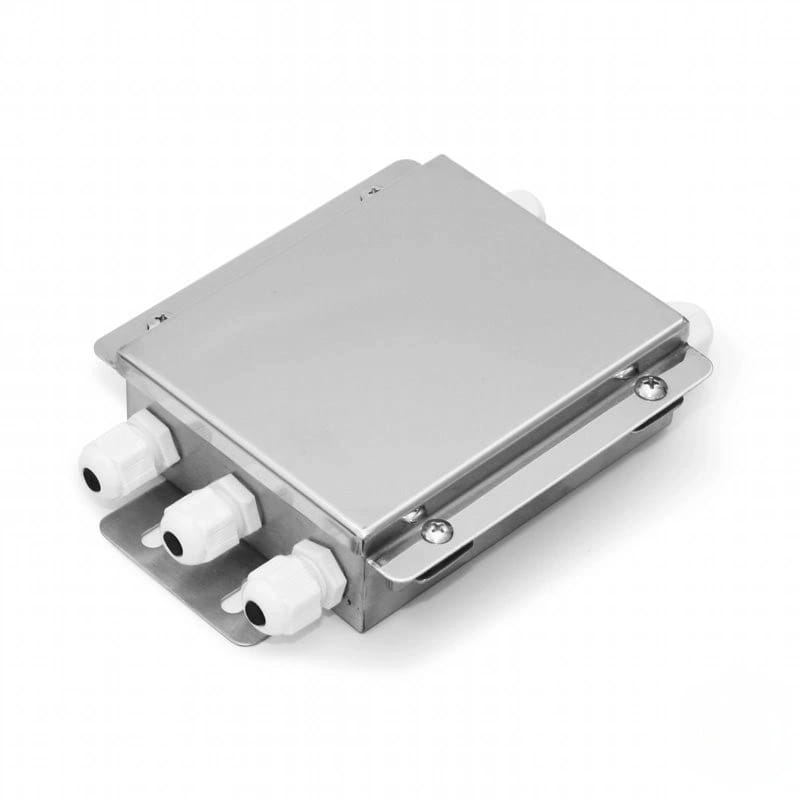

  • JB4QI: For the connection and equalisation of 4 load cells, featuring cell inputs on screw connectors or soldering squares. Dimensions: 155 x 158 x 45 mm (lxwxh).

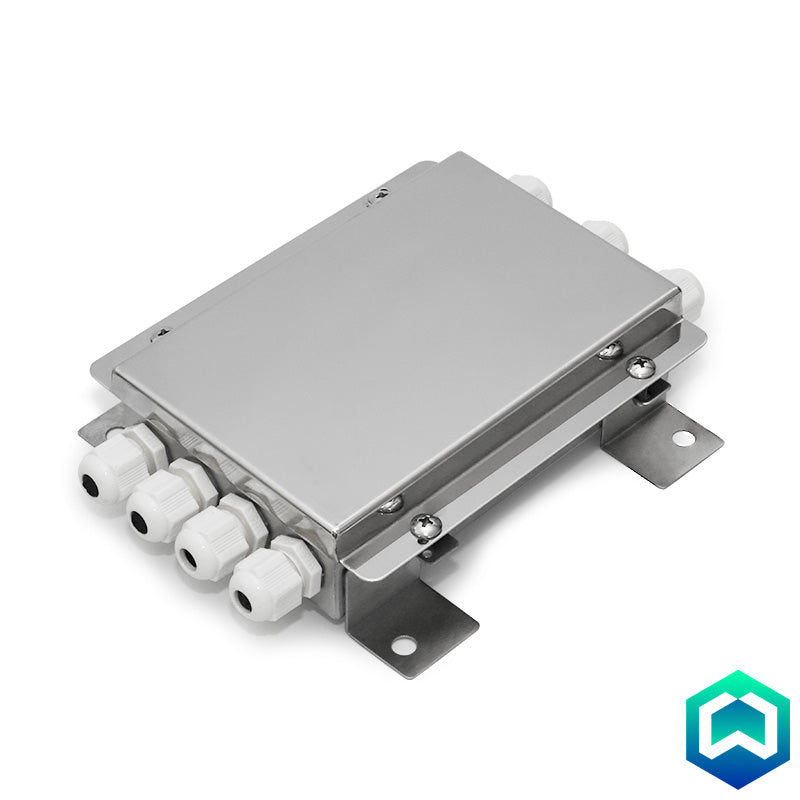

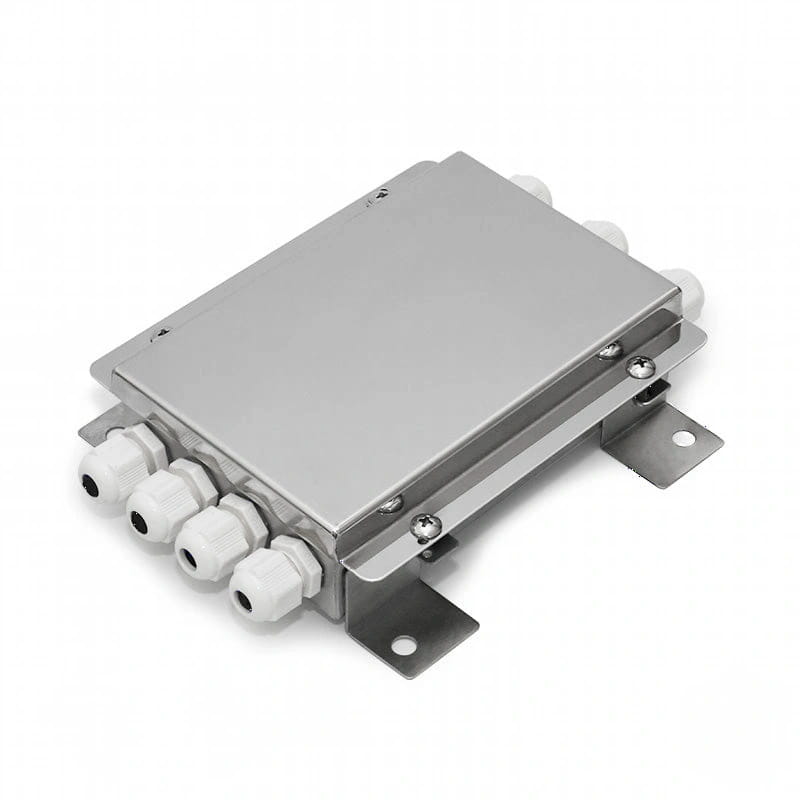

  • JB6QI: For the connection and equalisation of 6 load cells, featuring cell inputs on screw connectors or soldering squares. Dimensions: 190 x 132 x 50 mm (lxwxh).
Specification

Construction: Stainless steel case.

Protection degree: IP65.

Maximum input voltage: 24Vdc.

Maximum input current: 700mA.

Maximum input load cell signal: 1000mV.

Temperature effect: 50ppm/°C.

Dimensions: 155x158x45mm (lxwxh) for JB4QI

Dimensions: 190x132x50mm (lxwxh) for JB6QI

Downloads

Please click here for the Dini Argeo JBQI Equalised 4/6 Load Cell Junction Box datasheet
