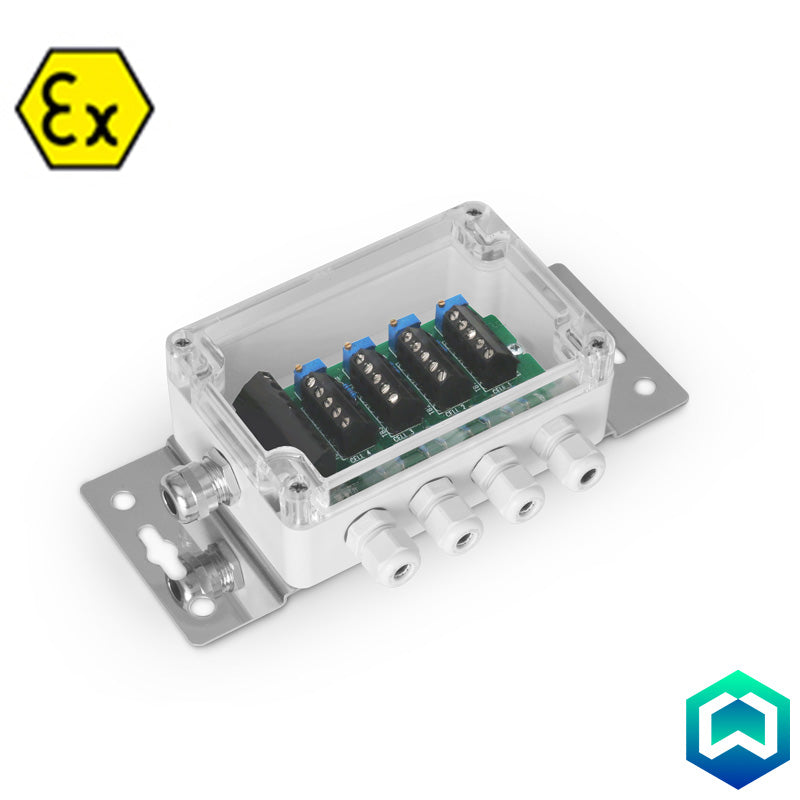

Dini Argeo JBQA ATEX Equalised 4 Load Cell Junction Box

Dini Argeo JBQA ATEX Equalised 4 Load Cell Junction Box

By Dini Argeo

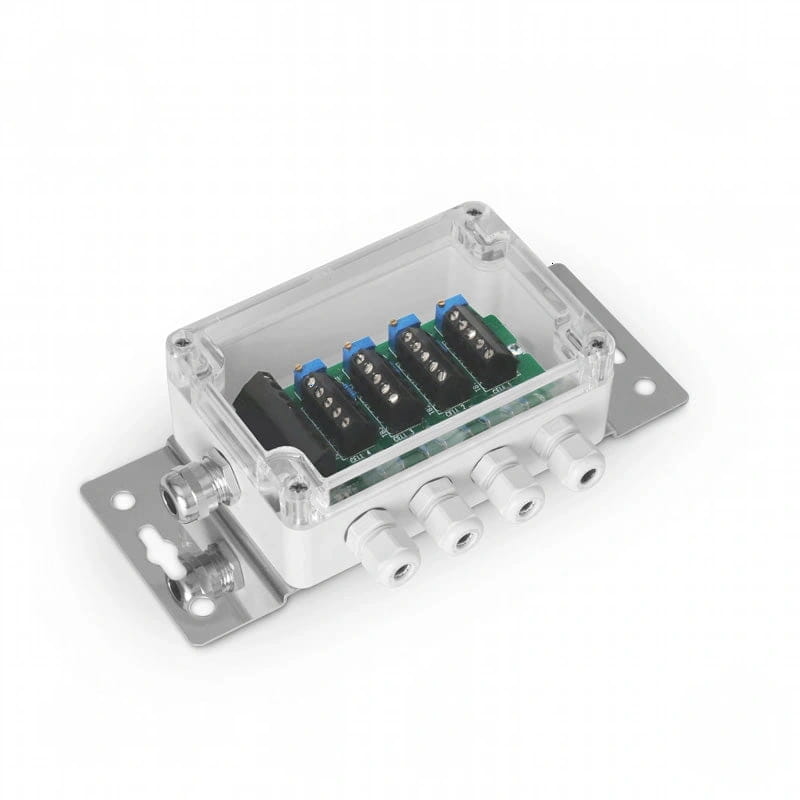

The Dini Argeo JBQA is an ATEX certified IP67 junction box designed for the safe connection and equalisation of 2, 3, or 4 load cells in potentially explosive atmospheres. Its robust ABS case provides reliable protection against dust and temporary immersion in water, while the ATEX marking ensures suitability for use in designated hazardous zones.

Model
£99.00
Product Information

Features:

  • ATEX II 2G Ex ib IIC T6 Gb: Suitable for use in Zone 1 and 2 for gas environments, with an intrinsic safety protection method for Group IIC gases and a maximum surface temperature of 85°C (T6).
  • ATEX II 2D Ex tb IIIC T115°C Db IP65: Suitable for use in Zone 21 and 22 for dust environments, with a protection by enclosure "tb" method for Group IIIC conductive dust, a maximum surface temperature of 115°C, and IP65 ingress protection against dust and water jets.
  • IP67 Protection: Ensures reliable operation in environments where dust and splashing water may be present.
  • Versatile Connection: Suitable for connecting and equalising 2, 3, or 4 load cells in hazardous areas.
  • Easy Wiring: Features terminal boards with screws for simple and secure load cell connections.
  • Accurate Equalisation: Integrated signal adjustment trimmer allows for precise and reliable load cell balancing.
  • Durable ABS Case: Provides a lightweight yet robust and safe enclosure for the electronics in hazardous zones.
Specification

Construction: Case in ABS.

Protection degree: IP67.

Maximum input voltage: 24Vdc.

Maximum input current: 700mA.

Maximum input load cell signal: 1000mV.

Temperature effect: 50ppm/°C.

Dimensions (lxwxh): 120x80x55mm.
Downloads

Please click here for the Dini Argeo JBQA ATEX Equalised 4 Load Cell Junction Box datasheet
