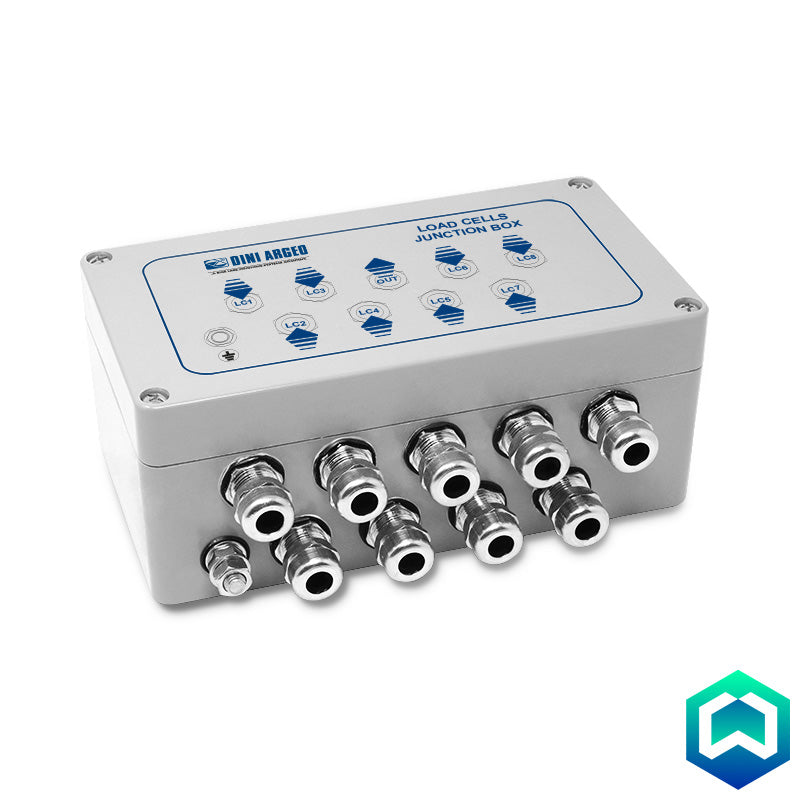

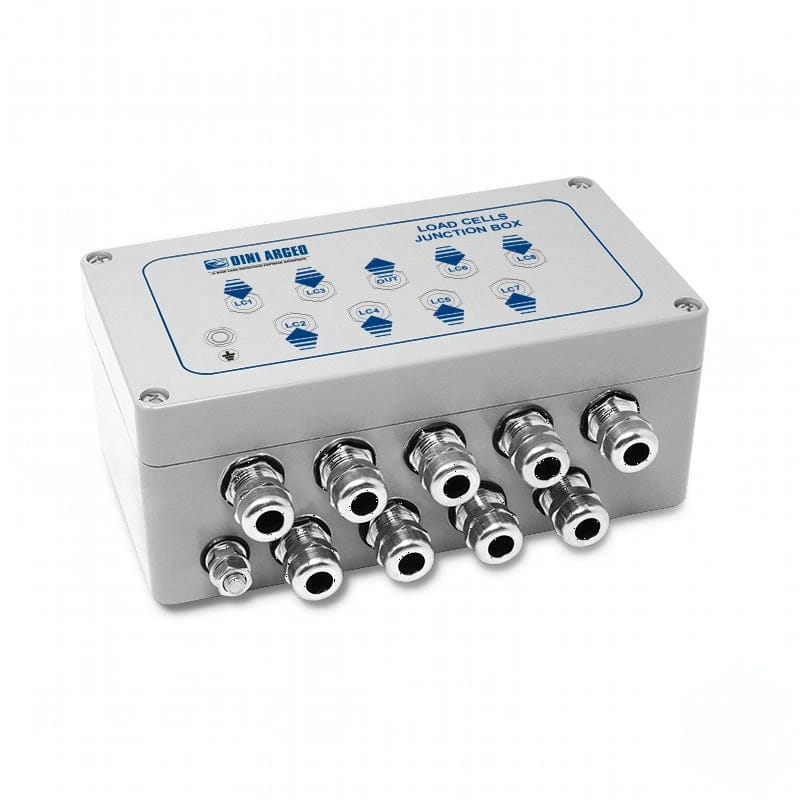

Dini Argeo JB8Q Equalised 8 Load Cell Junction Box with Surge Protection

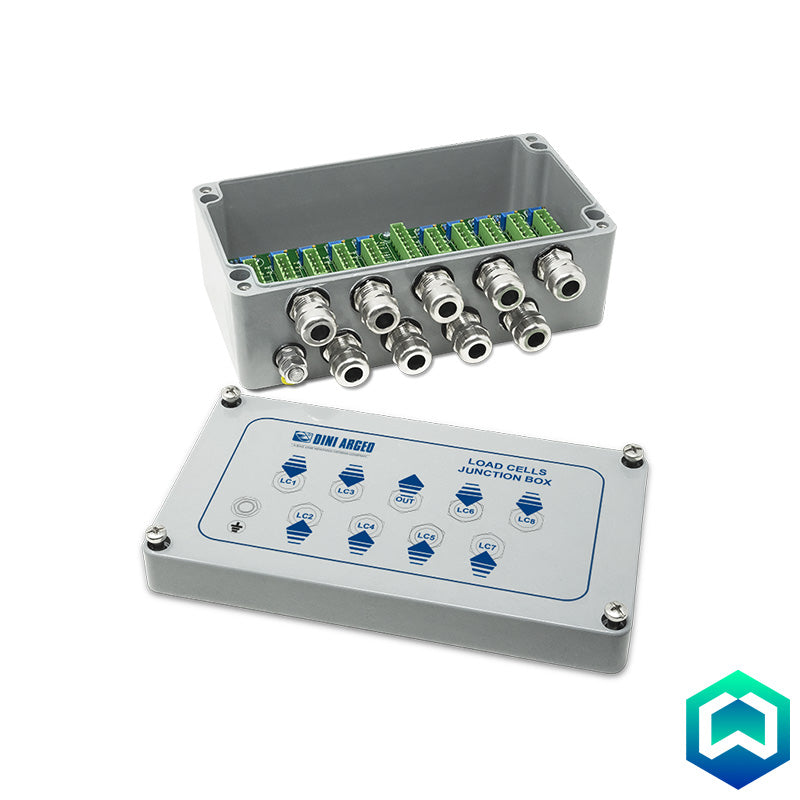

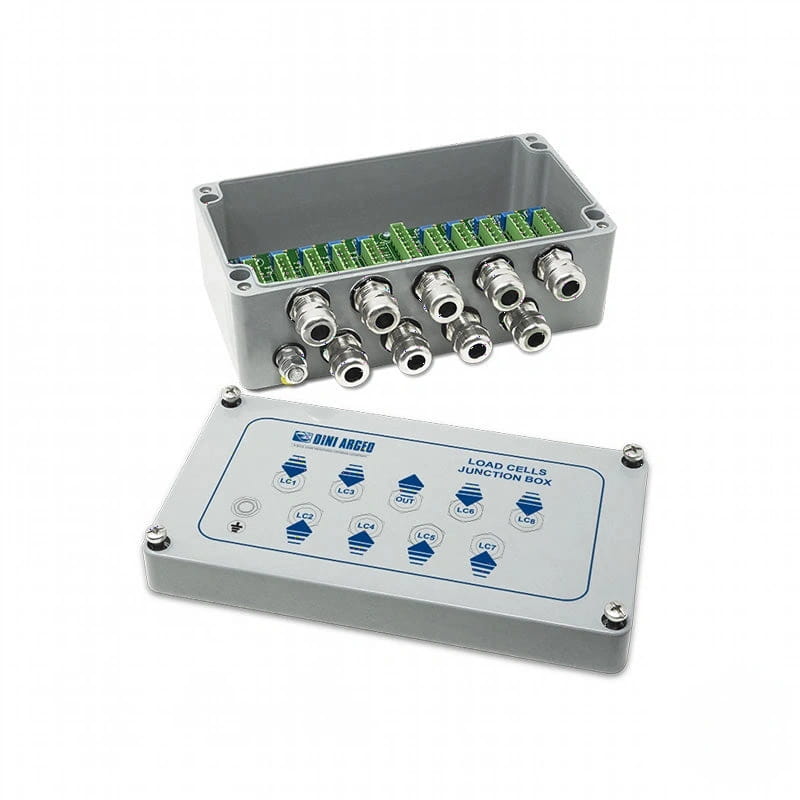

Dini Argeo JB8Q Equalised 8 Load Cell Junction Box with Surge Protection - Detail

Dini Argeo JB8Q Equalised 8 Load Cell Junction Box with Surge Protection

By Dini Argeo

The Dini Argeo JB8Q is a robust and reliable junction box designed for the precise connection and equalisation of up to 8 load cells. Its reinforced polyester case in fiberglass makes it ideally suited for demanding and harsh industrial environments, particularly weight bridges.

£324.00
Product Information

Features:

  • Reinforced Polyester Case in Fiberglass: Offers excellent resistance to harsh environments and ensures durability.
  • 8+1 PG11 Waterproof Metallic Cable Glands: Provides secure and watertight cable entries.
  • Integrated Surge Arresters: Offers crucial protection against electrical discharges and disturbances, particularly beneficial for weight bridge applications.
  • IP66 Protection Degree: Provides excellent protection against dust and powerful water jets.
  • IP68 Upgradeable: Protection degree can be increased to IP68 with the use of GELBOX anti-condensation gel (optional, requires 1200ml of gel).
  • Terminal Boards with Screws: Facilitates easy and secure load cell connections.
  • Signal Adjustment Trimmer: Enables accurate and reliable equalisation of up to 8 load cells.
  • Grounding: Ensures electrical safety and reduces interference.
  • Removable Terminals: Simplifies wiring and maintenance.
  • Compact Dimensions: (lxwxh) 220 x 120 x 90 mm.
Specification

Construction: Reinforced polyester case in fiberglass, ideal for harsh environments.

Protection degree: IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel).

Maximum input voltage: 24Vdc.

Maximum input current: 700mA.

Maximum input load cell signal: 1000mV.

Temperature effect: 50ppm/°C.

Compact dimensions (lxwxh): 220x120x90mm
