Dini Argeo JB4QIP69K Stainless Steel Equalised 4 Input Junction Box

Dini Argeo JB4QIP69K Stainless Steel IP68/IP69K Equalised 4 Input Junction Box

By Dini Argeo

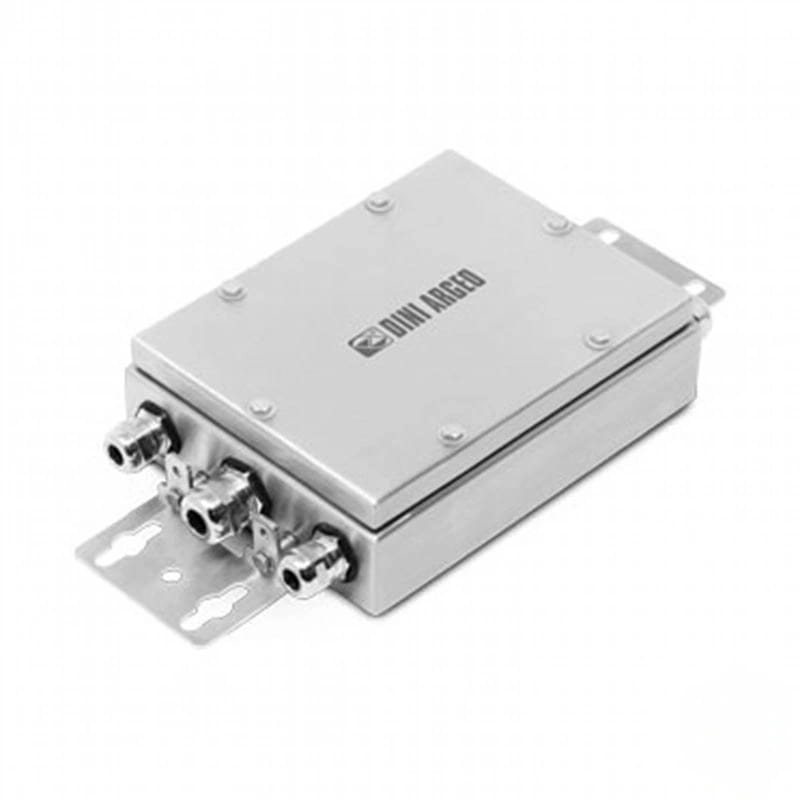

The Dini Argeo JB4QIP69K is a robust and highly protected AISI 304 stainless steel junction box designed for the precise connection and equalisation of up to 4 load cells. Its IP68/IP69K rating provides exceptional resistance to water and dust ingress, making it ideal for demanding industrial environments, including those requiring rigorous cleaning procedures.

£261.00
Product Information

Features:

  • AISI 304 Stainless Steel Case: Offers excellent corrosion resistance and durability for long-lasting performance (AISI 316 available upon request for enhanced corrosion resistance).
  • IP68/IP69K Protection Rating: Provides ultimate protection against dust and high-pressure, high-temperature water jets, ensuring reliable operation in harsh and washdown environments.
  • IP69K Standard Anti-Condensation Valve: Prevents the build-up of condensation inside the box, further enhancing reliability.
  • Metallic Cable Glands: Ensure secure and watertight cable entries.
  • Integrated Equalization Board: Features signal adjustment trimmers for accurate and reliable load cell equalisation.
  • 4 Cell Inputs on Screw Connector: Provides secure and straightforward connection for up to four load cells.
  • Reversible Fixing Bracket: Allows for space-saving wall-mounted installation.
  • Easy to Sanitize with Water Jets: The smooth stainless steel surface and high IP rating facilitate thorough and easy cleaning.
  • Adjustable Height: Offers flexibility in installation and increases cleaning space around the unit.
  • ATEX Version Available Upon Request: Can be supplied in an ATEX certified version for use in potentially explosive atmospheres.
Specification

Construction: AISI 304 stainless steel case (AISI 316 upon request)

Protection rating: IP68/IP69K

Maximum input voltage: 24Vdc

Maximum input current: 700mA

Maximum input load cell signal: 1000mV

Temperature effect: 50ppm/°C

Dimensions: 221x105x39mm (lxwxh)
Downloads

Please click here for the Dini Argeo JB4QIP69K Stainless Steel IP68/IP69K Equalised 4 Input Junction Box datasheet
