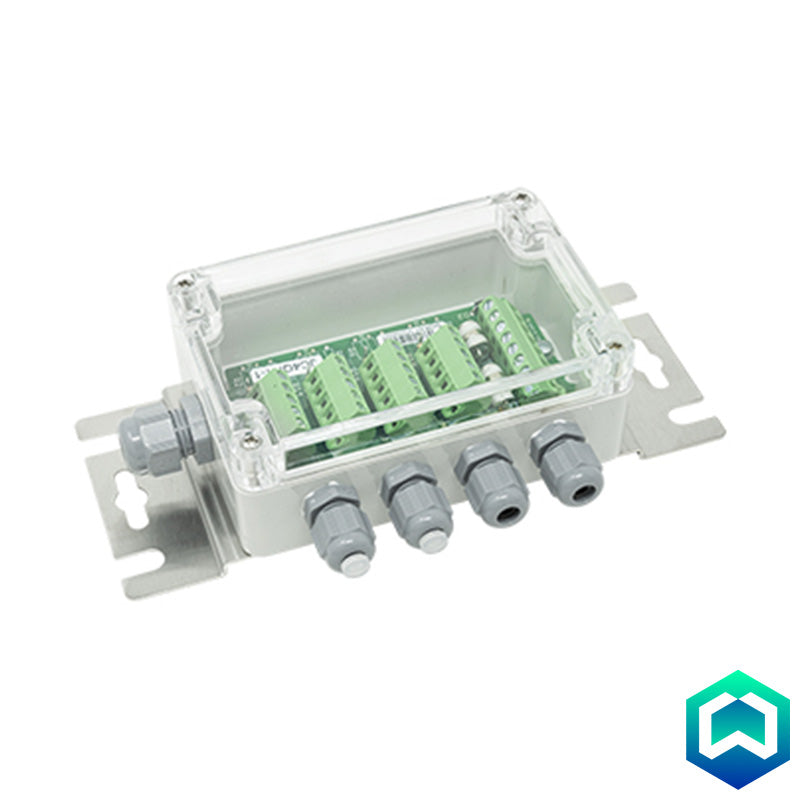

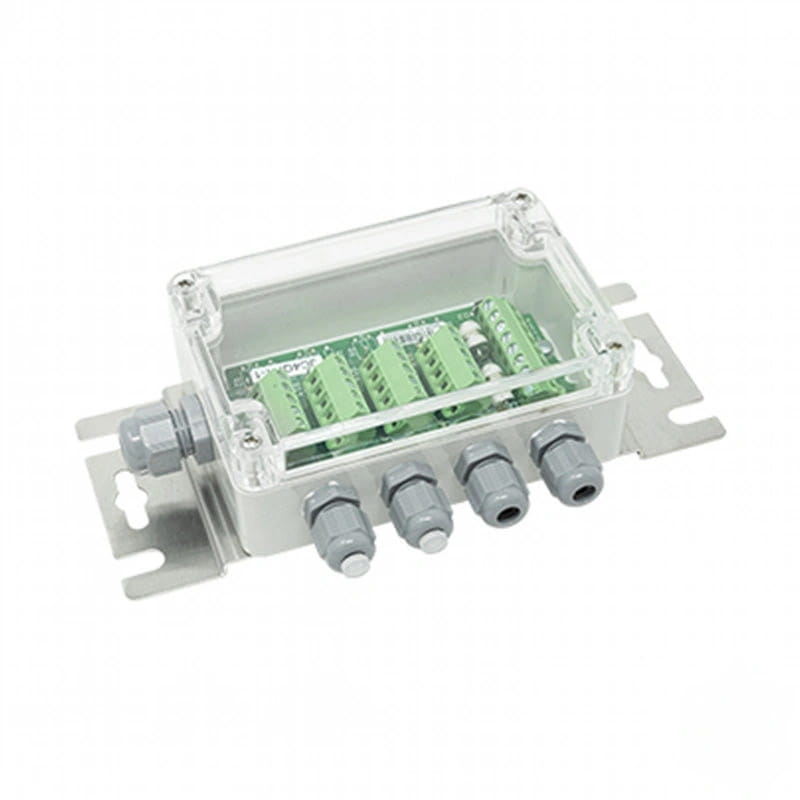

Dini Argeo JB4PLUS Equalised 4 Load Cell Junction Box with Surge Protection

Dini Argeo JB4PLUS Equalised 4 Load Cell Junction Box with Surge Protection

By Dini Argeo

The Dini Argeo JB4PLUS is a versatile and robust junction box designed for outdoor weighing applications. With IP67 protection against dust and water ingress, it provides a reliable connection point for 2, 3, or 4 load cells, functioning as either an equalisation box or a simple junction box.

£104.00
Product Information

Features:

  • IP67 Protection: Ensures reliable operation in outdoor environments, protected against dust and temporary immersion in water.
  • Versatile Functionality: Can be used for equalisation or simple junction of 2, 3, or 4 load cells.
  • Easy Connection: Features screw terminal boards for straightforward and secure wiring.
  • Accurate Equalisation: Equipped with a signal adjustment trimmer for precise and reliable load cell balancing.
  • Surge Protection: Integrated circuit protects against lightning strikes and overvoltage, enhancing system durability.
  • Durable ABS Case: Provides a lightweight yet robust enclosure.
Specification

Construction: Case in ABS.

Protection degree: IP67.

Maximum input voltage: 5Vdc.

Maximum input current: 700mA.

Maximum input load cell signal: 1000mV.

Peak Pulse Current: 15kA.

Temperature effect: 50ppm/°C.

Dimensions (lxwxh): 120x80x55mm.
Downloads

Please click here for the Dini Argeo JB4PLUS Equalized 4 Load Cell Junction Box with Surge Protection datasheet
