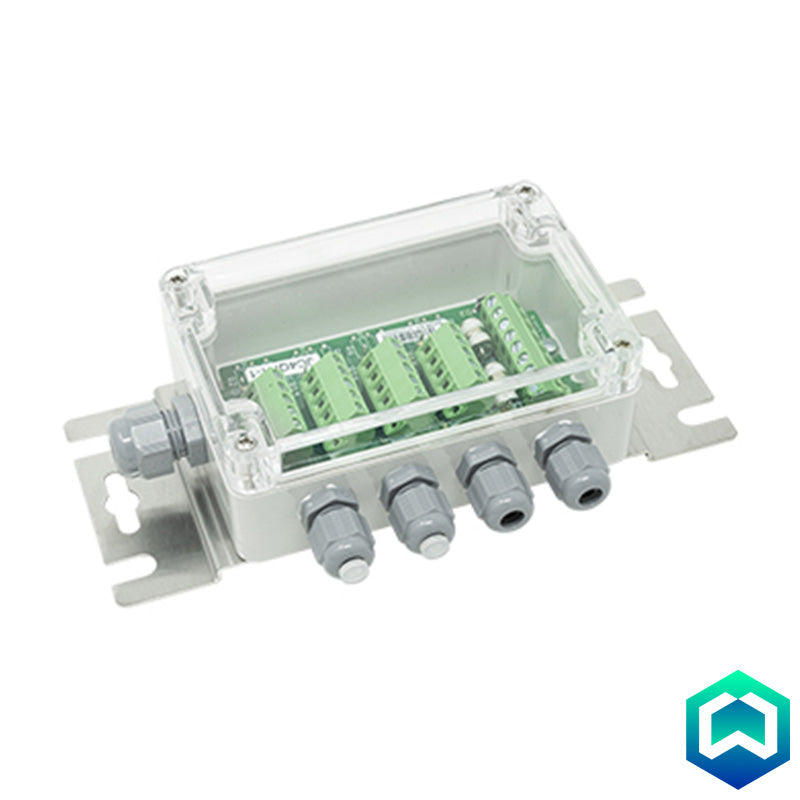

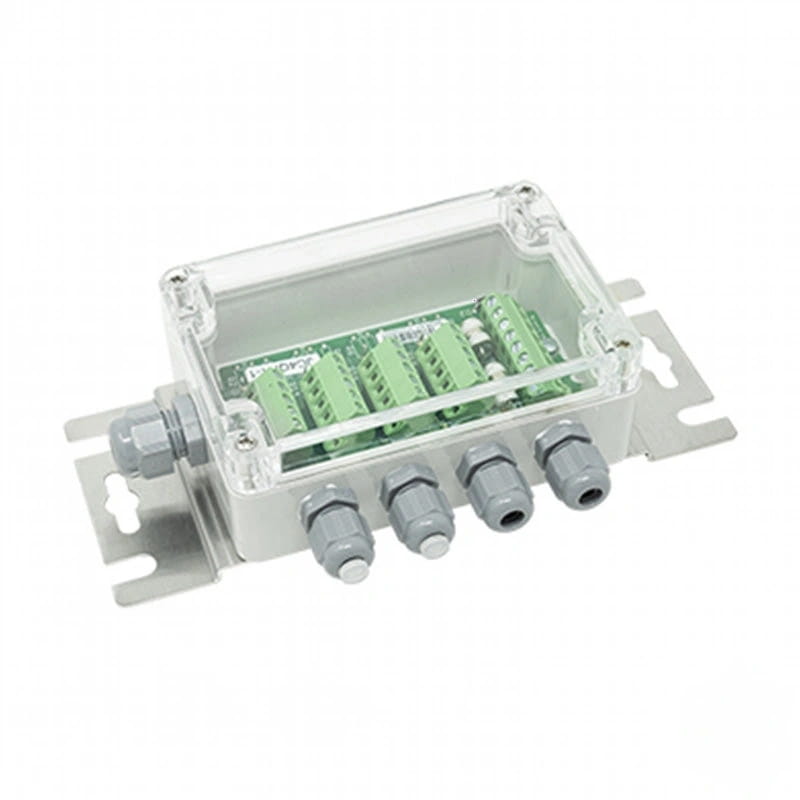

Dini Argeo JB4 IP67 4 Load Cell Junction Box with Surge Protection

Dini Argeo JB4 IP67 4 Load Cell Junction Box with Surge Protection

By Dini Argeo

The Dini Argeo JB4 is a cost-effective and reliable junction box with IP67 protection, designed for the simple connection of 2, 3, or 4 load cells in static weighing systems. Its robust ABS case ensures protection against dust and temporary immersion in water, making it suitable for applications such as silos, tanks, and large containers.

£59.00
Product Information

Features:

  • IP67 Protection: Ensures reliable operation in environments where dust and splashing water may be present.
  • Cost-Effective Solution: Offers an economical option for static weighing systems such as silos, tanks and big containers.
  • Simple Signal Junction: Equipped with an electronic board for straightforward connection of multiple load cells.
  • Easy Wiring: Features screw terminal boards for simple and secure load cell connections.
  • Surge Protection: Integrated circuit protects against lightning strikes and overvoltage, enhancing system durability.
  • Durable ABS Case: Provides a lightweight yet robust enclosure.
  • IP68 Upgradeable: Protection degree can be increased to IP68 with the use of GELBOX anti-condensation gel.
Specification

Construction: Case in ABS.

Protection degree: IP67 protection degree

Protection degree IP68 with the use of GELBOX anti condensation gel.

Maximum input voltage: 5Vdc.

Maximum input current: 700mA.

Peak pulse current: 15kA.

Maximum input load cell signal: 1000mV.

Temperature effect: 50ppm/°C.

Dimensions (lxwxh): 120x80x55mm.
Downloads

Please click here for the Dini Argeo JB4 IP67 4 Load Cell Junction Box with Surge Protection datasheet
