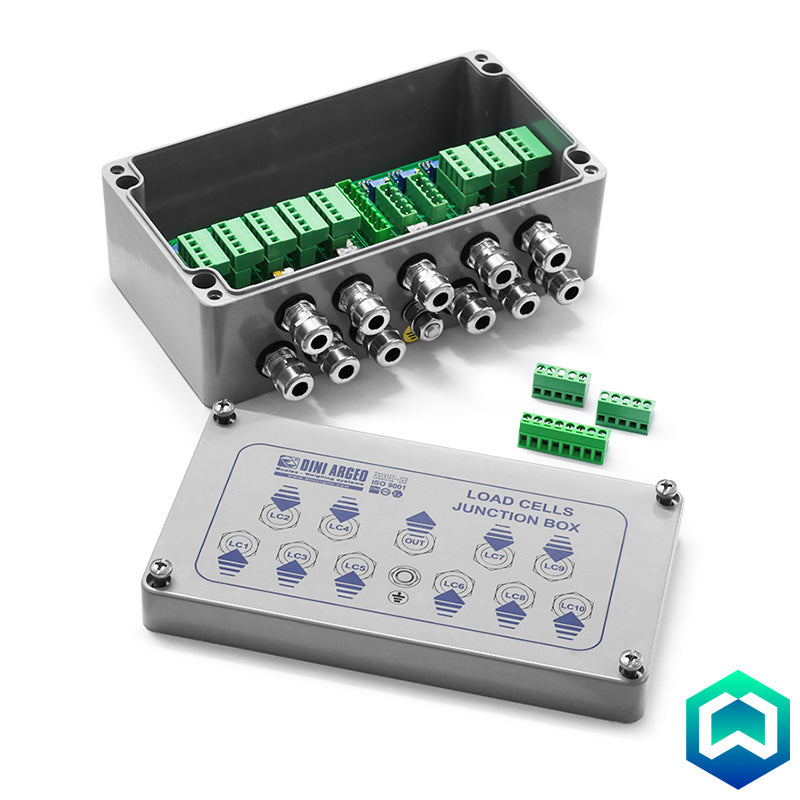

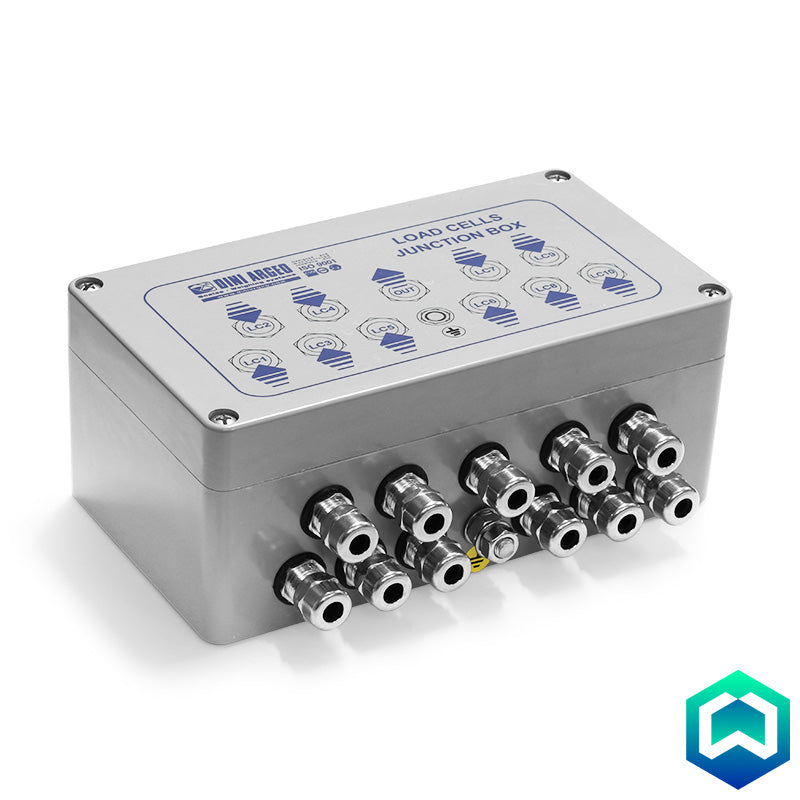

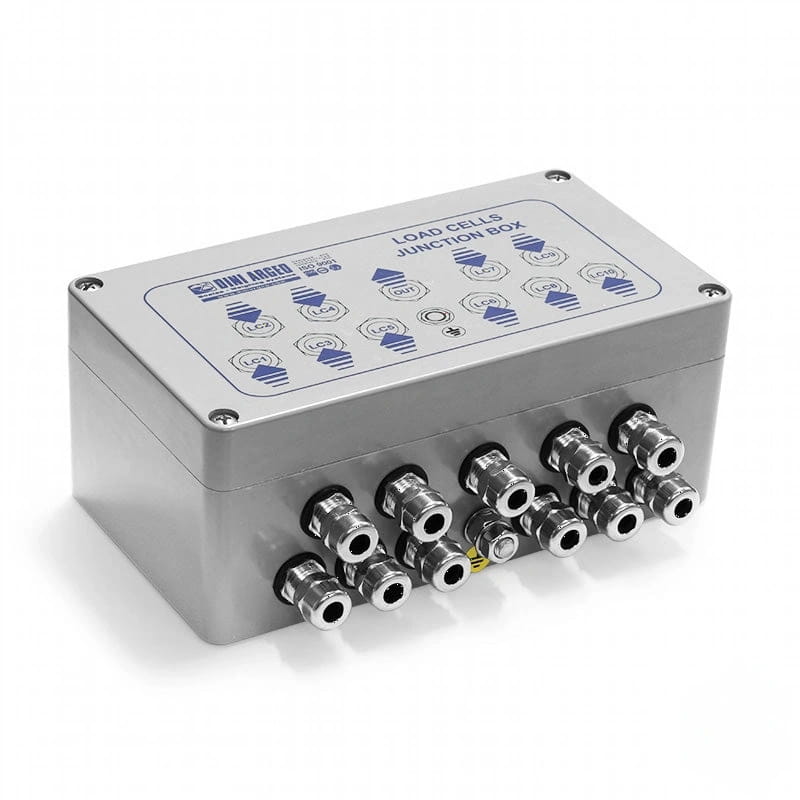

Dini Argeo JB10Q Equalised 10 Load Cell Junction Box with Surge Protection
By Dini Argeo
£324.00
Unit price
/
Unavailable
Couldn't load pickup availability
Product Information
Features:
- Reinforced Polyester Case in Fiberglass: Offers excellent resistance to harsh environments and ensures durability.
- 10+1 Waterproof Metallic Cable Glands: Provides secure and watertight cable entries.
- Integrated Surge Arresters: Offers crucial protection against electrical discharges and disturbances, particularly beneficial for weight bridge applications.
- IP66 Protection Degree: Provides excellent protection against dust and powerful water jets.

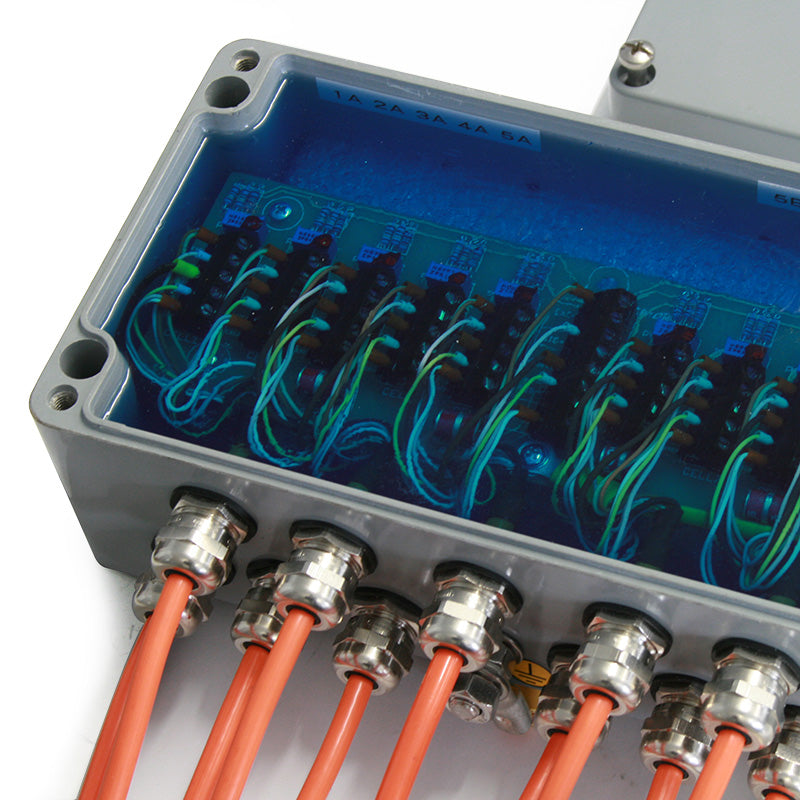

- IP68 Upgradeable: Protection degree can be increased to IP68 with the use of GELBOX anti-condensation gel (optional, requires 1200ml of gel).
- Terminal Boards with Screws: Facilitates easy and secure load cell connections.
- Signal Adjustment Trimmer: Enables accurate and reliable equalisation of up to 10 load cells (Analogic version).
- Designed for Digital Load Cells (JB10QD): Facilitates connection to digital load cells via RS485.
- 24Vdc Power Supply for Digital Cells (JB10QD): Provides necessary power for connected digital load cells.
- Grounding: Ensures electrical safety and reduces interference.
- Removable Terminals: Simplifies wiring and maintenance.
- Compact Dimensions: (lxwxh) 220 x 120 x 90 mm.
Available Versions:
- Analogic "JB10Q": For connection to traditional analog load cells.
- Digital "JB10QD": Specifically designed for connection to digital load cells via RS485.
