Dini Argeo FXC Bending Beam Load Cell

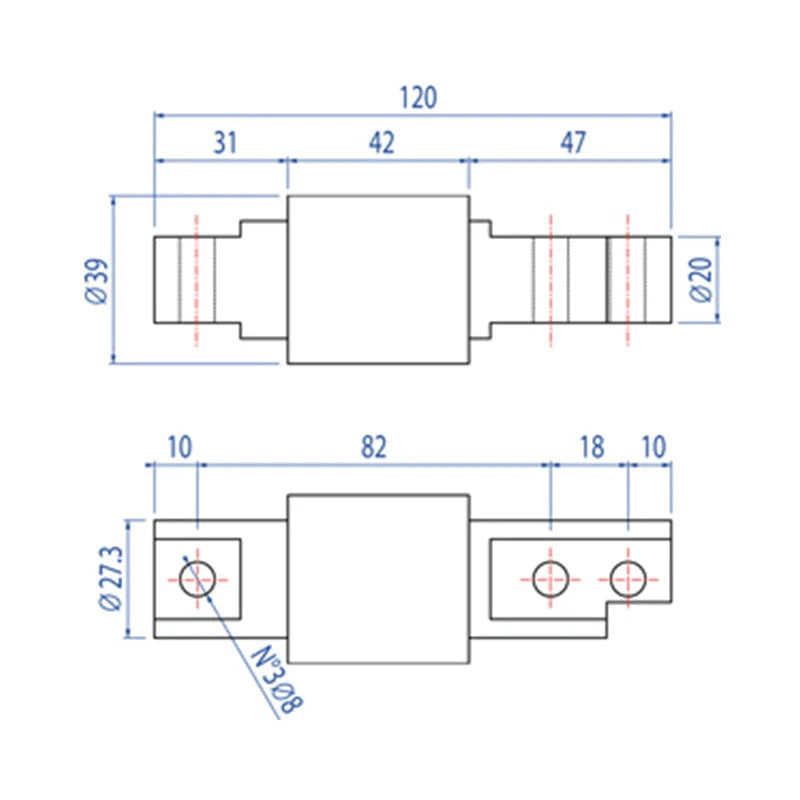

Dini Argeo FXC Bending Beam Load Cell - Diagram

Dini Argeo FXC Bending Beam Load Cell C6 Class

By Dini Argeo

The Dini Argeo FXC series bending beam load cell is a robust and accurate solution for approved weighing applications, automatic systems, and dosage control. Its C6 precision class ensures reliable performance in various industrial weighing tasks.

Model
£332.00
Product Information

Features:

  • OIML R60 C6 Precision Class: Provides accurate and reliable weighing performance for approved applications.
  • Stainless Steel Construction: Offers excellent durability and resistance to corrosion, making it suitable for demanding industrial environments.
  • IP68 Protection: Provides complete protection against dust and prolonged immersion in water, ensuring reliable operation in harsh conditions.
  • Wide Capacity Range: Available in capacities from 20 kg to 200 kg, catering to a broad range of weighing needs.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 3-meter length.
  • OIML and Test Certificates Available: Compliance with metrology standards can be verified with certificates available upon request.

Alternatively, for ATEX environments, shop the FXC ATEX Bending Beam Load Cell.
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC= 6000

Full Scale Output: 2mV/V +/- 1%

Combined error: 0,008% of Full Scale Output (F.S.)

Temperature effect on zero: +/- 0,0014% /°C

Temperature effect on full scale output: +/- 0,0007% /°C

Compensated Temperature Range: –10°C/+40°C

Operating Temperature Range: –20°C/+60°C

Creep error after 30 minutes +/- 0,012% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 385 ± 20 Ohm

Output Resistance: 350 ± 5 Ohm

Insulation Resistance: > 5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 200% F.S.

4-wire shielded cable, 3m long, 4mm diameter.
Downloads

Please click here for the Dini Argeo FXC Bending Beam Load Cell C6 Class datasheet
