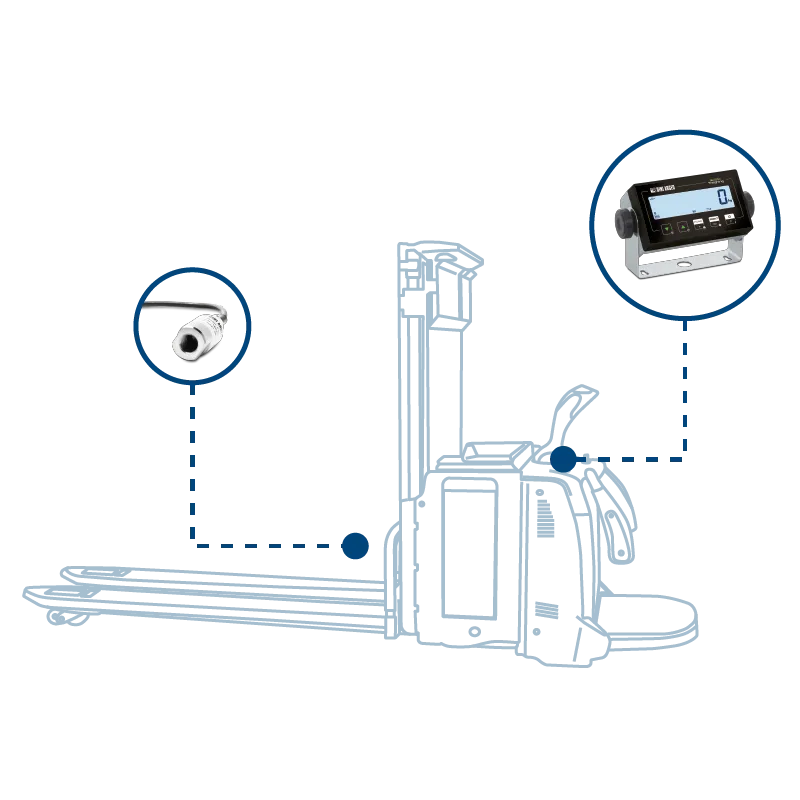

Dini Argeo ELP Hydraulic Weighing Kit for Stackers and Electric Pallet Trucks

The Dini Argeo ELP is the kit that allows you to integrate weighing on to stackers and electric pallet trucks in a simple and cost-effective way. It meets the need to weigh material handled directly on the spot, thus saving time and reducing the traffic in the warehouse. The compact display can be installed inside the cabin to ensure a clear weight display.

Weighting Features

• Maximum lifting capacity: up to 4,000 PSI / 280 BAR
• Resolution: from 1 kg
• Accuracy: ±0.5% to ±5% of capacity, min. ±20 kg*
  *This value may be affected by several factors, consult the manual for more information.

Why Choose Dini Argeo ELP Electric Pallet Truck Weighing Kit?

• Easy to install, connects to the hydraulic system via a tee fitting.
• It does not reduce the load capacity of the forklift and does not affect the original manufacturer's certification.
• It is indestructible because it is not subject to shock.
• Direct power from the truck's battery makes the system always ready to weigh when you need it.
• The weight indicator is compact and comes with a bracket for easy in-cab installation.
• Thanks to the LTP Tool PC program, which can be downloaded free of charge from the download area, it is possible to optimize the weighing performance of the system.

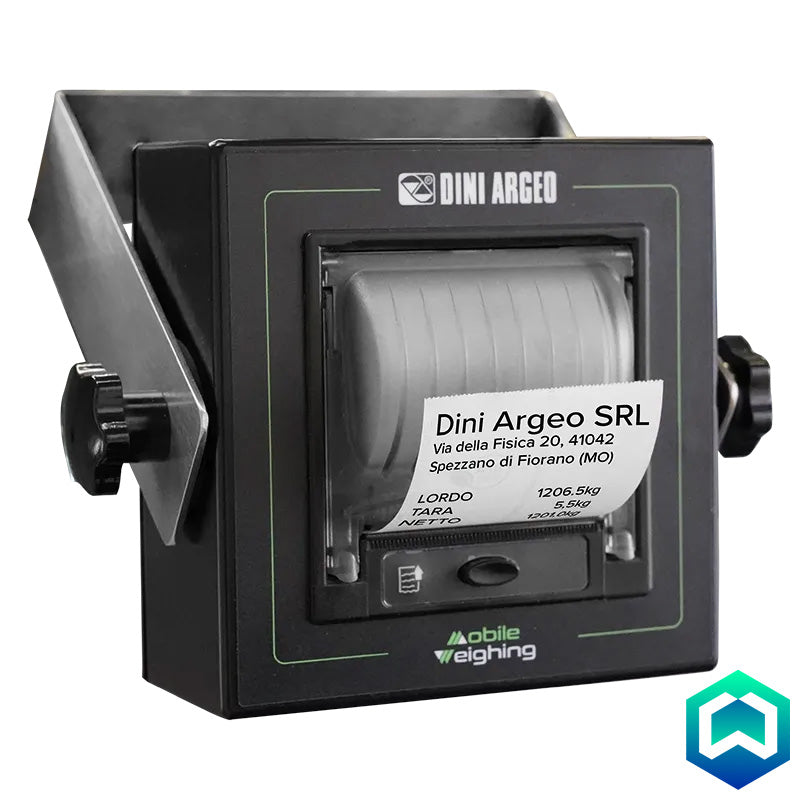

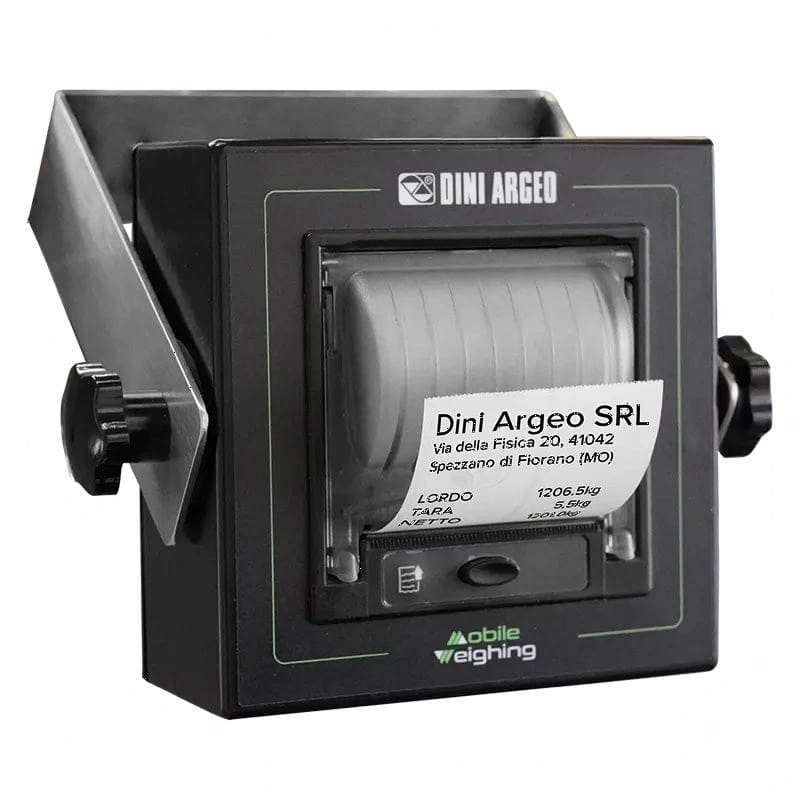

• The optional printer allows you to trace the weighs made.

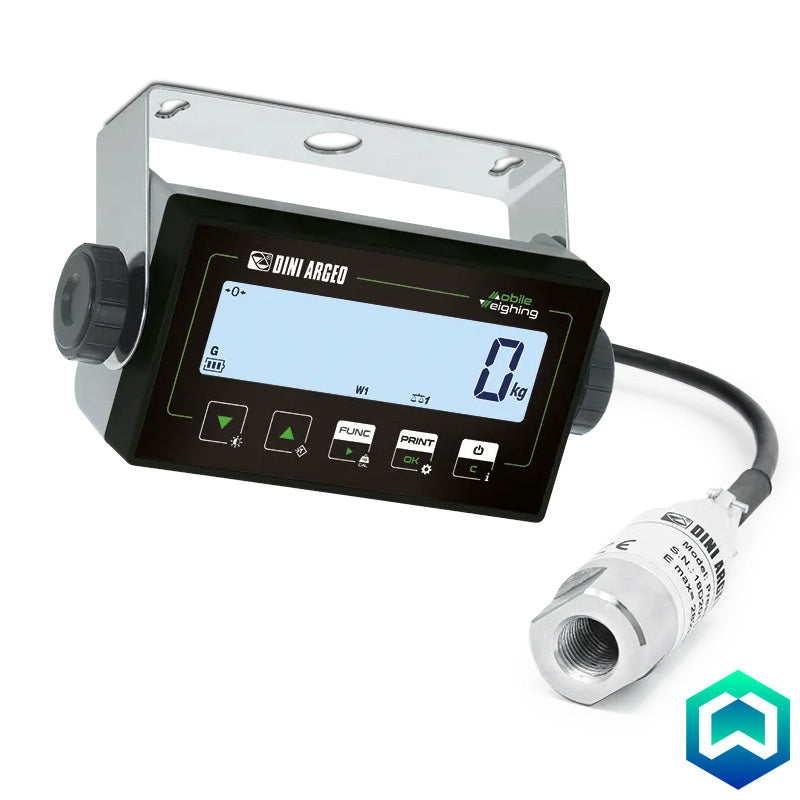

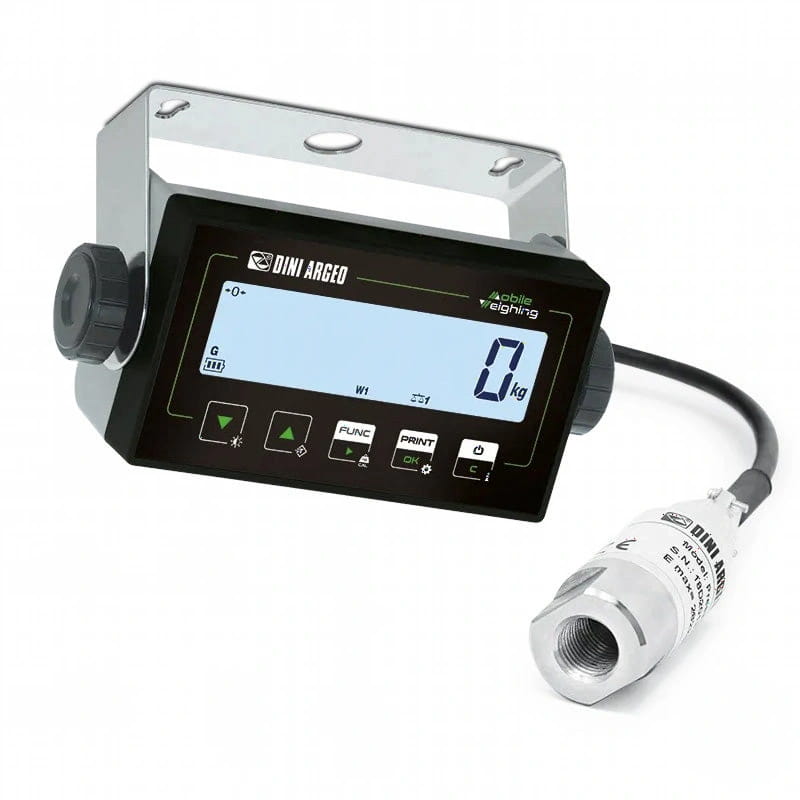

Compact Weight Indicator

• Digital specific weight indicator for weighing by means of hydraulic pressure sensor.
• ABS IP68 enclosure with 25mm backlit LCD display with 6 high contrast digits and icons to indicate active functions.
• Waterproof functional keypad with 5 keys.
• Power supply directly from the pallet truck (choice of voltage, depending on the pallet truck battery).

Hydraulic Pressure Sensor

• 6 m shielded connection cable, with removable waterproof connector.
• Protection sheath, specific for contact with oils and lubricants.
• Nickel-plated steel structure.
• IP65 protection rating.
• Hydraulic connector: 1/4" BSP parallel.
• Operating temperature: -10° / +50° C

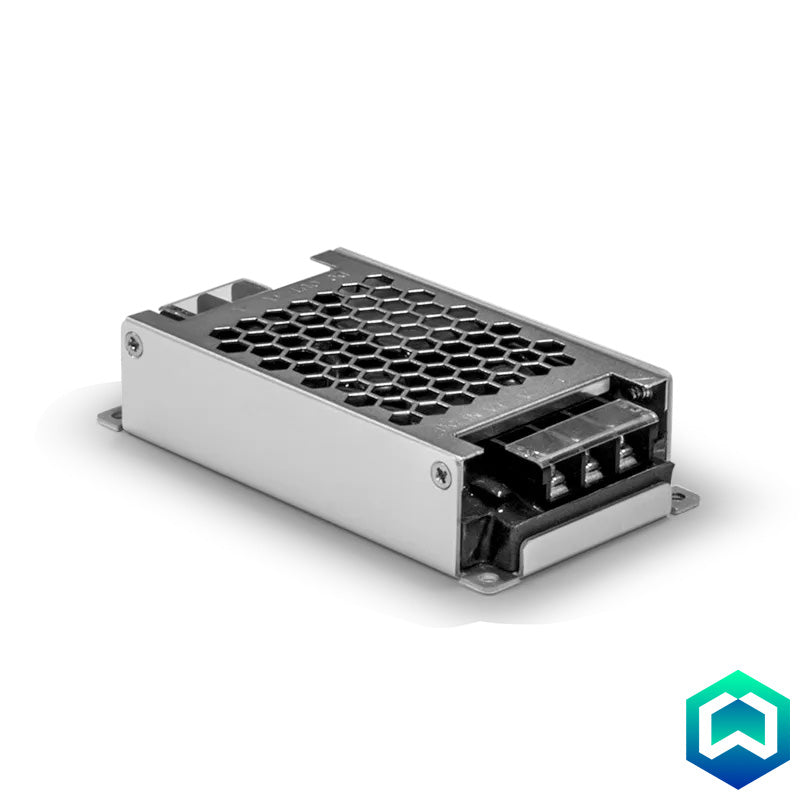

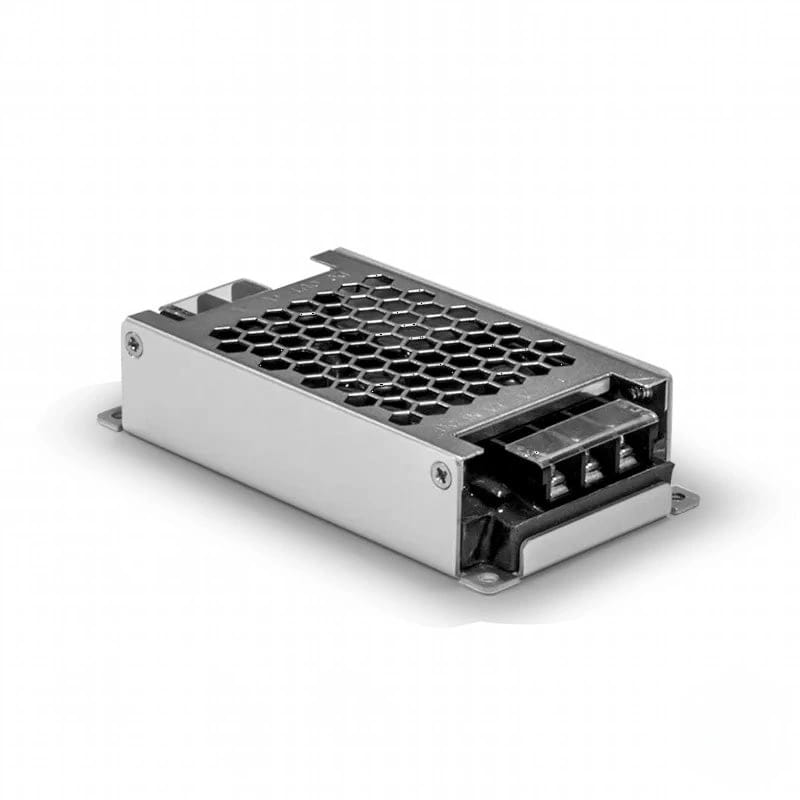

Power Supply Options

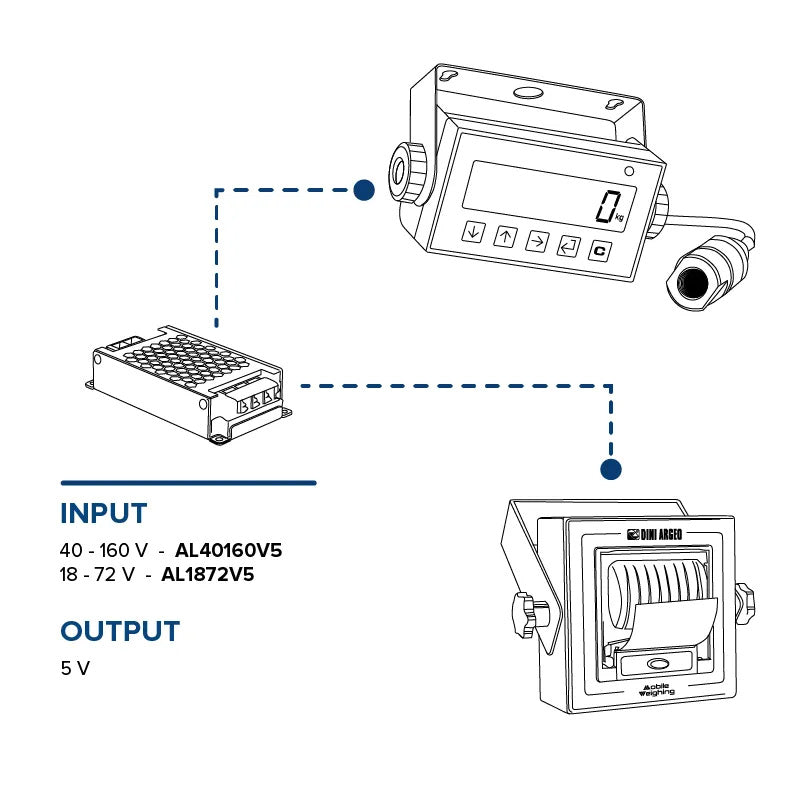

According to the voltage present on the pallet truck, it is possible to choose the most suitable optional ALxxV5 power supply, with input from 18 to 72Vdc or from 40 to 160Vdc. The ALxxV5 power supply units can be installed inside the weight indicator (by ordering the S1 service) and can simultaneously power the OBTPRLT printer, optimising the wiring of the various components.

Fixing Bracket for Display
Equipped with fixing bracket on forklift, vertically tilting and swivelling. Universal compatibility with most forklifts.

Display Fixing Bracket
Equipped with universal mounting bracket, vertically tilting and swivelling.

Please click here for the Dini Argeo ELP stacker and electric pallet truck weighing kit datasheet .....
