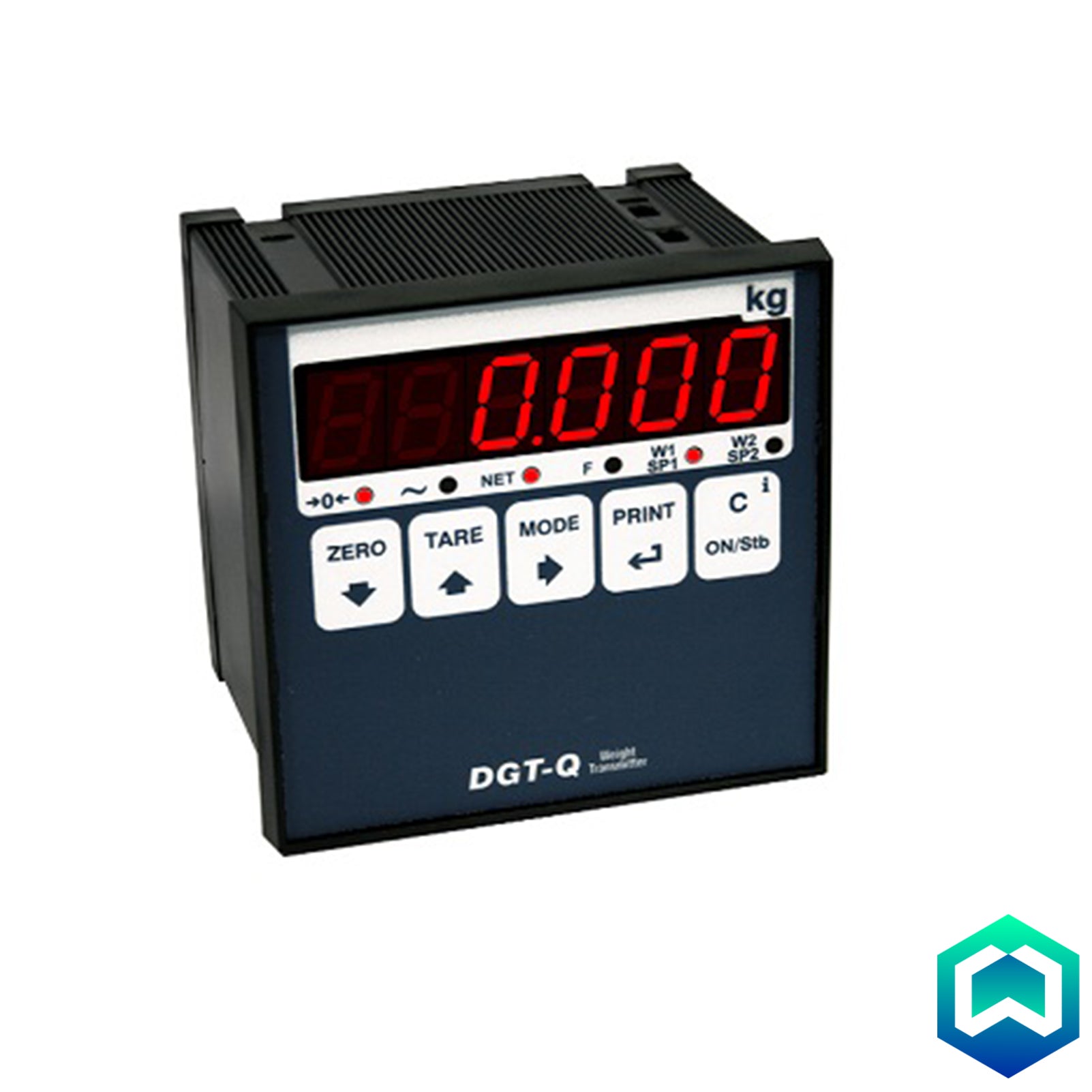

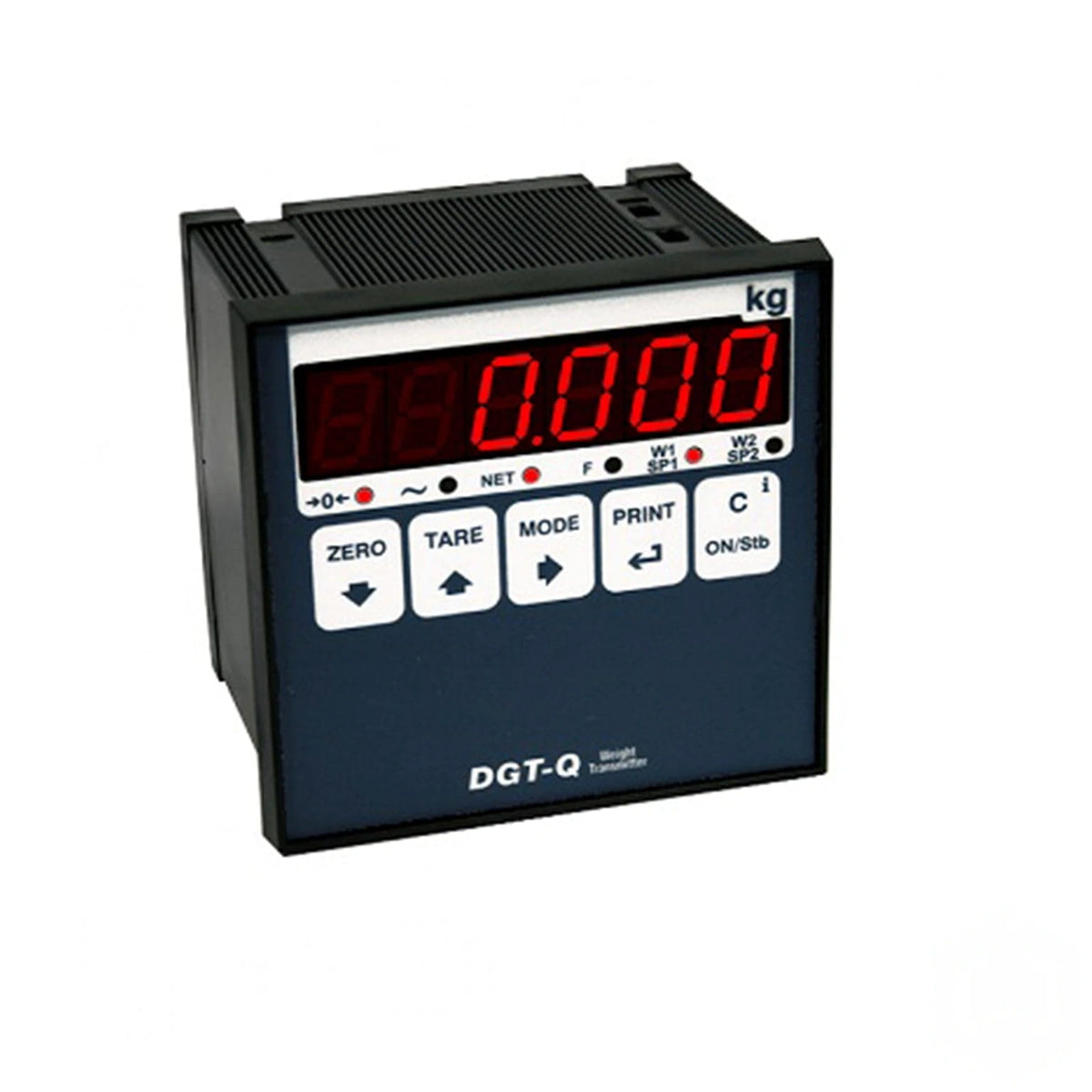

Dini Argeo DGTQ Digital Weight Transmitter

The Dini Argeo DGTQ series is a highly versatile weight indicator and transmitter designed for panel mounting, offering robust performance and seamless integration with automation systems. Featuring 4 independent or dependent channels, it provides direct reading and diagnostics for each connected load cell.

Product Information

Features:

  • Multi-Channel Capability: Supports 4 independent or dependent channels for individual load cell reading and diagnostics.
  • Wide Connectivity: Extensive range of interfaces for easy integration into various automation systems.
  • Regulatory Approvals: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), and Australian approval (NMI S788) for legal-for-trade applications.
  • User-Friendly Interface: Easy-to-use 5-key waterproof keyboard and a bright red LED display with 6 13-mm digits and function indicators.
  • Panel Mounting Design: Compact ABS case (96x96x80 mm) for convenient panel mounting, conforming to DIN standards.
  • Flexible Calibration and Setup: Calibration and setup parameters configurable via keyboard or PC using DINI TOOLS.
  • High Resolution and Accuracy: Up to 10,000e or multirange 2 x 3000e in CE-M approved versions, and up to 800,000 displayable divisions with internal resolution up to 3,000,000 points.
  • Linearisation Capability: Up to 8 signal linearisation points (3 from keypad, 8 via DINITOOLS).
  • High-Speed A/D Conversion: 24-bit sigma-delta conversion, up to 400 conversions/second.
  • Load Cell Compatibility: Connects up to 8 analog load cells with 350 Ohm input resistance.
  • Flexible Weighing System Management: Manages digitally equalized 4-cell weighing systems or 4 independent weighing systems.
  • Master/Slave Configuration: Supports Master/Slave configurations (up to 4 Slaves / 1 Master).
  • Wide Power Supply Range: Operates on 12 Vdc to 24 Vdc power supply.

Functions:

  • Keyboard Functions: Zeroing, semi-automatic and presettable tare, print/data transmission, ON/Stand-by.
  • Selectable Functions: High-resolution weighing x 10, Lb/kg conversion, approved weight transmission to PC/PLC (with ALMEM Alibi memory option), peak hold, net/gross, weigh totalisation, formulation, counting, in/out truck weighing.
  • External Input: Simulation of key pressure, keyboard lock.
  • MOSFET Output: Set point control on weight or pieces with programmable thresholds.
  • Serial Ports: Net, gross, and tare weight reading, clearing, tare functions, scale switch, output activation thresholds, Alibi memory access, microvolts/ADC reading (DGTQ/DGTQAN), message display, printing, APW setting (DGTQ/DGTQAN), key pressure simulation, MODBUS serial protocol (DGTQ/DGTQAN).
  • Analog Output (DGTQAN): 16-bit analog output proportional to net or gross weight.
  • Universal/Multi-Scale Repeater Modes: Functions as a universal weight repeater or a multi-scale repeater (MASTER) for up to 32 independent scales.
Specification

Dimension: 96x96x80 mm

Display: Highly efficient red LED display with 6 13-mm digits and 6 LEDs for showing active functions.

Material: ABS case

Power Requirements: From 12 Vdc to 24 Vdc power supply.

I/O Section:

  • RS232/C bidirectional port configurable for connection with external units.
  • RS485 or RS232/C bi-directional port configurable for network connection.
  • PROFIBUS serial interface (DGTQPB model).
  • 2 photomosfet outputs, expandable to 6 through the C4OUT option: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
  • 2 optoisolator photocoupler inputs: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
  • 16-bit analogue output (DGTQAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 300Ohm. Minimum load applicable on the output voltage: 1kOhm.
Downloads

Please click here for the Dini Argeo DGTQ Digital Weight Transmitter datasheet

Model:

£230.00
