Dini Argeo DGTPK Digital Weight Transmitter

The Dini Argeo DGTPK series is a powerful and versatile weight transmitter designed for table or panel mounting, ideal for integration as a microcontroller in industrial weighing and dosing systems. Featuring a dedicated numerical keypad for rapid data entry, it simplifies and enhances the safety of integrating weighing processes into any automation environment. Equipped with programmable inputs and outputs, and a wide range of interfaces, it offers comprehensive control.

Product Information

Features:

  • Industrial Microcontroller with Numerical Keypad: Designed for seamless integration into industrial weighing and dosing systems, featuring a 20-key numeric/functional waterproof keyboard for quick entry of setpoints and tare values.
  • Multi-Channel Management: Manages digitally equalised 4-cell weighing systems or 4 independent weighing systems.
  • High Load Cell Capacity: Connects up to 16 analog load cells with 350 Ohm input resistance.
  • High Accuracy and Resolution: Up to 800,000 displayable divisions with internal resolution up to 3,000,000 points.
  • Calibration and Configuration: Calibration and setup parameters configurable via keyboard or PC using DINI TOOLS.
  • Signal Linearisation: Up to 8 signal linearisation points (3 from keypad, 8 via DINITOOLS).
  • Real-Time Clock: Integrated Time/Date functionality.
  • Wide Power Supply Range: Operates on 12 Vdc to 24 Vdc, with included 12 V switching power adapter and global plug compatibility (EU, UK, US, AU).

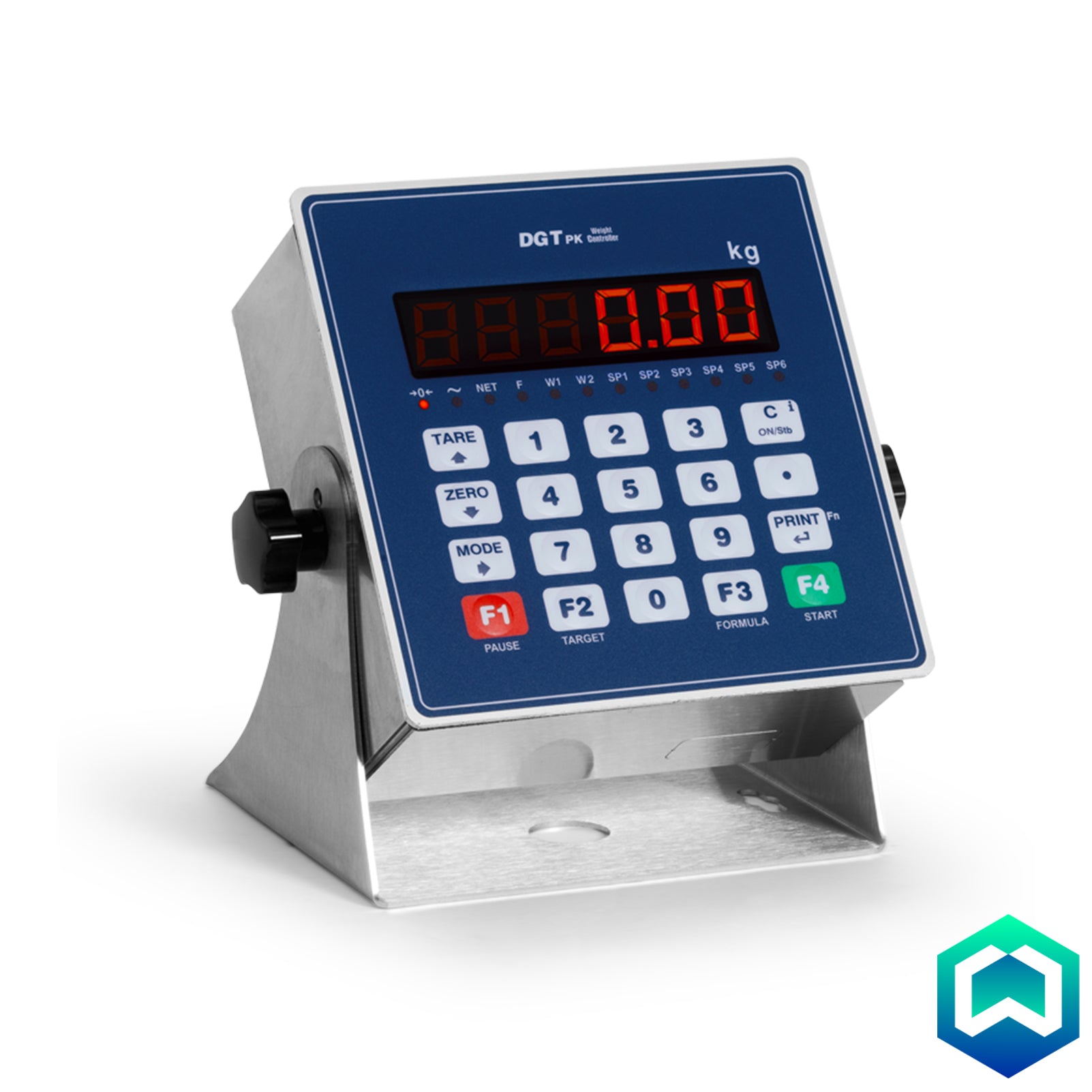

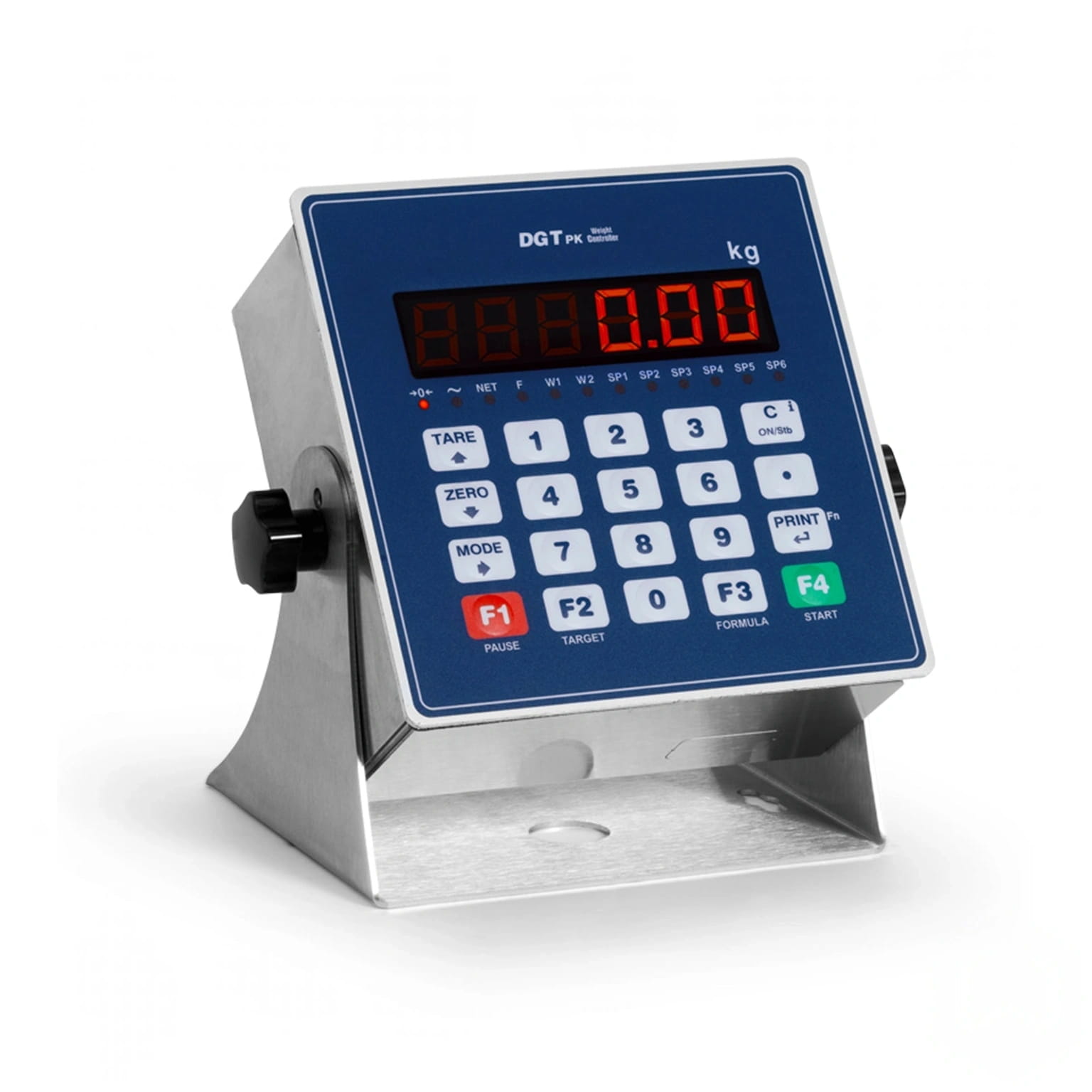

  • Robust Display and Keyboard: Highly efficient red LED display with 6 20-mm digits and 12 LEDs for showing active functions.

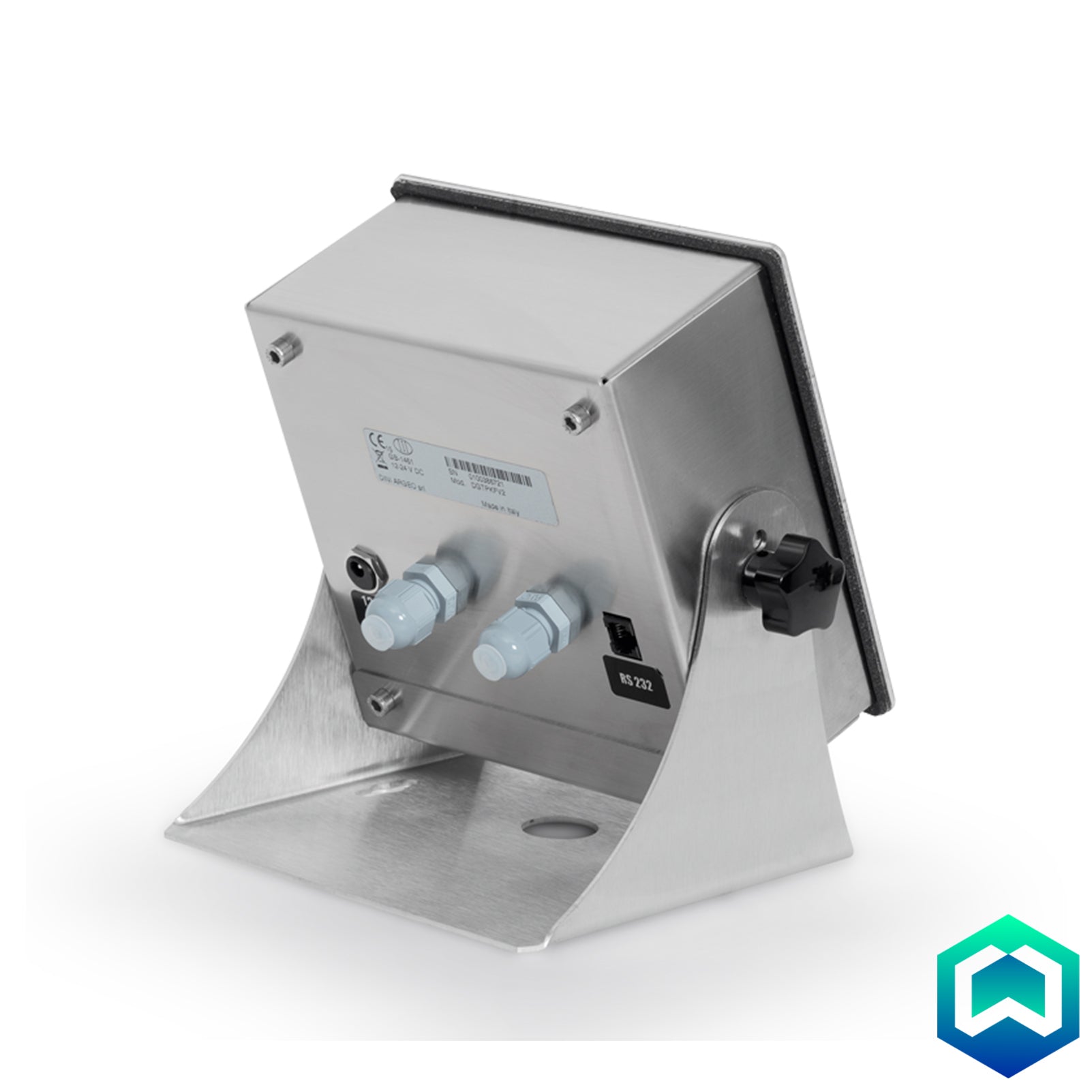

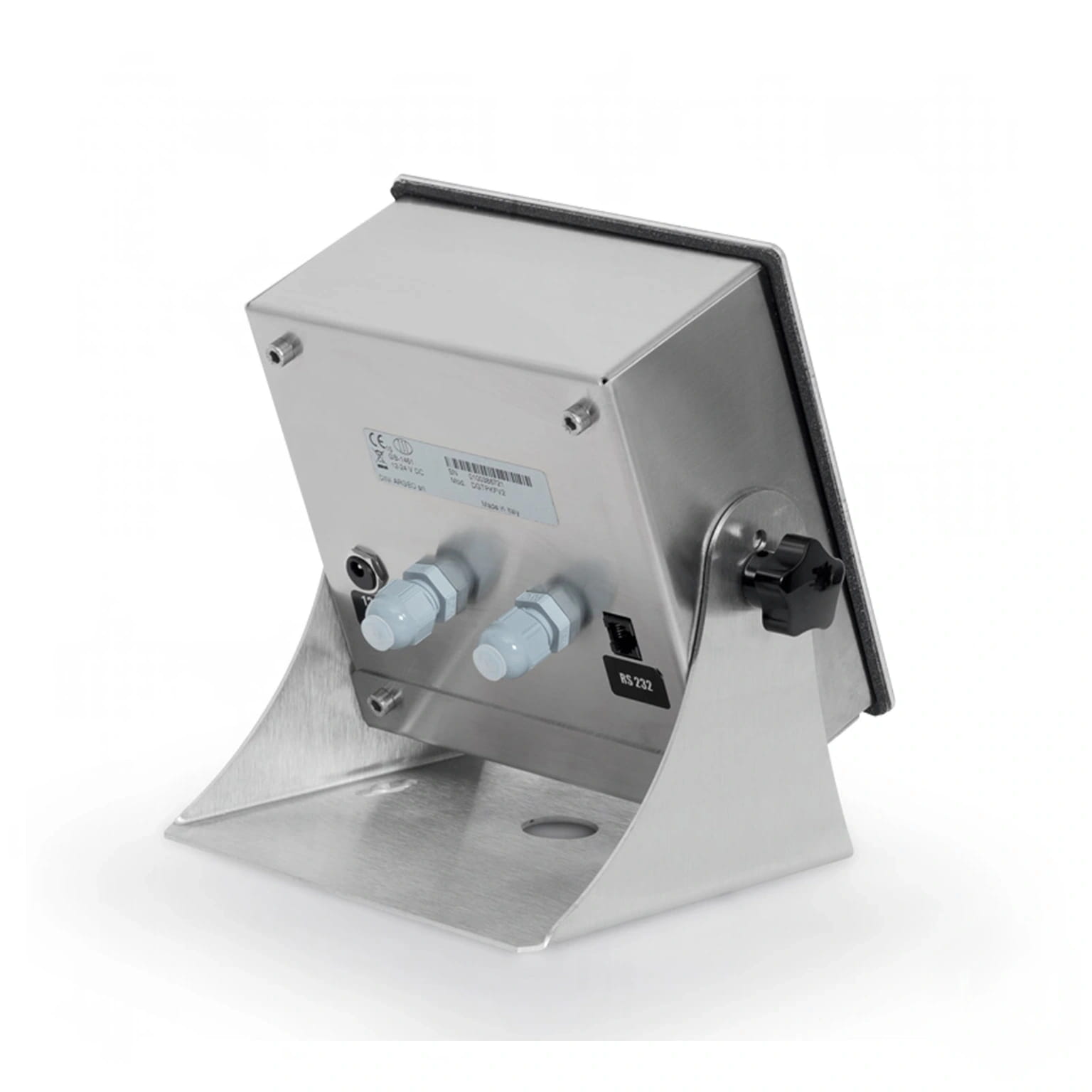

  • Durable Construction: Stainless steel case for panel mounting with an aluminum front panel and protection gasket.
  • Flexible Mounting: Includes a bracket for table or wall mounting.
  • High-Speed A/D Conversion: 24-bit sigma-delta conversion, up to 400 conversions/second.
  • Comprehensive I/O Section: 4 optoisolator photocoupler inputs and 6 photomosfet outputs, all programmable.
  • Regulatory Approvals: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), and Australian approval (NMI S788).

Functions:

  • Keyboard Functions: Zeroing, semi-automatic and presettable tare, print/data transmission, ON/Stand-by, and quick entry of setpoints and tare values via the numerical keypad.
  • Selectable Functions: High-resolution weighing x 10, Lb/kg conversion, approved weight transmission to PC/PLC (with ALMEM Alibi memory option), peak hold, net/gross, weigh totalization, formulation, counting, in/out truck weighing, and hold.
  • External Input: Simulation of key pressure, keyboard lock.
  • MOSFET Output: Set point control on weight or pieces with programmable thresholds.
  • Serial Ports: Reading of net, gross, and tare weights, clearing, tare functions, scale switch, setting of outputs activation thresholds. DGTPKV2/DGTPKANV2 models also support reading of microvolts/ADC, message display, printing, APW setting, key pressure simulation, and MODBUS serial protocol.
  • Analog Output (DGTPKANV2): 16-bit analog output proportional to net or gross weight.
  • Master/Repeater Option (MSTSLV): Functions as a universal weight repeater or a multi-scale repeater (MASTER) for up to 32 independent scales.
Specification

Dimension: 170x170mm

Display: Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.

Material: Stainless steel case for panel mounting. Frontal panel in aluminium, with protection gasket.

Power Requirements: From 12 Vdc to 24 Vdc power supply. EU, UK, US, AU plugs included as standard.

Fitted with 12 V switching power adapter.

I/O Section:

  • 1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.
  • 1 RS232/C bidirectional port configurable for connection to printer.
  • PROFIBUS serial interface (DGTPKPBV2 model).
  • 6 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
  • 4 optoisolator photocouplers inputs: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
  • 16-bit analogue output (DGTPKANV2 model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 300Ohm. Minimum load applicable on the output voltage: 1kOhm.
Downloads

Please click here for the Dini Argeo DGTPK Digital Weight Transmitter datasheet

Model:

£329.00
