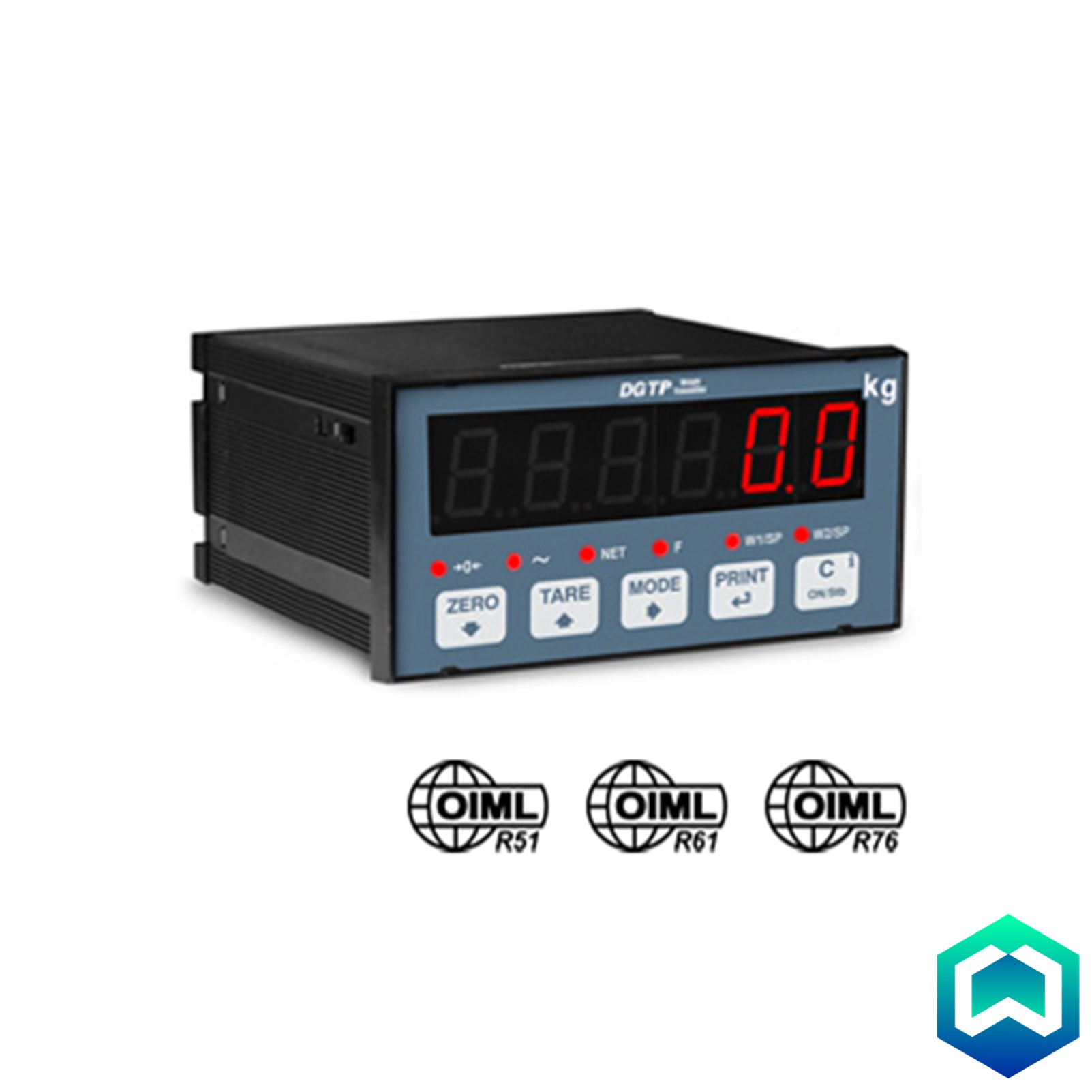

Dini Argeo DGTP Panel Digital Weight Transmitter

Features:

• Industrial Microcontroller: Designed for direct integration into industrial weighing and dosing systems.
• Multi-Channel Management: Manages digitally equalised 4-cell weighing systems or 4 independent weighing systems.
• High Load Cell Capacity: Connects up to 16 analog load cells with 350 Ohm input resistance.
• High Resolution and Accuracy: Up to 800,000 displayable divisions with internal resolution up to 3,000,000 points.
• Applications: The DGTP series is ideal for a wide range of industrial weighing and dosing applications, including; process control, batching and formulation, filling and packaging, truck weighing and general industrial automation.
• Calibration and Configuration: Calibration and setup parameters configurable via keyboard or PC using DINI TOOLS.
• Signal Linearisation: Up to 8 signal linearisation points (3 from keypad, 8 via DINITOOLS).
• Real-Time Clock: Integrated real-time clock for accurate time stamping.
• Wide Power Supply Range: Operates on 12 Vdc to 24 Vdc power supply.

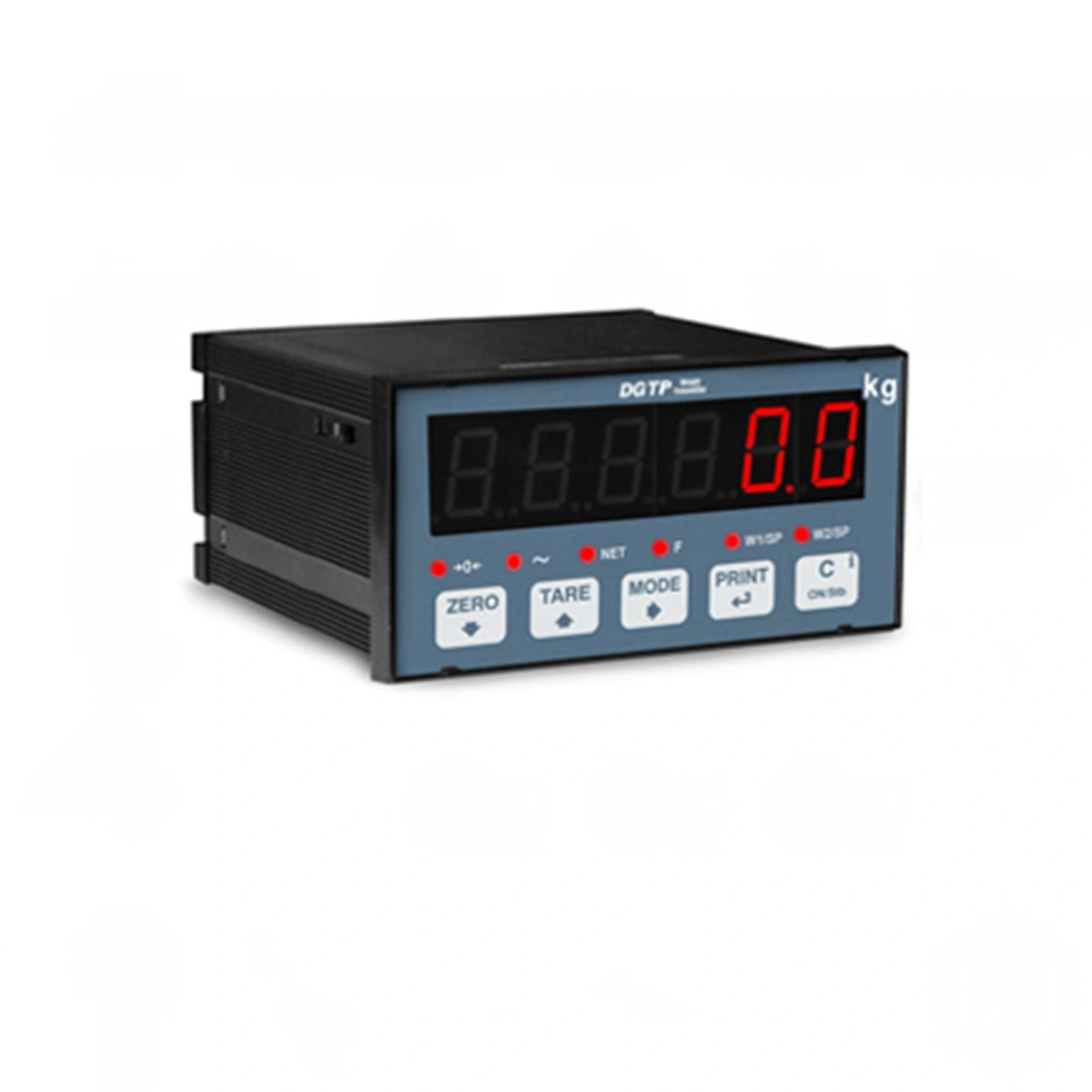

• Robust Display and Keyboard: Easy-to-use 5-key waterproof keyboard and a bright red LED display with 6 20-mm digits and function indicators.
• Panel Mounting Design: Robust case for panel mounting with specified dimensions and cutout.
• High-Speed A/D Conversion: 24-bit sigma-delta conversion, up to 400 conversions/second.
• Comprehensive I/O Section:
  • 2 x RS232/C or RS485 bidirectional ports.
  • PROFIBUS serial interface (DGTPPB model).
  • 6 x Photomosfet outputs.
  • 4 x Optoisolator photocoupler inputs.
  • 16-bit analog output (DGTPAN model).
• Regulatory Approvals: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), and Australian approval (NMI S788).

Functions:

• Keyboard Functions: Zeroing, semi-automatic and presettable tare, print/data transmission, ON/Stand-by.
• Selectable Functions: High-resolution weighing x 10, Lb/kg conversion, approved weight transmission to PC/PLC (with ALMEM Alibi memory option), peak hold, net/gross, weigh totalisation, formulation, counting, in/out truck weighing.
• External Input: Simulation of key pressure, keyboard lock.
• MOSFET Output: Set point control on weight or pieces with programmable thresholds.
• Serial Ports: Net, gross, and tare weight reading, clearing, tare functions, scale switch, output activation thresholds, microvolts/ADC reading (DGTP/DGTPAN), message display, printing, APW setting (DGTP/DGTPAN), key pressure simulation, MODBUS serial protocol (DGTP/DGTPAN).
• Analog Output (DGTPAN): 16-bit analog output proportional to net or gross weight.
• Universal/Multi-Scale Repeater Modes: Functions as a universal weight repeater or a multi-scale repeater (MASTER) for up to 32 independent scales.
