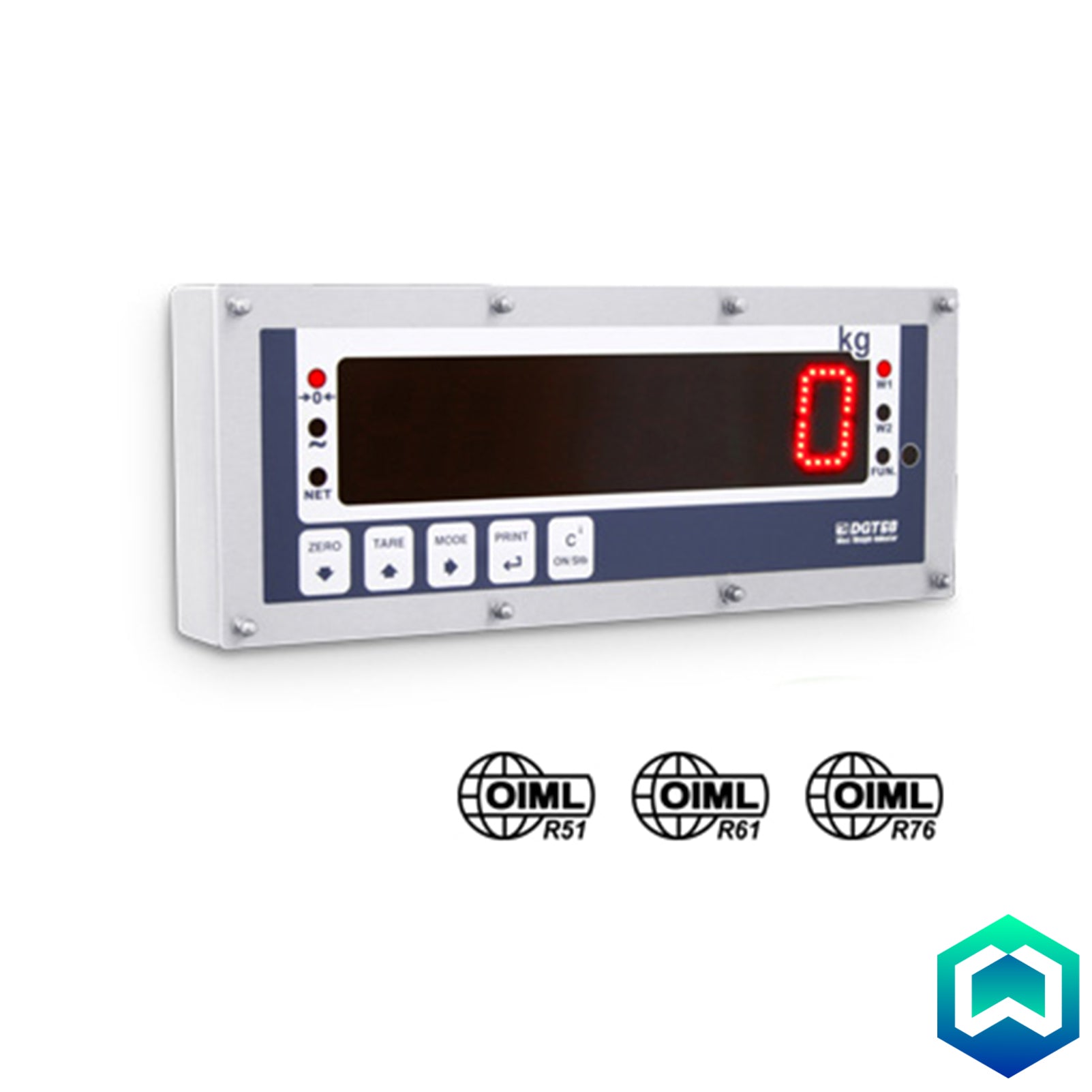

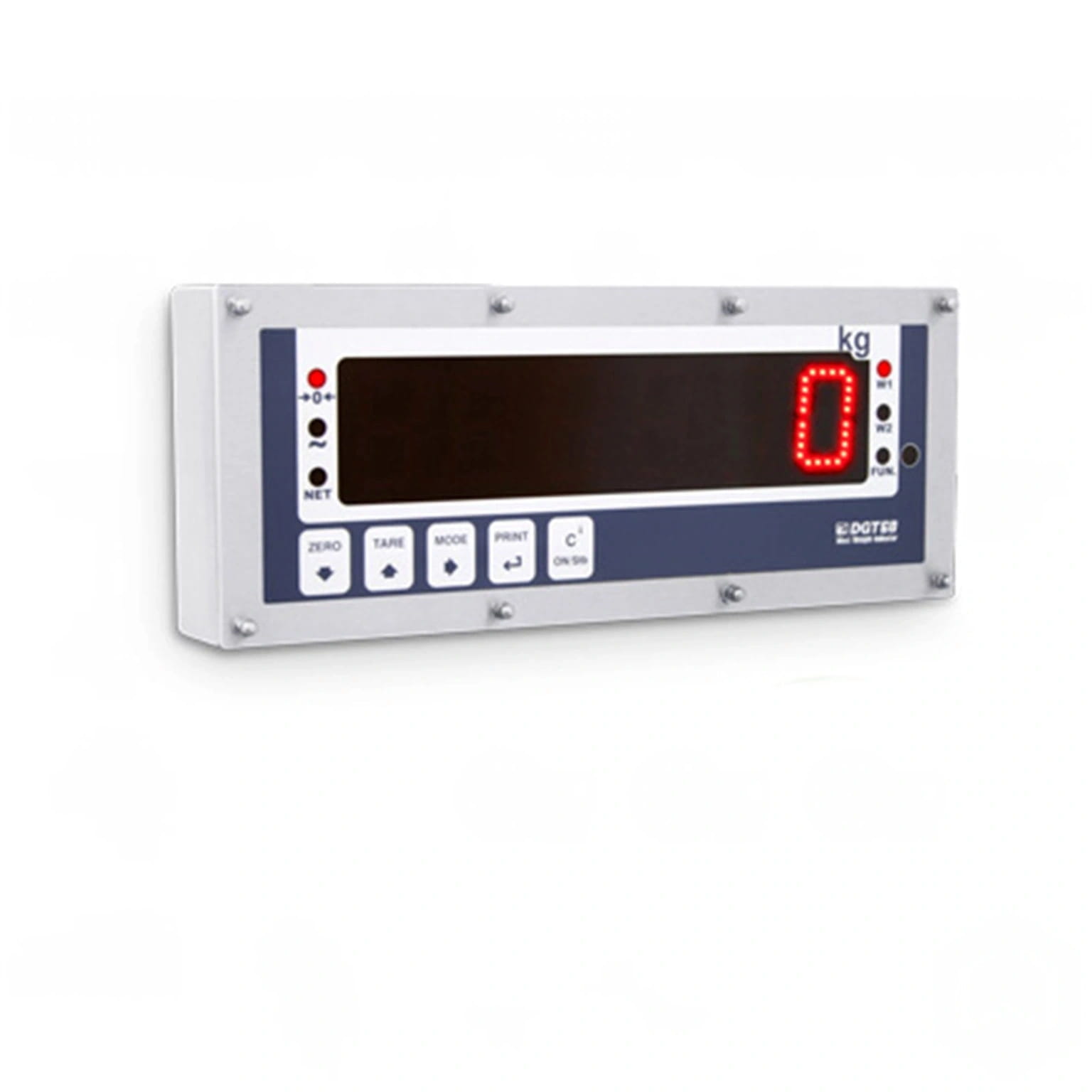

Dini Argeo DGT60: MAXI "GOLIAH" Universal Repeater

Features:

• Ultra-Visible Display: Large 6-digit, 60 mm high display with high-efficiency SMD LEDs and software-adjustable brightness for clear readings from over 25 meters away. Wide 120° viewing angle and high power (up to 750 mcd) ensure optimal visibility.
• Robust Construction: IP68 stainless steel case provides excellent protection against dust and water ingress, suitable for demanding industrial environments. Includes a wall fixing bracket for secure mounting.
• User-Friendly Keypad: Functional 5-key waterproof keypad for easy operation.
• Flexible Configuration: Calibration and setup parameters are configurable via the keyboard or PC using DINI TOOLS software.
• Legal-for-Trade Approved: Max. 10,000e or multirange 2 x 3000e @ 0.3 µV/e in CE-M approved versions for applications requiring legal metrology compliance.
• High Resolution and Accuracy: Max. 800,000 displayable divisions with internal resolution up to 3,000,000 points for precise measurements.
• Signal Linearisation: Up to 8 signal linearisation points available through DINITOOLS for enhanced accuracy across the weighing range.
• Multi-Channel A/D Conversion: 24-bit sigma-delta 4-channel A/D conversion with a high sampling rate (up to 400 conv./sec.) and automatic selection.
• Load Cell Compatibility: Connectable with up to 8 analog load cells with 350 Ohm input resistance.
• Flexible Weighing System Management: Supports weighing systems with up to 4 load cells with digital equalisation or up to 4 independent weighing systems.
• Wide Power Supply: Operates on a standard 110 to 240 Vac power supply.
• Scale or Repeater Version: Available as a complete scale indicator or as a dedicated weight repeater.
• Humidity and Pressure Control: Fitted with an air valve for regulating internal humidity and pressure, enhancing reliability.
• Comprehensive Certifications: Meets CE-M EN 45501, OIML R76, OIML R61 (MID), OIML R51, and Australian legal-for-trade (NMI S788) standards.
• Master/Repeater Functionality: Features a specific program for use as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW indicators.

Functions:

• Keyboard Functions: Zeroing, semi-automatic and presettable tare, print/data transmission, ON/Stand-by.
• Program Functions: Setpoint control, high-resolution weighing, peak hold, alibi memory (depending on model), unit of measure conversion.
• External Input: Simulation of key pressure, keyboard lock.
• MOSFET Output: Set point control on weight (positive or negative) or pieces (counting mode) with programmable thresholds and stability check.
• Serial Ports: Reading of net, gross, and tare weights, clearing, tare functions, scale switch, setting of output activation thresholds, Alibi Memory access (all models). DGT60BC/DGT60AN models also support reading of microvolts/ADC, message display, printing, APW setting, key pressure simulation, and MODBUS serial protocol.
• Analog Output (DGT60AN): 16-bit analog output proportional to net or gross weight.
