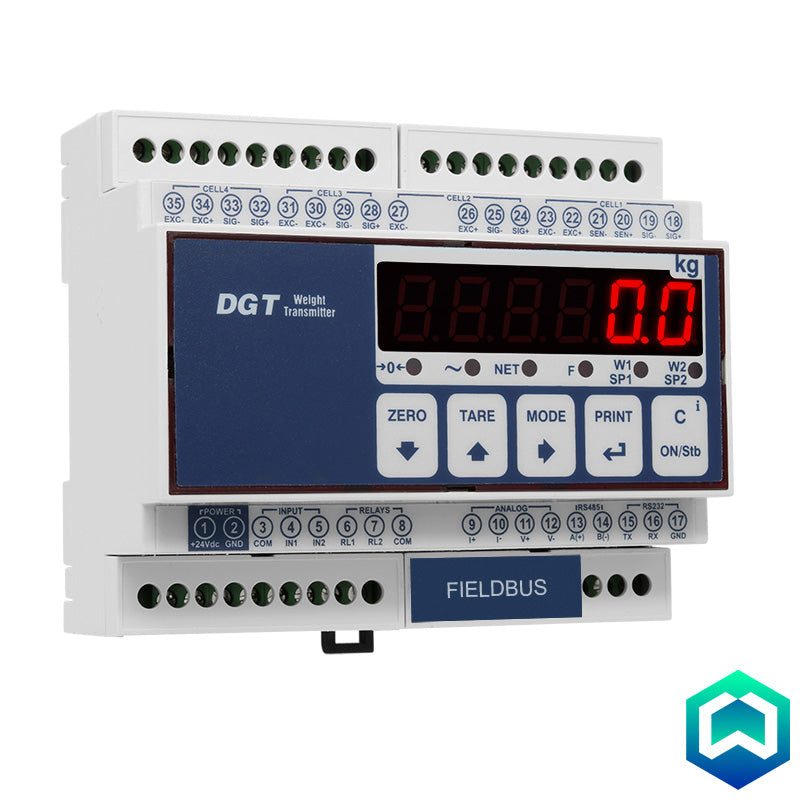

Dini Argeo DGT4 4-Channel Weight Transmitter

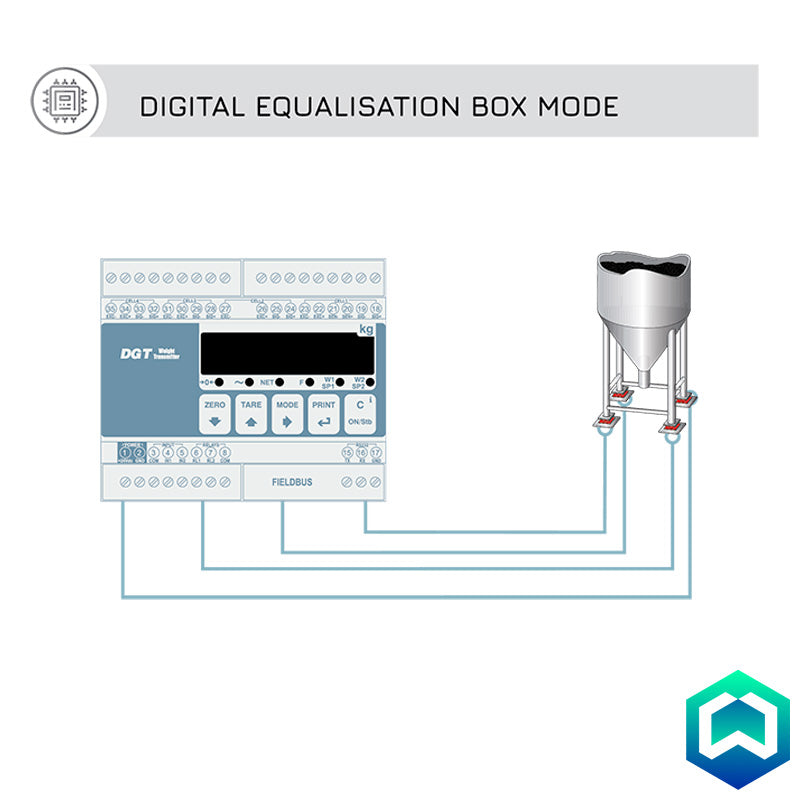

Dini Argeo DGT4 4-Channel Weight Transmitter - Equalisation Mode

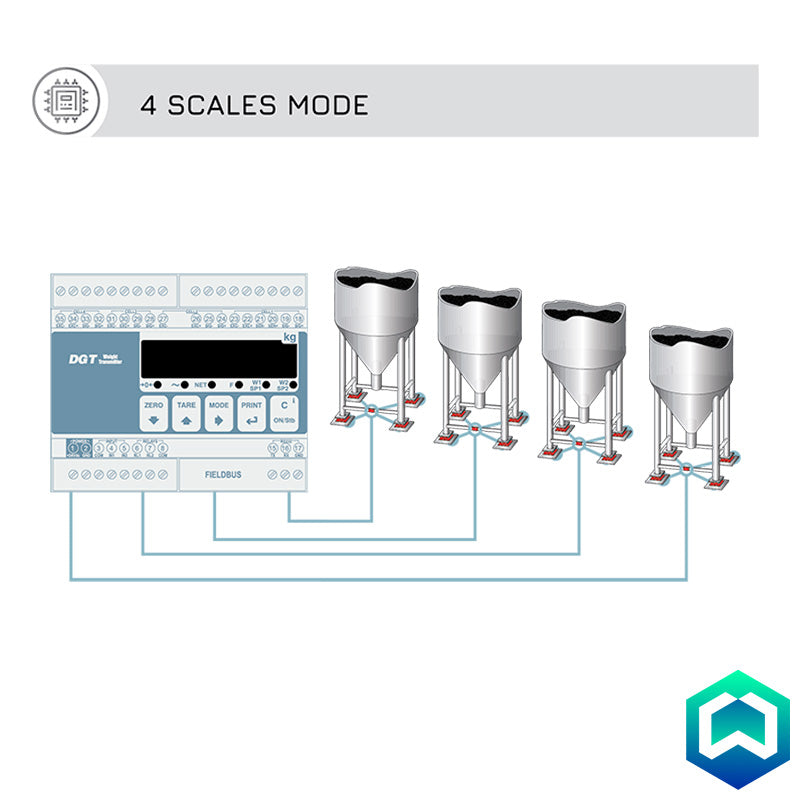

Dini Argeo DGT4 4-Channel Weight Transmitter - 4 Scales Mode

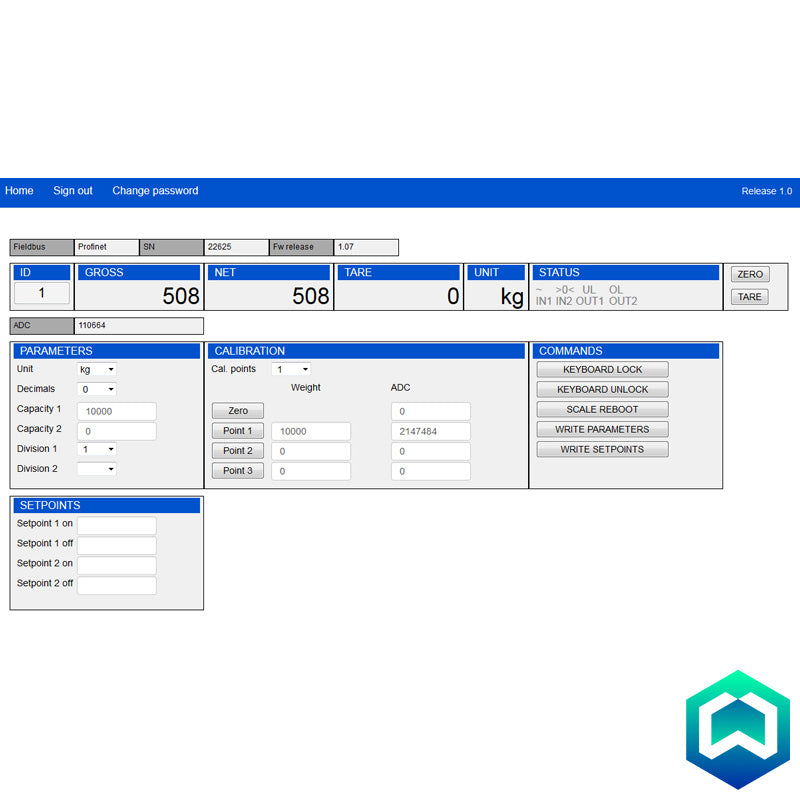

Dini Argeo DGT4 4-Channel Weight Transmitter - Software

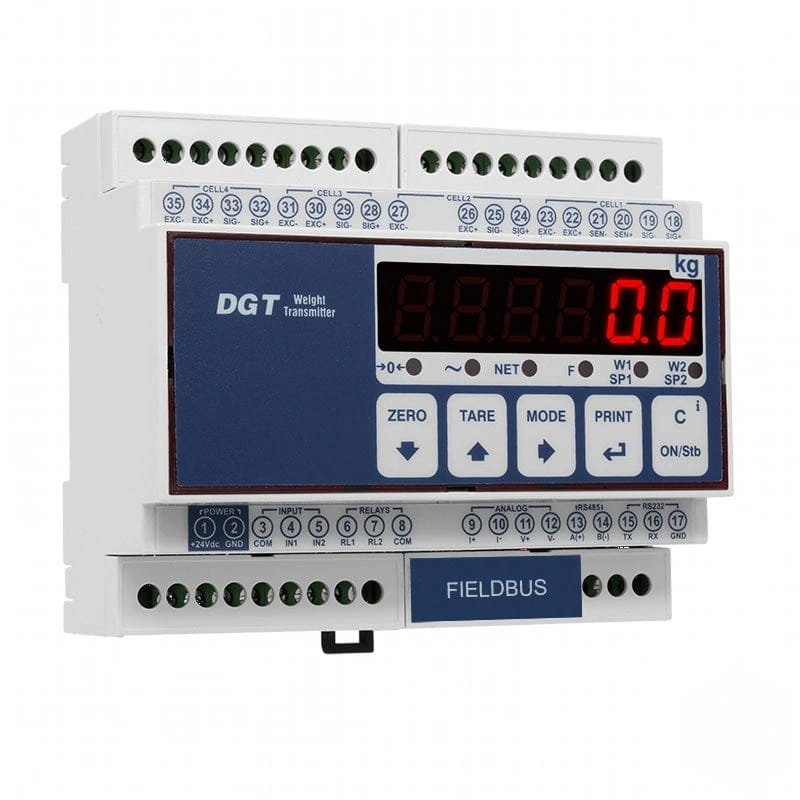

Dini Argeo DGT4 4-Channel Weight Transmitter

By Dini Argeo

The Dini Argeo DGT4 is a high-performance, 4-channel weight transmitter designed for seamless integration into industrial automation systems, enabling precise weight data transfer to PLCs via fieldbus, analog output, or RS485. This versatile device facilitates the reading and diagnostics of up to four connected load cells or scales.

Product Information

Features:

  • Multi-Channel Capability: 4 independent channels for monitoring and controlling up to 4 scales or load cells.
  • Flexible Connectivity: Available in PROFINET I/O, ETHERNET IP, ETHERCAT, MODBUS TCP, DEVICENET, PROFIBUS, ANALOG OUTPUT, and RS485 versions, ensuring compatibility with diverse automation architectures.
  • Comprehensive Diagnostics: Allows individual load cell or scale diagnostics for proactive maintenance.
  • Integrated Web Server: Enables remote diagnostics, calibration, and configuration via Ethernet (PROFINET, ETHERNET IP, MODBUS TCP models).
  • Dual Operating Modes: Functions as a digital junction box or a multi-scale transmitter, providing versatile application options.
  • High-Resolution Measurement: 24-bit A/D converter with up to 800,000 display divisions and 3,000,000 internal points.
  • Fast Conversion Rate: Up to 3200 conversions/second, with a selectable sampling rate of up to 400 conversions/second.
  • High Sensitivity: 0.03 µV/d (0.03 µV/e) signal sensitivity.
  • Load Cell Compatibility: Supports up to 8 x 350 Ω load cells with 4 or 6-wire connections (with sense).
  • Linearisation: Up to 8 linearisation points for enhanced accuracy.
  • Versatile I/O:
    • RS232 port for PC configuration via DINI TOOLS.
    • RS485 port for serial communication (DGT4/DGT4 AN).
    • 16-bit analog output (DGT4AN model) configurable for 4-20mA, 0-5Vdc, or 0-10Vdc.
    • 2 configurable digital outputs and 2 configurable digital inputs.
  • User-Friendly Interface: 5-key mechanical keyboard and 13mm red LED display.
  • Comprehensive Calibration Options: Theoretical (mV/V), sample weights, web server, keyboard, or DINI TOOLS.
  • Advanced Functions: Setpoint control, high-resolution mode, peak hold, alibi memory, unit of measure conversion, net/gross, totalization, formulation, counting, truck weighing, and hold (firmware 7.15).
  • Robust Construction: ABS case for DIN rail mounting (106 x 90 x 58 mm).
  • Wide Power Supply: 12-24Vdc.
  • Comprehensive Certifications: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), Australian approval (NMI S788), UL Listed (upon request), EU Type Examination Certificate (45501:2015).

Applications:

  • Multi-scale weighing systems.
  • Process control and automation.
  • Batching and dosing systems.
  • Filling and packaging machinery.
  • Industrial automation.
Specification

Power supply: 12-24Vdc

Converter: A/D 24 bit with 4 channel

Max scale number: 4

Load cells connection: with 4 or 6 wires (with sense)

Operating modes:
- Digital junction box
- Multi-scale transmitter

Conversion rate: up to 3200 conv./sec

Selectable sampling rate: up to 400 conv./sec

Displaying: up to 800.000d

Signal sensitivity: 0,03 µV/d (0,03 µV/e)

Resolution: 3.000.000 points

Linearisation: up to 8 points

Connectable load cells: up to 8 350 Ω cells

BUS: depending on the model (See version chart)

Serial ports:
- 1 RS232 for configuration from PC with "Dinitools®"
- 1 RS485 Port (Mod. DGT4 / DGT4 AN)

Analog output: 16 bit (DGT4AN Model) choosing between 4-20mA, 0-5Vdc or 0-10Vdc.

Digital outputs: n. 2 configurable OUTPUTS

Digital inputs: n. 2 configurable INPUTS

Case: ABS, for Din bar (106 x 90 x 58 mm)
Downloads

Please click here for the Dini Argeo DGT4 4 Channel Weight Transmitter datasheet
