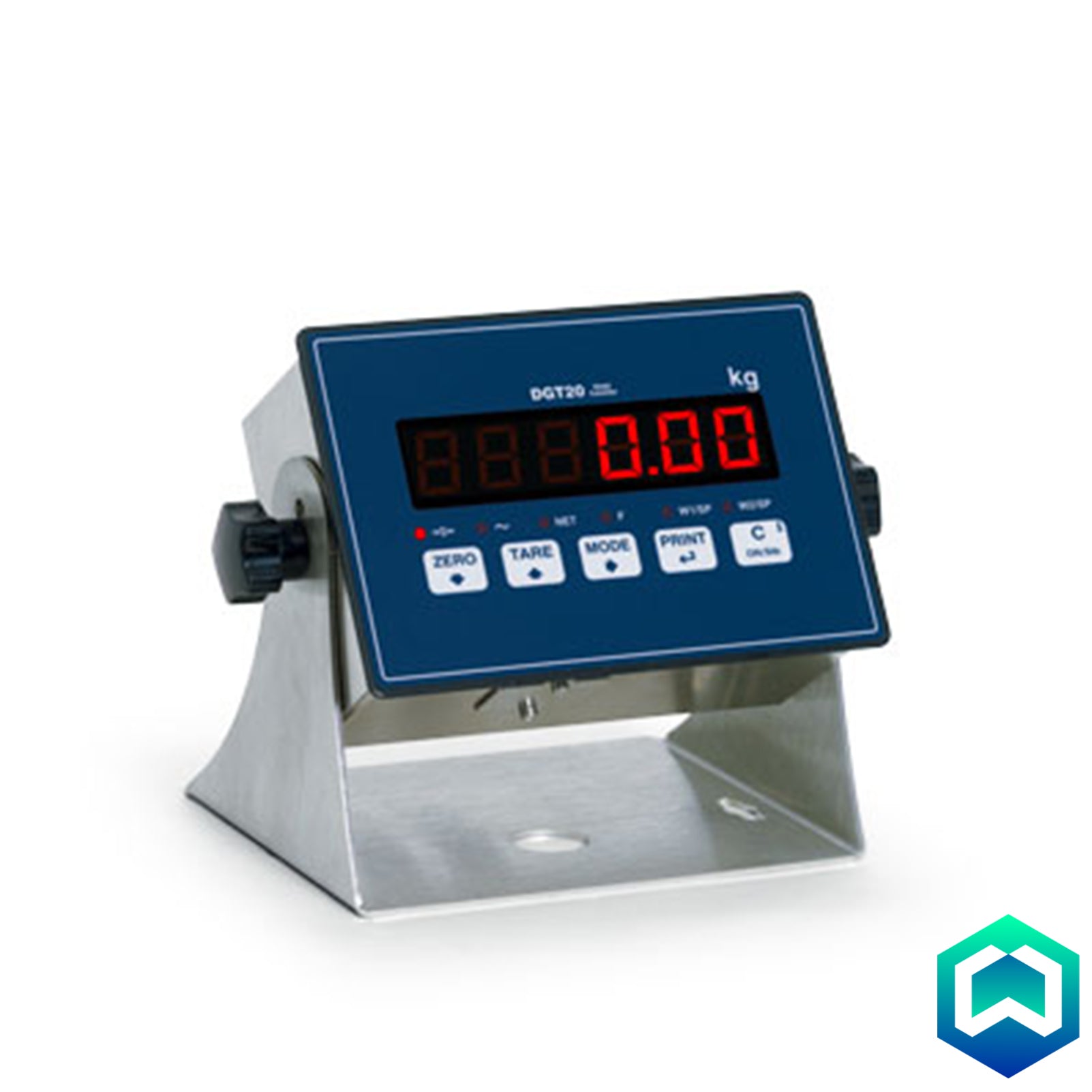

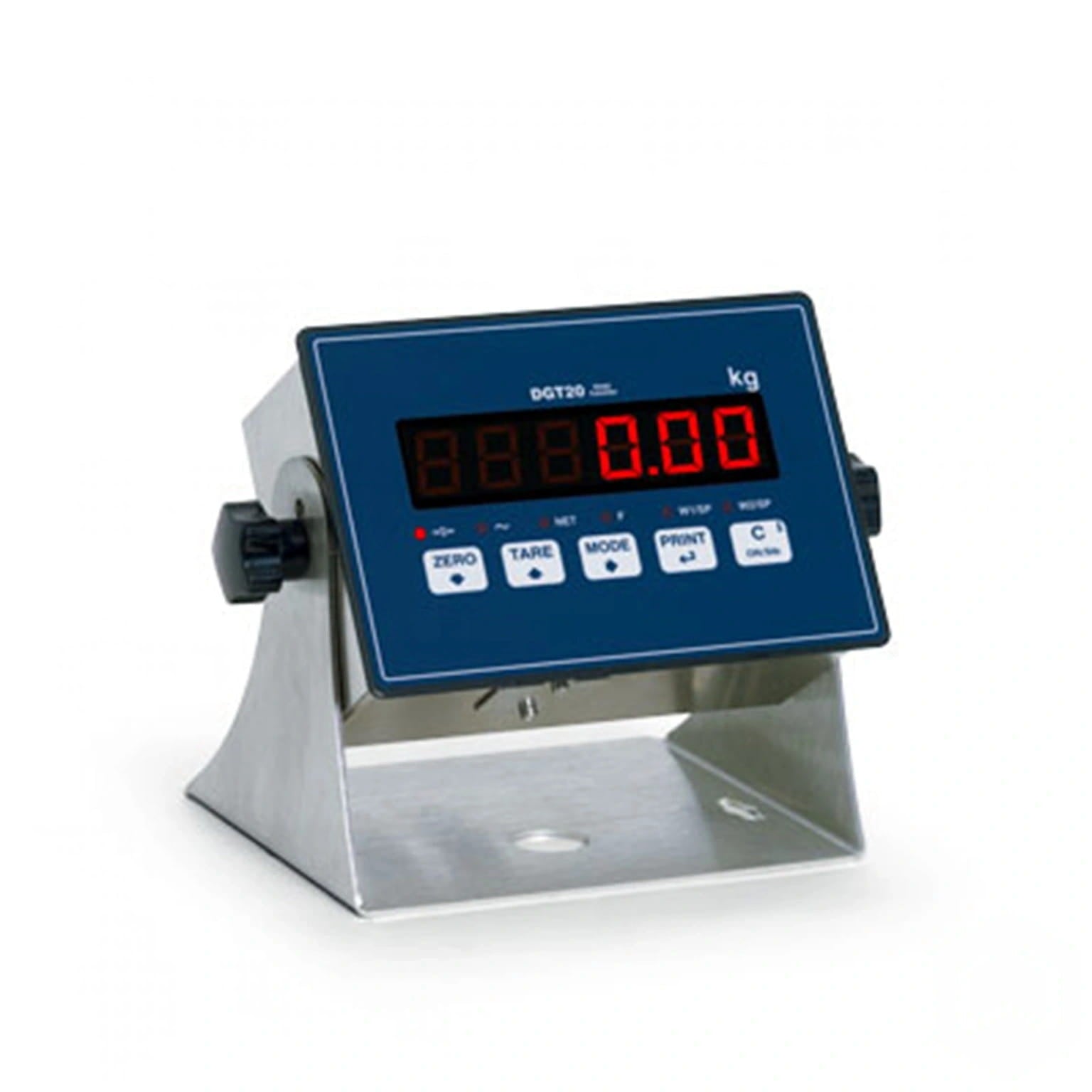

Dini Argeo DGT20 Bench Digital Weight Transmitter

Features:

• Versatile Application: Suitable for bench and floor scales, dosing, filling systems, and other industrial weighing applications.
• Integrated Web Server: Enables remote diagnostics, calibration, and configuration via an Ethernet network (PROFINET, Ethernet IP, Modbus TCP models).

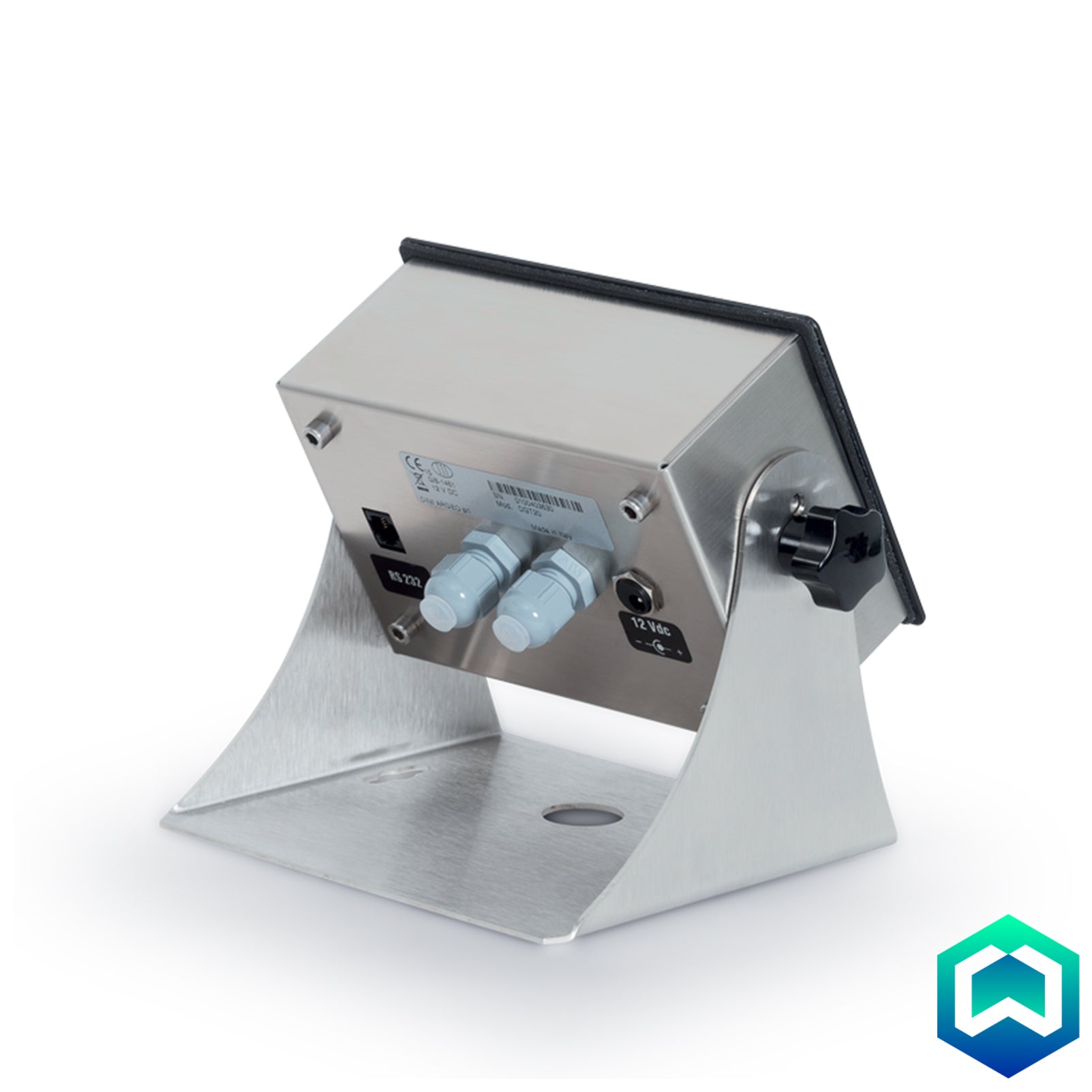

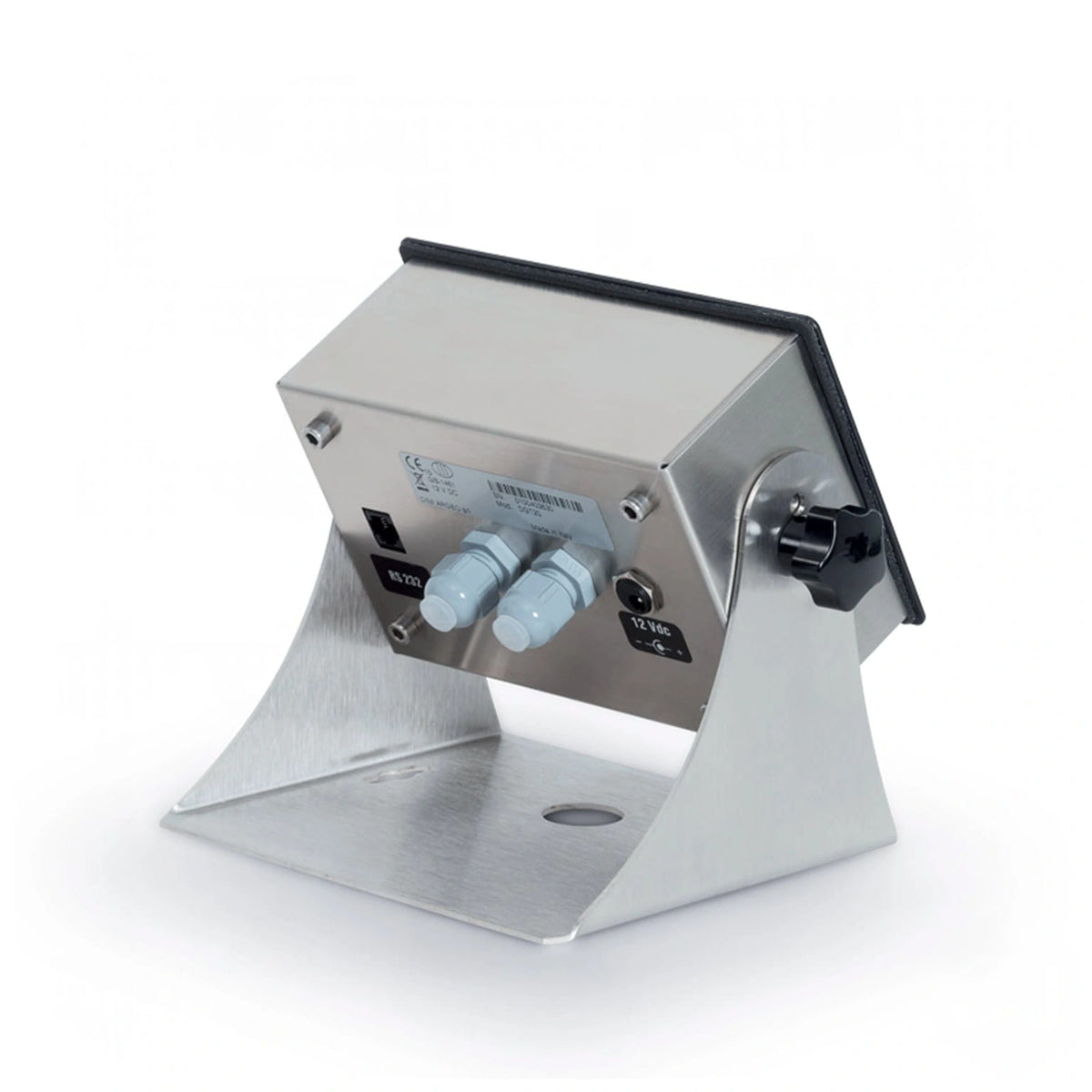

• Robust Construction: Stainless steel protective case with an aluminium front panel and protection gasket for durability.
• Clear Display and User Interface: Easy-to-use 5-key waterproof keyboard and a bright red LED display with 6 20-mm digits and function indicators.
• Flexible Mounting: Includes support bracket for table or wall mounting.
• High Accuracy and Resolution: Up to 10,000e or multirange 2 x 3000e in CE-M approved versions, and up to 800,000 displayable divisions with internal resolution up to 3,000,000 points.
• Signal Linearisation: Up to 8 signal linearisation points (3 from keypad, 8 via DINITOOLS).
• High-Speed A/D Conversion: 24-bit sigma-delta conversion, up to 400 conversions/second.
• Load Cell Compatibility: Connects up to 8 analog load cells with 350 Ohm input resistance.
• Flexible Weighing System Management: Manages digitally equalised 4-cell weighing systems or 4 independent weighing systems.
• Wide Power Supply Range: Operates on 12 Vdc to 24 Vdc, with included power adapter and global plug compatibility (EU, UK, US, AU).
• Regulatory Approvals: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), and Australian approval (NMI S788).

Functions and Connectivity:

• Keyboard Functions: Zeroing, semi-automatic and presettable tare, print/data transmission, ON/Stand-by.
• Selectable Functions: High-resolution weighing x 10, net/gross or lb/kg conversion, weigh totalisation, formulation, counting, in/out truck weighing, hold, and peak hold.
• External Input: Simulation of key pressure, keyboard lock.
• MOSFET Output: Set point control on weight or pieces with programmable thresholds.
• Serial Ports: Net, gross, and tare weight reading, clearing, tare functions, scale switch, output activation thresholds, microvolts/ADC reading (DGT20/DGT20AN), message display, printing, APW setting (DGT20/DGT20AN), key pressure simulation, MODBUS serial protocol (DGT20/DGT20AN).
• Analog Output (DGT20AN): 16-bit analog output proportional to net or gross weight.
• Communication Interfaces:
  • RS232/C bidirectional port (RJ11 connector).
  • RS485 bidirectional port (DGT20/DGT20AN).
  • 2 x Photomosfet outputs.
  • 2 x Optoisolator photocoupler inputs.
  • 16-bit analog output (DGT20AN).
  • Fieldbus options: Profibus, Profinet, EthernetIP, EtherCAT, Modbus TCP/IP.
• Master/Repeater Option (MSTSLV): Functions as a universal weight repeater or a multi-scale repeater (MASTER) for up to 32 independent scales.
