Dini Argeo DGT1SX Weight Transmitter

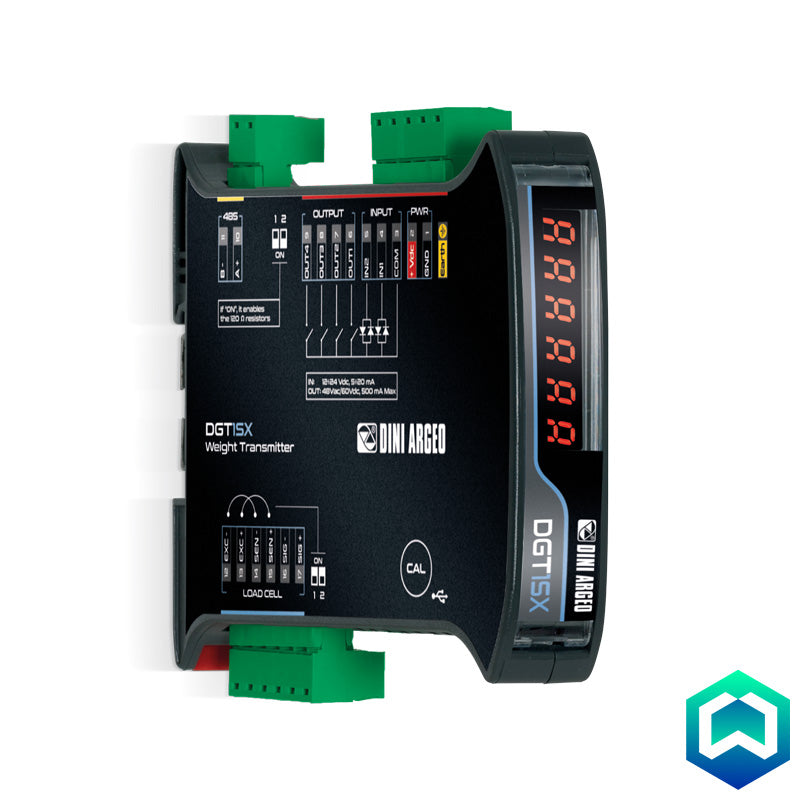

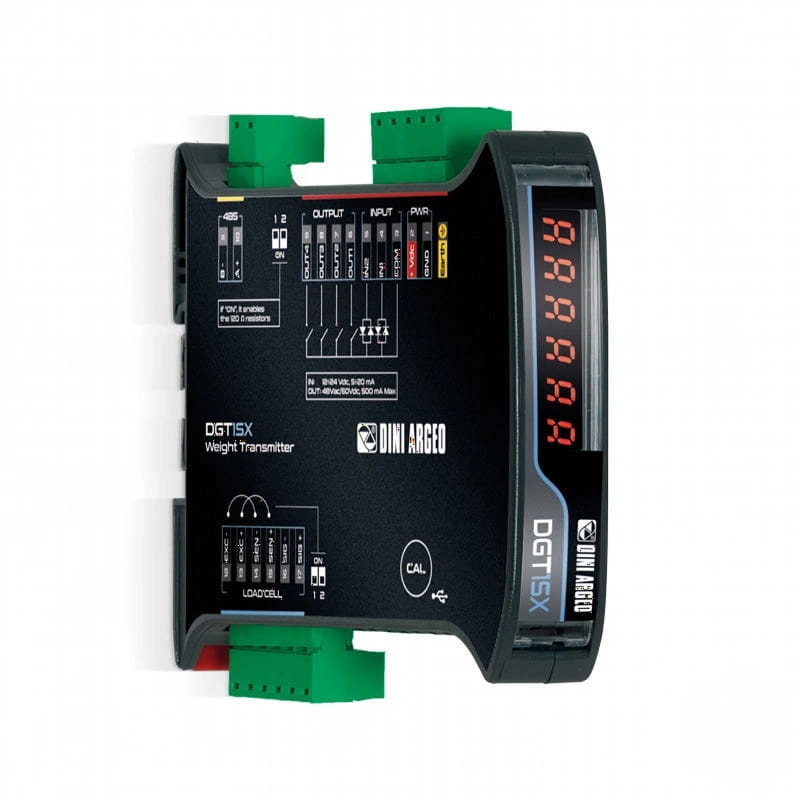

Dini Argeo DGT1SX High Speed Digital Weight Transmitter

By Dini Argeo

Experience unparalleled precision and speed with the Dini Argeo DGT1SX, the fastest weight transmitter in the Dini Argeo range. Designed for DIN rail mounting, this multifunctional device provides real-time reading and diagnostics of your connected weighing system, ensuring seamless integration into any automation environment.

Product Information

Features:

  • Unmatched Speed: Processes up to 4800 weight readings per second, enabling millisecond-precision weighing.
  • Versatile Connectivity: Available in PROFINET, ETHERNET/IP, MODBUS/TCP, ETHERCAT, PROFIBUS, DEVICENET, CANOPEN, ANALOG OUTPUT, and RS485 versions, facilitating integration into diverse automation systems.
  • Enhanced Stability: Features a redesigned load cell power supply circuit (supporting up to 16 load cells) for improved weighing stability.
  • Robust Protection: Equipped with a power supply circuit that protects against overloads, polarity reversal, and short circuits, ensuring reliable operation in industrial environments.
  • Comprehensive Diagnostics and Configuration:
    • Integrated Web Server (PROFINET, ETHERNET/IP, MODBUS TCP/IP models): Enables remote diagnostics, calibration, and configuration via Ethernet.
    • XSPEED TOOL (PC Software): Optimises weighing system performance with advanced filtering options and oscilloscope functionality. Free download available.
    • Micro-USB Port: Provides easy access for configuration, diagnostics, and data backup on all versions.
    • Real time load cell fault detection.
  • Advanced Communication: Supports up to 120 fieldbus updates per second and 110 Modbus RTU updates per second. Modbus RTU protocol is integrated on all versions.
  • Analog Output Option: Available on fieldbus versions (upon request) for seamless modernization of existing plants.
  • Expanded I/O: Features 4 configurable digital outputs and 2 configurable digital inputs.
  • Certifications: CE-M EN 45501, OIML R-76, OIML R-61 (MID), 2014/30/EU EMC, 2014/35/EU LVD, 2011/65/EU RoHS, EU Type Examination Certificate (2014/31/EU).

Applications:

  • High-speed filling and dosing
  • Dynamic checkweighing
  • Process control
  • Industrial automation
Specification

Number of scales/channels: 1

Calibration:
- Theoretical (mV\V)
- With sample weights
- Via Web server
- Via XSpeedTool

Conversion rate: Up to 4800 Hz

Maximum number of load cells: Up to 16x350Ω

Minimum sensitivity:
- High resolution 0.01 µV/d
- Legal for trade 0.3 µV/e

Number of legal-for-trade divisions:
Up to 10,000e or multi-field 2x3,000e

Load cell excitation voltage: 5 V

Communication ports:
- 1 micro-USB port (device)
- 1 RS485 port (Mod. DGT1SX / DGT1SX-AN)

Communication protocols: Modbus RTU, ASCII orFieldbus

Communication rate:
- On serial port up to 1600 Hz
- On Fieldbus up to 120 Hz
- Via Modbus RTU up to 110 Hz

PC programs for configuration: XSpeedTool

Display: Red LED 8 mm, 6 characters

Keyboard: 5-key mechanical

Housing: ABS

Power supply: 12÷24 Vdc, 5 W

Operating temperature range:
- For internal use -20°C ÷ +60°C
- Approved -10°C ÷ +40°C

Max humidity: 85%

Analogue output: 16 bit (Model DGT1SX-AN)
- 4÷20mA
- 0÷10Vdc

Digital outputs: n. 4 OUT, configurable

Digital inputs: n. 2 IN, configurable
Downloads

Please click here for the Dini Argeo DGT1SX High Speed Weight Transmitter datasheet
