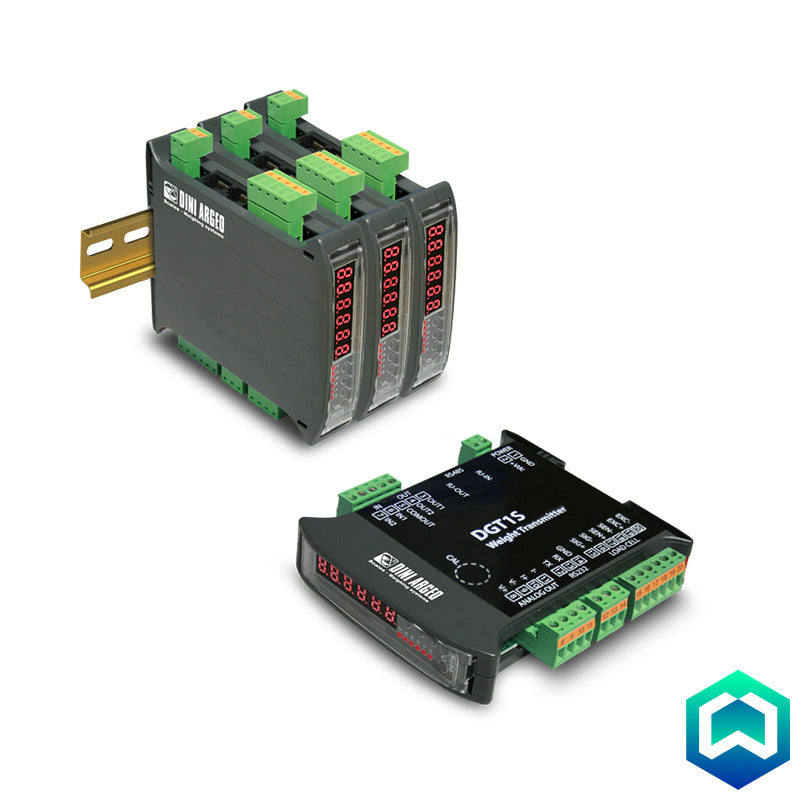

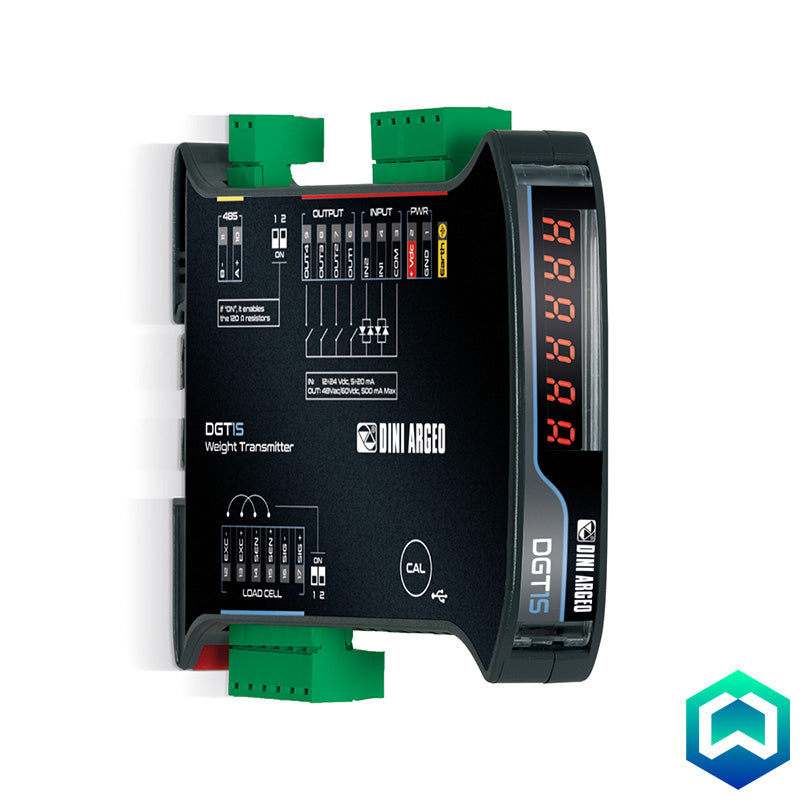

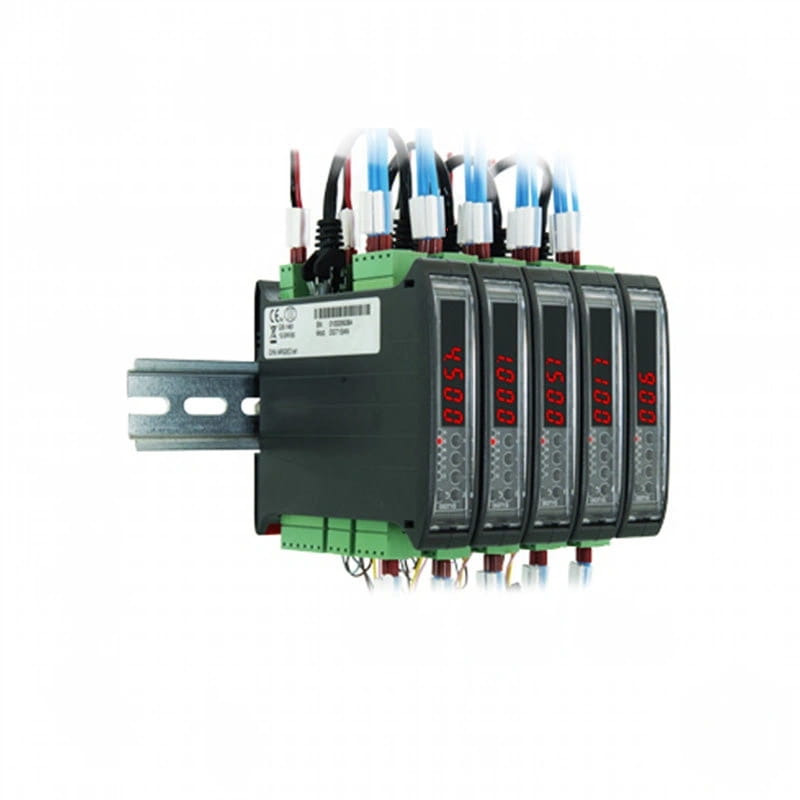

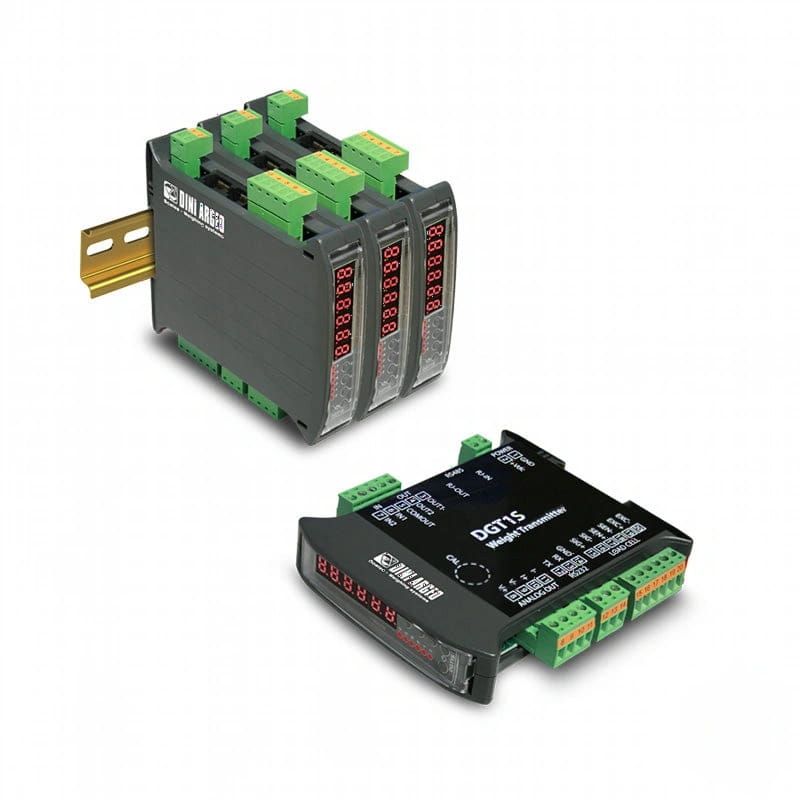

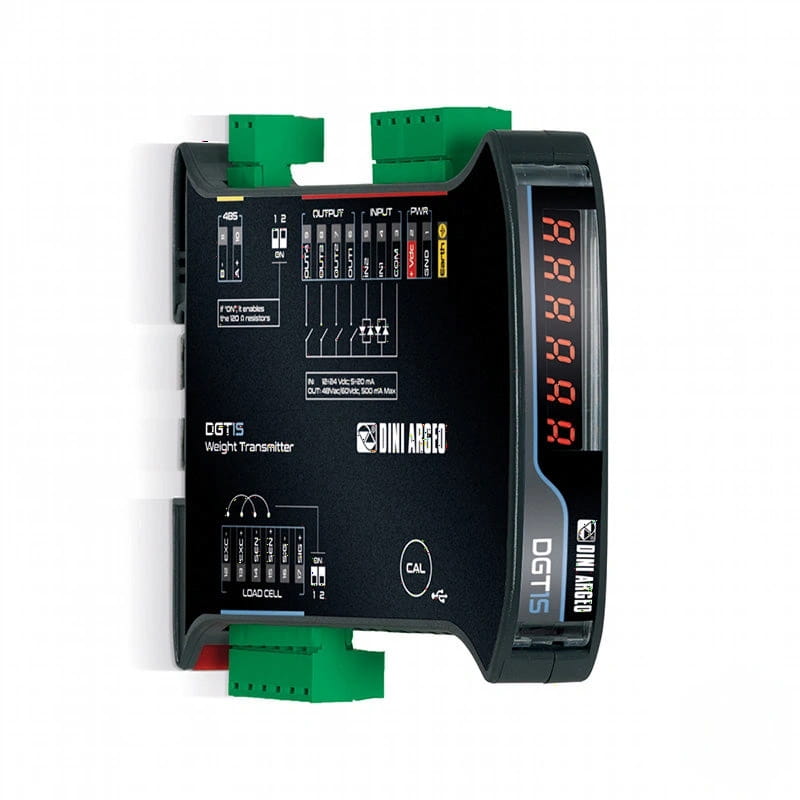

Dini Argeo DGT1S Multifunctional Digital Weight Transmitter

Features:

• Compact DIN Rail Design: Space-saving design for easy integration into control panels.
• User-Friendly Interface: 5-key waterproof keyboard and 6-digit 8mm red LED display with function indicators.
• Flexible Configuration: Calibration and setup parameters configurable via keyboard or PC using DINI TOOLS.
• High Accuracy and Resolution: Up to 10,000e (legal for trade) or 800,000 displayable divisions with 3,000,000 internal points.
• Linearisation: Up to 8 signal linearisation points (3 from keypad, 8 via DINITOOLS).
• Fast Conversion: 24-bit sigma-delta A/D conversion, up to 400 conversions/second.
• Load Cell Connectivity: Supports up to 8 analog load cells with 350 Ohm input resistance.
• Wide Power Supply Range: 12 Vdc to 24 Vdc power supply.

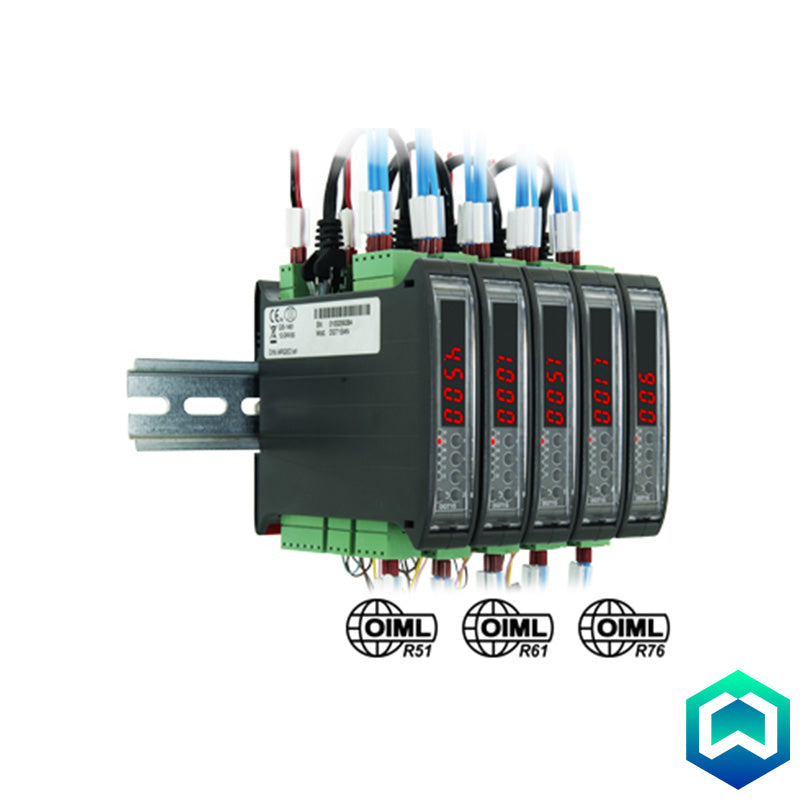

• Comprehensive Certifications: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), and Australian approval (NMI S788).
• Master/Repeater Functionality (MSTSLV code): Can function as a universal weight repeater or a multi-scale master repeater.
• Keyboard Functions: Fast calibration, theoretical calibration, filter configuration, zeroing, tare, print/data transmission, ON/Stand-by.
• Selectable Functions: High-resolution weighing (x10), lb/kg conversion, approved weight transmission (with ALMEM), peak hold, net/gross, totalisation, formulation, counting, truck weighing, and hold.
• Serial Port Functions: Weight reading, clearing, tare, scale switching, output threshold setting, alibi memory access, microvolt/ADC reading, message display, printing, APW setting, key simulation, MODBUS protocol.
• Analog Output (DGT1SAN): 16-bit analog output (4-20mA, 0-5Vdc, 0-10Vdc) proportional to net or gross weight.
• I/O: RS232/C bidirectional port, dual RS485 ports, 2 photomosfet outputs, 2 optoisolator inputs.

Applications:

• Industrial weighing systems
• Process control
• Dosing and batching
• Filling and packaging
• Automation integration
• Weight Repeater systems.
