Dini Argeo DGT1P Panel Digital Weight Transmitter

The Dini Argeo DGT1P is a high-performance panel weight transmitter/indicator housed in a durable aluminium case, designed for seamless integration into industrial weighing and dosing systems. Functioning as a powerful microcontroller, it simplifies and secures the incorporation of weighing processes into any automation setup.

Product Information

Features:

  • Robust Construction: Aluminium case provides excellent durability and protection in industrial environments.
  • Versatile I/O: Up to 2 programmable digital inputs and up to 6 digital outputs, enabling flexible control and interfacing with external devices.
  • High-Resolution Measurement: 24-bit A/D converter with 1 channel, providing up to 800,000 display divisions and 3,000,000 internal points.
  • High Sensitivity: 0.01 µV/d signal sensitivity (0.03 µV/e for legal-for-trade applications).
  • Fast Conversion Rate: 400 Hz conversion rate with selectable sampling rate up to 400 conversions/second.
  • Flexible Load Cell Connection: Supports 4 or 6-wire load cell connections (with sense), accommodating up to 16 x 350 Ω cells.
  • Analog Output (DGT1PAN Model): 16-bit optoisolated analog output, configurable for 0-5Vdc, 0-10Vdc, 4-20mA, or 0-20mA.
  • Serial Communication: 1 RS485 port for data transmission and communication with other devices.
  • Comprehensive Calibration: Supports theoretical (mV/V) and sample weight calibration methods.
  • Advanced Functions: Setpoint control, high-resolution mode, peak hold, alibi memory, and unit of measure conversion.

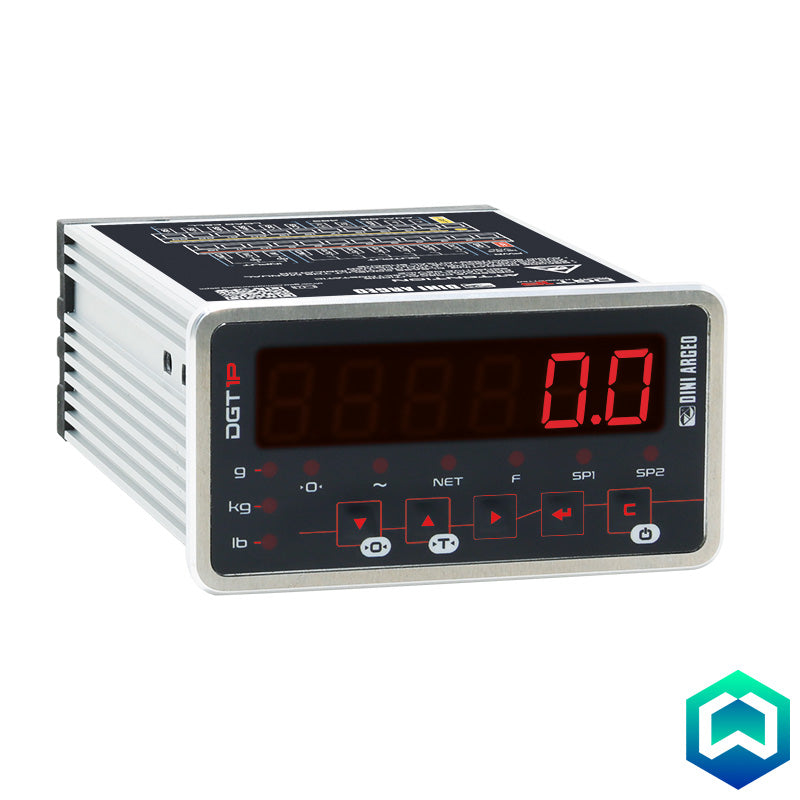

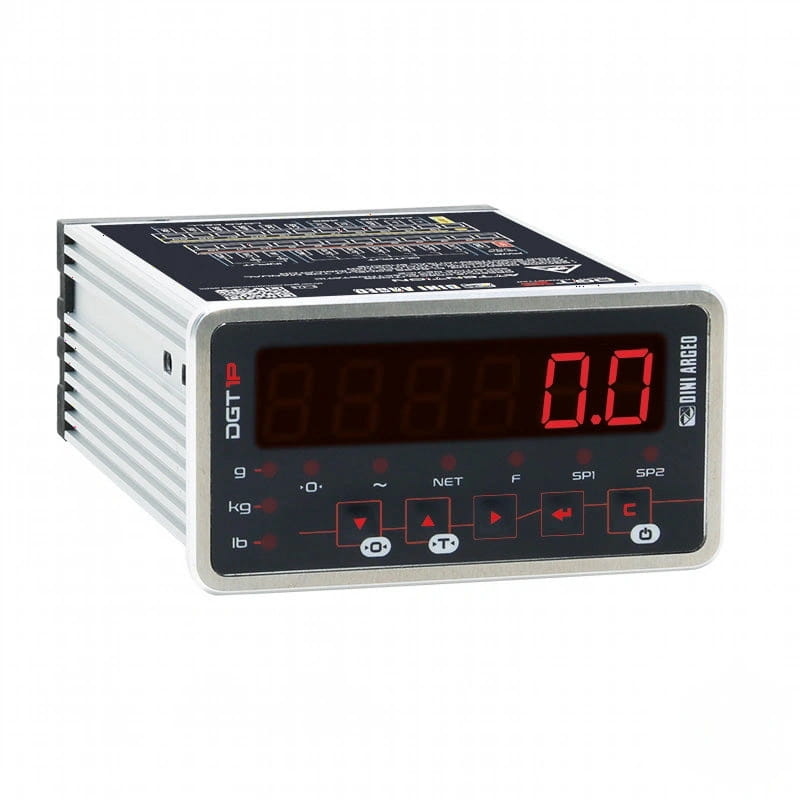

  • User-Friendly Interface: 14.2 mm red LED display and 5-key waterproof mechanical keyboard for easy operation and configuration.
  • Approvals: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID).

Applications:

  • Industrial weighing systems
  • Dosing and batching control
  • Process automation
  • Filling and packaging machinery
  • General industrial weight indication
Specification

Power supply: 12-24 Vdc

Converter: A/D 24 bit with 1 channel

Max number of scales: 1

Load cells connection: 4 or 6 wires (with sense)

Conversion rate: 400 Hz

Selectable sampling rate: up to 400 conv./sec

Displaying: up to 800.000d

Signal sensitivity: 0,01 µV/d (0,03 µV/e)

Resolution: 3.000.000 points

Linearisation: up to 8 points

Connectable load cells: up to 16x350 Ω cells

Serial ports: 1 RS485 port

Analog output: 16 bit optoisolated (DGT1PAN Model) choosing between 0-5Vdc, 0-10Vdc, 4-20mA or 0-20mA.

Digital outputs: n. 2 OUT (optional up to 6), configurable optoisolated photomosfet

Digital inputs: n. 2 IN, configurable optoisolated

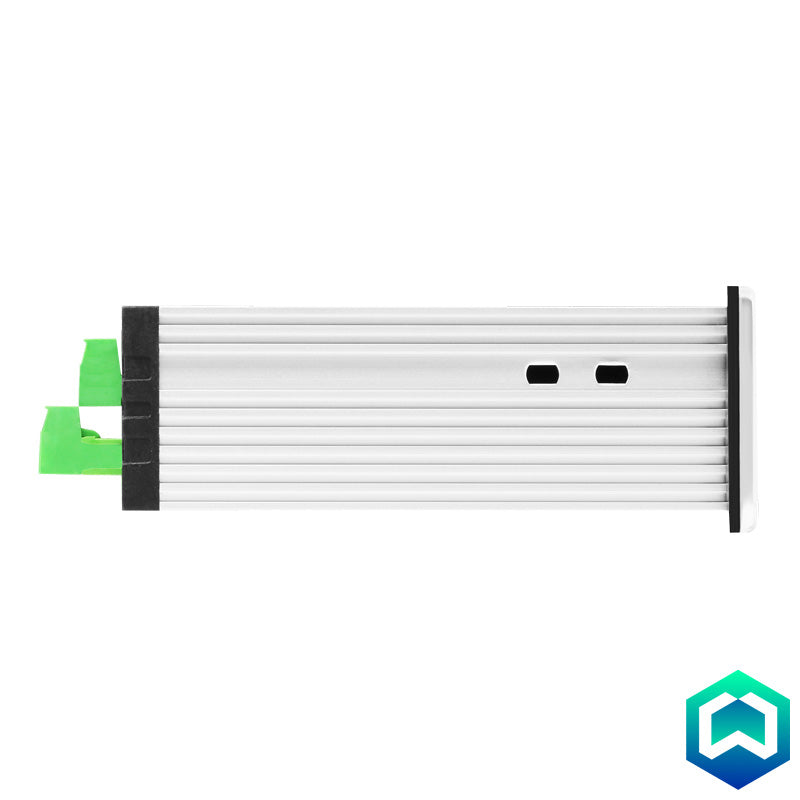

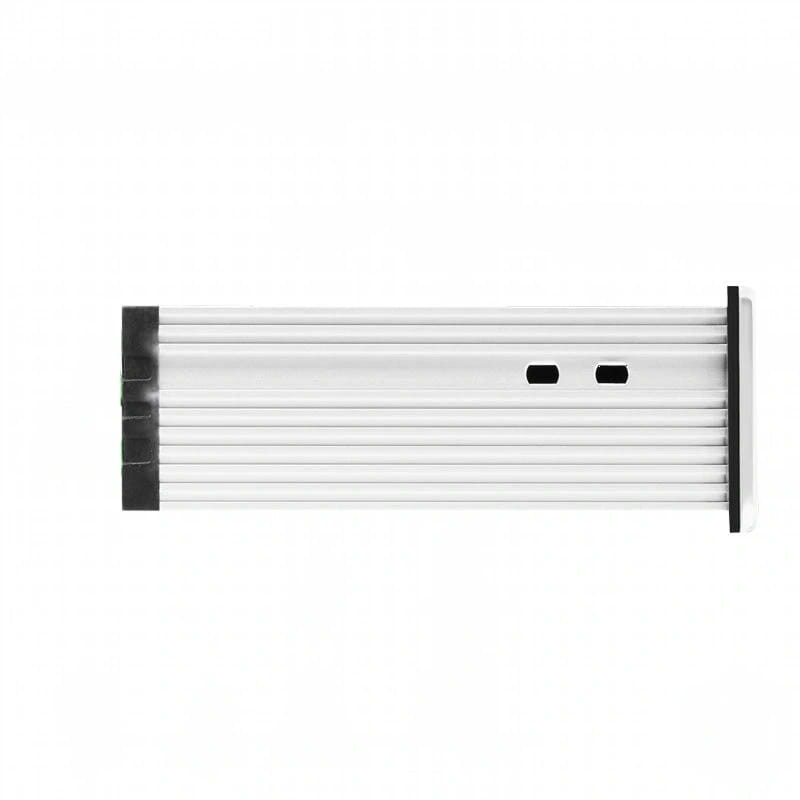

Case: aluminium. Dimensions:100 x 53 x 136 mm(lxhxw). Panel cutout: 92 x 44 mm(lxh).

Calibration:
- Theoretical (mV\V)
- With sample weights

Keyboard functions: zeroing, tare, function mode, print, manual data sending, On/Stand-by

Program functions:
- Setpoint
- High resolution
- Peak
- Alibi Memory
- Unit of measure conversion

Keyboard: mechanical with 5 digits, waterproof

Display: 14,2mm red LED

Downloads

Please click here for the Dini Argeo DGT1P Panel Digital Weight Transmitter datasheet

Model:

£281.00
