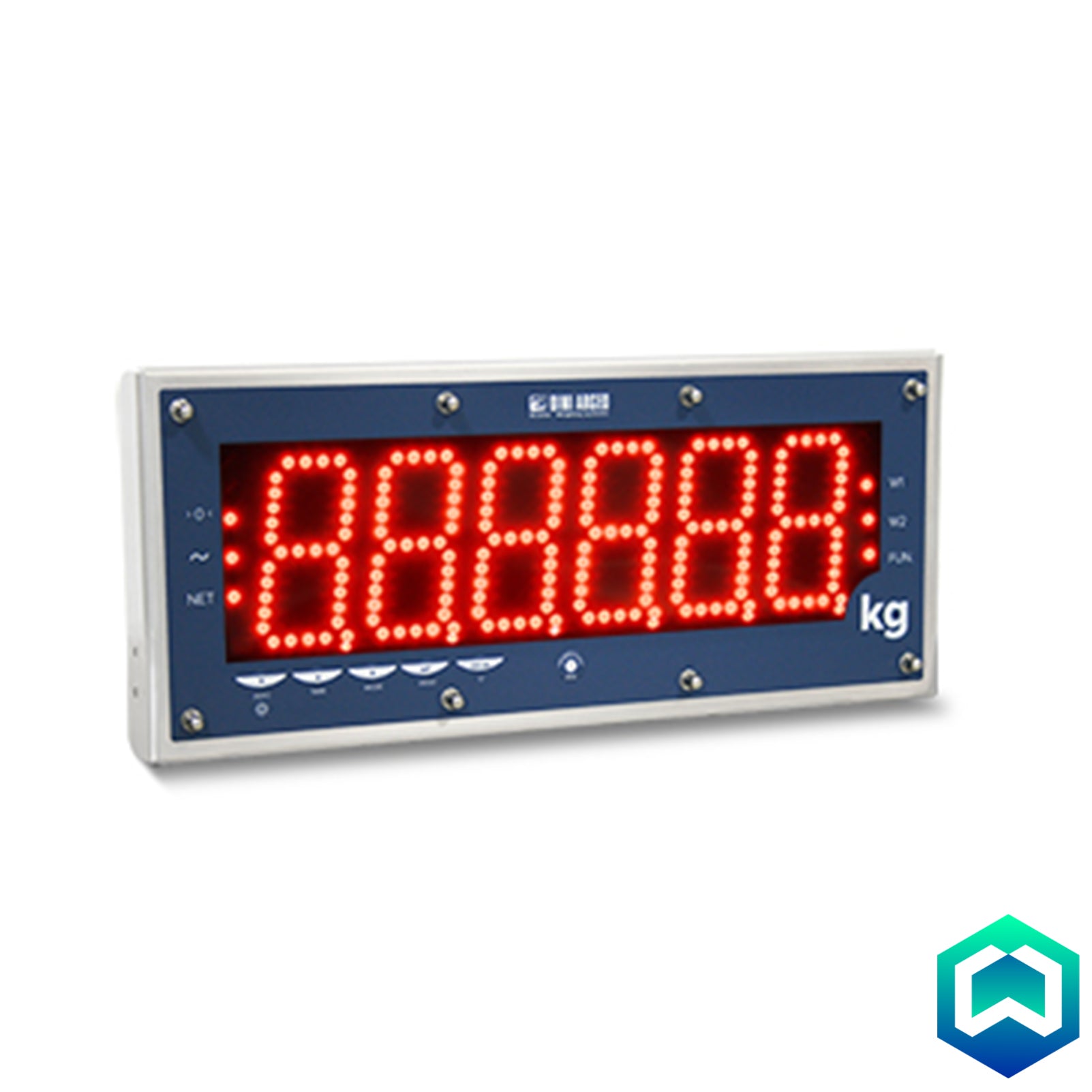

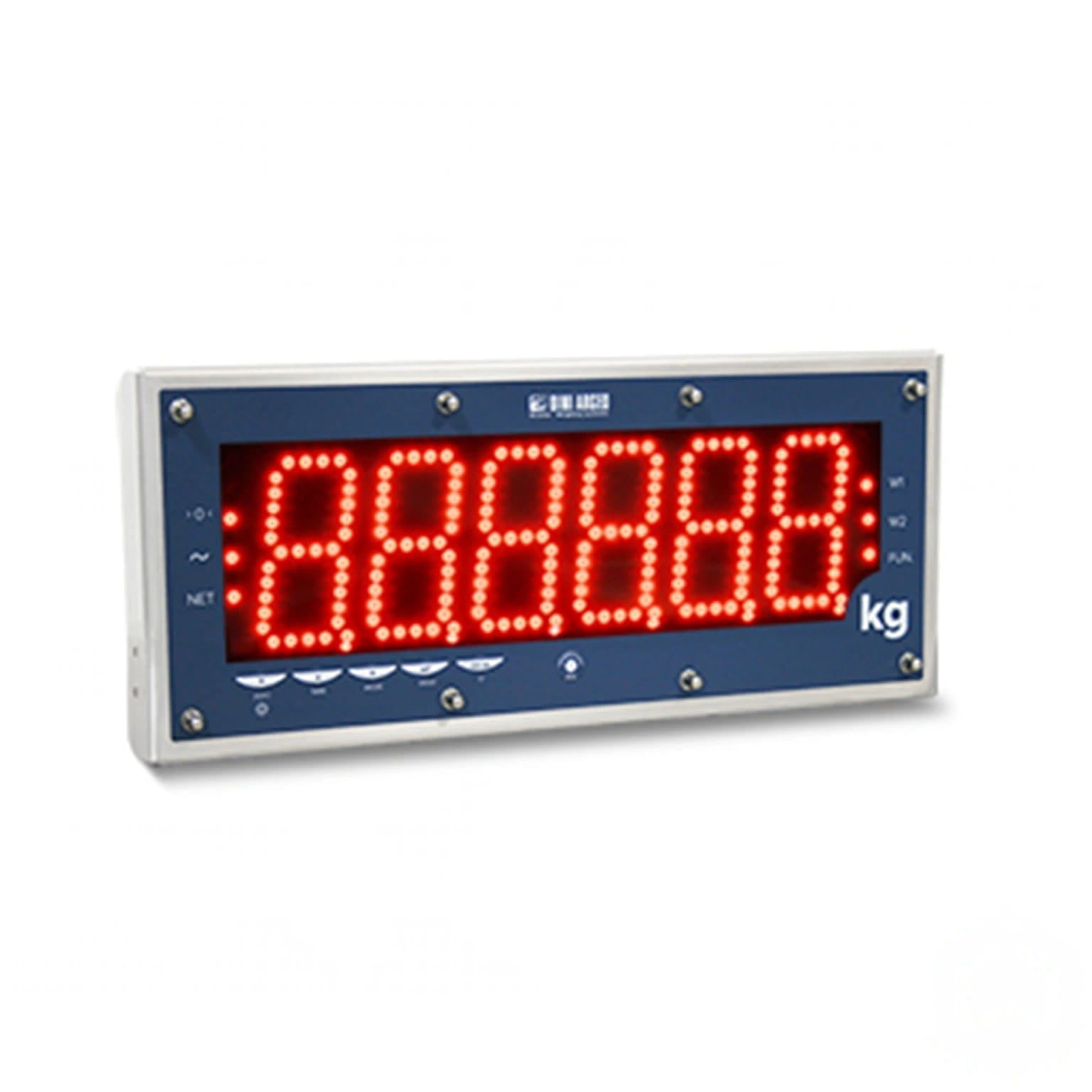

Dini Argeo DGT100 Maxi Universal Repeater

The Dini Argeo DGT100 series is a high-performance weight indicator and universal repeater featuring a large, ultra-bright matrix display composed of LEDs. Specifically designed for outdoor use, it offers exceptional visibility in direct sunlight and from long distances at any viewing angle. Its robust construction with a completely IP68 stainless steel case ensures reliable operation in demanding environments.

Product Information

Key Features:

  • Ultra-Bright, Large Display: 6-digit, 100 mm high display with high-efficiency SMD LEDs for excellent visibility from over 25 meters with a wide 120° viewing angle and up to 750 mcd power.
  • Outdoor Optimised: Particularly suitable for outdoor applications where clear visibility in full sunlight is crucial.
  • Robust IP68 Stainless Steel Case: Ensures complete protection against dust and water ingress, making it ideal for harsh industrial environments.
  • Anti-Condensation Valve: Fitted with an air valve to regulate internal humidity and pressure, enhancing reliability and longevity.
  • User-Friendly Keypad: Functional 5-key waterproof keypad for easy operation.
  • Adjustable Brightness: Software adjustment of the display brightness intensity via the keyboard.
  • Flexible Mounting: Includes an AISI 304 stainless steel wall fixing bracket for secure installation.
  • Precise Calibration and Setup: Calibration and setup parameters are easily configurable via the keyboard or PC using DINI TOOLS software.
  • Legal-for-Trade Options: Available in CE-M approved versions (up to 10,000e or multirange 2 x 3000e @ 0.3 µV/e) for applications requiring legal metrology compliance.
  • High Resolution and Accuracy: Supports up to 800,000 displayable divisions with an internal resolution of up to 3,000,000 points for precise measurements.
  • Signal Linearisation: Up to 8 signal linearisation points available through DINITOOLS for improved accuracy across the weighing range.
  • Multi-Channel A/D Conversion: 24-bit sigma-delta 4-channel A/D conversion with a high sampling rate (max. 400 conv./sec.) and automatic selection.
  • Load Cell Compatibility: Connectable with up to 8 analog load cells with 350 Ohm input resistance.
  • Flexible Weighing System Management: Supports weighing systems with up to 4 load cells with digital equalisation or up to 4 independent weighing systems.
  • Wide Power Supply: Operates on a standard 110 to 240 Vac power supply.
  • Scale or Repeater Version: Available as a complete weight indicator or as a dedicated universal weight repeater.
  • Comprehensive Certifications: Meets EU Type Examination Certificate (2014/31/EU), OIML R-76, OIML R-61 (MID), OIML R-51 (MID), and Australian approval standards.
  • Through Keyboard: Zeroing, semi-automatic and presettable tare, print/data transmission, ON/Stand-by.
  • Program Functions: Setpoint control, high-resolution weighing, peak hold, alibi memory (depending on model), unit of measure conversion.
  • External Input: Simulation of key pressure, keyboard lock.
  • MOSFET Output: Set Point Control on the weight (positive or negative) or on pieces (counting mode) with programmable enabling/disabling thresholds and stability check.
  • Serial Ports: Reading of net, gross, and tare weights, clearing, tare functions, scale switch, setting of output activation thresholds, Alibi Memory access (all models). DGT100BC/DGT100AN models also support reading of microvolts/ADC, message display, printing, APW setting, key pressure simulation, and MODBUS serial protocol.
  • Analog Output (DGT100AN): 16-bit analog output proportional to the net or gross weight.

DGT100R Repeater Functions:

  • Universal Weight Repeater: Repeats the weight of any scale by configuring the input string.
  • Multi-Scale Repeater (MASTER): Repeats the weight of up to 32 independent scales, allowing management of their functions and displaying/printing the sum of the weights.
Specification

Display: Large 6-digit display, 100 mm high, with very efficient SMD LEDs, complete of 6 Leds for indication of active functions, visible from over 25 m, with viewing angle up to 120° and with power up to 750 mcd.

Material: AISI 304 stainless steel case with IP68 protection

Power Requirements: Power supply from 110 to 240 Vac.

I/O Section:

  • RS232/C bidirectional port configurable for connection to printer, PC, or other external units.
  • RS485 bidirectional port configurable for connection to PC, PLC, or other external units.
  • PROFIBUS serial interface (DGT100PB model).
  • 2 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
  • 2 optoisolator photocouplers: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
  • 16-bit analogue output (DGT100AN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice; maximum applicable voltage: 300 Ohm; minimum applicable voltage resistance: 1 kohm.
Downloads

Please click here to download the Dini Argeo DGT100 Maxi Universal Repeater

Model:

£680.00
