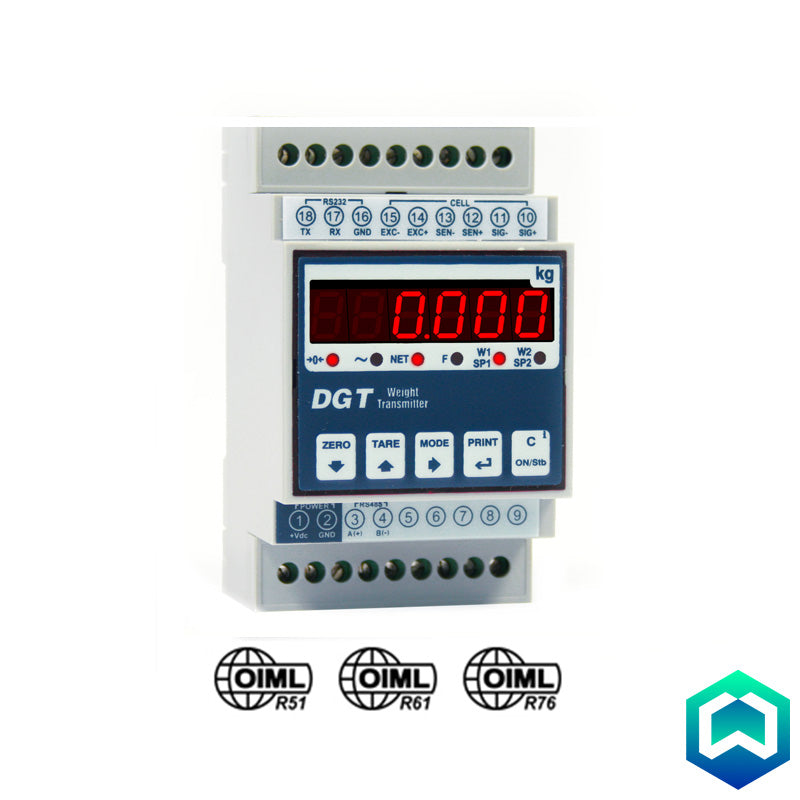

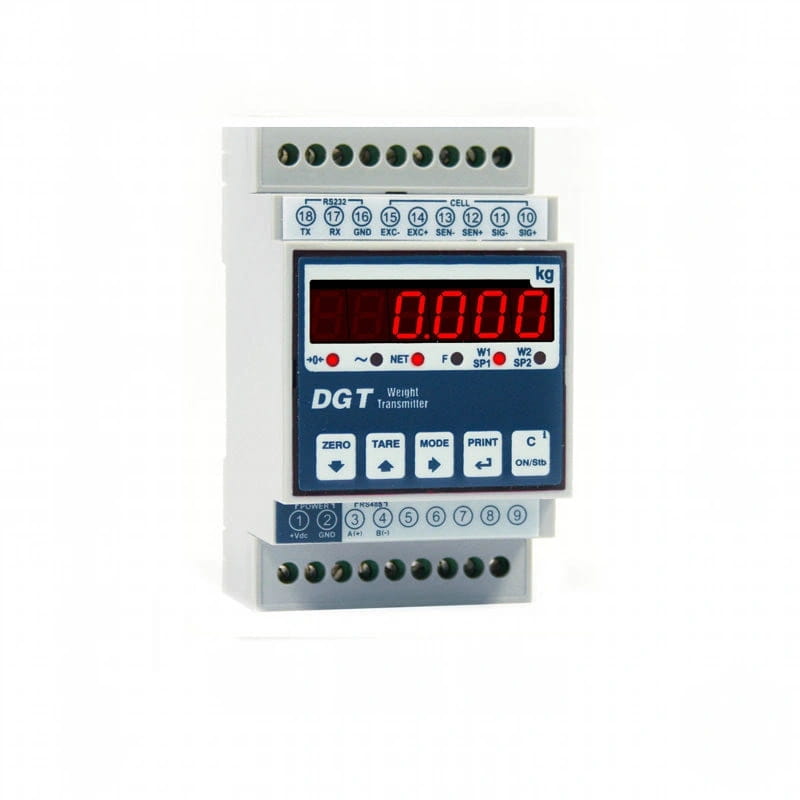

Dini Argeo DGT1 Weight Transmitter - Front

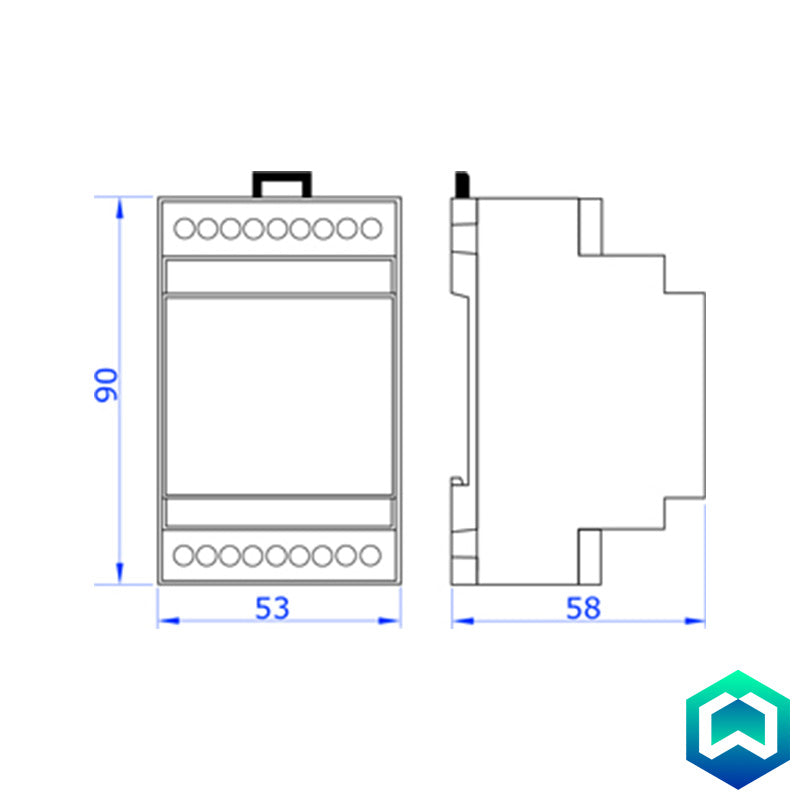

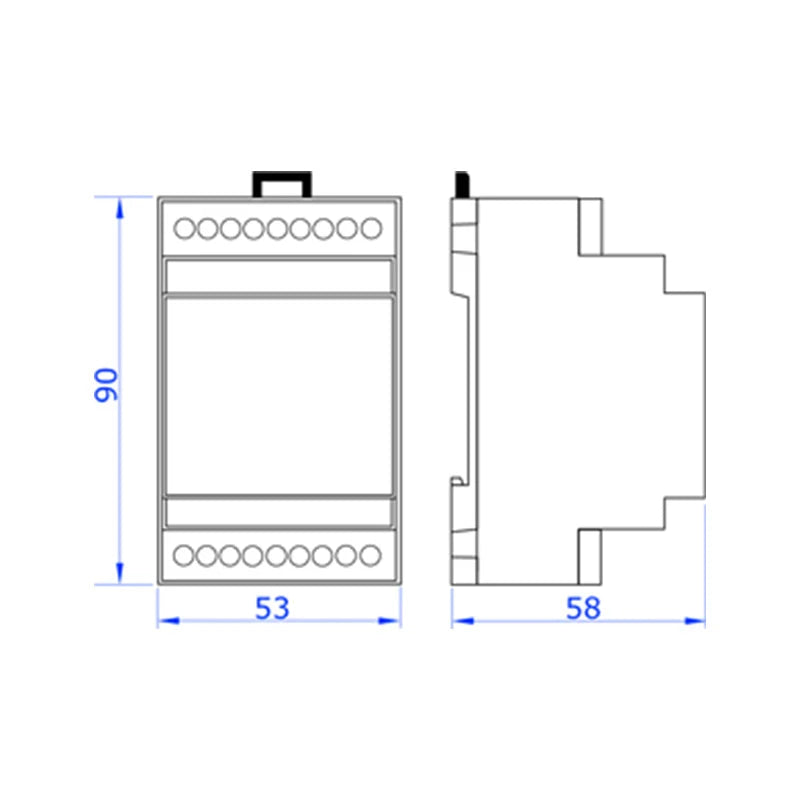

Dini Argeo DGT1 Weight Transmitter - Front - Dimensions

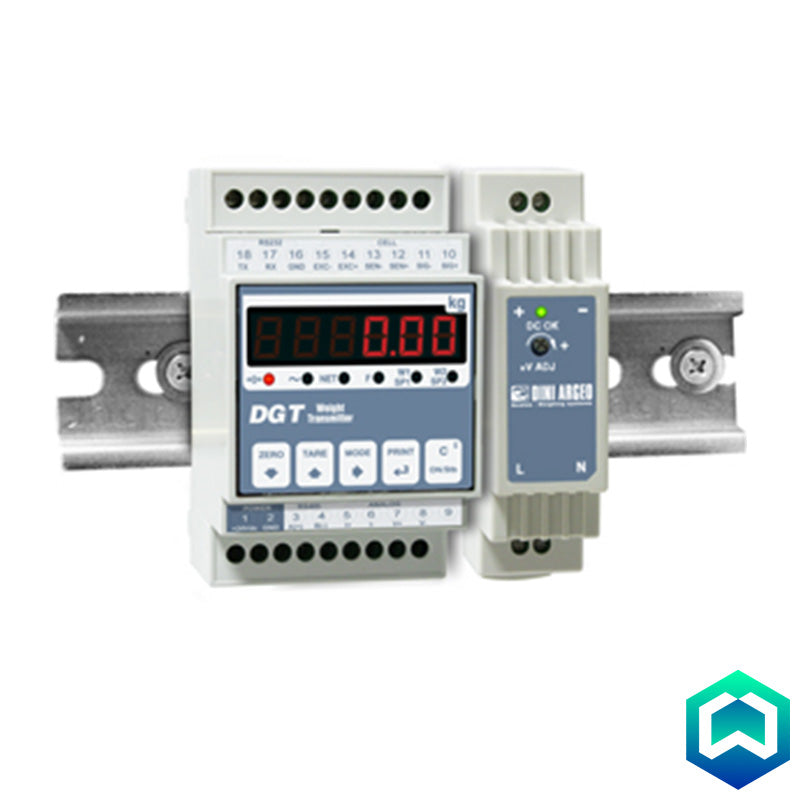

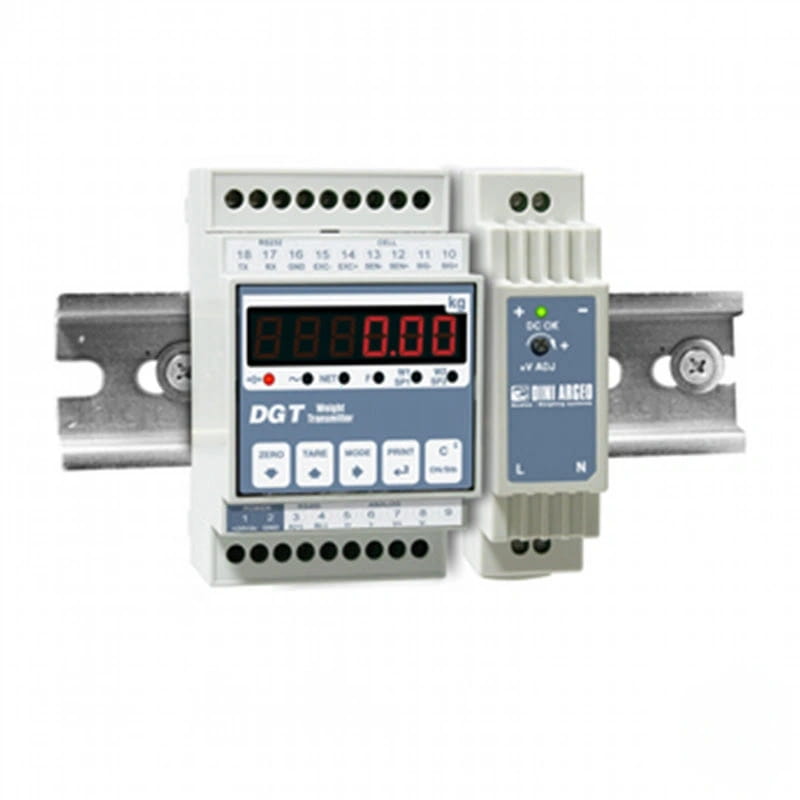

Dini Argeo DGT1 Weight Transmitter - Front - Optional Power

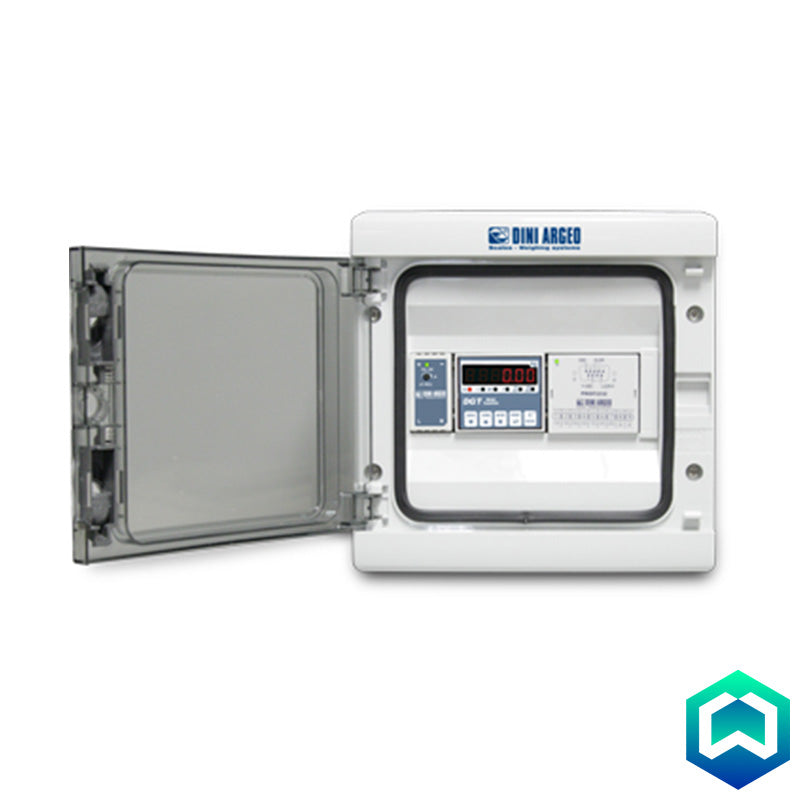

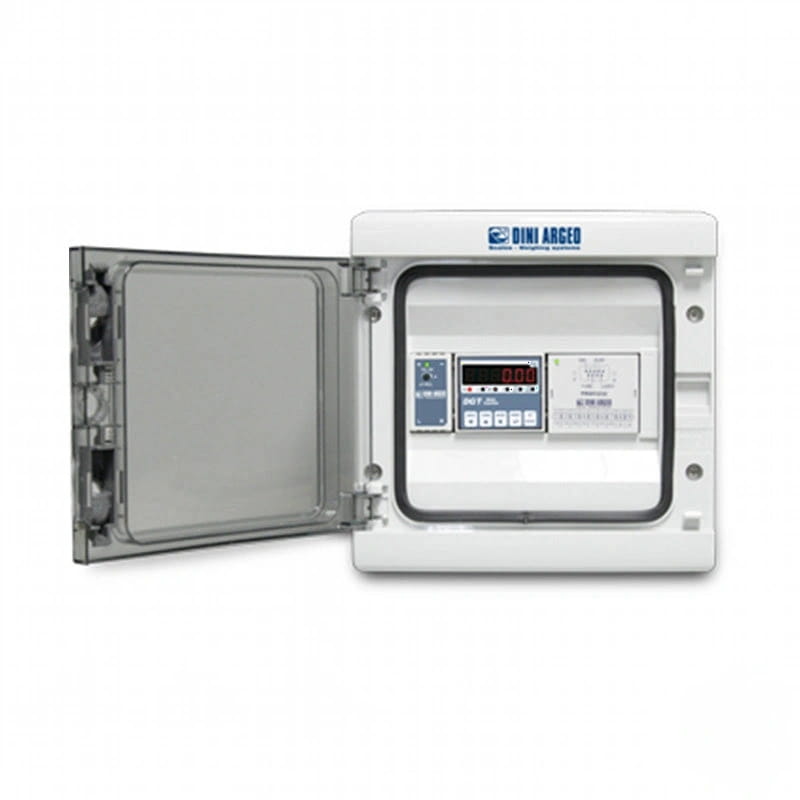

Dini Argeo DGT1 Weight Transmitter - Front - Wall Box

Dini Argeo DGT1 Multifunctional Digital Weight Transmitter

By Dini Argeo

The Dini Argeo DGT1 is a compact, DIN rail-mountable weight transmitter/indicator designed for industrial automation. It features a user-friendly interface with a 6-digit LED display and 5-key keyboard. Offering high accuracy (up to 10,000 legal-for-trade divisions), it supports up to 8 load cells and provides advanced signal processing. Versatile connectivity options (RS232/C, RS485, analog output, digital I/O) enable seamless integration, while functions like zeroing, tare, and totalisation enhance operational efficiency. It includes real-time clock and alibi memory for legal applications, and holds comprehensive certifications for international compliance.

Product Information

Features:

  • Compact DIN Rail Design: Space-efficient design for easy integration into control panels.
  • User-Friendly Interface: 5-key waterproof keyboard and 6-digit 8mm red LED display with function indicators for intuitive operation.
  • Flexible Configuration: Calibration and setup parameters configurable via keyboard or PC using DINI TOOLS.
  • High Accuracy and Legal for Trade: Up to 10,000e (legal for trade) or 800,000 displayable divisions with 3,000,000 internal points.
  • Advanced Signal Processing: Up to 8 signal linearisation points and 24-bit sigma-delta A/D conversion at up to 400 conv./sec.
  • Load Cell Compatibility: Supports up to 8 analog load cells with 350 Ohm input resistance.
  • Real Time Clock and Alibi Memory: Fitted with real time clock and alibi memory for legal for trade applications.
  • Comprehensive Certifications: CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), and Australian approval (NMI S788).
  • Master/Repeater Functionality: Can function as a universal weight repeater or a multi-scale master repeater (MSTSLV code).
  • Versatile Connectivity: RS232/C, RS485, 16-bit analog output (DGT1AN), photomosfet outputs (DGT1IO), and optoisolator inputs (DGT1IO).
  • Keyboard Functions: Zeroing, tare, print/data transmission, ON/Stand-by.
  • Selectable Functions: High-resolution weighing, lb/kg conversion, approved weight transmission, peak hold, net/gross, totalization, formulation, counting, truck weighing, and hold.
  • Serial Port Functions: Weight data reading, clearing, tare, scale switching, output threshold setting, alibi memory access, microvolt/ADC reading (DGT1/DGT1AN), message display, printing (DGT1/DGT1AN), APW setting (DGT1/DGT1AN), key simulation (DGT1/DGT1AN), and MODBUS protocol (DGT1/DGT1AN).
  • Analog Output (DGT1AN): 16-bit analog output (4-20mA, 0-5Vdc, 0-10Vdc) proportional to net or gross weight.
  • Master/Repeater Modes: Multi-scale repeater (up to 32 scales) and universal weight repeater.

Applications:

  • Industrial weighing systems
  • Process control
  • Dosing and batching
  • Filling and packaging
  • Automation integration
  • Legal for trade weighing.
  • Weight Repeater applications.
Specification

Display: 6-digit 8mm red LED

Keyboard: 5-key waterproof

A/D Conversion: 24-bit sigma-delta, up to 400 conv./sec

Load Cells: Up to 8 x 350 Ohm

Resolution: Up to 3,000,000 points

Display Divisions: Up to 800,000

Legal for Trade: Up to 10,000e or 2 x 3,000e

Power Supply: 12-24 Vdc

Analog Output (DGT1SAN): 16-bit (4-20mA, 0-5Vdc, 0-10Vdc)

Digital Outputs: 2 photomosfet (150mA 48Vac/60Vdc)

Digital Inputs: 2 optoisolator (12-24Vdc)

Communication: RS232, Dual RS485.
Downloads

Please click here to download the Dini Argeo DGT1 Multifunctional Digital Weight Transmitter datasheet
