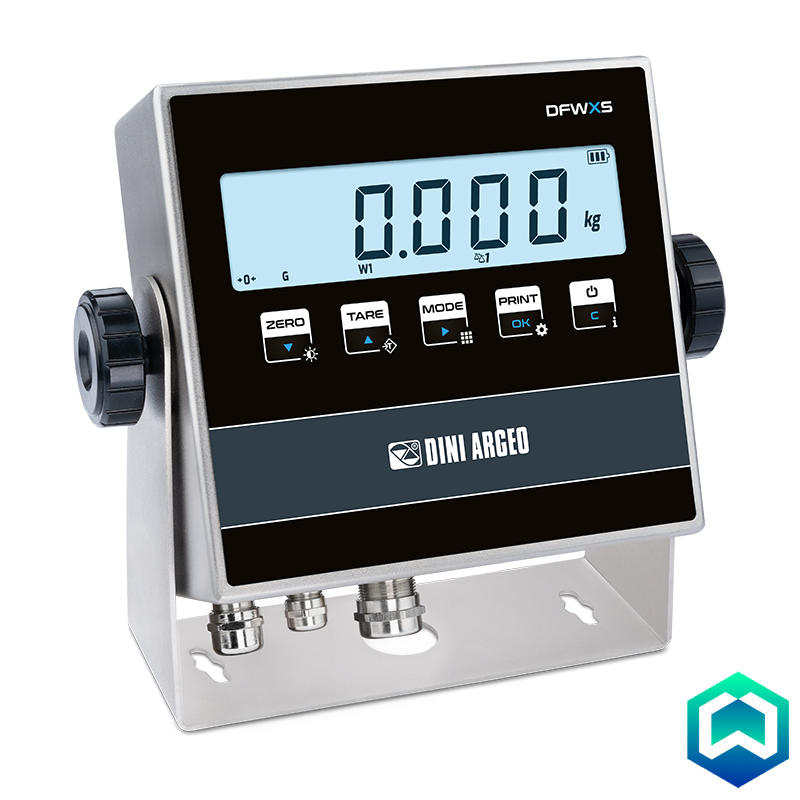

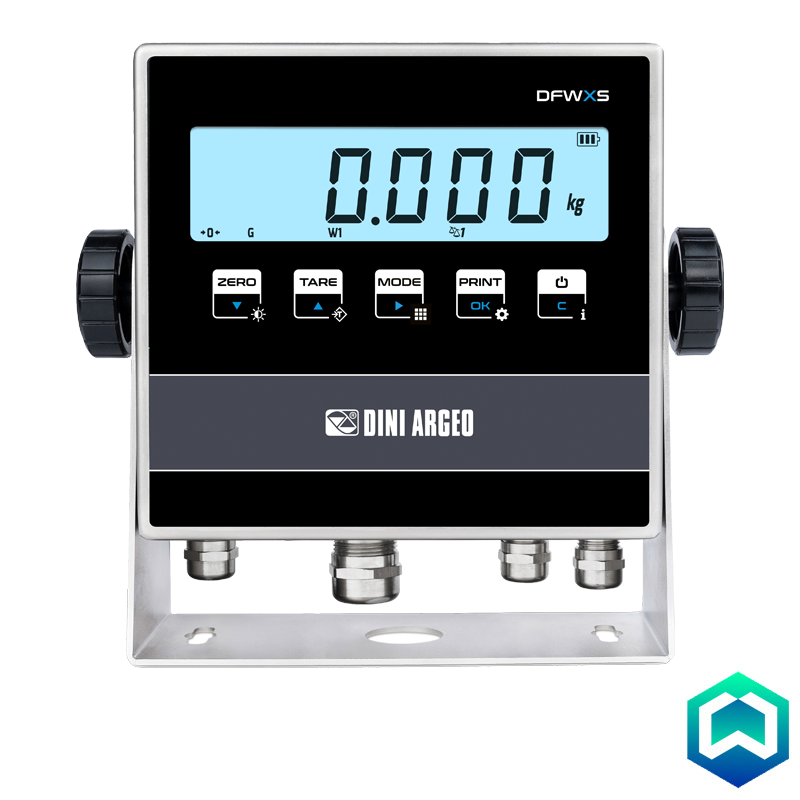

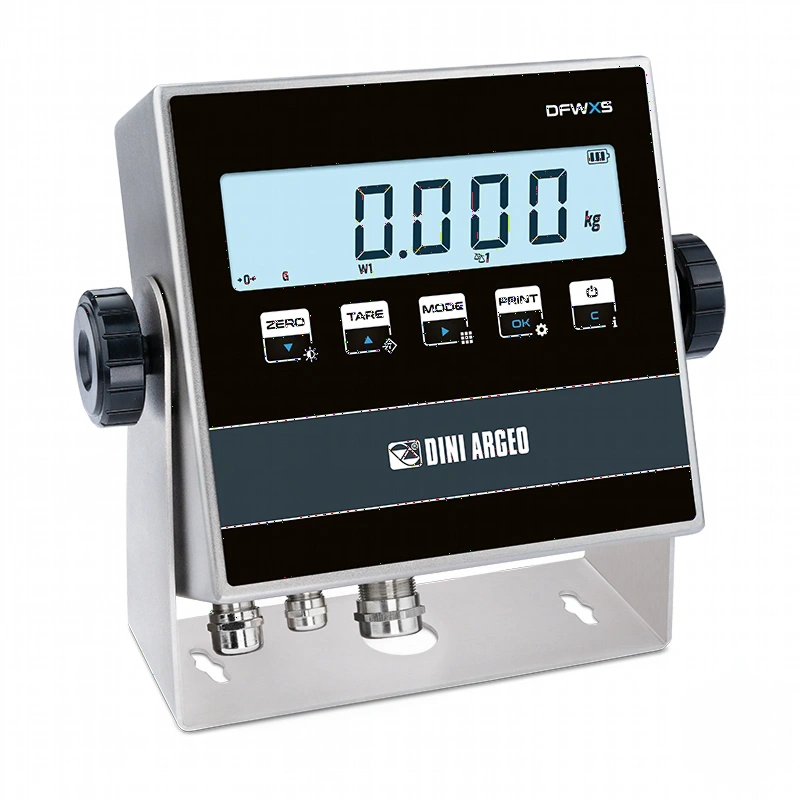

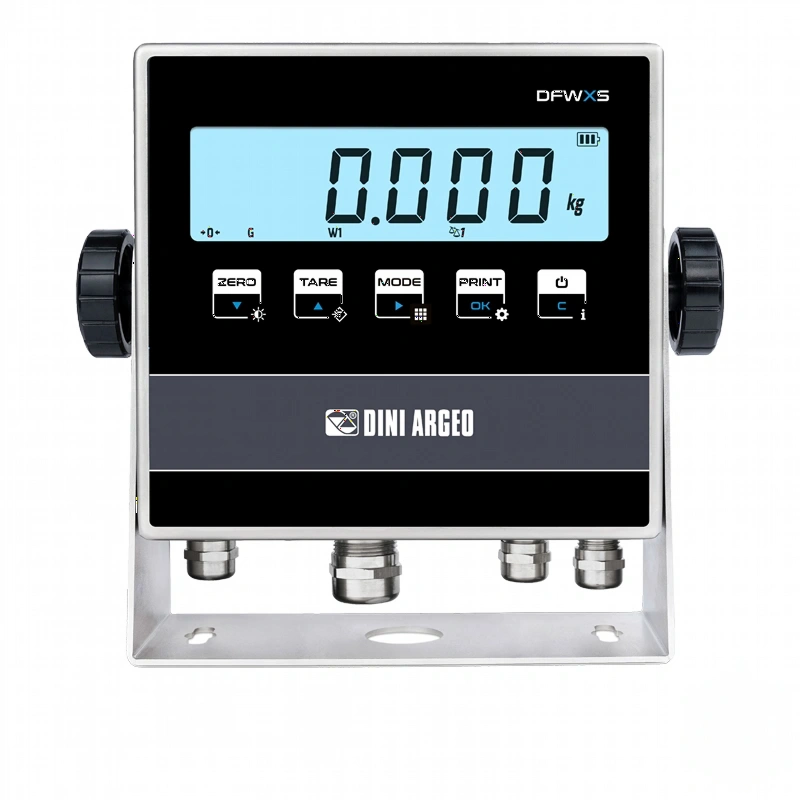

Dini Argeo DFWXS IP68/IP69K Multifunctional Weight Indicator

By Dini Argeo

The Dini Argeo DFWXS weight indicator is a versatile and user friendly solution designed for industrial weighing applications. Housed in a durable IP-rated enclosure for reliable performance in harsh environments, it delivers accurate and stable weight readings for platforms, bench scales, and process systems.

Featuring a clear backlit display and an intuitive keypad, the DFWXS allows quick setup and straightforward operation. It supports multiple weighing functions including totalisation, checkweighing, and piece counting, making it suitable for warehouses, manufacturing facilities, and logistics operations. Flexible connectivity options also enable easy integration with printers, PCs, and external systems.

£415.00
Product Information

IP68/IP69K Multifunction Weight Indicator with 5-Key Smart Keypad

Versatile stainless steel weight indicator engineered for demanding industrial environments. The DFWXS combines robust IP68 and IP69K protection with an interactive RGB backlit display and comprehensive connectivity options, making it the ideal solution for process control, inspection systems, and industrial weighing applications.

Multifunction Weighing Capabilities

The DFWXS delivers exceptional flexibility with multiple operating modes:

  • Weight conversion (lb, Newton, or programmable factor)
  • Hold and peak measurement (kg or Newton)
  • Animal weighing with motion compensation
  • Piece counting with high-resolution accuracy
  • Pieces and weight control (net, gross, take-away, on zero)
  • Percentage weighing for formulation work
  • Totalization in loading or unloading modes
  • Manual formulation and automatic tare functions

Technical Specification

Construction: AISI 304 stainless steel case with IP68 and IP69K protection rating ensures reliable operation in washdown and harsh industrial environments. Compact dimensions (170 × 200 × 70 mm) with swivel-tilt mounting bracket.

Display: 6-digit, 25mm LCD with RGB backlighting offering seven selectable colours and configurable intensity for optimal visibility in any lighting condition.

Interface: Mechanical 5-button smart keyboard designed for gloved operation and long service life.

Metrological Performance

Supports up to 16 load cells (350Ω) with single-range, multi-range, or multi-interval configurations. Approvable to Class III or IIII, up to 10,000e per range. Internal resolution reaches 3,000,000 points – ideal for high-resolution applications and precise part counting. Calibration options include theoretical calibration, silo/hopper calibration, and up to 8-point signal linearization.

EU Type Examination Certificate: 45501:2015

Connectivity

Standard ports include RS232 (RJ45/screw terminals and AMP connector with CTS), RS485 (Modbus RTU/ASCII), and internal USB-C. Optional expansion includes Ethernet TCP/IP with Modbus-TCP, WiFi, 2.4GHz RF, WPAN, analogue output (4–20mA or 0–10V), and digital I/O expansion (2 IN, 6 OUT).

Power Supply

Internal 110/230VAC power supply with rechargeable battery providing approximately 100 hours of operation. Configurable power-saving functions minimize consumption. Supplied with 1.5m power cord and standard EU plug (UK, AUS, US plugs available).

Multi-Language Print Support

Available in IT, EN, FR, DE, ES, PT, PL, RO, EL. Chinese and Greek require printer/labeler programming (CODEPG) at order.

Consult the technical manual for complete specifications, wiring diagrams, and configuration parameters.
Specification

TECHNICAL FEATURES

  • AISI 304 stainless steel case
  • IP68 and 69k protection rating
  • 6-digit 25mm LCD display with RGB backlighting (7 selectable colors)
  • Configurable light intensity
  • Mechanical 5-button “smart” keyboard
  • Swivel-tilt support bracket with mounting holes
  • Compact size: 170 x 200 x 70 mm.
  • Configurable power-saving functions, to minimize power consumption
  • Fully customisable weight string
  • Customisable weight reading command
  • Modbus ASCII/RTU

MEASUREMENT AND METROLOGICAL CHARACTERISTICS

  • Connectable to up to 16 load cells with 350Ω output resistance.
  • Single-range, multi-range or multi-interval approvable, Class III or IIII, up to 10,000e per range. Minimum signal 0.3µV/e.
  • Calibration up to Max. 800,000 divisions, for internal factory use; Minimum signal 0.01µV/e.
  • Internal resolution up to 3,000,000 points, ideal for high resolution applications and accurate part counting.
  • Calibration in Newtons (for internal use only).
  • Theoretical calibration.
  • Calibration for silos and hoppers.
  • Up to 8 points of signal linearisation.
  • Digital calibration and set-up from keyboard or PC with DINITOOLS.
  • Weighing recording approved for data exchange with PC and Management, via Alibi Memory option or D-LEGAL PC software.

SUPPLY

  • Internal 110/230VAC power supply and internal rechargeable battery, with approximately 100h battery life, with 1.5m power cord and standard EU plug (UK, AUS, US plug optional).
METROLOGICAL CERTIFICATIONS
  • EU Type Examination Certificate (45501:2015)
COMMUNICATION PORTS
  • RS232 on RJ45/screw terminals for connection to PC/printers Dini Argeo
  • RS232 on AMP connector, with CTS, for connection to Dini Argeo printers
  • RS485 on screw terminals for connection to PC/PLC, with Modbus RTU or ASCII protocol
  • Internal USB-C for connection to PC

Optionals:

  • Ethernet TCP/IP port (Includes Modbus-TCP protocol)
  • WiFi Port
  • RadioFrequency 2.4GHz (to be combined with carrier board)
  • Wireless Personal Area Network (to be combined with carrier board code CBD)
  • 4...20mA o 0...10V analog output (to be combined with carrier board)
  • Expansion board with 2 IN and 6 OUT digital
Downloads

Please click here for the Dini Argeo DFWXS IP68/IP69K Multifunctional Weight Indicator datasheet
