Dini Argeo DFWIECEX weight indicator IECEx and ATEX certified - Zones 1/21 and 2/22

Features:

• Hazardous Area Certified: Certified for use in gas (Ex ib) and dust (Ex tb [ib Db] [ia Da] IIIC T135°C Db) environments, with ATEX II2(2)G(1)G and II2(2)D(1)D approvals. Operates in temperatures from 0°C to +50°C. Direct connection to load receptors in Zone 0 and 20 is possible.
• Powerful Processing: Equipped with a state-of-the-art, high-speed X-Core CPU for fast and precise weighing operations.

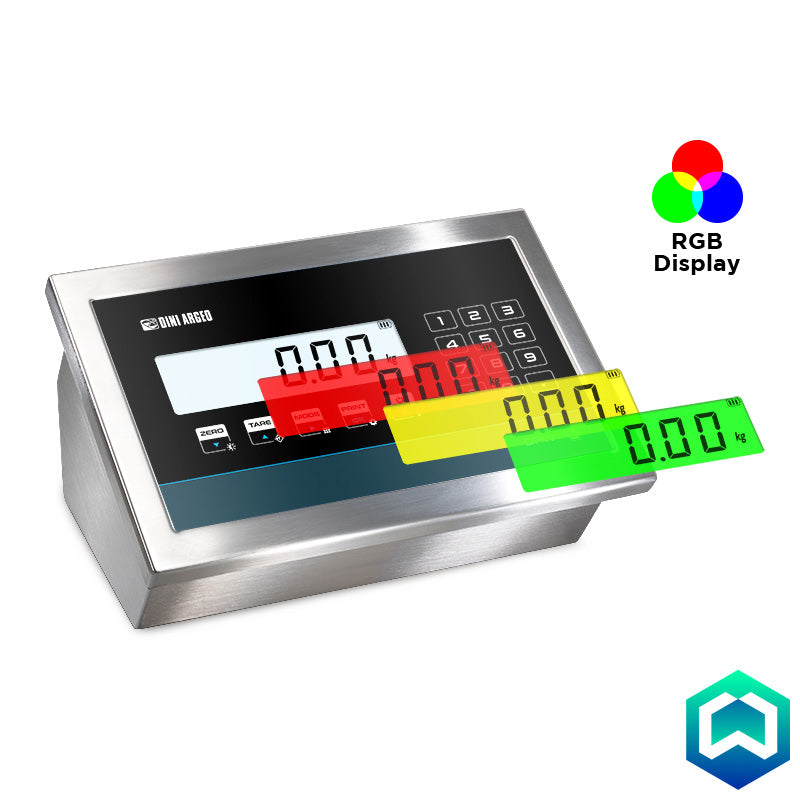

• High-Visibility Display: A high-contrast RGB backlit display with 6 digits of 25mm and adjustable brightness ensures excellent readability in various lighting conditions.

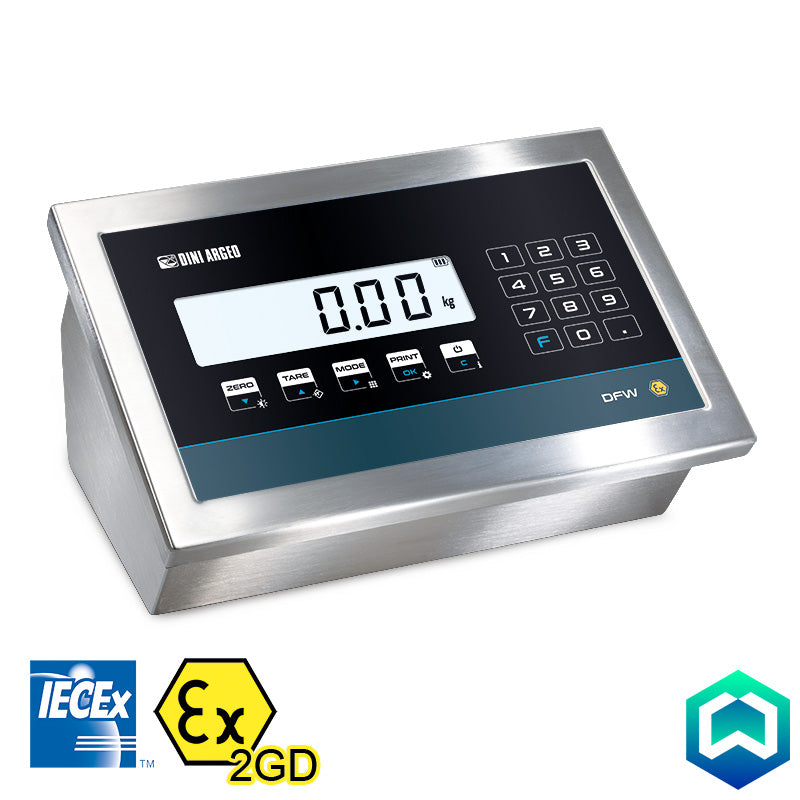

• Durable Construction: Housed in an AISI304 stainless steel casing with IP65 and IP68 certified protection against dust and water ingress. Features a 17-key waterproof keyboard.

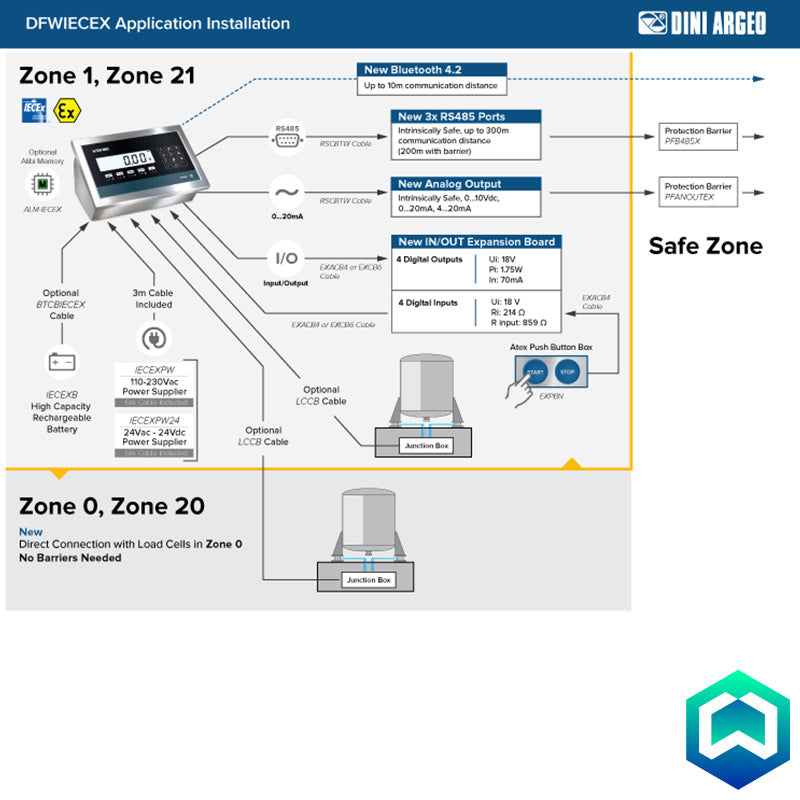

• Flexible Connectivity: Offers a comprehensive range of industrial interfaces, including intrinsically safe digital I/O, intrinsically safe analog output, up to 3 intrinsically safe bi-directional RS485 serial ports, and Bluetooth. One intrinsically safe RS485 port is standard for communication with PLCs, PCs, or other devices in hazardous zones.
• Multiple Load Cell Inputs: Accommodates 4 load cell inputs with selectable operating modes: single scale (one input) or 4-channel digital junction box (multiple inputs). Connects up to 8 load cells of 350 Ohm.
• High Precision: Offers a minimum measurement range of 0.01 µV/d for internal use. Metrological approval for 10,000e or multi-range 3x3000e @ 0.3µV/e.
• Power Supply Options: Flexible power options include a Dini Argeo 110-230 Vac, 24 Vac, or 24 Vdc power supply, or a Dini Argeo external stainless steel battery with approximately 40 hours of autonomy (connection/disconnection in the explosive zone and charging in a safe area). Note: Battery autonomy may vary based on the load receptor system, connected accessories, and backlight settings.
• Compact and Adaptable: Dimensions of 280x143x185 mm. Standard cable glands include 2 x PG9, with 1 PG supplied (not mounted) and provision for 2 additional optional PG9s.
• Digital I/O: An optional intrinsically safe digital card provides 4 inputs and 4 relay outputs. The inputs are rated at Ui: 18V, Ri: 214 Ω, and R input: 859 Ω. The relay outputs are rated at Ui: 18V, Pi: 1.75W, and In: 70mA. A dedicated intrinsically safe power supply terminal (6V, 300mA max) simplifies connection to ATEX-rated devices or push-button panels, such as the EXPHBN model, even from a safe area, eliminating the need for additional protection barriers.
• Analog Output: An optional intrinsically safe analog output is programmable for 0-10Vdc, 0-20mA, or 4-20mA signals. Direct transmission to a safe area is possible using the PFANOUTEX intrinsically safe protective barrier (specifically for 0-20mA or 4-20mA configurations).
• RS485 Serial Communication: Two optional intrinsically safe RS485 serial ports facilitate communication with repeaters and other devices. The PFB485EX protective barrier allows direct data transmission to a safe area.

Main Certifications:

• EU Type Examination Certificate (EN 45501:2015)
• OIML R76
• EN/IEC 60079-0
• EN/IEC 60079-11
• EN/IEC 60079-5
• EN/IEC 60079-31
• Certification according to ATEX directive 2014/34/EU and in compliance with IECEx certification scheme, group II category 2GD according to EN/IEC 60079-0, EN/IEC 60079-11, EN/IEC 60079-5, EN/IEC 60079-31.
