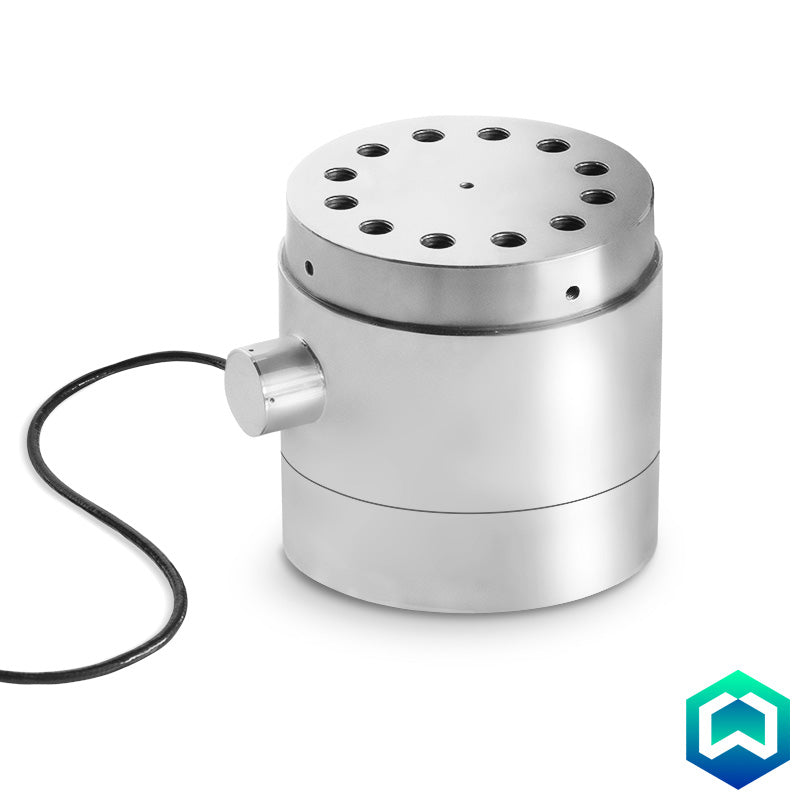

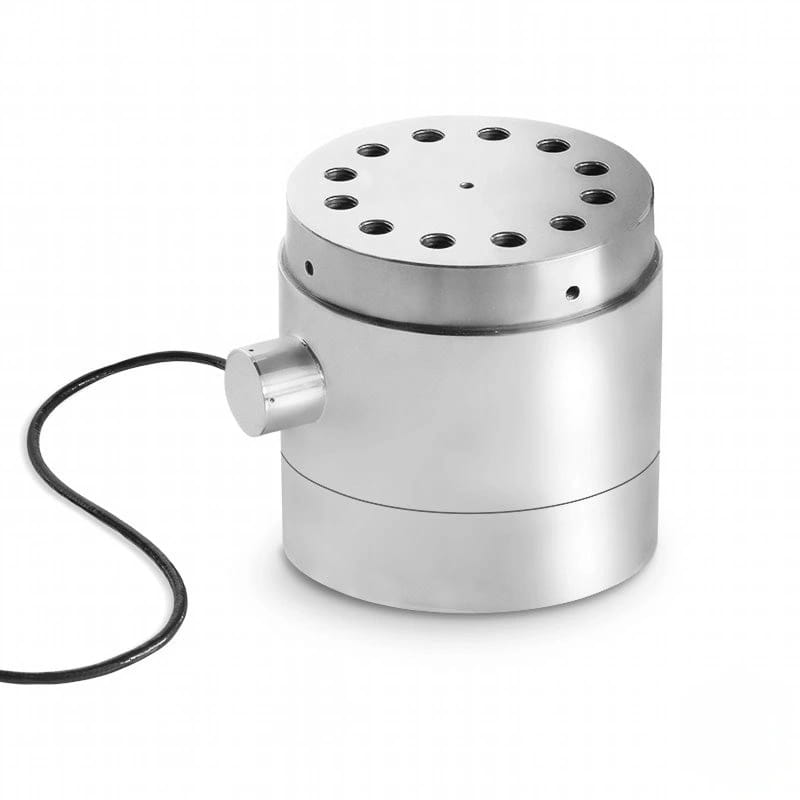

Dini Argeo CPH Stainless Steel Compression Load Cell

By Dini Argeo

The Dini Argeo CPH series stainless steel compression load cell is specifically designed for high capacity weighing, reaching up to an impressive 1000 tonnes. Engineered to deliver optimum weighing performance even in the harshest environments, the CPH model is the ideal solution for load control applications in large capacity silos and as a more accurate and reliable replacement for traditional level indicators.

Model
£1,634.00
Product Information

Features:

  • Ultra-High Capacity Range: Available in capacities from 50t, 100t, 250t, 500t, 800t, up to 1000t, catering to extreme heavy-duty weighing needs.
  • Great Resistance to Lateral Forces: Ensures reliable weighing even when subjected to off-axis loads in demanding industrial environments.
  • Stainless Steel Construction: Offers exceptional strength, durability, and corrosion resistance, guaranteeing long-lasting performance in harsh conditions.
  • IP67 Protection Rating: Provides excellent protection against dust and temporary immersion in water, ensuring reliable operation in challenging environments.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission. Cable length varies by capacity: 15 m for 50-500 t versions, 25 m for 800-1000 t versions.

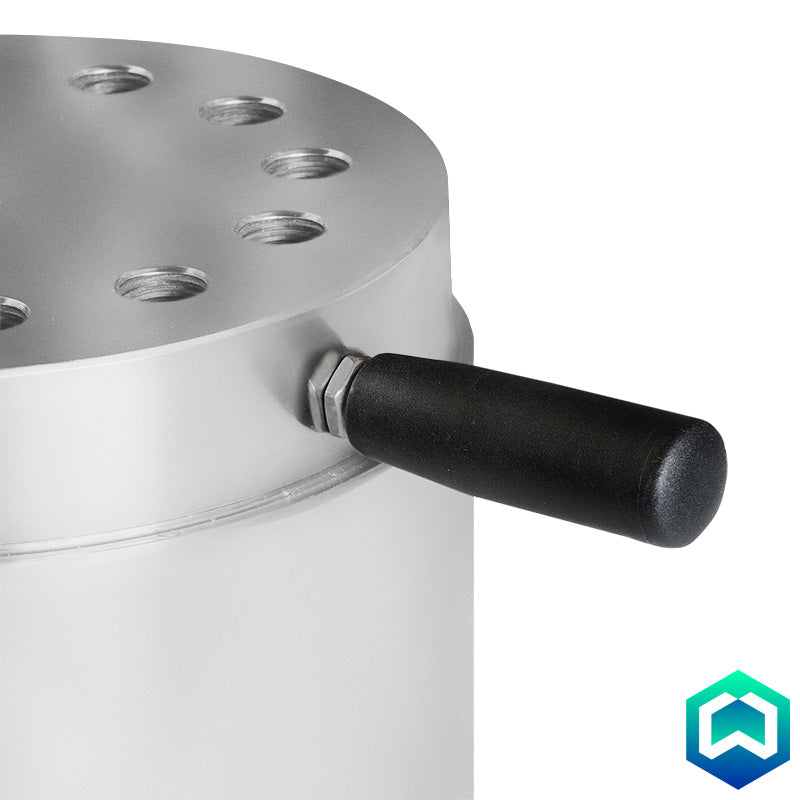

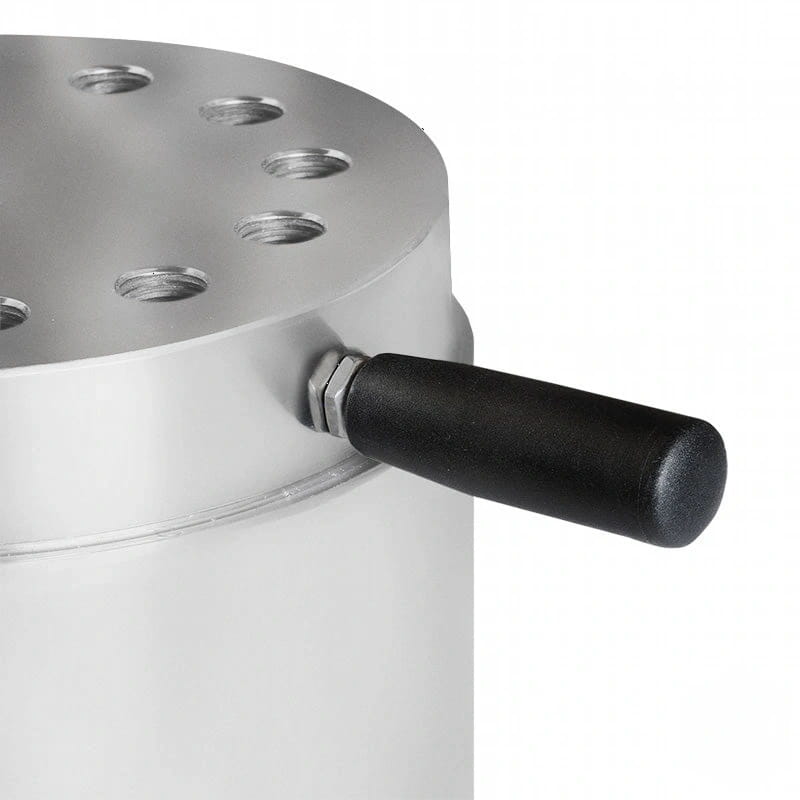

  • Removable Handles for Transporting the Load Cell: Facilitates safe and easy handling and installation of these high-capacity sensors.
Specification

Full Scale Output: 2mV/V ± 1%

Repeatability: 0,1% F.S.

Temperature effect on zero: 0,0014% F.S./°C

Temperature effect on full scale output: 0,0013% F.S./°C

Compensated Temperature Range: -10°C / +40°C

Operating Temperature Range: -30°C / +85°C

Storage Temperature Range: -30°C / +90°C

Non-linearity: 0,15% F.S.

Hysteresis: 0,15% F.S.

Creep error after 4 hours: 0,05% F.S.

Maximum tolerated excitation voltage: 15 Vdc

Input Resistance (capacity from 50 to 500 t): 1050 ± 20 Ohm

Output Resistance (capacity from 50 to 500 t): 1050 ± 20 Ohm

Input Resistance (capacity from 800 to 1.000 t): 1400 ± 20 Ohm

Output Resistance (capacity from 800 to 1.000 t): 1400 ± 20 Ohm

Zero Balance: ± 2% F.S.

Insulation Resistance: > 5.000 MOhm

Safe Overload: > 150% F.S.

Breaking load: > 300% F.S.

6-wire shielded cable, 5 mm diameter:
- 15 m long for the versions from 50 to 500 t
- 25 m long for the versions from 800 to 1.000 t
