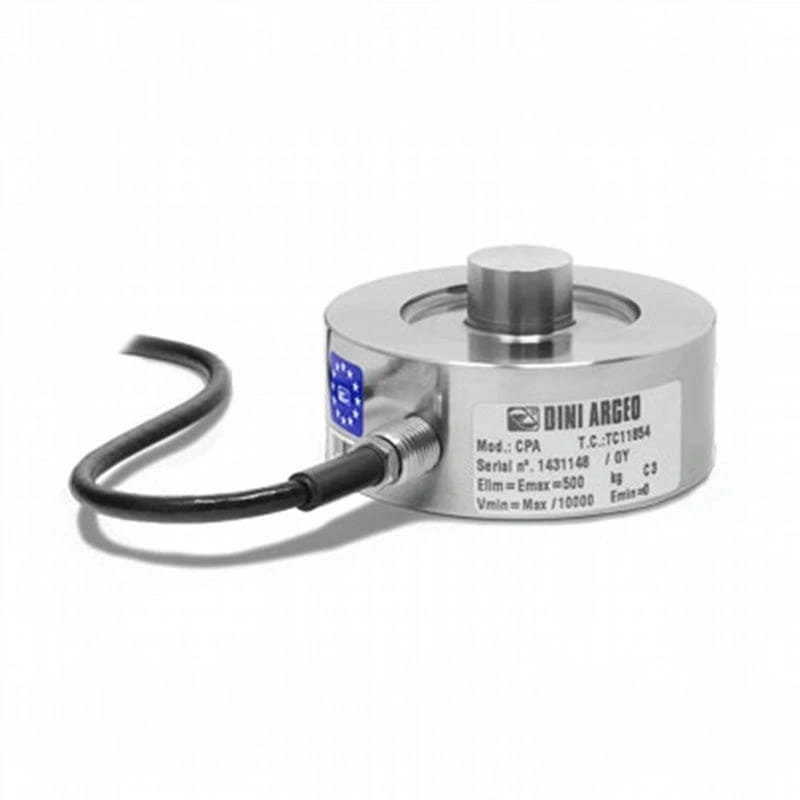

Dini Argeo CPA Low Profile Compression Load Cell

Dini Argeo CPA Low Profile Compression Load Cell

By Dini Argeo

The Dini Argeo CPA series low-profile compression load cell is engineered for extremely harsh environments and high temperatures, providing reliable and accurate weighing in demanding industrial applications. Constructed from stainless steel with IP68 protection, it offers exceptional durability and resilience.

Model
£257.00
Product Information

Features:

  • Wide Capacity Range: Available in capacities from 150kg to 50000kg, catering to a broad spectrum of heavy-duty weighing needs.
  • OIML C3 Class (from 2000 to 10000 kg): Ensures accurate and reliable weighing performance for approved applications within the specified capacity range.
  • Extreme Environment Suitability: Designed to withstand very harsh industrial conditions.
  • High Temperature Operation: Standard operating temperature range from -30°C to +60°C, with an optional extended range up to 200°C available upon request.
  • Low Profile Design: Minimises the installation height, making it suitable for space-constrained applications.
  • Great Resistance to Lateral Forces: Ensures accurate weighing even when subjected to off-axis loads.
  • Stainless Steel Construction: Offers excellent durability and corrosion resistance, making it suitable for demanding industrial environments.
  • IP68 Protection: Provides complete protection against dust and prolonged immersion in water, ensuring reliable operation in harsh and washdown-prone conditions.
  • Shielded Connection Cable (Up to 90°C): Ensures stable and accurate signal transmission, with a cable designed to withstand temperatures up to 90°C.
  • Long Connection Cable: Features a 10-meter long, 6-wire shielded cable for flexible installation.

Alternatively, for ATEX environments, shop the CPA ATEX Low Profile Compression Load Cell
Specification

Minimum load cell verification interval: Vmin = EMax / 10000

Full Scale Output: 2mV/V +/- 0,1% (1,3mV/V for CPA150)

Repeatability: 0,01% F.S.

Combined Error 0.025% Emax (≤10t), 0.05% Emax (≥20t)

Temperature effect on zero: 0,0014% /°C

Temperature effect on full scale output: 0,0013% /°C

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -30°C/+60°C
* Upon request up to 200°C

Creep error after 4 hours: 0,03% F.S.

Maximum tolerated excitation voltage: 15 Vdc

Input Resistance: 1100 ± 50 Ohm

Output Resistance: 1000 ± 10 Ohm

Zero Balance: ± 2% F.S.

Insulation Resistance: >5000 MOhm

Safe Overload: 150% F.S.

6-wire shielded cable, 5 mm diameter:
- 10 m long for the versions from 150 up to 10000kg
- 10 m long for the versions from 20000 to 50000kg
Downloads

Please click here for the Dini Argeo CPA Low Profile Compression Load Cell datasheet
