Dini Argeo ATEX STFC Tension Load Cell

Dini Argeo ATEX STFC Series Tension Load Cells

By Dini Argeo

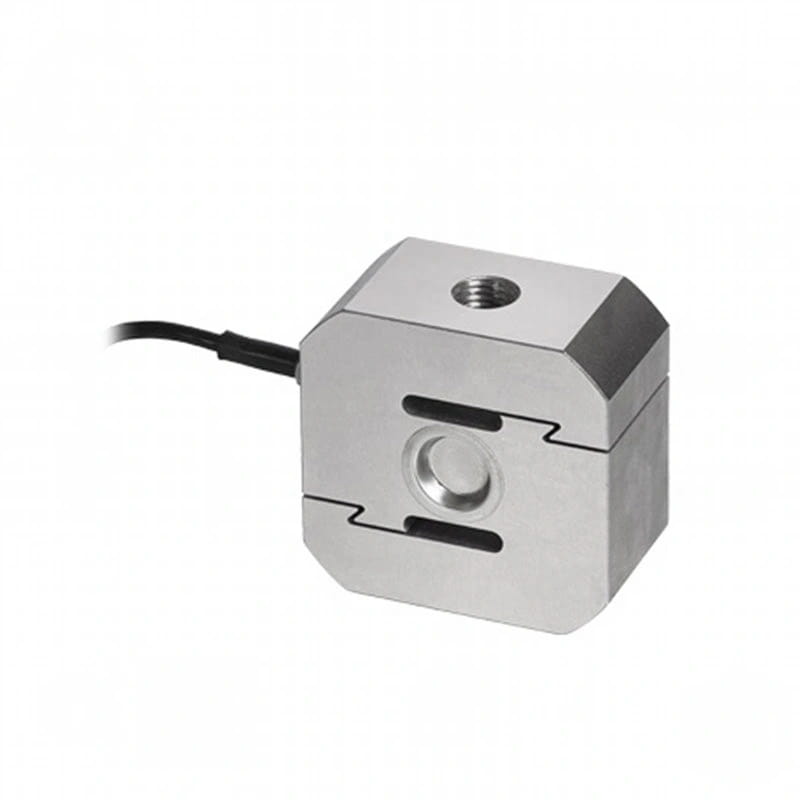

The Dini Argeo ATEX STFC nickel-plated steel tension load cell provides a reliable and accurate CE-M approved and ATEX certified solution for suspended weighing applications in potentially explosive environments. Its durable construction and ingress protection ensure dependable performance for hoppers, tanks, and similar suspended loads in hazardous zones.

Model
£327.00
Product Information

Features:

  • CE-M Approved for Suspended Weighing: Certified for use in legal-for-trade applications involving suspended loads.
  • C3 Precision Class: Ensures accurate and reliable weighing performance for approved applications.
  • Nickel-Plated Steel Construction: Offers enhanced durability and resistance to corrosion, making it suitable for various industrial environments.
  • IP67 Protection Level: Provides excellent protection against dust and temporary immersion in water, ensuring reliable operation in challenging conditions.
  • Wide Capacity Range: Available in capacities of 2000kg, 5000kg, and 10000kg, catering to various suspended weighing needs.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 5-meter length.
  • Test Certificate Available Upon Request: Compliance with performance specifications can be verified with a test certificate.

ATEX Version:

This model of the Dini Argeo STFC load cell is an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) Ga
  • ATEX II 1G Ex ia IIC TX (Ta -20÷+65°C) Ga
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) Da IP65
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+65°C) Da IP65

IMPORTANT NOTE: The ATEX certificate applies to the single load cell unit. For weighing systems utilising multiple load cells, it is necessary to order an individual ATEX certificate for each load cell within the system.
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC = 3000

Combined error: 0,02% of Full Scale Output (F.S.)

Full Scale Output: 2mV/V +/- 0,1%

Temperature effect on zero: 0,0013% /°C

Temperature effect on full scale output: 0,0014% /°C

Compensated Temperature Range: –10°C/+40°C

Operating Temperature Range: -20°C/+60°C

Creep error after 4 hours: 0,03% F.S.

Maximum tolerated excitation voltage: 10 VDC

Input Resistance: 1100 Ohm

Output Resistance: 1000 Ohm

Zero balance: +/-1% F.S.

Insulation Resistance: >5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 300% F.S.

4-wire shielded cable, 5m long, 5mm diameter
Downloads

Please click here for the Dini Argeo ATEX STFC Tension Load Cell datasheet
