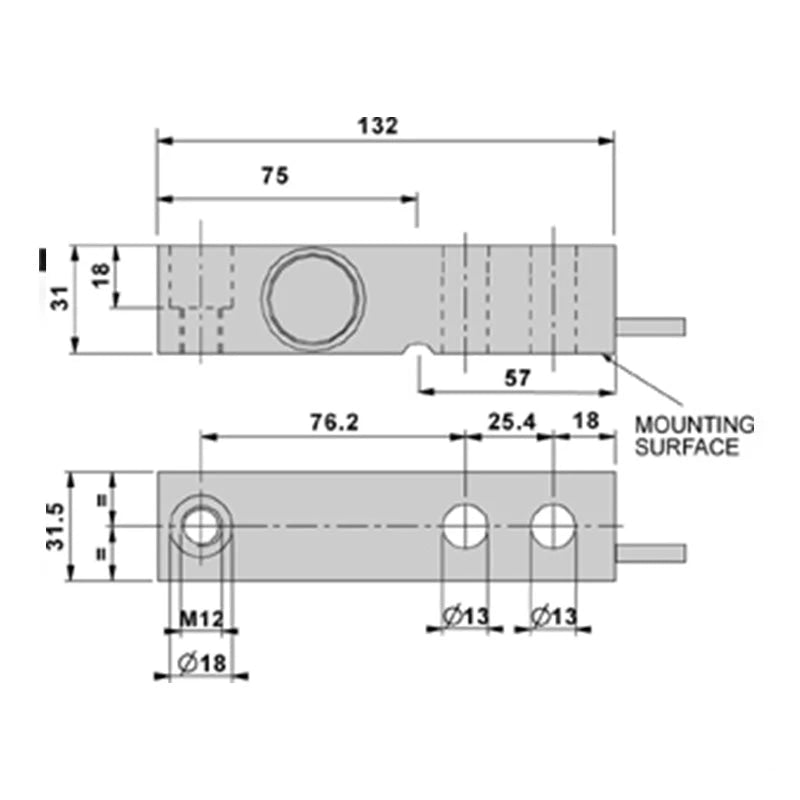

Dini Argeo SBK-1KL IP68 Stainless Steel Shear Beam Load Cell - Diagram

Dini Argeo ATEX SBK-1KL IP68 Stainless Steel Shear Beam Load Cell (300kg - 2000kg)

By Dini Argeo

The Dini Argeo SBK-1KL IP68 stainless steel shear beam load cell with ATEX certification provides a reliable, accurate, and low-power weighing solution specifically designed for mobile and battery-operated applications within potentially explosive industrial environments. Its stainless steel construction and IP68 protection ensure long-lasting performance even in demanding and hazardous conditions.

Model
£248.00
Product Information

Features:

  • OIML R60 C3 Precision Class: Provides accurate and reliable weighing performance for approved applications.
  • Stainless Steel Construction: Offers excellent durability and resistance to corrosion, making it suitable for demanding industrial environments.
  • IP68 Protection: Provides complete protection against dust and prolonged immersion in water, ensuring reliable operation in harsh and washdown-prone environments.
  • Low Power Consumption: Features a 1000 Ohm output resistance, making it ideal for battery-powered mobile weighing applications by minimising power draw.
  • Wide Capacity Range: Available in capacities of 300 kg, 500 kg, 1000 kg, and 2000 kg, catering to a broad range of medium to heavy-duty weighing needs in mobile and low-power setups.
  • Ideal for Mobile Multi-Cell Systems: Specifically designed for building CE-M approved scales utilising 4 load cells in battery-powered applications.
  • Versatile Applications: Suitable for weighing tanks, hoppers, and other industrial structures in mobile or low-power scenarios with the use of relevant accessories.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 5-meter length.
  • OIML and Test Certificates Available: Compliance with metrology standards can be verified with certificates available upon request.

ATEX Version:

This model of the Dini Argeo SBK-1KL shear beam load cell is an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) Ga
  • ATEX II 1G Ex ia IIC TX (Ta -20÷+65°C) Ga
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) Da IP65
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+65°C) Da IP65

IMPORTANT NOTE: The ATEX certificate applies to the single load cell unit. For weighing systems utilising multiple load cells, it is necessary to order an individual ATEX certificate for each load cell within the system.
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC = 3000

Combined error: 0,017% of Full Scale Output (F.S.)

Full Scale Output: 2mV/V +/- 0.1%

Temperature effect on zero: 0,0014% /°C

Temperature effect on full scale output: 0,0014% /°C

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -20°C/+60°C

Creep error after 30 minutes: 0,024% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 1100 ± 50 Ohm

Output Resistance: 1000 ± 10 Ohm

Insulation Resistance: >5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 200% F.S.

6-wire shielded cable, 5m long, 5 mm diameter
Downloads

Please click here for the Dini Argeo ATEX SBK-1KL IP68 Stainless Steel Shear Beam Load Cell datasheet
