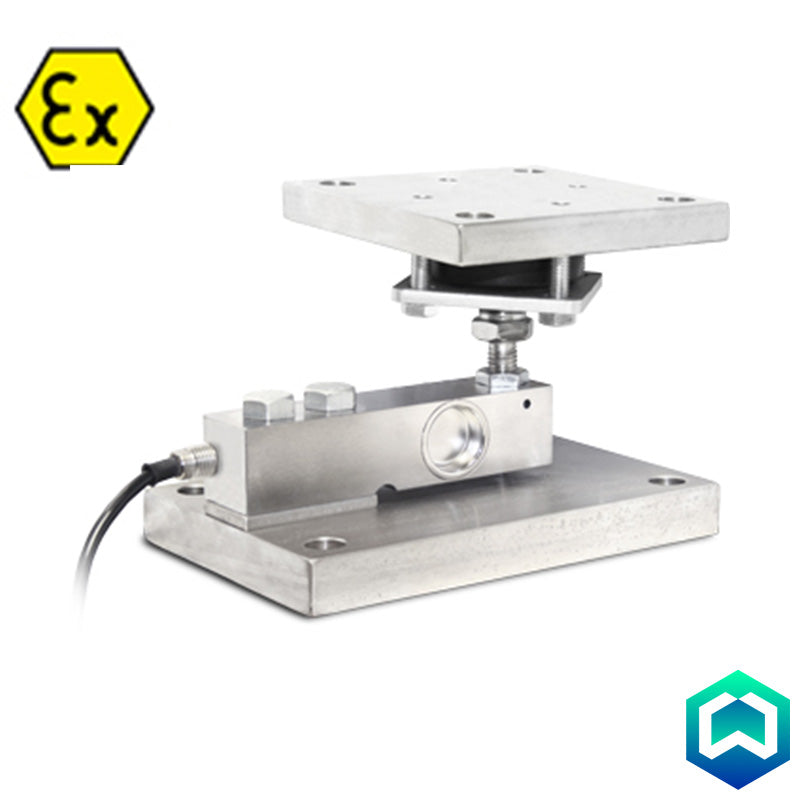

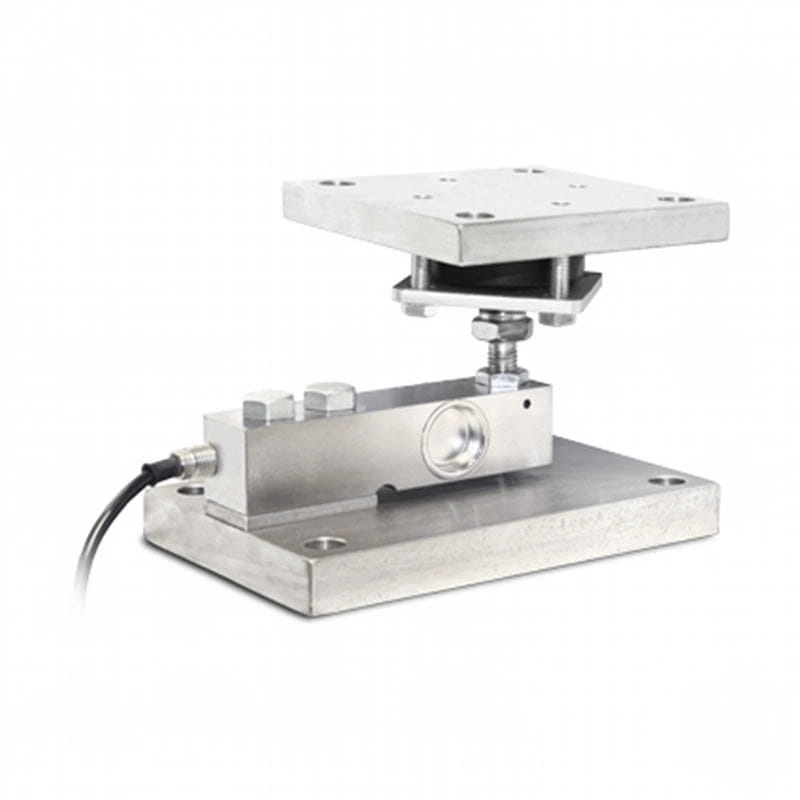

Dini Argeo ATEX KSBN Galvanised Steel Mounting Kit for SBT/SBK/SBX Shear Beam Load Cells

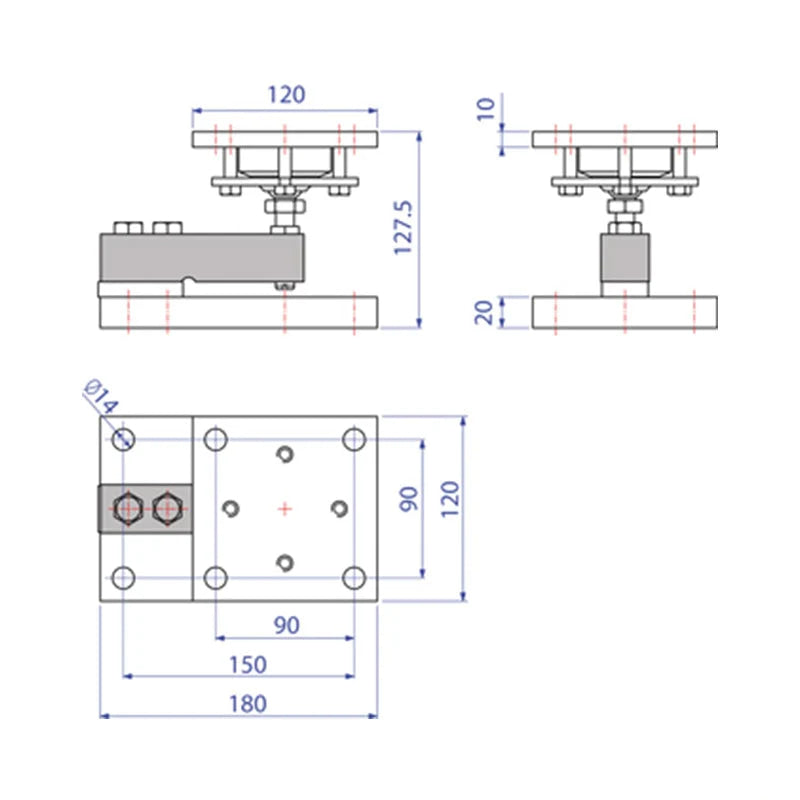

Dini Argeo KSBN Galvanised Steel Mounting Kit for SBT/SBK/SBX Shear Beam Load Cells - Diagram

Dini Argeo ATEX KSBN Galvanised Steel Mounting Kit for SBT/SBK/SBX Shear Beam Load Cells

By Dini Argeo

The Dini Argeo ATEX KSBN series mounting kit offers a cost-effective and reliable solution for installing SBT, SBK, and SBX series shear beam load cells with capacities up to 2500 kg. Constructed from galvanised steel, this kit is well-suited for weighing hoppers, tanks, platforms, and other industrial structures in potentially explosive environments.

£293.00
Product Information

Features:

  • Manufactured in Galvanised Steel: Provides good resistance to corrosion for reliable performance in various industrial environments.
  • Easy and Fast Assembly: Designed for quick and straightforward installation, reducing setup time.
  • Upper Plate with Spherical Joint: Ensures excellent measuring accuracy by allowing for self-alignment and minimising the effects of non-uniform load distribution.
  • Height Adjustment: Features a mechanism for height adjustment, enabling correct leveling of the structure to be weighed.
  • ATEX Version: Supplied in an ATEX certified version suitable for use in hazardous areas classified as zones 1/21 and 2/22.
Specification

Material: Galvanised Steel

Load Cell Compatibility: SBT/SBX/SBK Shear Beam Load Cells up to 2500 kg

ATEX Certification: Zones 1/22, 2/22
Downloads

Please click here for the Dini Argeo ATEX KSBN Galvanised Steel Mounting Kit for SBT/SBK/SBX Shear Beam Load Cells datasheet
