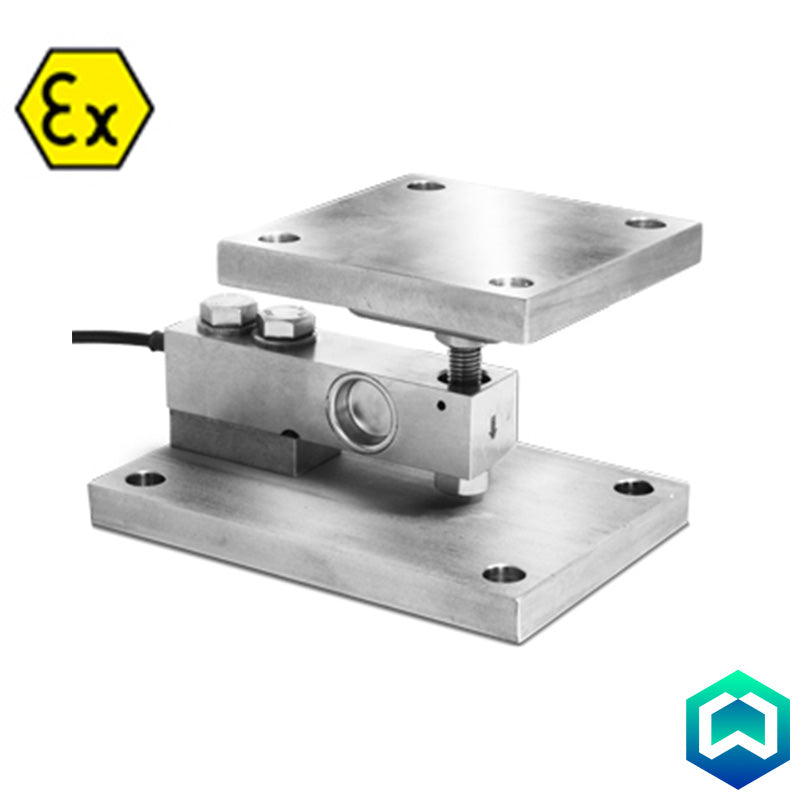

Dini Argeo ATEX KSB Stainless Steel Mounting Kit - Diagram

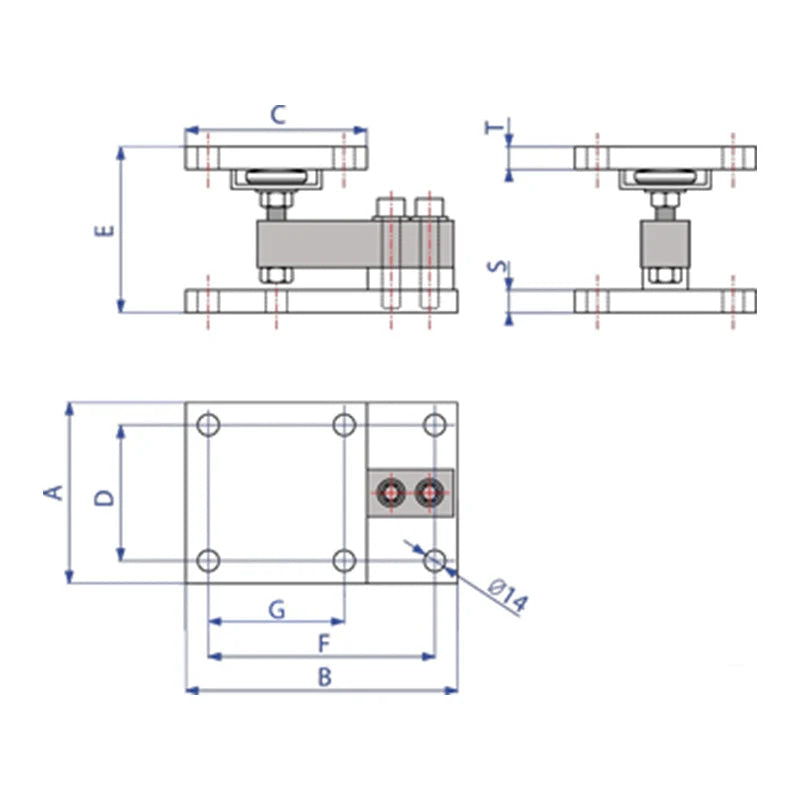

Dini Argeo KSB Stainless Steel Mounting Kit - Diagram

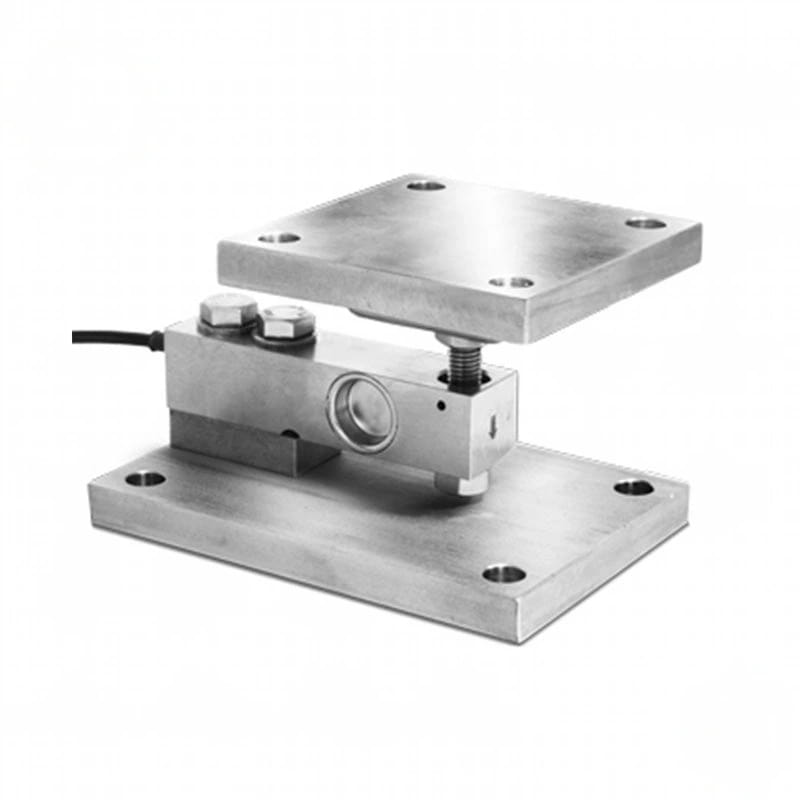

Dini Argeo ATEX KSB Stainless Steel Mounting Kit for SBX/SBK Shear Beam Load Cells

By Dini Argeo

The Dini Argeo ATEX KSB series mounting kit is specifically designed to facilitate the installation of SBX and SBK series shear beam load cells with capacities ranging from 3000 kg to 5000 kg in potentially explosive atmospheres. Constructed entirely from AISI 304 stainless steel, this mounting kit ensures durability and resistance to corrosion, making it ideal for weighing hoppers, tanks, platforms, and other industrial structures.

£365.00
Product Information

Features:

  • AISI 304 Stainless Steel Construction: Provides excellent resistance to corrosion and ensures long-lasting performance in various industrial environments.
  • Simple and Quick Assembly: Designed for easy and efficient installation, reducing setup time.
  • Articulated Upper Plate: Mechanically compensates for thermal expansions and structural flexions, ensuring accurate weighing even when movements occur.
  • Adjustable Height: Features a hinge mechanism that allows for precise height adjustment, enabling optimal leveling of the structure to be weighed.
  • Maintains Maximum Load Cell Precision: The design of the kit ensures the load cell operates correctly, guaranteeing the highest possible weighing accuracy.
  • ATEX: Version: ATEX certified version suitable for use in hazardous areas classified as zones 1/21 and 2/22.
Specification

Material: AISI 304 stainless steel

Load Cell Compatibility: SBX/SBK Shear Beam Load Cells

Compatible Load Cell Capacities: 300 kg to 2500 kg

ATEX Certification: Zones 1/22, 2/22
Downloads

Please click here for the Dini Argeo ATEX KSB Stainless Steel Shear Beam Load Cell Mounting Kit datasheet
