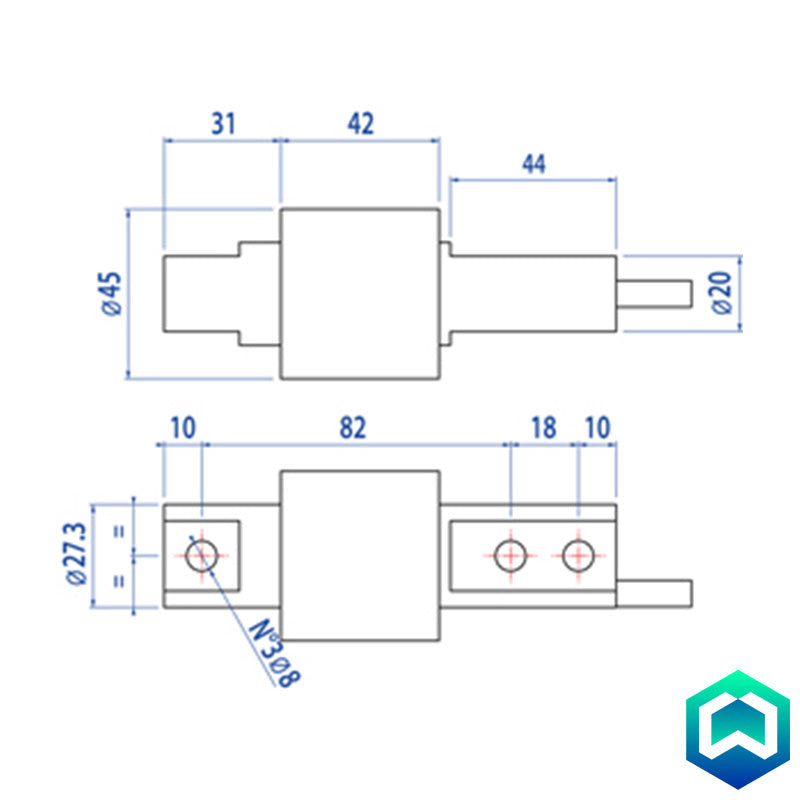

Dini Argeo FXD Bending Beam Load Cell C3 Class - Diagram

Dini Argeo ATEX FXD Bending Beam Load Cell C3 Class

By Dini Argeo

The Dini Argeo ATEX FXD series bending beam load cell, C3 precision class, with ATEX certification, is a high-performance solution designed for approved weighing applications, automatic systems, and precise dosage control within potentially explosive atmospheres. Its stainless steel construction and IP68 protection ensure reliable and safe operation in demanding and hazardous environments.

Model
£213.00
Product Information

Features:

  • OIML R60 C3 Precision Class: Provides superior accuracy and reliability for approved weighing applications.
  • Stainless Steel Construction: Offers excellent durability and resistance to corrosion, making it ideal for demanding industrial environments.
  • IP68 Protection: Provides complete protection against dust and prolonged immersion in water, ensuring reliable operation in harsh and washdown-prone environments.
  • Optimised Capacity Range: Specifically designed for approved weighing applications within the 100 kg to 500 kg capacity range. While also available in lower capacities (10, 20, and 50 kg), its enhanced accuracy specifications make it particularly well-suited for the higher end of its range.
  • High Accuracy Performance: Features a Full Scale Output accuracy of ± 0.1%, a Combined Error of just 0.012% F.S. and excellent Non-Repeatability of 0.01% F.S. for precise measurements.
  • Low Temperature Sensitivity: Exhibits minimal temperature effects on both zero and full-scale output (+/- 0.02% F.S. / 10°C), ensuring stable readings across a wider temperature range.
  • Low Creep Error: Excellent creep performance (+/- 0.012% F.S. after 30 minutes) ensures stable and accurate readings over time.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 3-meter length.
  • OIML and Test Certificates Available: Compliance with metrology standards can be verified with certificates available upon request.

ATEX Version:

This model of the Dini Argeo FXD bending beam load cell is an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) Ga
  • ATEX II 1G Ex ia IIC TX (Ta -20÷+65°C) Ga
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) Da IP65
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+65°C) Da IP65
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC= 3000

Full Scale Output: 2 mV/V ± 0,1%

Combined error: 0,012% of Full Scale Output (F.S.)

Non-Repeatability: 0,01% F.S.

Temperature effect on zero: +/- 0,02% F.S. / 10°C

Temperature effect on full scale output: +/- 0,02% F.S. / 10°C

Compensated Temperature Range: –10°C/+50°C

Operating Temperature Range: –20°C/+60°C

Creep error after 30 minutes +/- 0,012% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 385 ± 10 Ohm

Output Resistance: 350 ± 3 Ohm

Insulation Resistance: > 5000 MOhm

Safe Overload: 120% F.S.

Ultimate Overload: 150% F.S.

Nominal displacement: < 0,4 mm

4-wire shielded cable, 3m long, 5mm diameter.
Downloads

Please click here for the Dini Argeo ATEX FXD Bending Beam Load Cell datasheet
