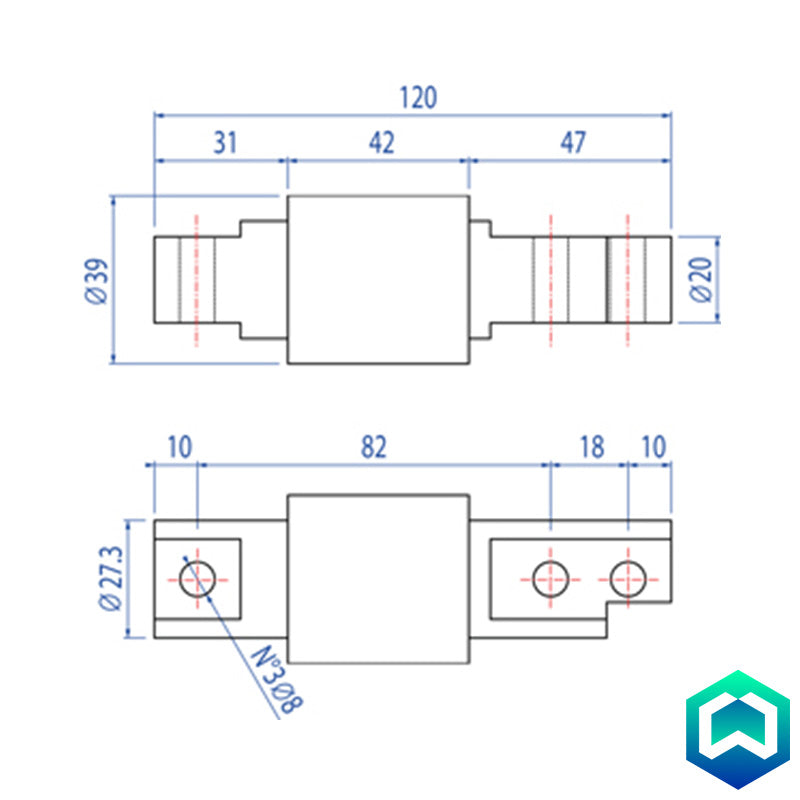

Dini Argeo FXC Bending Beam Load Cell - Diagram

Dini Argeo ATEX FXC Bending Beam Load Cell C6 Class

By Dini Argeo

The Dini Argeo ATEX FXC series bending beam load cell, C6 precision class, with ATEX certification, is a robust and accurate solution for approved weighing applications, automatic systems, and dosage control within potentially explosive atmospheres. Its stainless steel construction and IP68 protection ensure reliable performance in demanding and hazardous environments.

Model
£390.00
Product Information

Features:

  • OIML R60 C6 Precision Class: Provides accurate and reliable weighing performance for approved applications.
  • Stainless Steel Construction: Offers excellent durability and resistance to corrosion, making it suitable for demanding industrial environments.
  • IP68 Protection: Provides complete protection against dust and prolonged immersion in water, ensuring reliable operation in harsh conditions.
  • Wide Capacity Range: Available in capacities from 20 kg to 200 kg, catering to a broad range of weighing needs.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a 3-meter length.
  • OIML and Test Certificates Available: Compliance with metrology standards can be verified with certificates available upon request.

ATEX Version:

This model of the Dini Argeo FXC bending beam load cell is an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) Ga
  • ATEX II 1G Ex ia IIC TX (Ta -20÷+65°C) Ga
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) Da IP65
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+65°C) Da IP65

IMPORTANT NOTE: The ATEX certificate applies to the single load cell unit. For weighing systems utilising multiple load cells, it is necessary to order an individual ATEX certificate for each load cell within the system.
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Maximum number of verification intervals: nLC= 6000

Full Scale Output: 2mV/V +/- 1%

Combined error: 0,008% of Full Scale Output (F.S.)

Temperature effect on zero: +/- 0,0014% /°C

Temperature effect on full scale output: +/- 0,0007% /°C

Compensated Temperature Range: –10°C/+40°C

Operating Temperature Range: –20°C/+60°C

Creep error after 30 minutes +/- 0,012% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 385 ± 20 Ohm

Output Resistance: 350 ± 5 Ohm

Insulation Resistance: > 5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 200% F.S.

4-wire shielded cable, 3m long, 4mm diameter.
