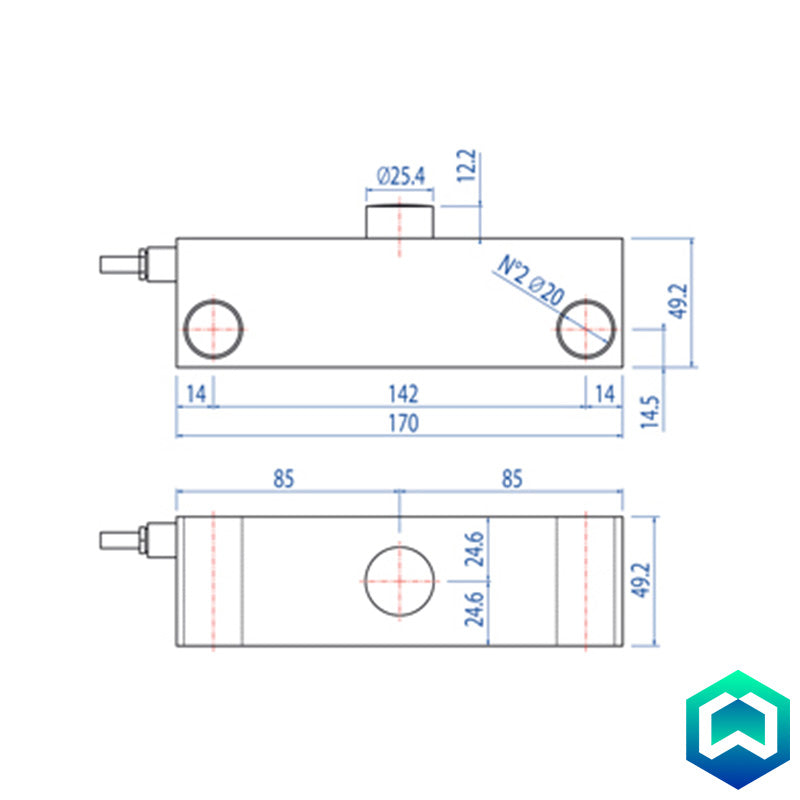

Dini Argeo DSBI Double Shear Beam Load Cell - Diagram

Dini Argeo ATEX DSBI Double Shear Beam Stainless Steel Load Cells

By Dini Argeo

The Dini Argeo stainless steel double shear beam load cell with ATEX certification provides a highly accurate and robust solution for demanding high-capacity weighing applications within potentially explosive industrial environments. Its 17-4 PH stainless steel construction, IP68 protection, and C4 precision class ensure reliable and safe performance even in challenging and hazardous conditions.

Model
£405.00
Product Information

Features:

  • OIML R60 C4 Precision Class: Provides high accuracy (C4) for reliable performance in high-capacity weighing applications.
  • 17-4 PH Stainless Steel Construction: Offers exceptional strength, durability, and corrosion resistance, ensuring long-lasting performance in harsh industrial environments.
  • IP68 Protection: Provides complete protection against dust and prolonged immersion in water, ensuring reliable operation in challenging and washdown-prone conditions.
  • High Capacity Range: Available in high capacities of 10000kg, 20000kg, and 30000kg, suitable for heavy-duty weighing tasks.
  • Ideal for High Capacity Scales: Specifically designed for building CE-M approved high-capacity weighing scales.
  • Versatile Applications: Suitable for weighing large tanks, hoppers, and other high-capacity industrial structures with the use of relevant accessories.
  • High Accuracy Even with Structural Expansion: Engineered to maintain high accuracy even with the expansion and contraction of weighing structures due to temperature variations or loading.
  • Shielded Connection Cable: Minimises electromagnetic interference for stable and accurate signal transmission over a long 15-meter length.
  • Test Certificate Available: Compliance with performance specifications can be verified with a test certificate available upon request.

ATEX Version:

This model of the Dini Argeo DSBI shear beam load cell is an ATEX certified version, making it suitable for use in hazardous areas with the following protection methods according to the CCATEX certificate:

  • ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) Ga
  • ATEX II 1G Ex ia IIC TX (Ta -20÷+65°C) Ga
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) Da IP65
  • ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+65°C) Da IP65

IMPORTANT NOTE: The ATEX certificate applies to the single load cell unit. For weighing systems utilising multiple load cells, it is necessary to order an individual ATEX certificate for each load cell within the system.
Specification

Minimum load cell verification interval: Vmin = EMax / 10.000

Combined error 0,03% of Full Scale Output (F.S.)

Full Scale Output: 2mV/V +/- 0,1%

Temperature effect on zero: 0,00116% /°C

Temperature effect on full scale output: 0,00097% /°C

Compensated Temperature Range: -10°C/+40°C

Operating Temperature Range: -30°C/+85°C

Creep error after 30 minutes: <0,02% F.S.

Maximum tolerated excitation voltage: 15 VDC

Input Resistance: 700 ± 7 Ohm

Output Resistance: 700 ± 7 Ohm

Zero Balance: +/- 1% F.S.

Insulation Resistance: >5000 MOhm

Safe Overload: 150% F.S.

Ultimate Overload: 300% F.S.

6-wire shielded cable, 15m long, 5mm diameter.
Downloads

Please click here for the Dini Argeo ATEX DSBI Double Shear Beam Stainless Steel Load Cells datasheet
