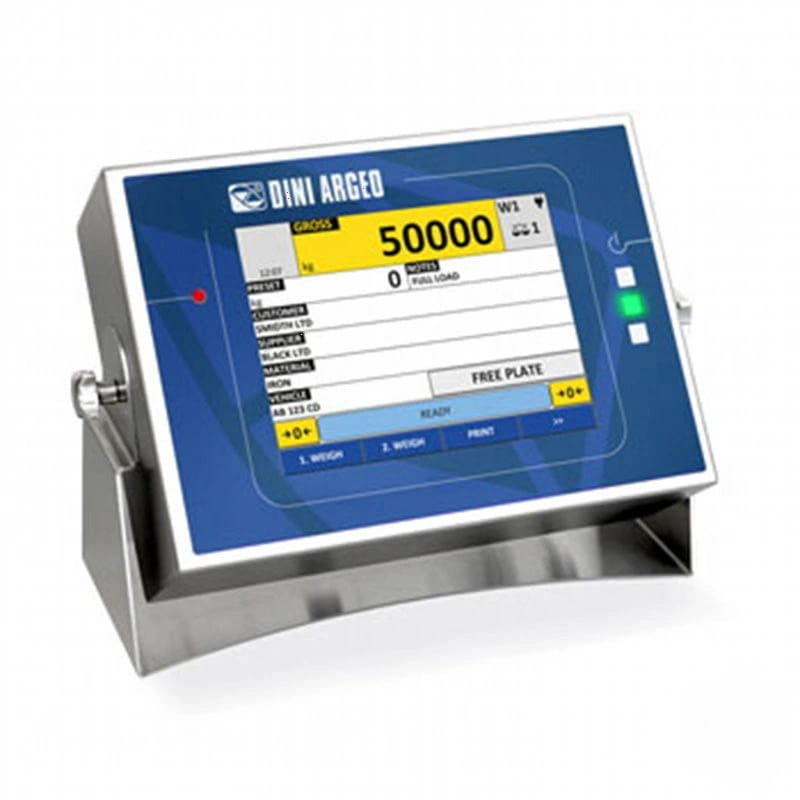

Dini Argeo 3590EGT8 Indicator - Front

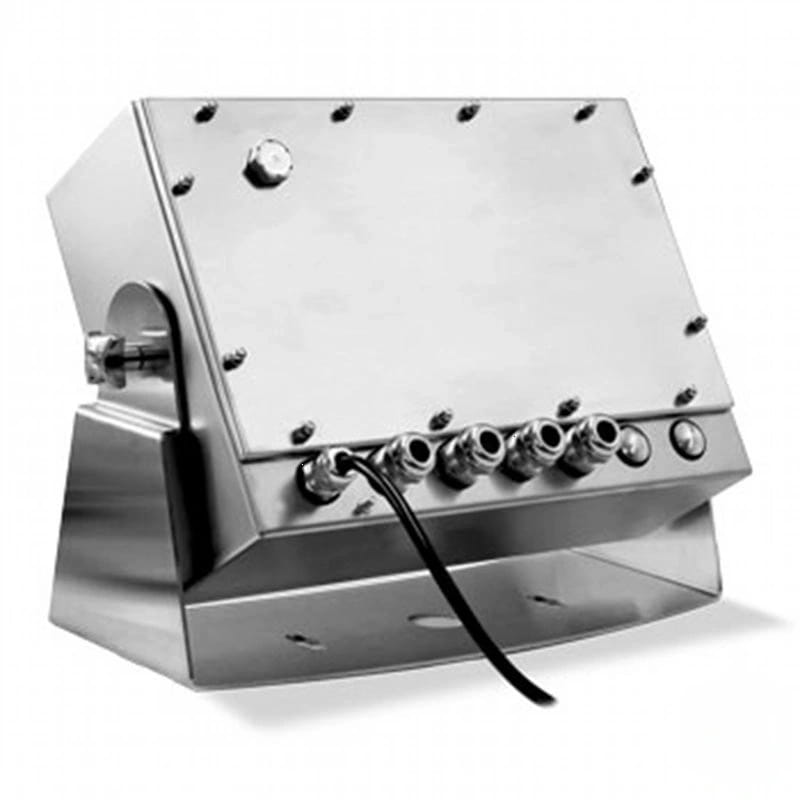

Dini Argeo 3590EGT8 Indicator - Back
Dini Argeo 3590EGT8 Indicator - Indicator Lights

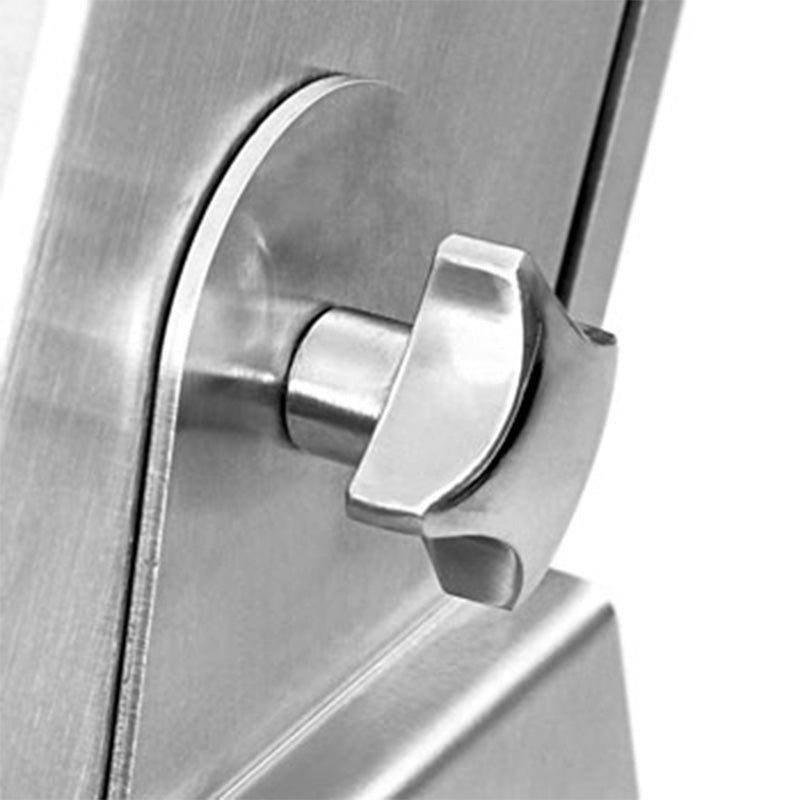

Dini Argeo 3590EGT8 Indicator - Adjustable Incline

Dini Argeo 3590EGT8 8 inch Touch Screen Weigh Indicator

By Dini Argeo

The Dini Argeo 3590EGT8 weight indicator features a vibrant 8" touchscreen display housed in a rugged, adjustable IP68 enclosure with a front-panel LED indicator for clear operational status. Standard Ethernet connectivity and pre-loaded weighing programs offer immediate functionality, while a built-in development environment with debugger and PC tools empowers custom application creation. Fully customisable screen layouts enhance usability by displaying critical weighing data, database records, and custom text. Certified CE-M (OIML R76/EN 45501, R-51, R-61, MID for dynamic checkweigher AWI).

Product Information

Features:

  • 8-inch Touchscreen Display: The large, backlit touchscreen display ensures easy visibility and intuitive operation, even in challenging lighting conditions.
  • IP68 Protection: The rugged IP68-rated housing provides superior protection against dust, water, and harsh environments, ensuring reliable performance in demanding industrial settings.
  • Customisable Software: The 3590EGT8 offers a highly customisable software environment, allowing users to create tailored weighing solutions for specific applications. The included development environment enables the creation of custom programs and integration with other systems.
  • Connectivity Options: The indicator features an integrated Ethernet port for network connectivity, as well as options for connecting to printers, labelers, and other devices.
  • High-Precision Weighing: With a 24-bit A/D converter and support for up to 16 analog load cells, the 3590EGT8 delivers accurate and reliable weighing results.
  • Versatile Applications: The indicator's versatility makes it suitable for a wide range of industrial applications, including manufacturing, warehousing, and laboratory settings.
  • Adjustable Viewing Angle: The adjustable viewing angle brackets allow for optimal positioning of the indicator in various environments.
  • LED Control Light: The integrated LED control light provides visual feedback on the indicator's status.
  • Multilingual Support: The 3590EGT8 supports multiple languages, including Italian, English, German, French, and Spanish. Users can also create custom translations using the "CUSTOM LANGUAGE TOOL."
  • Real-Time Clock and Data Storage: The indicator features a real-time clock and permanent data storage for accurate timekeeping and data retention.
  • Alibi Memory: The built-in alibi memory ensures data integrity and compliance with regulatory requirements.
  • Optional Micro SD Slot: The optional micro SD slot allows for storage of logos and other data.

Certifications:

  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • OIML R51 - MID
  • OIML R134 (AF09)
  • Australian legal for trade certificate of approval (NMI S788)
Specification

Dimension: 328x243x129mm

Display: 8 inches (160x120mm) resistive backlit color touch screen graphic display. Suitable for use with gloves.

Material: Stainless steel case with adjustable inclination and IP68 protection.

Power Requirements: 110-240 Vac power supply or external rechargeable battery pack (optional).

I/O Section:

  • 1 internal Ethernet port as standard, to connect to the company network.
  • 1 RS232 serial port on RJ45 connector (if activated, it deactivates the Ethernet port) for connection to printer, PC, PLC, radio module and optional interfaces.
  • 1 RS232 serial port on screw terminals for connection to printer, PC, radio module and optional interfaces.
  • 1 RS232/RS485 serial port on screw terminals, for connection to weight repeater, remote scale, badge reader or digital load cells.
  • 4 optoisolated outputs, expandable up to 16 with optional board.
  • 2 optoisolated inputs, expandable up to 8 with optional board.
  • Modbus RTU Interface.
Downloads

Please click here for the 3590EGT8 Touch Screen Indicator Datasheet
