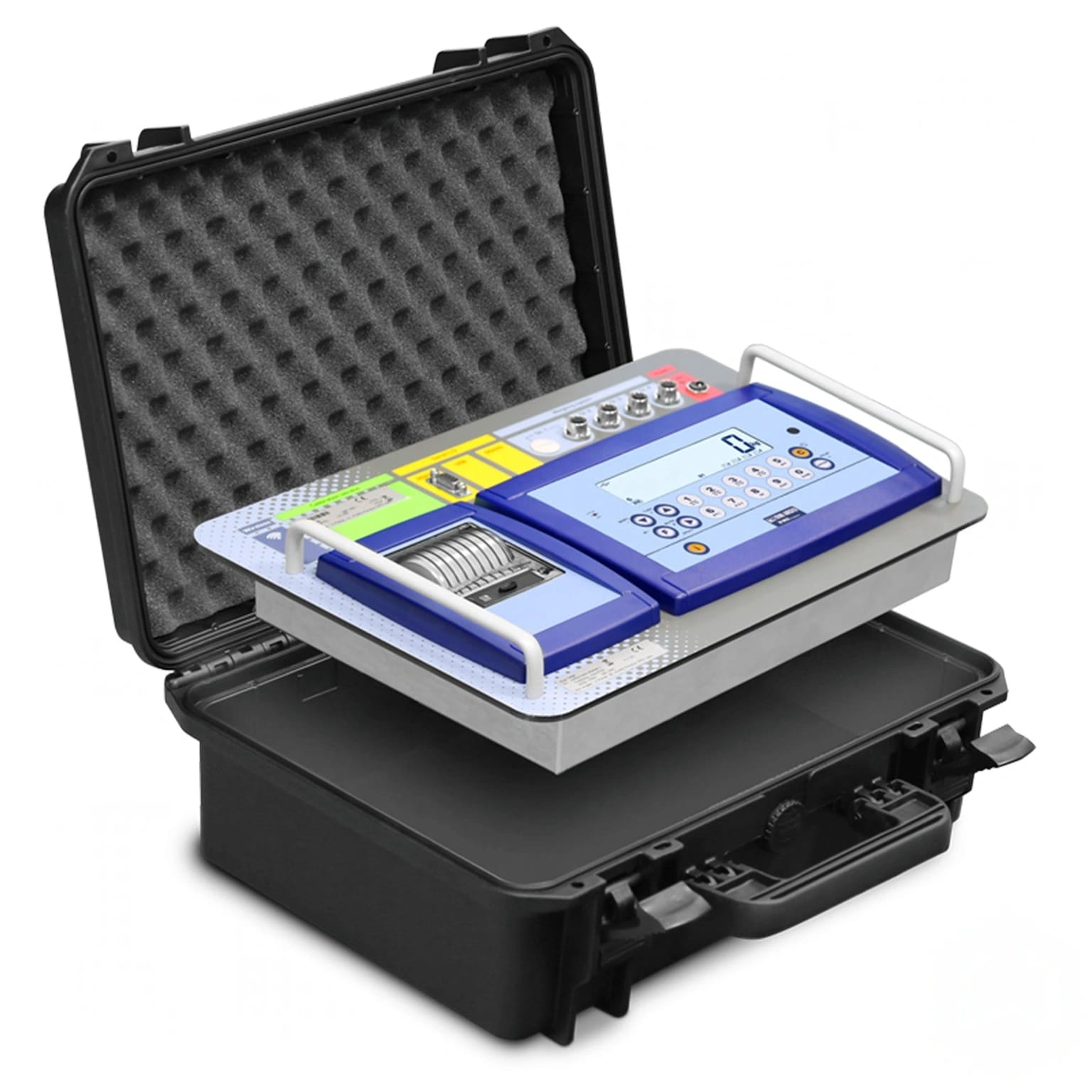

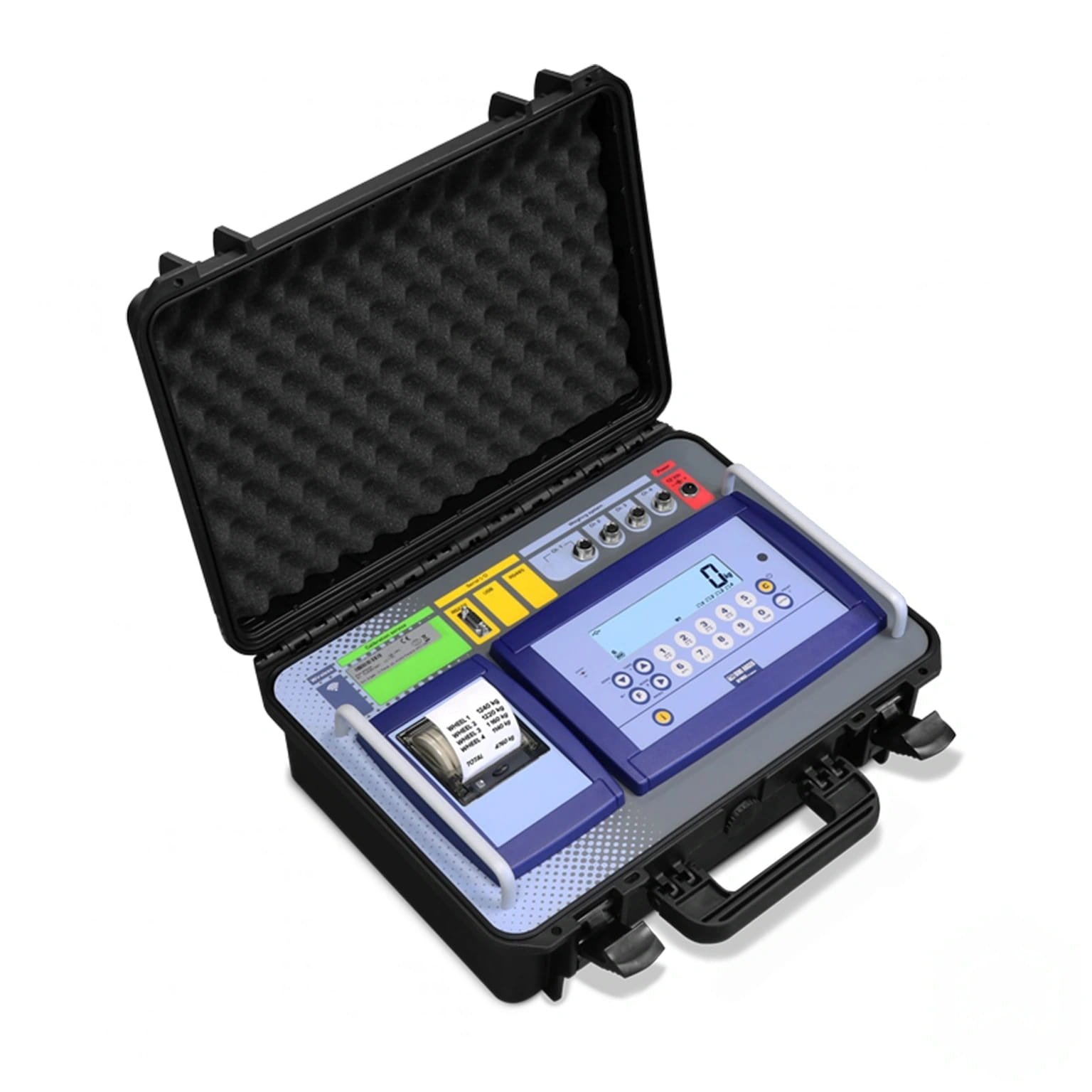

Dini Argeo DFWKRP Weight Indicator for Vehicle and Axle Weighing Supplied in Transport Case with Thermal Printer.

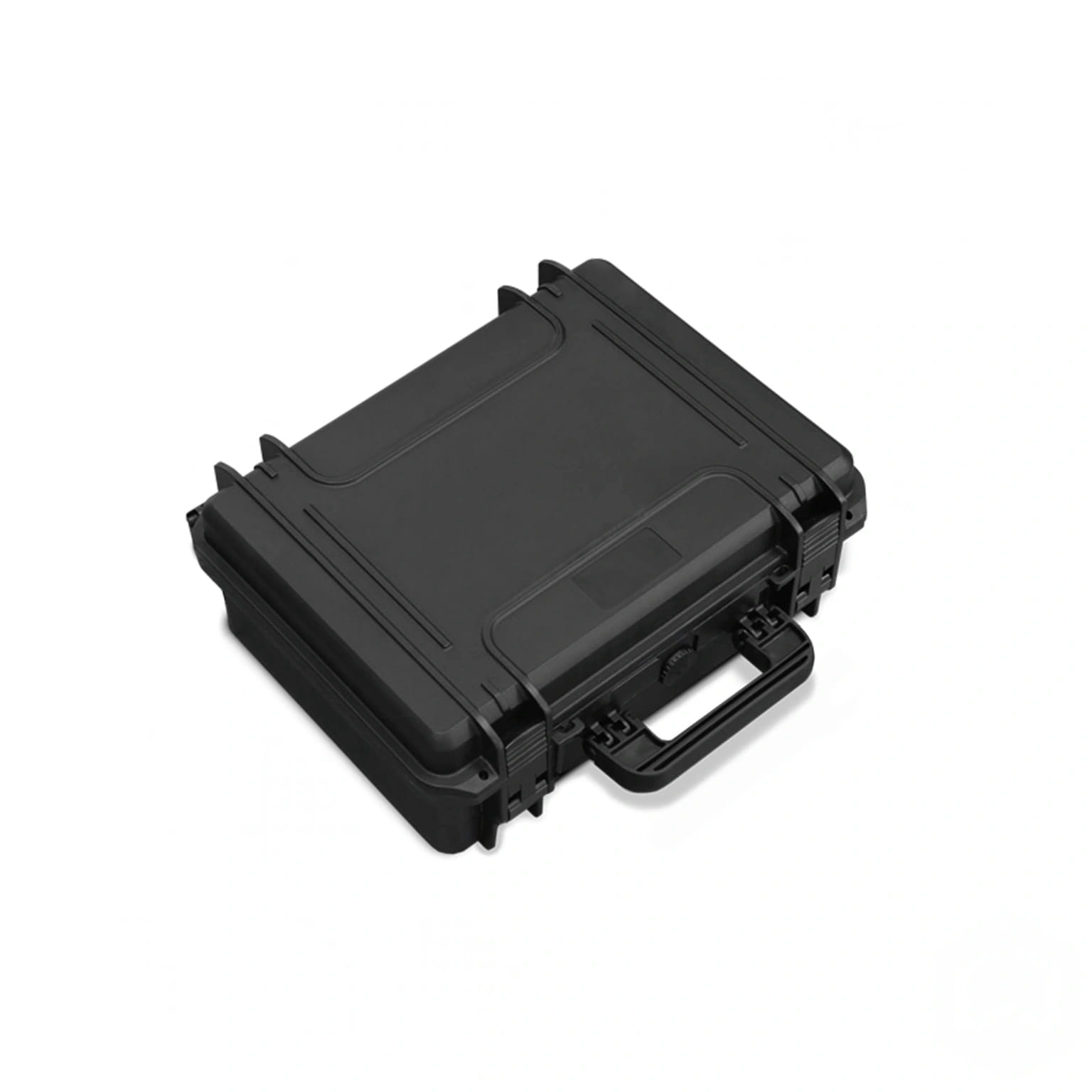

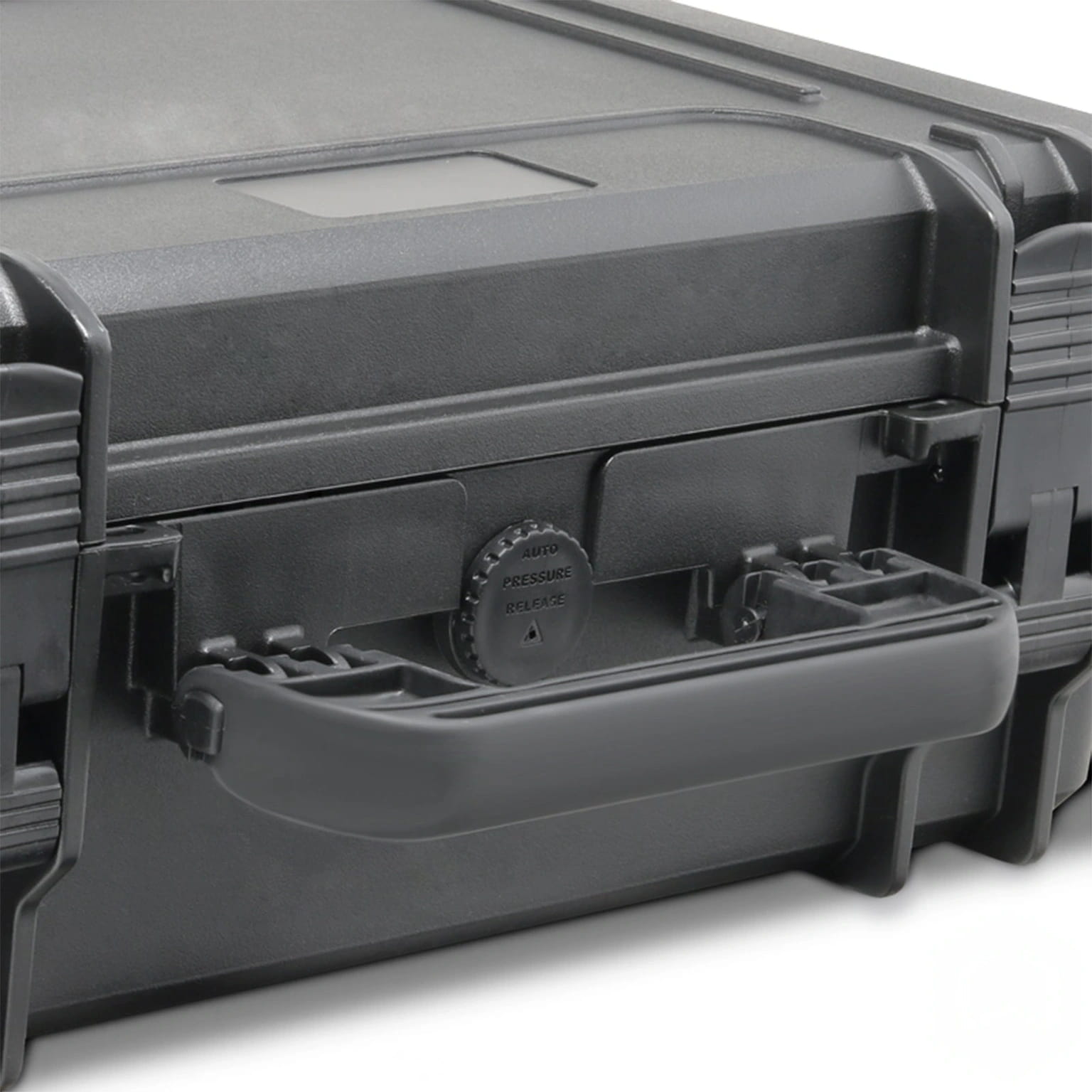

The Dini Argeo DFWKRP is supplied in a removable transport case.
The DFWKRP display can support up to 4 weigh pads by cable connection or up to 20 with the wireless version.
Dini Argeo DFWKRP Weight Indicator for Vehicle and Axle Weighing Supplied in Transport Case with Thermal Printer.
10% off

DFWKRP Portable Weight Indicator with Printer for Vehicle Weighing

£555.00 £616.00
By Dini Argeo

MAIN FEATURES

  • Waterproof functional keyboard with 17 keys.
  • LCD back-lit display with 6 25-mm high contrast digits and with indication of
    active functions.
  • Rack type metallic case.
  • Calibration, set-up parameters, printouts, etc., all configurable from keyboard.
  • Instrument management & configuration from PC with DINITOOLS.
  • Up to 10.000e in single range mode @ 0,3 µV/d in CE-M approved version for
    legal for trade use.
  • Up to 1,000,000 displayable divisions with internal resolution up to 3.000.000
    points.
  • A/D 24-bit 4-channel sigma-delta conversion, up to 200 conv./sec. auto-select
    and up to 8 signal linearization points.
  • Fitted with 4 connectors for connection to 4 platforms (up to 8 optional).
  • Connectable with up to 8 analogue load cells having 350 Ohm input resistance.
  • Built-in rechargeable battery (10-hour minimum operating time, recharge in 8
    hours) with fitted external 12 Vdc / 230 Vac adapter.
  • Fitted with thermal printer, time/date, case for housing indicator and with space
    for other accessories.
  • Dimensions: 325x460x170 mm; Total weight: about 5 kg.

MAIN CERTIFICATIONS

  • EC Type Approval (EN45501)
  • OIML R76

I/O SECTION

  • Available on the panel:
     - 1 RS232/C (or optionally RS485) bi-directional 9-pin port for PC.
  • Available in the indicator:
     - 1 RS232/C port configurable for connection with printer.

APPROVAL WITH CE-M SERIES PLATFORM

  • The weight of the single platform is legal for trade.
  • The total weight of the vehicle is legal for trade depending on the application:
    - The wheel weighing systems, with a number of platforms equal to the number
    of vehicle's wheels, are approved, because the weight of the vehicle is
    determined in only one weigh.
    - The axle weighing systems are for internal use only.
  • The CE-M division in which the total weight of the vehicle is indicated in the
    wheels weighing systems (4 platforms) is equal to the sum of the single
    platforms’ divisions, rounded.
    Example: with 4 approved platforms with division 200g, the approved sum
    weight will be indicated with division 1kg.

KEYBOARD AND PRINTING FUNCTIONS

KEYBOARD:

  • Zero cycle on all the connected platforms.
  • Visualization of the weight of each single platform, of the total weight or of any
    combination of the platforms.
  • Visualization of the weight of each axle (rms) and of the total weight.
  • Simple vehicle weighing with printing of the weights of each single wheel and of
    the total weight.
  • Totalisation of Tractor + Trailer, with printing of the subtotals and of the vehicle
    total.
  • Static axle totalisation, with printing of the weight of each single axle and of the
    vehicle total.
  • Simple input/output.
  • Input/output with axle totalisation.
  • Grand total of the weighed vehicles.
  • Calculation and printing of the barycentre.

PRINTING: Configurable print layout with:

  • 4 header lines.
  • Weight of each single platform and sum of any their combination.
  • Total vehicle weight.
  • Grand total of weighed vehicles.
  • Vehicle barycentre coordinates.
  • Ticket number.
  • Weighs number.
  • Code 39 bar code.
  • Date and time.

FROM REMOTE CONTROL:

  • Infrared 19-key remote control: zero, tare / manual tare, enable / disable
    function, print, switch-off.
  • Radio frequency 6-key remote control: zero, tare, enable / disable function, print,
    switch-off.

Please click here for the Dini Argeo DFWKRP display datasheet .....
