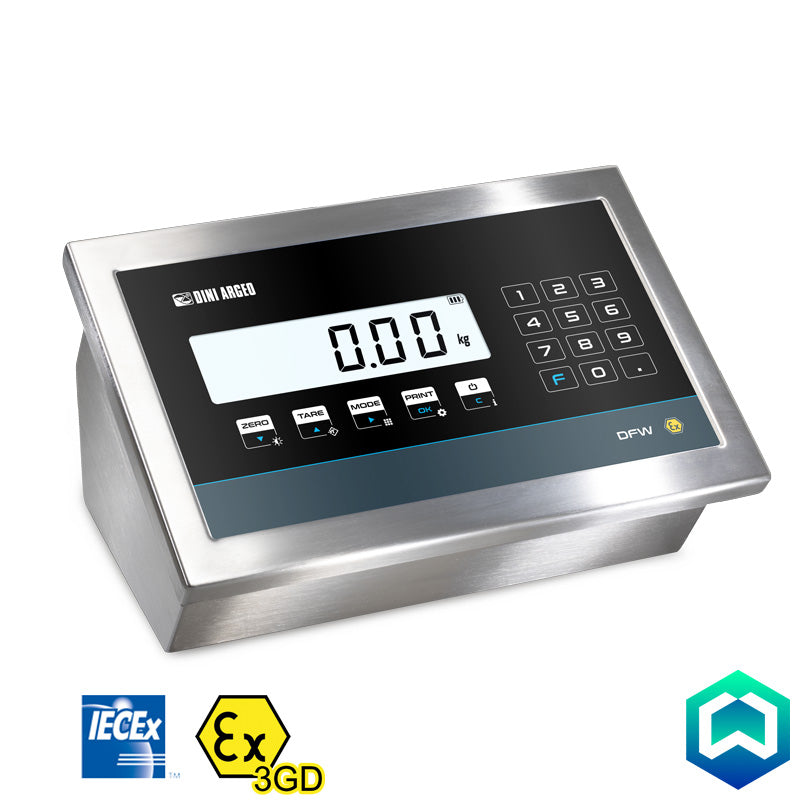

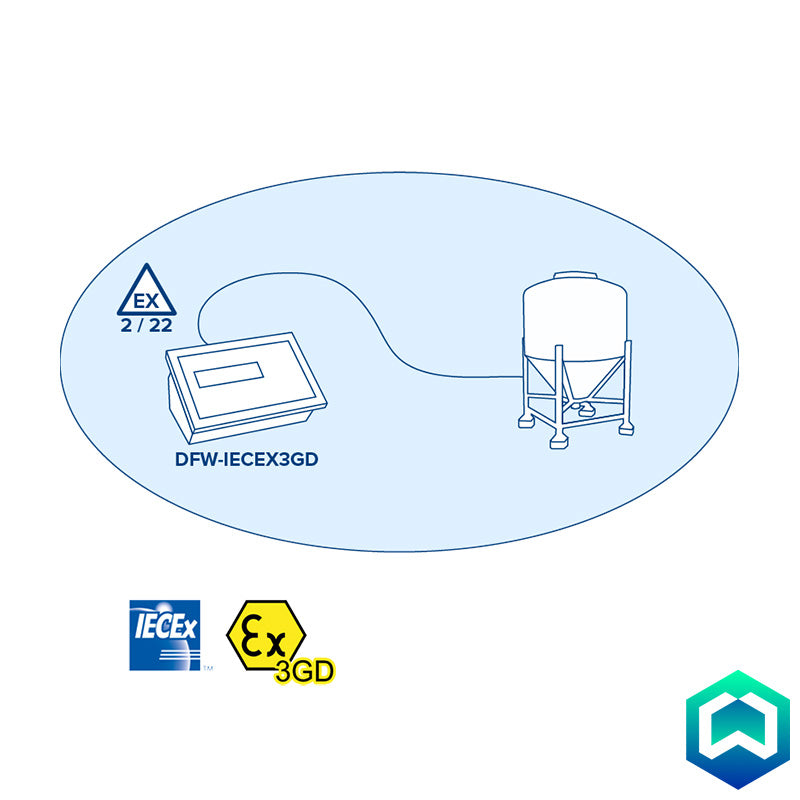

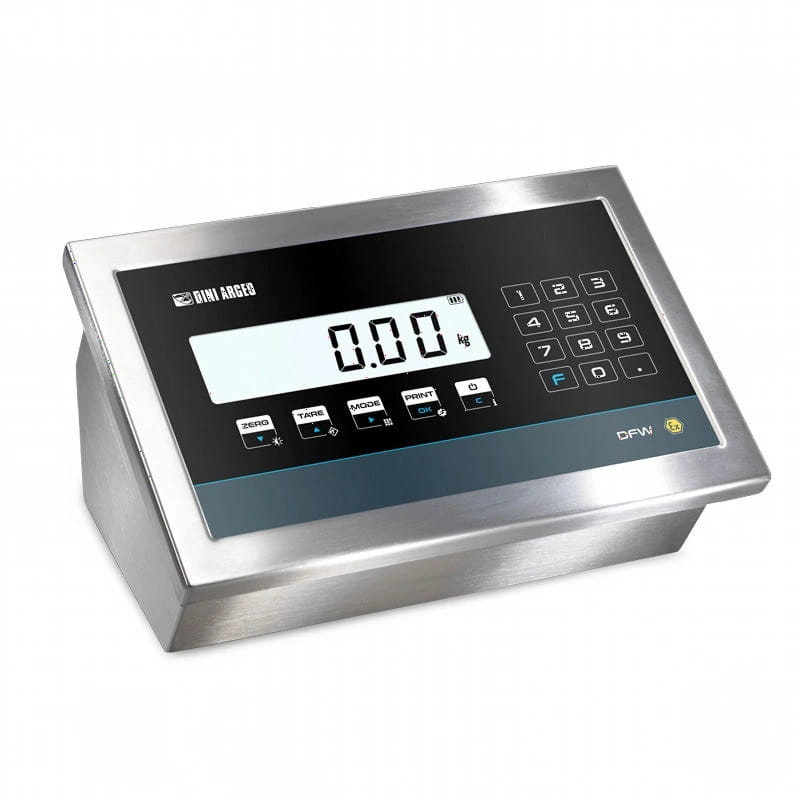

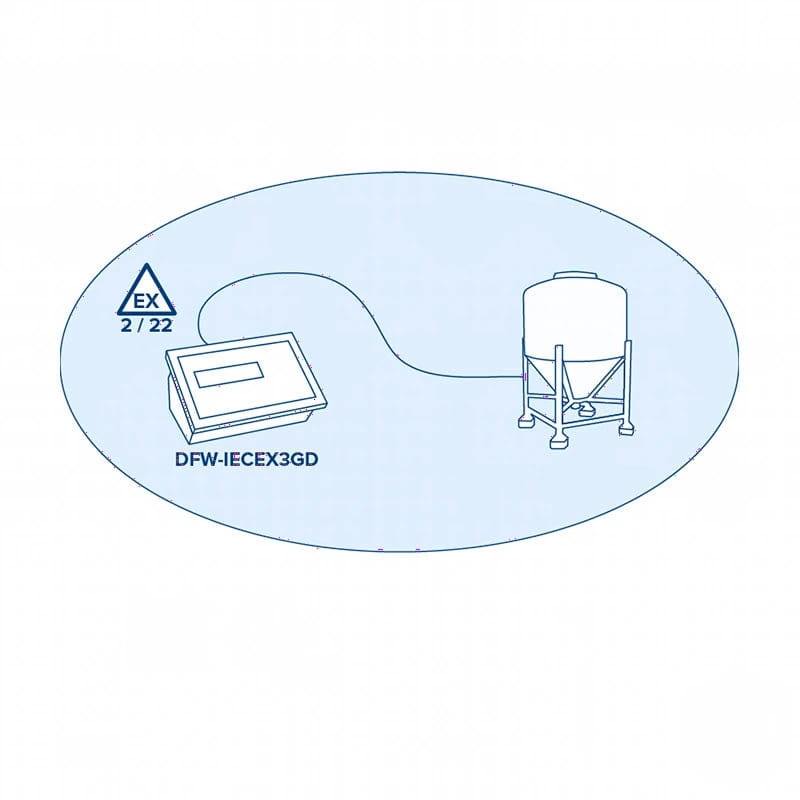

Dini Argeo DFW-IECEX3GD ATEX Indicator for Ex 2 and 22 Zones

Features:

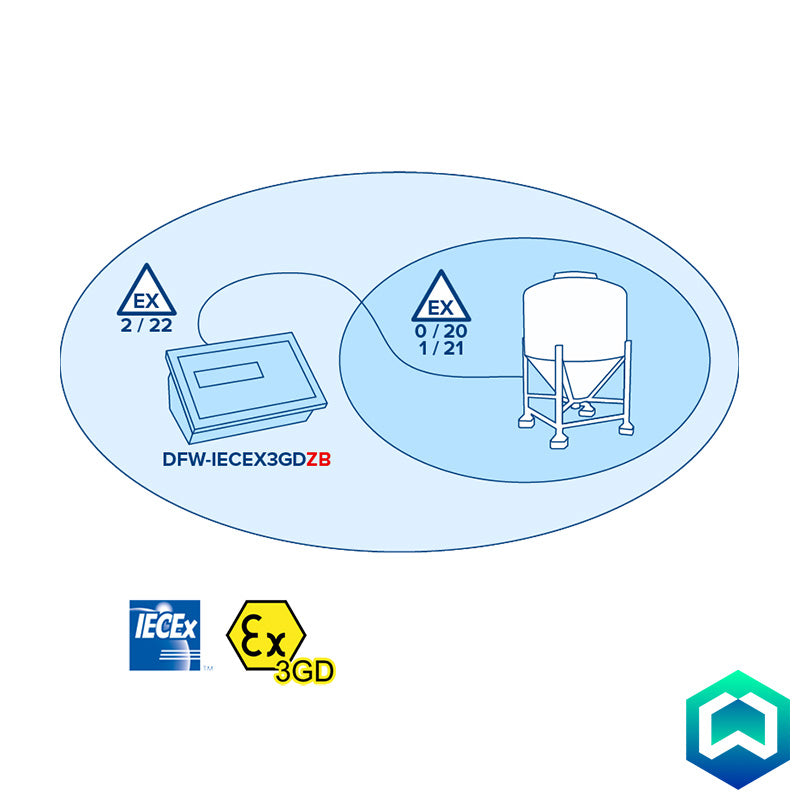

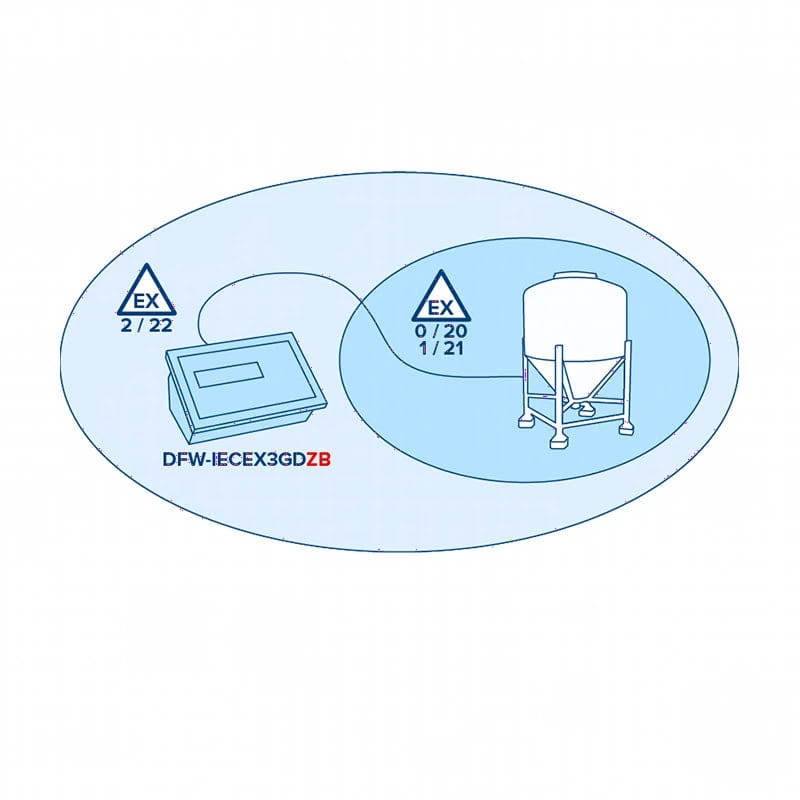

• Hazardous Area Certified: IECEx compliant for safe operation in hazardous environments. Available in a specific version for direct connection to load cells installed in zone 1/21 and 0/20.
• Durable and Hygienic Design: IP68 satin stainless steel enclosure (280x143x185mm) suitable for table, column, or wall mounting. Screwless front closure for easy cleaning.
• User-Friendly Interface: 17-key high-thickness waterproof keyboard and a backlit LCD display with six 25mm digits.
• Flexible Connectivity: Two RS232/C bidirectional ports configurable for printer/labeler, PC, PLC, or remote display connection (all in safe zones). Accommodates up to 8 load cells of 350 Ohm.
• High Performance Weighing: Up to 10,000e or 3 x 3000e @ 0.3 µV/d OIML approved and CE-M legal for trade. Offers up to 1,000,000 displayable divisions for internal factory use, with internal resolution up to 3,000,000 points. 24-bit sigma-delta A/D converter with up to 200 conversions/sec.
• Advanced Features: Up to 8 signal linearisation points (3 accessible from the keyboard) using DINITOOLS software. Instrument management and configuration via PC with DINITOOLS. 4 channels for single weighing systems.
• Power Options: 110-240Vac or 12-24Vdc power supply (optional power cable available). Max 25.2W.
• Added Protection: Internal board protection case. Calibration and digital setup via the keyboard.


Functions:

• Keyboard:
  Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, database of 30 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made.
• Selectable Functions:

• • High Resolution Weighing x 10.
  • Net/Gross or lb/kg conversion.
  • Accumulation.
  • Formula weighing.
  • +/- Checkweighing.
  • Percentage weighing.
  • Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option).
  • Counting.
  • In/Out Truck weighing.
  • Hold.
  • Set Point Control (with DFIO option).

Master/Repeater Options:

• Specific programme (MSTSLV code) to use the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.
  FUNCTIONING MODES:
• Multi-scale repeater (MASTER):
  function which allows the user to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
• UNIVERSAL weight repeater:
  function which allows the user to repeat the weight of any scales, through the configuration of the input string.

Main Certifications

• EU Type Examination Certificate (45501:2015)
• OIML R76
• EN/IEC 60079-0
• EN/IEC 60079-11 (ZB version)
• EN/IEC 60079-15
• EN/IEC 60079-31
• Certification according to ATEX directive 2014/34/EU and in compliance with IECEx scheme, group II category 3GD according to EN/IEC 60079-0, EN/IEC 60079-11, EN/IEC 60079-15, EN/IEC 60079-31.
