CIBE M1 Precision Class Disk Calibration Weight

CIBE M1 Precision Class Disk Weights and Holding Bars

By Cibe

The CIBE M1 Precision Class Disc Weights and Holding Bars provide a versatile and fully customisable solution for high-precision calibration in legal metrology and industrial applications. Conforming to the OIML-R111 Recommendation in M1 class, these disc weights are suitable for verifying and calibrating Class III scales with up to 10,000e divisions, and are an ideal choice for ISO quality weighing instrument verification. Constructed from phosphate iron with an interlocking stacking design, they are available in 5kg, 10kg, and 20kg configurations with optional ACCREDIA (EA) calibration certificate.

select weight
ACCREDIA (EA) Certificate:
£3,365.00
Product Information

Features:

  • OIML-R111 Compliant: Fully adheres to the international OIML-R111 Recommendation in M1 class, ensuring global metrological consistency and reliability.
  • M1 Precision Class: Guarantees high accuracy essential for precise calibration and legal-for-trade applications, suitable for verifying Class III scales with up to 10,000e divisions.
  • Durable Phosphate Iron Construction: Made from phosphate iron, ensuring robustness and longevity in demanding industrial environments.

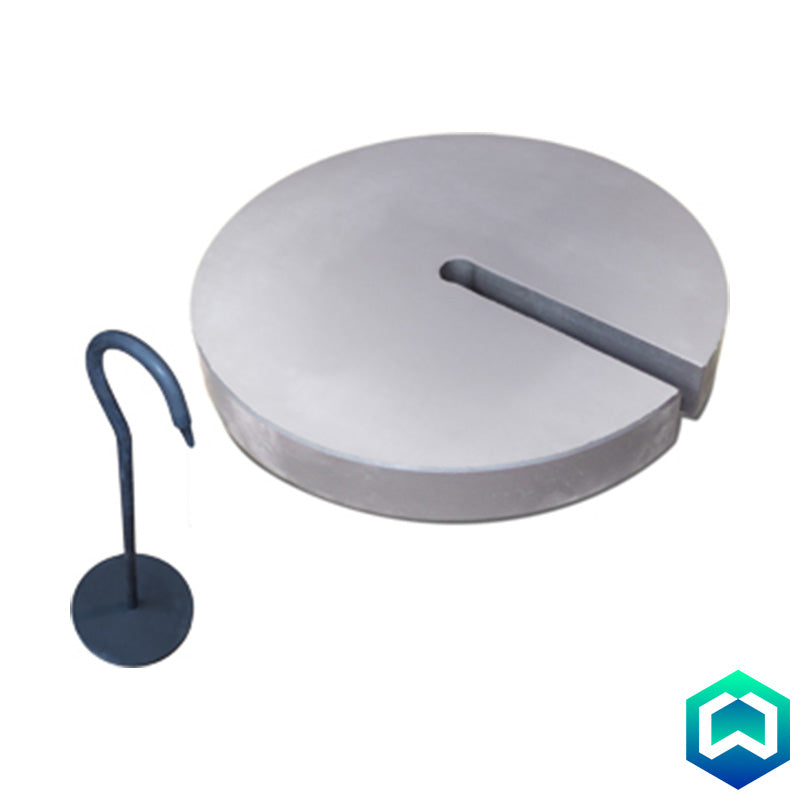

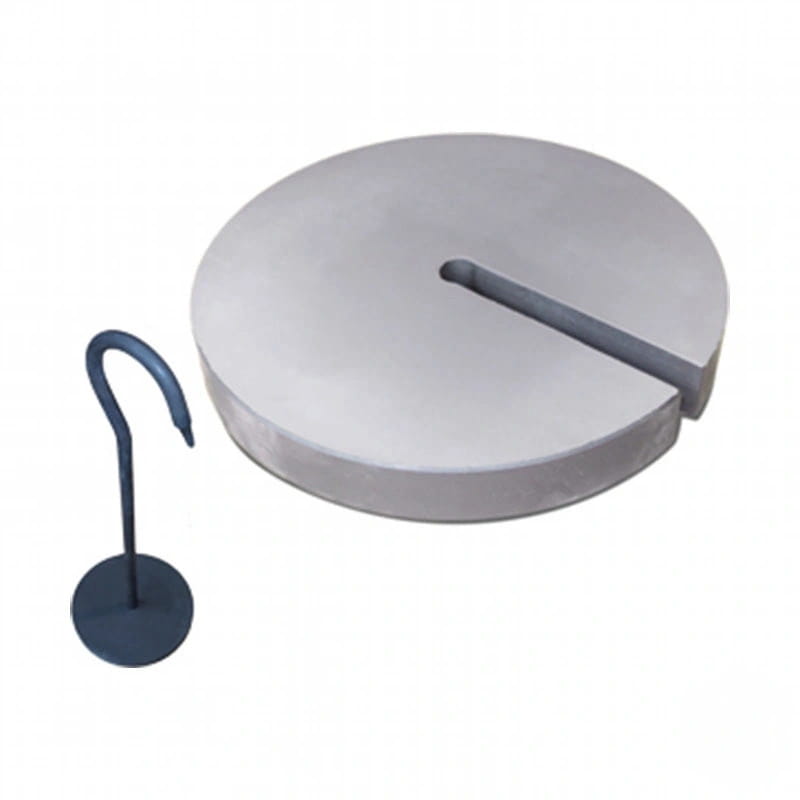

  • Interlocking Design: Each disc mass features a cavity and relief that allows weights to interlock and remain concentric when stacked, ensuring stability and accurate weight distribution during calibration.
  • Slotted for Bar Positioning: Disc masses are designed with a slot for easy and secure positioning on calibration holding bars, enhancing versatility across a range of calibration setups.
  • Fully Customisable Dimensions: Indicated dimensions are customisable, allowing tailored solutions to meet specific user requirements or unique calibration configurations.
  • ACCREDIA (EA) Calibration Certificate: Available upon request, providing internationally recognised traceability and verification of the weight's accuracy.

Product Codes:

Code Description
WM1AK5 5kg phosphate iron beam with hook, for disc weights
WM1AK10 10kg phosphate iron beam with hook, for disc weights
WM1DK5A 5kg phosphate iron disc weight — compatible with 5kg holding bar only
WM1DK10A 10kg phosphate iron disc weight — compatible with 5kg holding bar only
WM1DK5B 5kg phosphate iron disc weight — compatible with 10kg holding bar only
WM1DK10B 10kg phosphate iron disc weight — compatible with 10kg holding bar only
WM1DK20B 20kg phosphate iron disc weight — compatible with 10kg holding bar only

Applications:

  • Legal Metrology: Verification and calibration of trade-approved weighing instruments in regulated environments.
  • Industrial Weighing: Routine checking and calibration of platform scales, bench scales, and industrial weighing equipment.
  • ISO Quality Regimes: Ideal for weighing instrument verification within ISO quality management systems.

Compliance:

  • Metrological Standard: OIML-R111, M1 Accuracy Class
  • Optional Certification: ACCREDIA (EA) Calibration Certificate available on request
Specification

Construction: Phosphate Iron

Available Weights: 5kg, 10kg, 20kg
Downloads

Please click here for the CIBE M1 Precision Class Disk Weights datasheet
